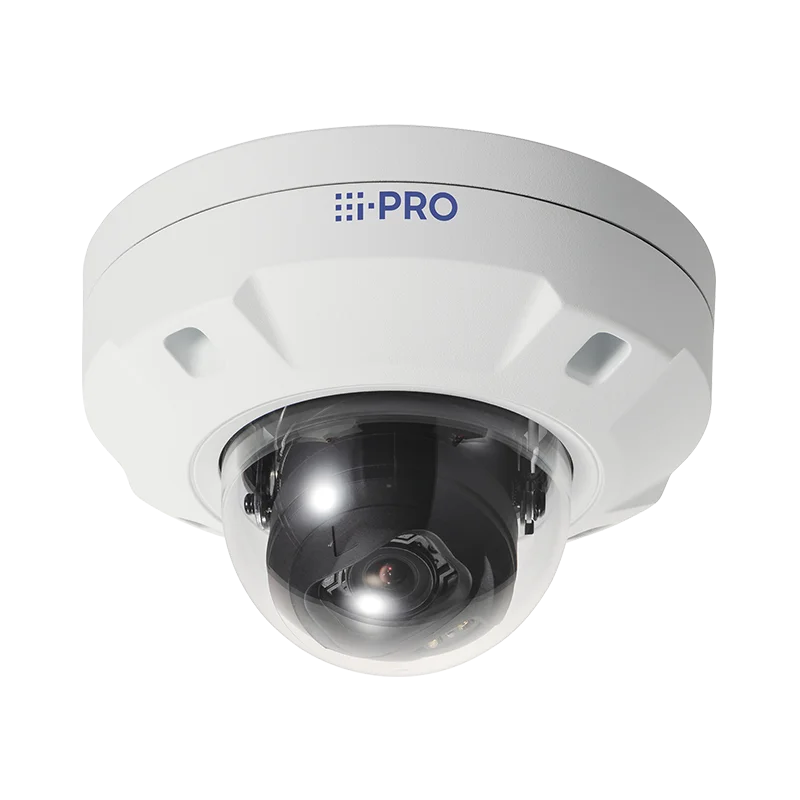

WV-X25700-V2LN i-PRO X-series dome camera

Core Camera Capabilities and Imaging

At the point of image capture, this surveillance system is built around its robust image-capture functions, starting alongside an Picture Sensor of approximately 1/1.8 type CMOS, delivering a significant Scanning Region of 7.68 mm (H) × 4.32 mm (V). This broader sensor size contributes to superior picture quality as well as low-light performance.

The camera incorporates excellent Lowest Illumination specifications, allowing it to acquisition detailed pictures in extremely challenging lighting situations. In color setting, it can attain a distinctive 0.04 lx (at 30IRE, F1.5, 1/30s, AGC:11), as well as even as low as 0.004 lx alongside extended exposure (16/30s). To address monochrome (BW) operation, the camera is capable of functioning in complete darkness (0 lx) whenever the unit's IR LED is activated, otherwise reaching down to 0.03 lx, as well as an notable 0.002 lx with extended exposure. Taken together, the values confirm the camera's suitability for 24/7 observation in varied lighting environments.

White Equilibrium is meticulously controlled alongside ATW1, ATW2, and AWC options, maintaining accurate color reproduction under distinct ambient light sources. The Shutter Speed is highly adaptable, ranging from a fast 1/10000 second to slower speeds such as 1/25 or 1/60, depending on the chosen shot rate setting (e.g., 60 fps, 30 fps, 50 fps, 25 fps). This latitude supports accurate control over movement blur as well as exposure in varied scenarios. The Highest Shutter speed extends to 16/30s or 16/25s, enabling heightened low-light results by allowing more light to reach the imager.

Further enhancing picture quality are attributes like Smart Auto as well as Super Dynamic. Intelligent Auto optimizes multiple picture settings automatically, while Super Dynamic provides an notable Dynamic Selection of up to 132 dB. This wide dynamic selection is crucial for capturing detail in scenes alongside both very bright as well as very dark areas, preventing underexposure or overexposure. Adaptive Black Stretch enables fine-tuning of dark areas alongside a settable level from 0 to 255. The imaging device additionally incorporates Back Light Compensation (BLC) as well as Elevated Light Compensation (HLC), which are vital for maintaining detailed images whenever strong backlighting or intense highlight areas are present. Fog Compensation, alongside a selection of 0 to 8, helps to enhance picture clarity in adverse conditions conditions. The Maximum Gain (AGC), configurable from 0 to 11, delivers extra sensitivity management in low-light situations.

The camera's capacity to selector between colour and black & white settings is managed by Colour/BW (ICR), supplying options such as Off, On (IR Light Off/On), as well as multiple Auto modes, comprising Auto3 (SCC) for smooth transitions. Its integrated IR Illumination delivers robust night vision functions, with selectable power levels (Elevated/Middle/Low/Off) and a highest irradiation range of 70 meters (approx. 230 ft) at 30IRE, or 50 meters (approx. 164 ft) at 50IRE, helping ensure effective security monitoring in complete darkness. Electronic Noise Reduction (0 to 255) additional refines picture quality by reducing visual noise.

Analytics and Advanced Detection

Beyond basic picture capture, this body integrates sophisticated detection and analytical contains. Video Movement Detection (VMD) is supported alongside up to 4 configurable areas, allowing the capture device to trigger alerts based on movement inside specified regions. Scene Change Recognition (SCD), with 1 provided area, alerts operators to significant alterations in the camera's focus area of view.

For audio observation, Audio Recognition can be enabled. Complementing this, AI Sound Classification is a capable function that can identify specific sounds such as Gunshot, Yell, Vehicle horn, as well as Glass break, delivering highly contextual alerts.

The imaging device truly excels in the unit's AI Analytics functions, leveraging the power of Artificial Intelligence for a broad variety of intelligent surveillance functions. These incorporate AI Footage Motion Recognition, AI Privacy Guard, AI Face Recognition, AI People Recognition, AI Vehicle Recognition, AI Non-mask Recognition (up to V3.30), AI Occupancy Recognition, AI Scene Change Recognition, AI On-site Learning, as well as AI Processing Relay. These enhanced analytics permit more accurate event recognition, automated privacy protection, efficient person or object identification, and adaptable learning functions. The camera's open platform additionally allows a variety of 3rd party uses, additional expanding the unit's analytical potential.

Privacy is a principal consideration, and the device supplies a Privacy Zone function, allowing up to 8 configurable zones to be masked alongside multiple colors (gray, white, blue, green, red, black) or mosaic patterns. VIQS (Variable Picture Quality on Specified Area) is additionally provided alongside up to 8 zones, allowing for selective enhancement of picture quality in areas of interest whereas conserving bandwidth elsewhere. For adaptable installation, Image Rotation options incorporate 0°, 90°, 180° (Upside-down), as well as 270°. An Picture Stabilizer, utilizing a built-in gyro imager, maintains steady footage, especially in dynamic settings, and is provided in 30 fps setting. Finally, a Capture device Title (OSD) can be displayed alongside up to 40 characters over 2 lines for detailed identification.

Coverage and Lens Specifications

The camera's Lens is developed for versatility and precision. It incorporates a 2.0x Motorized Optical Focal adjustment and Motorized Focus, allowing for off-site adjustment of the focus area of see and sharpness. An Extra Zoom function extends up to 12.0x, especially useful whenever working at lower definitions such as 640x360.

The Focal Length ranges from 4.3 mm to 8.6 mm, translating to an adaptable Angular Field of View in 16:9 setting: 52°(TELE) - 101°(WIDE) horizontally as well as 29°(TELE) - 55°(WIDE) vertically. This wide selection permits both broad overview security monitoring and detailed close-up observation. The Highest Aperture Ratio of 1:1.5 (WIDE) - 1:2.4 (TELE) indicates strong light-gathering functions across the focal adjustment range. The Focus Selection extends from 1.0 meter to infinity, preserving clear pictures for subjects at multiple distances, and the Aperture Range may be configured from F1.5 to short, allowing for separation of focus area control.

The camera's effective security monitoring reach is quantified by the unit's DORI (Detect, Observe, Recognize, Identify) specifications. This delivers a workable measure of the camera's operation at distinct distances:

• Detect (25ppm / 8ppf): Up to 63.3m (WIDE) and 157.5m (TELE), meaning a person can be detected at these distances.
• Observe (62.5ppm / 19ppf): Up to 25.3m (WIDE) and 63.0m (TELE), allowing for observation of characteristics.
• Recognize (125ppm / 38ppf): Up to 12.7m (WIDE) and 31.5m (TELE), enabling recognition of familiar individuals.
• Identify (250ppm / 76ppf): Up to 6.3m (WIDE) and 15.7m (TELE), allowing for positive identification.

Control and System Architecture

The camera's sturdy operation is powered by the Ambarella CV52 Platform on Chip (SoC), a high-performance processing engine developed for enhanced video analytics as well as encoding. The Refining Angle of the camera makes available significant latitude during installation as well as aiming, alongside a Horizontal (PAN) angle from -194° to +166°, a Vertical (TILT) angle from -30° to +85°, as well as an Azimuth (YAW) angle of ±100°.

Operator interaction and configuration are facilitated via a broad Browser GUI, supporting several languages such as English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, as well as Japanese. This GUI is compatible alongside widely chosen web browsers such as Microsoft Edge, Firefox, as well as Google Chrome.

Connectivity and Network

Network interfacing is established through a 10BASE-T/100BASE-TX RJ45 connector, helping ensure standard Ethernet integration. The unit provides an extensive selection of Definitions depending on the chosen shot rate setting. In 16:9 mode, support extends to definitions up to 3840x2160 (4K UHD) as well as 2560x1440, with lower resolutions provided for 30 fps and 25 fps settings.

To address efficient footage transmission, the camera provides support for H.265/H.264 Transmission Setting/Type, alongside options for Constant bit rate, VBR, Shot rate, as well as Best effort. Transmission types incorporate Unicast as well as Multicast. JPEG (MJPEG) Picture Quality can be configured across 10 steps. Smart Coding attributes like GOP (Group of Pictures) management (Off/Low/Mid/Shot rate management) and Smart VIQS (On/Off) as well as Smart P-picture management optimize bandwidth usage while maintaining footage quality.

Audio communication is supported alongside Audio Compression Methods which include G.726 (16 kbps/32 kbps), G.711 (64 kbps), as well as AAC-LC (64 kbps/96 kbps/128 kbps). Audio Transmission Settings incorporate Off, Mic (Line) source, Audio feed, and Interactive (Half/Full duplex).

Support on the camera extends to a broad suite of Supported Protocols for both IPv6 as well as IPv4, maintaining broad installation compatibility and secure communication. These incorporate TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMP, DHCP, as well as many more, which include enhanced security protocols such as IEEE 802.1X, SRTP, FTP, SFTP, LLDP, as well as MQTT. The camera provides support for up to 14 Simultaneous Operators, depending on installation conditions.

Security is paramount, as well as the camera integrates robust attributes such as FIPS 140-2 level 3 certification (alongside NXP® EdgeLock® SE050F), pre-installed GlobalSign® Device Certificates, HTTPS, operator and host authentication, IEEE802.1X, platform and picture transmission logs, brute-force protection, alteration recognition, secure boot, as well as signed firmware.

For local storage, an SDXC/SDHC/SD Memory Medium slot is provided, supporting capacities from 2 GB up to 512 GB microSDXC cards. The unit is additionally compatible alongside Mobile Terminals running iOS 8.0 or later as well as AndroidTM, as well as adheres to ONVIF® Profile G/S/T/M for interoperability alongside other security monitoring systems.

Input/Output and Alarm

The camera's Alarm platform is highly configurable, alongside Alarm Sources comprising VMD, SCD, Command, as well as Audio recognition alarms. Triggered Alarm Actions can incorporate SDXC/SDHC/SD memory capture, E-mail notification, HTTP alarm notification, browser indication, as well as TCP alarm notification feed.

Physical Input/Output options incorporate a ø3.5 mm stereo mini jack for Audio Source and Audio Output. The camera additionally integrates three Outboard I/O Terminals: ALARM IN1 (multifunctional for alarm source, black & white source, auto time adjustment), ALARM IN2 (alarm source/alarm out), as well as ALARM IN3 (alarm source/AUX out). A Display Feed (pin jack, NTSC or PAL) is additionally provided for practical on-site adjustment.

Durability and General Specifications

The unit adheres to stringent Security and EMC standards, such as UL, c-UL, CE, IEC62368-1, FCC Class A, ICES-003, EN55032 Class A, as well as EN55035, maintaining compliance alongside international regulations.

Power is supplied through DC12 V or PoE+ (IEEE802.3at compliant). Power consumption is efficient, at approximately 14.2 W for DC12V as well as 14.0 W for PoE+.

Developed for harsh settings, the capture device has a wide Ambient Working Temperature selection from -40 °C to +55 °C (-40 °F to +131 °F) (Power On selection: -30 °C to +55 °C), and operates in Ambient Working Humidity from 10 % to 100 % (no condensation). It boasts excellent Water as well as Dust Protection alongside ratings of IP66/IP67 (IEC 60529), Type 4X (UL50E), as well as NEMA 4X compliant. Shock Protection is rated at 50J (IEC 60068-2-75 compliant) as well as IK10 (IEC62262), indicating elevated vandal resistance. It can additionally withstand Wind Protection up to 40 m/s (approx. 89 mph).

The hardware Dimensions are ø154 mm × 105 mm (H), alongside a dome radius of 42 mm. The Mass is approximately 1.1 kg. The camera's hardwearing Finish incorporates an aluminum die-cast main chassis in i-PRO white, corrosion-resistant stainless steel outer fixing screws, as well as a detailed PC resin dome cover alongside ClearSight coating for optimal picture clarity.
