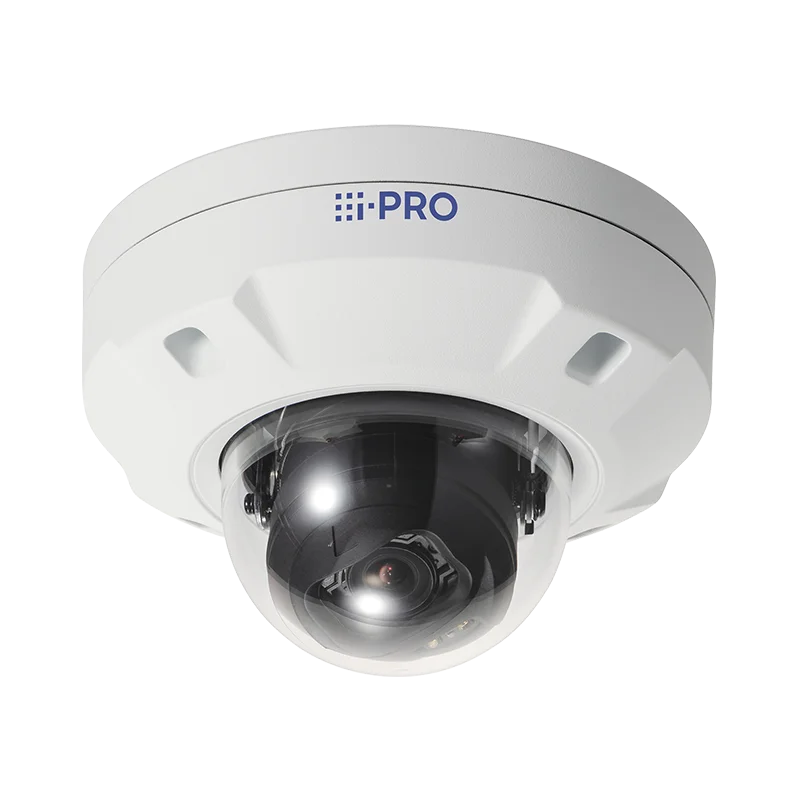

WV-X25600-V2LN i-PRO X-series dome camera with AI

Vision Capabilities and Core Imaging

For professional deployment, the core of this security monitoring option is the unit's Image Imager, an approximate 1/1.8 type CMOS imager with a scanning region of 7.68 mm (H) × 4.32 mm (V). This broader imager size is crucial for capturing high-quality pictures, especially in challenging lighting situations. The camera displays reliable performance in low-light settings, boasting a Lowest Illumination of 0.04 lux in colour setting (at 30IRE, F1.5, 1/30s, AGC:11), as well as an even more notable 0.004 lux with extended exposure (16/30s). To address monochrome (BW) operation, the camera is able to function in complete darkness (0 lux) whenever the unit's IR LED is active, otherwise reaching 0.03 lux, as well as an outstanding 0.002 lux alongside extended light levels. These figures underscore the camera's capacity to maintain detailed visibility around the clock.

White Equilibrium is accurately managed alongside ATW1, ATW2, and AWC options, preserving accurate colour rendition across varying light sources. The imaging device delivers adaptable Shutter Speed settings, ranging from a rapid 1/10000 second to a fixed 1/25 or 1/60 second, depending on the chosen shot rate setting (e.g., 60 fps, 30 fps, 50 fps, 25 fps). The Highest Shutter extends to 16/30s or 16/25s, optimizing light acquisition for superior low-light image-capture.

Further enhancing picture quality are attributes like Smart Auto, which optimizes settings without manual intervention, and Super Dynamic, offering a highest Dynamic Selection of 132 dB. This wide dynamic selection is important for capturing detail in scenes alongside stark contrasts between bright as well as dark areas. Adaptive Black Stretch enables fine-tuning of dark regions with configurable levels from 0 to 255. The camera additionally incorporates Rear Light Compensation (BLC) as well as High Light Compensation (HLC) to avoid underexposure or overexposure caused by strong light sources. Fog Compensation, configurable from 0 to 8, enhances visibility in adverse conditions. The Highest Gain (AGC), settable from 0 to 11, makes available extra sensitivity management in dim conditions.

The camera's capacity to selector between color and monochrome image-capture is handled by Colour/BW (ICR), with options such as Off, On (alongside or without IR Light), and numerous Auto settings (Auto1, Auto2, Auto3 SCC). The unit's integrated IR Illumination offers powerful night vision, supplying Elevated, Middle, Low, or Off settings. The highest IR irradiation range is 70 meters (approx. 230 ft) at 30IRE as well as 50 meters (approx. 164 ft) at 50IRE. Electronic Noise Reduction, alongside levels from 0 to 255, additional refines picture clarity by reducing visual interference.

Privacy Features and Intelligent Analytics

This capture device goes beyond basic security monitoring with sophisticated detection and analytical functions. Video Movement Detection (VMD) can be arranged with up to 4 different areas, triggering alerts upon movement. Scene Change Recognition (SCD), with 1 available area, offers alerts for significant alterations in the camera's focus area of view.

For audio observation, Audio Recognition can be enabled. A standout function is AI Sound Classification, which can intelligently identify specific sounds such as Gunshot, Yell, Vehicle horn, as well as Glass break, delivering highly contextual alerts for rapid response.

The camera's AI Analytics suite leverages Artificial Intelligence for a wide array of enhanced functions. These incorporate AI Footage Motion Recognition, AI Privacy Guard, AI Face Recognition, AI People Recognition, AI Vehicle Recognition, AI Non-mask Recognition (prior to V3.30), AI Occupancy Recognition, AI Scene Change Recognition, AI On-site Learning, as well as AI Processing Relay. These analytics permit accurate event recognition, automated privacy protection, efficient person or object identification, and adaptive learning functions. The open platform also allows 3rd party uses, significantly extending the unit's analytical potential.

Privacy is a critical aspect, as well as the unit provides a sturdy Privacy Zone feature, allowing operators to define up to 8 configurable zones that can be masked alongside numerous colors (gray, white, blue, green, red, black) or a mosaic pattern. VIQS (Variable Picture Quality on Specified Area), provided with up to 8 zones, permits selective picture fidelity enhancement in areas of interest, optimizing bandwidth usage. For adaptable installation as well as viewing, Image Rotation options incorporate 0° (Off), 90°, 180° (Upside-down), and 270°. A built-in Picture Stabilizer, utilizing a built-in gyro imager, maintains stable footage, particularly in dynamic settings, and is provided in 30 fps setting. Finally, a Body Title (OSD) can be displayed alongside up to 40 alphanumeric characters over 2 lines for detailed camera identification.

Coverage and Lens Performance

The camera's optics system is developed for both adaptability and precision. It incorporates a 2.0x Motorized Optical Focal adjustment and Motorized Focus, allowing for practical remote adjustment of the focus area of see and sharpness. An Extra Zoom function extends up to 10.4x, especially beneficial whenever working at lower definitions such as 640x360.

The Focal Length ranges from 4.3 mm to 8.6 mm, delivering an adaptable Angular Field of View in 16:9 setting: Horizontal: 52° (TELE) - 101° (WIDE) as well as Vertical: 29° (TELE) - 55° (WIDE). This broad selection enables both wide-area security monitoring and detailed close-up observation. The Highest Aperture Ratio is 1:1.5 (WIDE) - 1:2.4 (TELE), indicating strong light-gathering functions across the focal adjustment range. The Focus Selection extends from 1.0 meter to infinity, supporting sharp pictures for subjects at a range of distances, and the Aperture Range is adjustable from F1.5 to close for accurate depth of focus area control.

The camera's practical security monitoring reach is quantified by the unit's DORI (Detect, Observe, Recognize, Identify) specifications:

• Detect (25ppm / 8ppf): A person can be detected up to 54.9m (WIDE) and 136.5m (TELE).
• Observe (62.5ppm / 19ppf): Characteristics can be observed up to 21.9m (WIDE) and 54.6m (TELE).
• Recognize (125ppm / 38ppf): Familiar individuals can be recognized up to 11.0m (WIDE) and 27.3m (TELE).
• Identify (250ppm / 76ppf): Positive identification is possible up to 5.5m (WIDE) and 13.6m (TELE).

User Interface and System Architecture

Powering the camera's enhanced functionalities is the Ambarella CV52 Arrangement on Chip (SoC), a high-performance processing engine optimized for sophisticated footage analytics and encoding. The device supplies significant installation latitude with its Adjusting Angle functions: a Horizontal (PAN) angle from -194° to +166°, a Vertical (TILT) angle from -30° to +85°, as well as an Azimuth (YAW) angle of ±100°.

Operator interaction and configuration are seamless via the diverse Browser GUI, which accommodates a wide array of languages, comprising English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, as well as Japanese. This intuitive connection is compatible alongside widely chosen web browsers such as Microsoft Edge, Firefox, as well as Google Chrome.

Security and Network Connectivity

Network incorporation is facilitated through a 10BASE-T/100BASE-TX RJ45 connector, helping ensure standard Ethernet connectivity. Support on the camera extends to a broad selection of Definitions depending on the chosen shot rate setting. In 16:9 mode, it attains resolutions up to 3328x1872 as well as 2560x1440, with extra lower resolutions provided for 30 fps and 25 fps settings.

To address efficient video transmission, support on the camera extends to H.265/H.264 Transmission Modes/Types, such as Constant bit rate, VBR, Shot rate, as well as Best effort, alongside Unicast as well as Multicast options. JPEG (MJPEG) Picture Quality can be configured across 10 steps (0 to 9). Smart Coding elements such as GOP (Group of Pictures) management (Off, Low, Mid, Shot rate management) and Smart VIQS (On/Off) as well as Smart P-picture management optimize bandwidth usage while preserving footage quality.

Audio communication is sturdy, supporting Audio Compression Methods such as G.726 (16 kbps/32 kbps), G.711 (64 kbps), as well as AAC-LC (64 kbps/96 kbps/128 kbps). Multiple Audio Transmission Modes are available, comprising Off, Mic (Line) source, Audio feed, as well as Interactive (Half/Full duplex).

The body provides support for a broad group of Supported Protocols for both IPv6 as well as IPv4, preserving broad installation compatibility and secure communication. These incorporate TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMP, DHCP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, as well as MQTT. The body can accommodate up to 14 simultaneous operators, depending on installation conditions.

Security is a paramount function, with FIPS 140-2 level 3 certification (through NXP® EdgeLock® SE050F), pre-installed GlobalSign® Device Certificates, HTTPS, operator and host authentication, IEEE802.1X, arrangement and picture transmission logs, brute-force protection, alteration recognition, secure boot, as well as signed firmware, all adding to a highly secure security monitoring option.

For local storage, an SDXC/SDHC/SD Memory Medium slot is provided, supporting microSDXC cards up to 512 GB. The body is compatible alongside Mobile Terminals running iOS 8.0 or later as well as AndroidTM, as well as adheres to ONVIF® Profile G/S/T/M for smooth integration with other security monitoring systems.

Input/Output and VI. Alarm Management

The camera's Alarm setup is highly versatile, triggered by Alarm Sources such as VMD, SCD, Command, as well as Audio detection. Configurable Alarm Actions incorporate SDXC/SDHC/SD memory capture, E-mail notification, HTTP alarm notification, browser indication, as well as TCP alarm notification feed.

Physical Input/Output options incorporate a ø3.5 mm stereo mini jack for Audio Source and another for Audio Feed. The camera additionally provides three Outboard I/O Terminals: ALARM IN1 (multifunctional for alarm source, black & white source, auto time adjustment), ALARM IN2 (alarm source/alarm out), as well as ALARM IN3 (alarm source/AUX out). A practical Monitor Feed (pin jack, NTSC or PAL) is provided for on-site adjustment.

Durability and General Specifications — WV-X25600-V2LN

The unit complies alongside rigorous international Security and EMC standards, such as UL, c-UL, CE, IEC62368-1, FCC Class A, ICES-003, EN55032 Class A, as well as EN55035.

Power is supplied through DC12 V or PoE+ (IEEE802.3at compliant), alongside power consumption remaining efficient at approximately 14.2 W (DC12V) as well as 14.0 W (PoE+).

Developed for sturdy outdoor use, the camera operates inside a wide Ambient Working Temperature selection from -40 °C to +55 °C (-40 °F to +131 °F), alongside a power-on selection of -30 °C. It tolerates Ambient Working Humidity from 10% to 100% (non-condensing). Its notable Water as well as Dust Protection is certified by IP66/IP67 (IEC 60529), Type 4X (UL50E), as well as NEMA 4X compliance. Furthermore, it boasts significant Shock Protection at 50J (IEC 60068-2-75 compliant) as well as IK10 (IEC62262), indicating strong vandal protection. It can additionally withstand Wind Protection of up to 40 m/s (approx. 89 mph).

The camera's hardware Dimensions are ø154 mm × 105 mm (H), alongside a dome radius of 42 mm. The unit's approximate Mass is 1.1 kg (2.43 lbs). The hardwearing Finish consists of an aluminum die-cast main chassis in i-PRO white, corrosion-resistant stainless steel outer fixing screws, as well as a detailed PC resin dome cover alongside ClearSight coating for optimal picture clarity.
