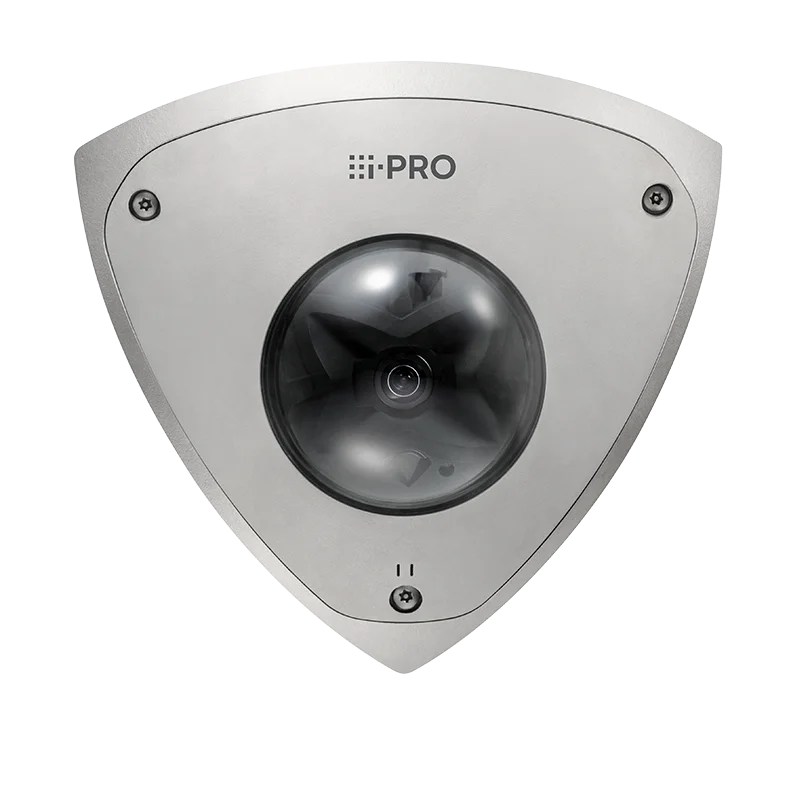

WV-X25580-F2LN2V i-PRO Anti-ligature corner camera with AI engine

Vision Capabilities and Core Imaging — WV-X25580-F2LN2V

Within its operating design, built into the camera are an Picture Imager that is approximately a 1/2.8-inch type CMOS imager. This sensor captures pictures across a Scanning Region of 5.12 mm (H) × 3.84 mm (V), which translates to roughly 3/16 inches (H) by 5/32 inches (V), delivering a detailed and detailed visual source for surveillance.

A central strength of this capture device is the unit's performance in low-light situations, as indicated by the unit's Minimum Illumination specifications. In Colour mode, it can produce usable pictures at just 0.08 lux (30IRE, F2.2, 1/30s, AGC:11) or 0.11 lux (50IRE, F2.2, 1/30s, AGC:11). For even darker scenes, it achieves 0.0069 lux alongside extended light levels (50IRE, F2.2, 16/30s, AGC:11). In Black as well as White (BW) setting, the camera can function in complete darkness (0 lux) whenever the unit's IR LED is active (50IRE, F2.2, 1/30s, AGC:11). Eliminating IR, it still performs exceptionally well at 0.07 lux as well as can go down to 0.0044 lux alongside extended light levels. These figures demonstrate the camera's function for 24/7 observation across a spectrum of lighting challenges.

The capture device makes available flexible control over picture exposure alongside its White Balance options, which include ATW1, ATW2, and AWC, supporting accurate color reproduction under a range of ambient light situations. Whereas a fixed Shutter Speed is not specified, the body makes available an adaptable Maximum Shutter selection from 1/10000 second to 16/30 seconds in 30 fps/15 fps settings, as well as 1/10000 second to 16/25 seconds in 25 fps/12.5 fps settings, allowing for accurate control over movement blur as well as light capture.

Further enhancing picture quality are capabilities like Smart Auto, which automatically optimizes numerous picture settings, and Super Dynamic, which supplies an notable Dynamic Selection of up to 132 dB. This wide dynamic selection is vital for capturing details in scenes alongside extreme light as well as shadow variations, preventing over- or underexposure. Adaptive Black Stretch supports fine-tuning of dark areas alongside a customizable level from 0 to 255. The unit additionally incorporates Back Light Compensation (BLC) as well as High Light Compensation (HLC) to preserve detailed images whenever strong backlighting or bright highlights are present, though these are active only whenever Super Dynamic/Smart Auto are off. Fog Compensation, alongside a range of 0 to 8, enhances visibility in adverse weather conditions, additionally active only whenever Smart Auto/Auto contrast refine are off. The Highest Gain (AGC), settable from 0 to 11, supplies extra sensitivity control in low-light settings.

The camera's Colour/BW (ICR) function delivers flexible setting switching, alongside options such as Off, On (IR Light Off/On), as well as several Auto settings (Auto1, Auto2, Auto3 SCC). The unit's integrated IR LED Light includes powerful night vision, with a highest irradiation range of 21 meters (approx. 69 ft) at 30IRE as well as 15 meters (approx. 49 ft) at 50IRE. Electronic Noise Reduction, alongside levels from 0 to 255, additional refines picture quality by reducing visual noise.

Privacy Features and Advanced Analytics

Beyond basic picture capture, this capture device integrates a suite of enhanced detection as well as analytical incorporates. Video Movement Recognition (VMD) can be enabled or disabled, alongside 4 configurable areas for accurate motion recognition. Scene Change Detection (SCD) is additionally provided, with 1 configurable area, alerting operators to significant alterations in the camera's focus area of view.

For audio observation, Audio Recognition can be toggled on or off. Complementing this, AI Sound Classification is a capable function that can intelligently identify specific sounds such as Gunshot, Yell, Vehicle horn, as well as Glass break, delivering highly contextual alerts for rapid response.

The camera's Analytics functions are extensive, leveraging Artificial Intelligence for an extensive selection of intelligent surveillance functions. These incorporate AI Footage Motion Recognition, AI Privacy Guard, AI Face Recognition, AI People Recognition, AI Vehicle Recognition, AI Non-mask Recognition (prior to V2.70), AI Occupancy Recognition, and AI Scene Change Recognition. These AI-driven integrates enable more accurate event recognition, automated privacy protection, efficient person or object identification, and adaptable learning functions. The platform handles a highest of 3 applications simultaneously, and additional 3rd party applications are additionally available.

Privacy is a principal consideration, and the camera delivers a Privacy Zone feature, allowing operators to define up to 8 configurable zones to be masked from see. VIQS (Variable Picture Quality on Specified Area) is additionally provided alongside up to 8 zones, allowing for selective enhancement of picture quality in areas of interest whereas conserving bandwidth elsewhere. The body does not feature a Picture Stabilizer. For detailed identification, a Body Title (OSD) can be displayed alongside up to 40 characters over 2 lines.

Surveillance Range (DORI) and Lens Performance

The camera's Optics is developed for wide-angle surveillance. It integrates 1x Optical Focal adjustment, meaning it is fitted with a fixed focal length, as well as an Extra Zoom function of up to 4x whenever the definition is location to 640 x 360. There is no Electronic (electronic) Focal adjustment specified. The fixed Focal Length is 2.3mm, delivering a very wide Angular Focus area of See. In 16:9 setting, the horizontal focus area of see is 131° as well as vertical is 70°. In 4:3 setting, it maintains a horizontal focus area of 131° whereas the vertical extends to 95°. This wide focus area of see is well suited for working at large areas alongside a single imaging device.

The Adjusting Angle includes limited hardware movement, primarily for fine-tuning. The Vertical (TILT) angle ranges from -5° to +5°, as well as the Azimuth (YAW) angle is ±5°. The Highest Aperture Ratio is a fixed 1:2.2, as well as the Aperture Range is additionally fixed at F2.2. The Focus Selection extends from 0.5 meters to infinity, helping ensure objects are in focus from short up to far distances.

The camera's effective security monitoring reach is quantified by the unit's DORI (Detect, Observe, Recognize, Identify) specifications, delivering a workable measure of the camera's results at distinct distances:

• Detect (25ppm / 8ppf): An object or person can be detected up to 23.3 meters (76.6 ft).
• Observe (62.5ppm / 19ppf): Detailed characteristics can be observed up to 9.3 meters (30.6 ft).
• Recognize (125ppm / 38ppf): Familiar individuals can be recognized up to 4.7 meters (15.3 ft).
• Identify (250ppm / 76ppf): Positive identification is possible up to 2.3 meters (7.7 ft).

User Interface and System Architecture — WV-X25580-F2LN2V

The camera's computation power is derived from the Ambarella CV22 Platform on Chip (SoC), a high-performance processing engine developed for advanced video functionalities.

Operator interaction and configuration are facilitated via an extensive Browser GUI (Graphical Operator Interface). This interface allows multiple languages such as English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, as well as Japanese, maintaining broad accessibility. The GUI is compatible alongside widely chosen web browsers such as Microsoft Edge, Firefox, as well as Google Chrome.

Security and Network Connectivity — WV-X25580-F2LN2V

Network incorporation is established through a 10BASE-T/100BASE-TX RJ45 connector, maintaining standard Ethernet connectivity. The device is compatible with a selection of Resolutions based on the chosen mode. In 16:9 setting (30fps/25fps), definitions selection from 3072x1728 to 320x180. In 4:3 setting (30fps/25fps), definitions range from 3072x2304 to QVGA.

To address efficient video transmission, the device is compatible with H.265/H.264 Transmission Modes/Types, which include Constant bit rate, VBR, Shot rate, as well as Best effort. Transmission types incorporate Unicast as well as Multicast. The unit can generate 4 feeds simultaneously. JPEG (MJPEG) Picture Quality can be configured across 10 steps (0 for SUPER Small to 9 for LOW). Smart Coding attributes such as GOP (Group of Pictures) management (Off, Low, Mid, Enhanced, Frame rate management) and Smart VIQS (On/Off) as well as Smart P-picture management optimize bandwidth usage while maintaining footage quality, with Enhanced and Shot rate management exclusive to H.265.

Audio communication is sturdy, supporting Audio Compression Methods such as G.726 (16 kbps/32 kbps), G.711 (64 kbps), as well as AAC-LC (64 kbps/96 kbps/128 kbps). Several Audio Transmission Modes are provided, including Off, Mic (Line) source, Audio feed, as well as Interactive (Half/Full duplex).

The unit accommodates a wide-ranging location of Supported Protocols for both IPv6 as well as IPv4, helping ensure broad installation compatibility and secure communication. These incorporate TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMP, DHCP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, as well as MQTT. The unit can accommodate up to 14 simultaneous operators, depending on installation conditions.

Security is a paramount function, with FIPS 140-2 level 3 certification (through NXP® EdgeLock® SE050F), pre-installed GlobalSign® Device Certificates, HTTPS, operator authentication, digest authentication, Host authentication, IEEE802.1X, platform and picture transmission logs, brute-force protection, alteration recognition, and signed firmware, all adding to a highly secure security monitoring option.

For local storage, an SDXC/SDHC/SD Memory Medium slot is provided, supporting microSDXC cards up to 512 GB. The unit is compatible alongside Mobile Terminals running iOS 8.0 or later as well as Android™ devices, as well as adheres to ONVIF® Profile G/S/T/M for smooth integration with other security monitoring systems.

Input/Output and Alarm Management

The camera's Alarm setup is highly versatile, triggered by several Alarm Sources which include 3 terminal sources, VMD alarm, SCD alarm, Command alarm, as well as Audio recognition alarm. Configurable Alarm Actions incorporate SDXC/SDHC/SD memory capture, E-mail notification, HTTP alarm notification, browser indication, as well as TCP alarm notification feed.

Physical Input/Output options incorporate a Built-in Nondirectional electret condenser microphone (removable). It additionally integrates a ø3.5 mm stereo mini jack for Audio Source and another for Audio Feed (monaural, approx. 600 ? Feed impedance, -20 dBV feed level). The camera makes available three Outboard I/O Terminals: ALARM IN1 (multifunctional for alarm source, black & white source, auto time adjustment), ALARM IN2 (alarm source/alarm out), as well as ALARM IN3 (alarm source/AUX out). A practical Monitor Feed (pin jack, NTSC or PAL) is provided for on-site adjustment.

Durability and General Specifications — WV-X25580-F2LN2V

The body adheres to rigorous international Security and EMC standards, comprising UL, c-UL, CE, IEC62368-1, FCC Class A, ICES-003, EN55032 Class A, as well as EN55035, helping ensure broad regulatory compliance.

Power is supplied through DC12 V or PoE (IEEE802.3af compliant). Power consumption is efficient, at approximately 12.6W for DC12V as well as 11.5W for PoE (Class 0 device).

Developed for robust outdoor use, the unit provides a wide Ambient Working Temperature selection from -40 °C to +55 °C (-40 °F to +131 °F), alongside a power-on selection of -20 °C. It's noted that whenever the IR LED is constantly lit, the upper temperature limit is +50 °C. It is capable of operating in Ambient Working Humidity from 10% to 100% (non-condensing). Its notable Water as well as Dust Protection is certified by IP69/IP66/IP67 (IEC 60529), Type 4X (UL50E), NEMA 4X compliant, as well as IP6K9K (ISO 20653) compliant, indicating extreme protection to water, dust, as well as high-pressure washing. Furthermore, it boasts significant Shock Protection at IK11 (IEC62262), tested for 70J impact protection, signifying elevated vandal resistance. It can additionally withstand Wind Protection of up to 40 m/s (approx. 89 mph).

The camera's hardware Dimensions are 197x128x138 mm, as well as the unit's approximate Mass is 1.9 kg (4.19 lbs). The hardwearing Finish brings together a Stainless (Silver) main chassis alongside an Aluminum die-cast (Black paint) component, as well as a detailed PC resin dome cover alongside ClearSight coating for optimal picture clarity. The camera additionally accommodates Easy Kitting, simplifying deployment.
