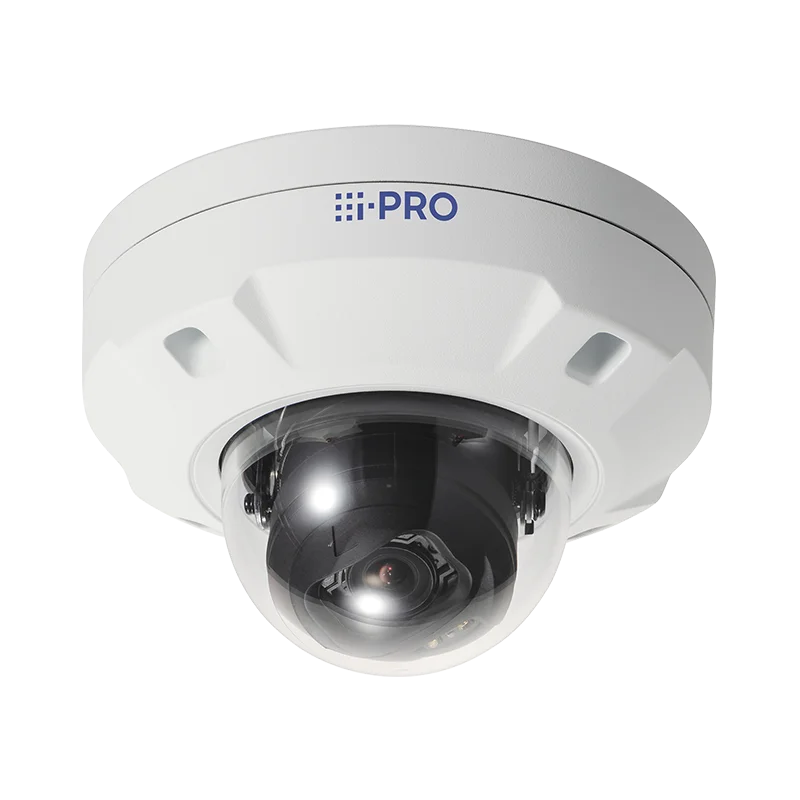

WV-X25500-V3LN i-PRO X-series dome camera with AI

WV-X25500-V3LN i-PRO X-series dome camera: AI

Visual Performance and I. Advanced Imaging

Considering the complete platform, this security monitoring camera's visual prowess centers on its Picture Imager, an approximate 1/2.8-inch type CMOS imager. This sensor captures pictures across a Scanning Region of 5.12 mm (H) × 3.84 mm (V), equivalent to roughly 3/16 inches by 5/32 inches. Despite the unit's space-efficient size, the imager is highly efficient, especially in low-light situations.

The camera's Minimum Illumination functions are outstanding, allowing it to produce clear pictures even in extremely challenging lighting. In colour mode, it is capable of reaching a strong 0.03 lux (at 30IRE, F1.3, 1/30s, AGC:11) as well as as low as 0.003 lux alongside an extended exposure (16/30s). To address monochrome (BW) function, the imaging device excels in darkness, reaching 0 lux whenever its IR LED is activated. Eliminating the IR LED, it can still acquisition usable pictures at 0.02 lux, as well as an notable 0.002 lux alongside extended light levels. These specifications highlight the camera's suitability for uninterrupted 24/7 observation in diverse lighting environments.

White Equilibrium is accurately controlled alongside ATW1, ATW2, and AWC options, supporting accurate color reproduction under a range of ambient light sources. The Shutter Speed provides significant latitude, ranging from a swift 1/10000 second to a fixed 1/25, 1/50, or 1/60 second, depending on the chosen shot rate setting (e.g., 60 fps, 30 fps, 50 fps, 25 fps). This adaptability enables fine-tuning of movement blur as well as exposure in varied scenarios. The Highest Shutter speed extends to 16/30s or 16/25s, optimizing light acquisition for superior low-light image-capture.

Further enhancing picture quality are built-in elements like Smart Auto, which automatically optimizes numerous picture settings, and Super Dynamic, which supplies an impressive highest Dynamic Selection of 132 dB. This wide dynamic selection is crucial for maintaining detail in scenes that contain both very bright as well as very dark areas, preventing washed-out highlights or obscured shadowing. Adaptive Black Stretch supports granular management over the enhancement of dark areas, alongside a configurable level from 0 to 255. The camera additionally incorporates Back Light Compensation (BLC) as well as Elevated Light Compensation (HLC), which are vital for maintaining detailed images whenever strong backlighting or intense highlight areas are present (these operate whenever Super Dynamic/Smart Auto are off). Fog Compensation, alongside a selection of 0 to 8, helps to enhance picture clarity in adverse conditions conditions, specifically whenever Smart Auto or Auto contrast refine are off. The Highest Gain (AGC), settable from 0 to 11, offers extra sensitivity management in low-light situations.

The camera's function to cleanly transition between colour and black & white settings is managed by Colour/BW (ICR), offering adaptable options such as Off, On (IR Light Off/On), as well as several Auto settings (Auto1, Auto2, Auto3 SCC). The unit's integrated IR Illumination supplies robust night vision, alongside selectable power levels (Elevated/Middle/Low/Off) as well as an effective highest irradiation range of 70 meters (approx. 230 ft) at 30IRE, or 50 meters (approx. 164 ft) at 50IRE, maintaining effective security monitoring in complete darkness. Electronic Noise Reduction, configurable from 0 to 255, additional refines picture quality by reducing visual noise.

Advanced Analytics and II. Intelligent Detection

Beyond basic picture capture, this capture device integrates sophisticated detection and analytical provides. Video Movement Detection (VMD) is supported alongside up to 4 configurable areas, allowing the capture device to trigger alerts based on movement inside specified regions. Scene Change Recognition (SCD), with 1 available area, alerts operators to significant alterations in the camera's focus area of view.

For complete audio observation, Audio Recognition can be enabled. Complementing this, AI Sound Classification is a capable function that can intelligently identify specific sounds such as Gunshot, Yell, Vehicle horn, as well as Glass break, delivering highly contextual alerts that enhance situational awareness as well as response times.

The unit truly distinguishes itself alongside its extensive AI Analytics functions, leveraging Artificial Intelligence for an extensive selection of intelligent surveillance functions. These incorporate AI Footage Motion Recognition, AI Privacy Guard, AI Face Recognition, AI People Recognition, AI Vehicle Recognition, AI Non-mask Recognition (prior to V3.30), AI Occupancy Recognition, and AI Scene Change Recognition. These enhanced analytics permit more accurate event recognition, automated privacy protection, efficient person or object identification, and adaptable learning functions. The camera's open platform additionally handles a selection of 3rd party applications, additional expanding the unit's analytical potential, as detailed on the provided i-PRO links.

Privacy is a critical consideration, as well as the camera delivers a sturdy Privacy Zone function, allowing up to 8 configurable zones to be masked alongside several colors (gray, white, blue, green, red, black) or a mosaic pattern. VIQS (Variable Picture Quality on Specified Area) is additionally provided alongside up to 8 zones, allowing for selective enhancement of picture quality in areas of interest whereas conserving bandwidth elsewhere. For adaptable installation as well as viewing adjustments, Image Rotation options incorporate 0° (Off), 90°, 180° (Upside-down), as well as 270°. An Image Stabilizer feature is provided, particularly valuable for reducing blur from vibrations, as well as is operational only in the 30 fps setting. Finally, a Capture device Title (OSD) can be displayed alongside up to 40 characters over 2 lines for detailed camera identification.

Coverage Performance and III. Lens Specifications

The camera's Optics system is developed for both versatility and accurate control. It integrates a 3.1x Motorized Optical Focal adjustment and Motorized Focus, allowing for practical remote adjustment of the focus area of see and sharpness. An Extra Zoom function extends up to 12.4x, especially useful whenever working at lower definitions such as 640x360.

The Focal Length ranges from 2.9 mm to 9 mm, which translates to a highly adaptable Angular Focus area of View. In 16:9 setting, the horizontal focus area of see spans from 33° (TELE) to 103° (WIDE), as well as the vertical focus area of see ranges from 19° (TELE) to 55° (WIDE). For 4:3 setting, the horizontal remains 33° (TELE) to 103° (WIDE), whereas the vertical extends from 25° (TELE) to 75° (WIDE). This wide selection permits both broad overview security monitoring and detailed close-up observation. The Highest Aperture Ratio is 1:1.3 (WIDE) - 1:2.5 (TELE), indicating strong light-gathering functions across the focal adjustment range. The Focus Selection extends from 0.3 meters to infinity, supporting clear pictures for subjects at a range of distances, as well as the Aperture Selection can be accurately set from F1.3 to short, allowing for separation of focus area control.

The camera's practical security monitoring reach is effectively quantified by the unit's DORI (Detect, Observe, Recognize, Identify) specifications, which deliver a detailed measure of performance at distinct distances:

• Detect (25ppm / 8ppf): A person can be detected up to 48.9m (WIDE) and 207.4m (TELE).
• Observe (62.5ppm / 19ppf): General characteristics can be observed up to 19.5m (WIDE) and 83.0m (TELE).
• Recognize (125ppm / 38ppf): Familiar individuals can be recognized up to 9.8m (WIDE) and 41.5m (TELE).
• Identify (250ppm / 76ppf): Positive identification is possible up to 4.9m (WIDE) and 20.7m (TELE).

User Interface and IV. System Architecture

The camera's sturdy performance and enhanced functions are powered by the Ambarella CV52 Configuration on Chip (SoC), a high-performance processing engine specifically developed for sophisticated footage analytics and efficient encoding. For adaptable installation and accurate aiming, the fixed camera makes available extensive Refining Angles: a Horizontal (PAN) angle from -194° to +166°, a Vertical (TILT) angle from -30° to +85°, as well as an Azimuth (YAW) angle of ±100°.

Operator interaction and configuration are seamless via the extensive Browser GUI, which handles a wide array of languages such as English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, as well as Japanese. This intuitive connection is compatible alongside widely chosen web browsers such as Microsoft Edge, Firefox, as well as Google Chrome, maintaining broad accessibility as well as ease of management.

Security Infrastructure and V. Network Connectivity

Network incorporation is facilitated through a standard 10BASE-T/100BASE-TX RJ45 connector, maintaining robust Ethernet connectivity. The device is compatible with a broad selection of Definitions depending on the chosen shot rate setting and aspect ratio. In 16:9 setting, it is able to reach definitions up to 3072x1728 (utilizing super definition techniques) as well as 2560x1440 at elevated frame rates, with extra lower resolutions available for multiple frame rate settings. Similarly, in 4:3 mode, compatibility includes resolutions up to 3072x2304 (alongside super definition) and 2560x1920, along alongside other standard resolutions.

To address efficient video transmission, the device is compatible with both H.265 as well as H.264 Transmission Modes/Types, offering a range of transmission priorities such as Constant bit rate, VBR, Shot rate, as well as Best effort. Transmission types incorporate Unicast as well as Multicast. JPEG (MJPEG) Picture Quality can be configured across 10 steps from 0 (SUPER Small) to 9 (LOW). Smart Coding features, such as sophisticated GOP (Group of Pictures) management (Off, Low, Mid, Enhanced, Frame rate management) and Smart VIQS (On/Off) as well as Smart P-picture management, are implemented to balance bandwidth usage while maintaining high footage quality, with Enhanced and Frame rate control specifically provided for H.265.

Audio communication is sturdy, supporting multiple Audio Compression Methods such as G.726 (16 kbps/32 kbps), G.711 (64 kbps), as well as AAC-LC (64 kbps/96 kbps/128 kbps). Several Audio Transmission Modes are provided, including Off, Mic (Line) source, Audio feed, as well as Interactive (Half/Full duplex).

The unit accommodates an extensive suite of Supported Protocols for both IPv6 as well as IPv4, helping ensure broad installation compatibility and secure communication. These incorporate TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMP, DHCP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, as well as MQTT. The body can accommodate up to 14 simultaneous operators, though actual results may vary depending on installation conditions.

Security is a paramount function, with sturdy implementations such as FIPS 140-2 level 3 certification (through NXP® EdgeLock® SE050F), pre-installed GlobalSign® Device Certificates, HTTPS, operator as well as host authentication, IEEE802.1X, detailed setup and picture transmission logs, brute-force protection, alteration recognition, secure boot, as well as signed firmware, all adding to a highly secure security monitoring solution.

For local storage and capture, an SDXC/SDHC/SD Memory Medium slot is provided, supporting microSDXC cards up to 512 GB. The capture device is compatible alongside Mobile Terminals such as iPad/iPhone (iOS 8.0 or later) as well as AndroidTM devices, as well as adheres to ONVIF® Profiles G, S, T, as well as M for smooth integration with other security monitoring systems.

Input/Output Interfaces and VI. Alarm Management

The camera's Alarm setup is highly configurable as well as responsive, with Alarm Sources which include 3 terminal sources, VMD alarm, SCD alarm, Command alarm, as well as Audio recognition alarm. Triggered Alarm Actions can incorporate SDXC/SDHC/SD memory capture, E-mail notification, HTTP alarm notifications (alongside browser indication), as well as TCP alarm notification feed, providing versatile alert mechanisms.

To address physical interfacing and outboard device integration, the unit provides a complete selection of Input/Output interfaces. This incorporates a ø3.5 mm stereo mini jack for Audio Source as well as another ø3.5 mm stereo mini jack for Audio Feed (monaural), with a feed impedance of approximately 600 ? (unbalanced) and a feed level of –20 dBV. The unit also makes available three purpose-built Outboard I/O Terminals: ALARM IN1 (multifunctional for alarm source, black & white source, or auto time adjustment), ALARM IN2 (alarm source 2 or alarm out), as well as ALARM IN3 (alarm source 3 or AUX out). A practical Monitor Feed (pin jack, NTSC or PAL feed) is additionally provided for on-site adjustment as well as verification.

Environmental Durability and VII. General Specifications

The body adheres to stringent international Security and EMC standards, comprising UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1 for security, as well as FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035 for electromagnetic compatibility, helping ensure compliance with global regulations.

To address power, the imaging device can be supplied through DC12 V or PoE+ (IEEE802.3at compliant). Power consumption is efficient, approximately 14.2 W for DC12V as well as 14.0 W (Class 4 device) for PoE+.

Developed for robust operation in challenging settings, the unit has a wide Ambient Working Temperature selection from -40 °C to +55 °C (-40 °F to +131 °F). The power-on selection is -30 °C to +55 °C. It's important to note that whenever the IR LED is constantly lit, the upper working temperature limit is +50 °C. The capture device is able to operate in Ambient Working Humidity from 10% to 100% (non-condensing). Its reliable Water as well as Dust Protection is certified by IP66/IP67 (IEC 60529), Type 4X (UL50E), as well as NEMA 4X compliance, indicating suitability for outdoor as well as harsh situations. Furthermore, it boasts significant Shock Protection at 50J (IEC 60068-2-75 compliant) as well as an IK10 rating (IEC62262), signifying elevated vandal resistance. It can additionally withstand Wind Protection of up to 40 m/s (approx. 89 mph).

The camera's hardware Dimensions are ø154 mm × 105 mm (H), alongside a dome radius of 42 mm (excluding conduit attachment). The approximate Mass is 1.1 kg (2.43 lbs) (excluding conduit attachment). The hardwearing Finish consists of an aluminum die-cast main chassis in i-PRO white, corrosion-resistant stainless steel outer fixing screws, as well as a detailed PC resin dome cover alongside ClearSight coating for optimal picture clarity and durability.
