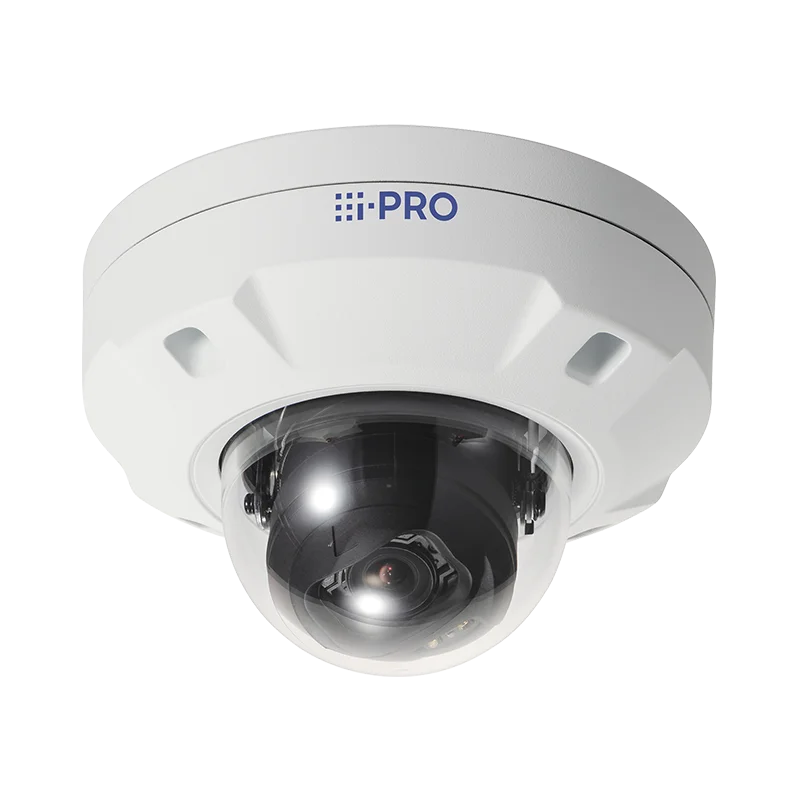

WV-X25300-V3LN i-PRO X-series dome camera with AI

WV-X25300-V3LN i-PRO X-series dome camera: AI

Vision System and I. Core Imaging

Within its operating design, this security monitoring camera's visual prowess is founded on its Picture Imager, which is an approximate 1/2.8 type CMOS imager. This sensor captures pictures across a scanning region of 5.57 mm (H) × 3.13 mm (V). Whereas slightly smaller than some pro-level sensors, it is optimized for excellent performance, especially in challenging lighting situations, thanks to the camera's enhanced processing.

Camera performance exhibits distinctive rating to light, as evidenced by the unit's Minimum Illumination specifications. In colour mode, it can capture detailed pictures alongside as little as 0.007 lux (at 30IRE, F1.3, 1/30s, AGC:11) as well as an even more notable 0.0006 lux with extended exposure (16/30s). To address black as well as white (BW) function, the camera achieves 0 lux whenever the unit's IR LED is active, enabling security monitoring in complete darkness. Eliminating IR, it can still function at 0.005 lux, as well as down to 0.0004 lux alongside extended light levels, making it highly effective for 24/7 observation.

White Equilibrium is accurately controlled alongside ATW1, ATW2, and AWC options, helping ensure accurate colour reproduction under varied ambient lighting. The Shutter Speed is highly adaptable, ranging from a rapid 1/10000 second to slower fixed speeds such as 1/25 or 1/60 second, depending on the chosen shot rate setting (e.g., 60 fps, 30 fps, 50 fps, 25 fps). This latitude permits accurate control over movement blur as well as exposure. The Highest Shutter speed extends to 16/30s or 16/25s, crucial for maximizing light acquisition in very low-light scenarios.

Additional enhancing picture quality are elements like Smart Auto, which automatically optimizes multiple picture settings, and Super Dynamic, which makes available an notable Dynamic Selection of up to 144 dB. This exceptionally wide dynamic selection is critical for capturing small details in scenes alongside extreme variations in brightness, preventing areas from being overexposed or underexposed. Adaptive Black Stretch makes possible granular management over shadow areas, with a configurable level from 0 to 255. The camera additionally incorporates Back Light Compensation (BLC) as well as High Light Compensation (HLC), important for maintaining detailed images whenever strong backlighting or intense highlight areas are present (these are active whenever Super Dynamic or Smart Auto are off). Fog Compensation, configurable from 0 to 8, enhances picture clarity in misty or hazy situations. The Highest Gain (AGC), settable from 0 to 11, delivers extra sensitivity management in challenging low-light situations.

The camera's smooth transition between colour and black & white settings is managed by Colour/BW (ICR), supplying options such as Off, On (alongside or without IR Light), and a range of Auto settings (Auto1, Auto2, Auto3 SCC). The unit's integrated IR Illumination makes available robust night vision functions, with selectable power levels (Elevated/Middle/Low/Off) and a highest irradiation range of 70 meters (approx. 230 ft) at 30IRE, or 50 meters (approx. 164 ft) at 50IRE. Electronic Noise Reduction, alongside a settable level from 0 to 255, additional refines picture quality by reducing visual noise.

AI Analytics and II. Advanced Detection

Beyond standard picture capture, this unit integrates a suite of refined detection and analytical contains. Video Motion Detection (VMD) accommodates up to 4 configurable areas, allowing for accurate alert triggers based on movement inside specific regions. Scene Change Recognition (SCD), with 1 available area, alerts operators to significant alterations in the camera's focus area of see, preventing tampering or unexpected changes.

For extensive audio observation, Audio Recognition can be enabled. Complementing this, AI Sound Classification is a capable function that can intelligently identify specific sounds such as Gunshot, Yell, Vehicle horn, as well as Glass break. This offers highly contextual alerts, enabling rapid response to critical incidents.

The capture device truly stands out alongside its extensive AI Analytics functions, leveraging Artificial Intelligence for numerous intelligent surveillance functions. These incorporate AI Footage Motion Recognition, AI Privacy Guard, AI Face Recognition, AI People Recognition, AI Vehicle Recognition, AI Non-mask Detection (provided prior to V3.30), AI Occupancy Recognition, AI Scene Change Recognition, AI On-site Learning, as well as AI Processing Relay. These enhanced analytics permit more accurate event recognition, automated privacy protection, efficient person or object identification, as well as adaptable learning straight on the device. The camera's open base additionally accommodates a selection of 3rd party applications, additional expanding the unit's analytical potential.

Privacy is paramount in modern security monitoring, and the camera makes available a sturdy Privacy Zone feature, allowing operators to define up to 8 configurable zones that can be masked alongside a range of colors (gray, white, blue, green, red, black) or a mosaic pattern. VIQS (Variable Picture Quality on Specified Area) is additionally provided alongside up to 8 zones, enabling selective enhancement of picture quality in areas of interest whereas conserving bandwidth elsewhere. For adaptable installation, Image Rotation options incorporate 0° (Off), 90°, 180° (Upside-down), as well as 270°. An Picture Stabilizer, utilizing a built-in gyro imager, maintains steady footage, especially in dynamic settings or with vibration, and is provided exclusively in the 30 fps setting. Finally, a Unit Title (OSD) can be displayed alongside up to 40 alphanumeric characters over 2 lines for detailed camera identification.

Operational Range (DORI) and III. Lens Performance

The camera's optics system is meticulously developed for versatility and precision. It provides a 3.1x Motorized Optical Focal adjustment and Motorized Focus, enabling practical remote adjustment of the focus area of see and sharpness. An Extra Zoom function extends up to 9.3x, especially useful whenever working at lower definitions such as 640x360.

The Focal Length ranges from 2.9 mm to 9 mm, delivering a adaptable Angular Focus area of See. In 16:9 setting, the horizontal see ranges from 36° (TELE) to 113° (WIDE) as well as the vertical see from 20° (TELE) to 60° (WIDE). For 4:3 setting, the horizontal see spans 26° (TELE) to 82° (WIDE) as well as the vertical see from 20° (TELE) to 60° (WIDE). This wide selection permits both broad overview security monitoring and detailed close-up observation. The Highest Aperture Ratio of 1:1.3 (WIDE) - 1:2.5 (TELE) indicates strong light-gathering functions across the focal adjustment range. The Focus Selection extends from 0.3 meters to infinity, helping ensure clear pictures for subjects at several distances, as well as the Aperture Range can be selected from F1.3 to short, allowing for accurate depth of focus area control.

The camera's effective security monitoring reach is accurately quantified by the unit's DORI (Detect, Observe, Recognize, Identify) specifications, which deliver a workable measure of the camera's working ability at distinct distances:

\n
• Detect (25ppm / 8ppf): A person can be detected up to 25.4m (WIDE) and 118.2m (TELE).
\n
• Observe (62.5ppm / 19ppf): General characteristics can be observed up to 10.2m (WIDE) and 47.3m (TELE).
\n
• Recognize (125ppm / 38ppf): Familiar individuals can be recognized up to 5.1m (WIDE) and 23.6m (TELE).
\n
• Identify (250ppm / 76ppf): Positive identification is possible up to 2.5m (WIDE) and 11.8m (TELE).
\n

User Interface and IV. System Architecture — WV-X25300-V3LN

The camera's sturdy working ability is driven by the Ambarella CV52 Platform on Chip (SoC), a capable processor specifically developed for enhanced footage analytics and efficient encoding. To address installation flexibility, the camera makes available significant Refining Angles: a Horizontal (PAN) angle from -194° to +166°, a Vertical (TILT) angle from -30° to +85°, as well as an Azimuth (YAW) angle of ±100°. These wide ranges enable for accurate positioning as well as coverage.

User interaction and complete configuration are facilitated via a multilingual Browser GUI, which accommodates English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, as well as Japanese. This intuitive graphical connection is compatible alongside widely employed web browsers such as Microsoft Edge, Firefox, as well as Google Chrome.

Security Protocols and V. Network Connectivity

Network incorporation is smooth through a standard 10BASE-T/100BASE-TX RJ45 connector. The unit accommodates an extensive range of Definitions based on the chosen frame rate as well as aspect ratio. In 16:9 setting, it can attain definitions up to 1920x1080 (Full HD), alongside options for 1280x720, 640x360, as well as 320x180 across 60, 50, 30, and 25 fps settings. In 4:3 mode, support extends to resolutions up to 2048x1536, along alongside 1280x960, VGA, and QVGA.

To address efficient footage transmission, the unit utilizes H.265/H.264 Transmission Settings/Types, supplying options such as Constant bit rate, VBR, Shot rate, as well as Best effort. Transmission types incorporate Unicast (AUTO/MANUAL) as well as Multicast. JPEG (MJPEG) Picture Quality can be finely configured across 10 steps (0 to 9). Smart Coding contains, comprising GOP (Group of Pictures) management (Off, Low, Mid, Shot rate management) and Smart VIQS (On/Off) as well as Smart P-picture management, intelligently balance bandwidth usage while preserving critical footage quality.

Audio communication is sturdy, supporting numerous Audio Compression Methods such as G.726 (16 kbps/32 kbps), G.711 (64 kbps), as well as AAC-LC (64 kbps/96 kbps/128 kbps). Several Audio Transmission Modes are available, which include Off, Mic (Line) source, Audio feed, as well as Interactive (Half/Full duplex).

The device is compatible with a complete suite of Supported Protocols for both IPv6 as well as IPv4 settings, supporting broad installation compatibility and secure communication. These incorporate TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMP, DHCP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, as well as MQTT. The body can accommodate up to 14 simultaneous operators, depending on installation conditions.

Surveillance is a paramount consideration, as well as the camera integrates robust elements such as FIPS 140-2 level 3 certification (through NXP® EdgeLock® SE050F), pre-installed GlobalSign® Device Certificates, HTTPS encryption, operator as well as digest authentication, host authentication, IEEE802.1X, detailed platform and picture transmission logs, brute-force protection, alteration recognition, secure boot, and signed firmware, preserving a highly secure operational setting.

For local storage latitude, an SDXC/SDHC/SD Memory Medium slot is provided, supporting microSDXC cards up to 512 GB. The unit is compatible alongside Mobile Terminals running iOS 8.0 or later (iPad/iPhone) as well as AndroidTM terminals, as well as adheres to ONVIF® Profiles G, S, T, as well as M for smooth integration with other security monitoring systems.

Input/Output Interfaces and VI. Alarm Management — WV-X25300-V3LN

The camera's Alarm arrangement is highly versatile as well as configurable, with Alarm Sources including Footage Motion Recognition (VMD), Scene Change Recognition (SCD), Command alarms, as well as Audio recognition alarms. Triggered Alarm Actions can incorporate SDXC/SDHC/SD memory capture, E-mail notification, HTTP alarm notification (alongside browser indication), as well as TCP alarm notification feed, providing several avenues for alerting surveillance personnel.

Hardware Input/Output options are diverse. It integrates a ø3.5 mm stereo mini jack for Audio Source as well as another ø3.5 mm stereo mini jack for Audio Feed (monaural feed with approximate 600 ? Impedance and -20 dBV feed level). The camera also supplies three versatile Outboard I/O Terminals: ALARM IN1 (multifunctional for alarm source, black & white source, as well as auto time adjustment), ALARM IN2 (alarm source/ALARM OUT), as well as ALARM IN3 (alarm source/AUX OUT). A practical Monitor Feed (pin jack, NTSC or PAL feed) is additionally included, primarily for on-site adjustment as well as setup.

Environmental Durability and VII. General Specifications — WV-X25300-V3LN

The imaging device adheres to rigorous international Security and EMC standards, which include UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1 for security, as well as FCC (Part15 ClassA), ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035 for electromagnetic compatibility.

Power can be supplied through DC12 V or PoE+ (IEEE802.3at compliant). The Power Consumption is efficient, approximately 14.2 W for DC12 V as well as 14.0 W for PoE+ (Class 4 device).

Developed to operate in extreme situations, the capture device has a wide Ambient Working Temperature selection from -40 °C to +55 °C (-40 °F to +131 °F), alongside a power-on selection of -30 °C. It tolerates Ambient Working Humidity from 10 % to 100 % (non-condensing). Its reliable Water as well as Dust Protection is certified by IP66/IP67 (IEC 60529), Type 4X (UL50E), as well as NEMA 4X compliance, supporting robust working ability in wet, dusty, or corrosive settings. Furthermore, it boasts significant Shock Protection at 50J (IEC 60068-2-75 compliant) as well as IK10 (IEC62262), indicating elevated vandal resistance. It can additionally withstand Wind Protection of up to 40 m/s (approx. 89 mph).

The camera's hardware Dimensions are ø154 mm × 105 mm (H), alongside a dome radius of 42 mm. The unit's approximate Mass is 1.1 kg (2.43 lbs). The hardwearing Finish incorporates an aluminum die-cast main chassis in i-PRO white, corrosion-resistant stainless steel outer fixing screws, as well as a detailed PC resin dome cover alongside ClearSight coating for optimal picture clarity and reduced light reflection.
