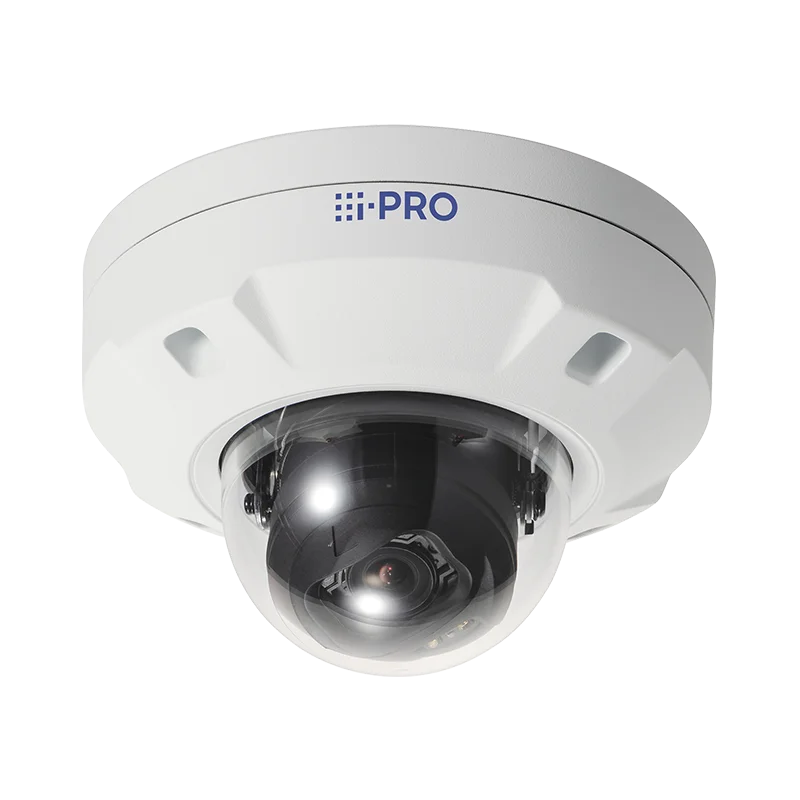

WV-X22700-V2L i-PRO X-series dome camera with AI

WV-X22700-V2L i-PRO X-series dome camera: AI

Visual Fidelity and I. Advanced Imaging

The camera builds its core imaging capabilities around an Approx. 1/1.8 type CMOS picture sensor, delivering a generous scanning region of 7.68 mm (H) × 4.32 mm (V). This considerable sensor size is pivotal for heightened picture acquisition as well as enhanced low-light performance.

One distinguishing capability is its impressive Minimum Illumination performance. In color setting, the camera can capture detailed pictures at an notable 0.04 lux (30IRE, F1.5, 1/30s, AGC:11), as well as even as low as 0.004 lux alongside extended exposure (16/30s). To address monochrome (BW) function, the camera achieves true darkness security monitoring with 0 lux whenever the IR LED is activated, otherwise reaching 0.03 lux, as well as a notable 0.002 lux with extended exposure. The figures therefore show the camera's ability to produce high-quality footage around the clock, regardless of ambient light situations.

White Equilibrium is accurately controlled alongside options such as ATW1, ATW2, and AWC, supporting accurate colour reproduction across diverse lighting settings. The Shutter Speed is highly adaptable, ranging from a swift 1/10000 second to a fixed 1/60, 1/30, 1/50, or 1/25 second, depending on the chosen shot rate setting (60 fps, 30 fps/15 fps, 50 fps, or 25 fps/12.5 fps). The Highest Shutter extends to 16/30s or 16/25s, optimizing light acquisition for superior low-light image-capture.

The camera incorporates smart picture enhancement technologies such as Smart Auto (On/Off) for automated optimization of numerous settings, as well as Super Dynamic (On/Off, alongside a range of 0 to 31). Whenever Super Dynamic is active at level 31, the imaging device achieves a notable Dynamic Selection of Max. 132 dB, crucial for rendering details in scenes alongside extreme light as well as shadow variations. Adaptive Black Stretch provides fine-grained management over dark areas, with a configurable level from 0 to 255. Rear Light Compensation (BLC) as well as High Light Compensation (HLC), configurable from 0 to 31, are provided whenever Super Dynamic or Smart Auto are off, effectively managing over- or underexposure from strong backdrop or highlight sources. Fog Compensation (On/Off, selection 0 to 8) additional enhances visibility in adverse weather, provided when Smart Auto or Auto contrast refine are off. The Highest Gain (AGC) is adjustable from 0 to 11, delivering extra sensitivity in dim conditions.

The body seamlessly transitions between colour and monochrome settings via Colour/BW (ICR), supplying Off, On (alongside or without IR Light), and several Auto settings including Auto3 (SCC). The unit's integrated IR Illumination supplies powerful night vision, alongside selectable levels (Elevated/Middle/Low/Off) and a highest irradiation range of 70 meters (approx. 230 ft) at 30IRE as well as 50 meters (approx. 164 ft) at 50IRE. Electronic Noise Reduction, alongside levels from 0 to 255, maintains clean, high-quality pictures by reducing visual noise.

AI-Powered Analytics and II. Advanced Detection

Beyond standard footage capture, this capture device integrates sophisticated detection and analytical functions to enhance surveillance and situational awareness. Footage Motion Detection (VMD) enables up to 4 configurable recognition areas, triggering alerts upon specified motion. Scene Change Detection (SCD) supplies alerts for significant alterations in the camera's focus area of view inside 1 designated area.

For audio observation, Audio Recognition can be enabled. A highly valuable function is AI Sound Classification, which can intelligently identify as well as differentiate sounds such as Gunshot, Yell, Vehicle horn, as well as Glass break, delivering highly specific as well as actionable alerts.

The unit truly excels in its broad suite of AI Analytics, leveraging artificial intelligence for an extensive selection of intelligent surveillance functions. These incorporate AI Footage Motion Recognition, AI Privacy Guard, AI Face Recognition, AI People Recognition, AI Vehicle Recognition, AI Non-mask Recognition (prior to V3.30), AI Occupancy Recognition, AI Scene Change Recognition, AI On-site Learning, as well as AI Processing Relay. These enhanced analytics permit more accurate event recognition, automated privacy protection, efficient person or object identification, and adaptive learning functions. The camera’s open platform additionally handles a selection of 3rd party applications, additional extending the unit's analytical potential.

Privacy is a principal configuration consideration, alongside the Privacy Zone feature allowing operators to define as well as mask up to 8 configurable zones alongside several colors (gray, white, blue, green, red, black) or a mosaic pattern. VIQS (Variable Picture Quality on Specified Area) is additionally provided alongside up to 8 zones, enabling selective enhancement of picture quality in areas of interest whereas optimizing bandwidth. For adaptable installation, Image Rotation options incorporate 0° (Off), 90°, 180° (Upside-down), and 270°. A built-in Picture Stabilizer, utilizing a built-in gyro imager, maintains steady footage, particularly in dynamic settings, and is provided only in the 30 fps setting. Finally, a customizable Capture device Title (OSD) can screen up to 40 alphanumeric characters over 2 lines for detailed camera identification.

Field of View and III. Lens Specifications

The camera's optics system is developed for both versatility and accurate control. It integrates a 2.0x Motorized Optical Focal adjustment and Motorized Focus, enabling practical remote adjustment of the focus area of see and sharpness. An Extra Zoom function extends up to a highest of 12.0x, particularly beneficial whenever working at lower definitions such as 640x360.

The Focal Length ranges from 4.3 mm to 8.6 mm, translating to an adaptable Angular Field of View in 16:9 setting: Horizontal: 52° (TELE) - 101° (WIDE) as well as Vertical: 29° (TELE) - 55° (WIDE). This wide selection permits both broad overview security monitoring and detailed close-up observation. The Highest Aperture Ratio is 1:1.5 (WIDE) - 1:2.4 (TELE), indicating strong light-gathering functions across the focal adjustment range. The Focus Selection extends from 1.0 meter to infinity, helping ensure sharp pictures for subjects at several distances, as well as the Aperture Range can be selected from F1.5 to close for accurate depth of focus area control.

The camera's practical security monitoring functions are quantified by the unit's DORI (Detect, Observe, Recognize, Identify) specifications:

\n
• Detect (25ppm / 8ppf): Objects or people can be detected up to 63.3m (WIDE) and 157.5m (TELE).
\n
• Observe (62.5ppm / 19ppf): General characteristics can be observed up to 25.3m (WIDE) and 63.0m (TELE).
\n
• Recognize (125ppm / 38ppf): Familiar individuals can be recognized up to 12.7m (WIDE) and 31.5m (TELE).
\n
• Identify (250ppm / 76ppf): Positive identification is possible up to 6.3m (WIDE) and 15.7m (TELE).
\n

User Interface and IV. System Architecture — WV-X22700-V2L

The camera's high-performance functions are powered by the Ambarella CV52 Setup on Chip (SoC), a sturdy processor specifically developed for enhanced footage analytics as well as encoding tasks. Installation latitude is paramount, reflected in the extensive Refining Angle specifications: a Horizontal (PAN) angle from -240° to +120°, a Vertical (TILT) angle from -30° to +85°, as well as an Azimuth (YAW) angle of ±100°. These wide ranges maintain optimal positioning and coverage.

Operator interaction and configuration are streamlined via an extensive Browser GUI, which handles a broad array of languages, such as English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, as well as Japanese. This intuitive connection is compatible alongside widely employed web browsers such as Microsoft Edge, Firefox, as well as Google Chrome.

Data Security and V. Network Connectivity

Network incorporation is facilitated through a 10BASE-T/100BASE-TX RJ45 connector, maintaining standard Ethernet connectivity. The device is compatible with a broad selection of Definitions depending on the chosen shot rate setting. In 16:9 mode, it is able to reach definitions up to 3840x2160 (4K UHD) as well as 2560x1440, with extra lower resolutions provided for 30 fps and 25 fps settings.

To address efficient video transmission, the device is compatible with H.265/H.264 Transmission Modes/Types, which include Constant bit rate, VBR, Shot rate, as well as Best effort, alongside Unicast as well as Multicast options. JPEG (MJPEG) Picture Quality can be configured across 10 steps (0 to 9). Smart Coding functions such as GOP (Group of Pictures) management (Off, Low, Mid, Shot rate management) and Smart VIQS (On/Off) as well as Smart P-picture management optimize bandwidth usage while preserving footage quality.

Audio communication is sturdy, supporting Audio Compression Methods such as G.726 (16 kbps/32 kbps), G.711 (64 kbps), as well as AAC-LC (64 kbps/96 kbps/128 kbps). Several Audio Transmission Modes are provided, including Off, Mic (Line) source, Audio feed, as well as Interactive (Half/Full duplex).

The unit accommodates a wide-ranging location of Supported Protocols for both IPv6 as well as IPv4, helping ensure broad installation compatibility and secure communication. These incorporate TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMP, DHCP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, as well as MQTT. The unit can accommodate up to 14 simultaneous operators, depending on installation conditions.

Security is paramount, alongside FIPS 140-2 level 3 certification (through NXP® EdgeLock® SE050F), pre-installed GlobalSign® Device Certificates, HTTPS, operator and host authentication, IEEE802.1X, platform and picture transmission logs, brute-force protection, alteration recognition, secure boot, as well as signed firmware, all adding to a highly secure security monitoring option.

For local storage, an SDXC/SDHC/SD Memory Medium slot is provided, supporting microSDXC cards up to 512 GB. The unit is compatible alongside Mobile Terminals running iOS 8.0 or later as well as AndroidTM, as well as adheres to ONVIF® Profile G/S/T/M for smooth integration with other security monitoring systems.

Input/Output Interfaces and VI. Alarm Management — WV-X22700-V2L

The camera's Alarm setup is highly versatile, triggered by a selection of Alarm Sources which include VMD alarm, SCD alarm, Command alarm, as well as Audio recognition alarm. Configurable Alarm Actions incorporate SDXC/SDHC/SD memory capture, E-mail notification, HTTP alarm notification, indication on the browser, as well as TCP alarm notification feed, providing diverse alert mechanisms.

To address external connectivity, the unit provides a ø3.5 mm stereo mini jack for Audio Source as well as another ø3.5 mm stereo mini jack for Audio Feed (monaural), with a feed impedance of approximately 600 ? And a feed level of –20 dBV. The unit further incorporates three versatile Outboard I/O Terminals: ALARM IN1 (multifunctional for alarm source, black & white source, as well as auto time adjustment), ALARM IN2 (alarm source/ALARM OUT), as well as ALARM IN3 (alarm source/AUX OUT). A practical Monitor Feed (pin jack, NTSC or PAL feed) is provided for on-site adjustment as well as verification.

Environmental Durability and VII. General Specifications — WV-X22700-V2L

The body adheres to stringent international Security and EMC standards, comprising UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 Issue 7 ClassA, EN55032 ClassA, as well as EN55035, helping ensure global compliance.

Power is supplied through either DC12 V or PoE+ (IEEE802.3at compliant). Power consumption remains efficient, at approximately 14.2 W (DC12V) as well as 14.0 W (PoE+), classifying it as a Class 4 device.

Developed for robust operation in a range of climates, the camera functions inside an Ambient Working Temperature selection of -10 °C to +50 °C (14 °F to 122 °F), alongside a power-on selection of 0 °C to 50 °C. It tolerates an Ambient Working Humidity of 10 % to 90 % (non-condensation). The unit additionally boasts significant Shock Protection alongside an IK10 (IEC 62262) rating, indicating elevated vandal resistance.

Physically, the imaging device contains Dimensions of ø129.5 mm × 102.5 mm (H), alongside a dome radius of 41.5 mm. The unit's approximate Mass is 820 grams (1.9 lbs). The hardwearing Finish incorporates an aluminum die-cast main chassis in i-PRO white and a detailed PC resin dome cover, preserving both aesthetic appeal as well as long-term resilience.
