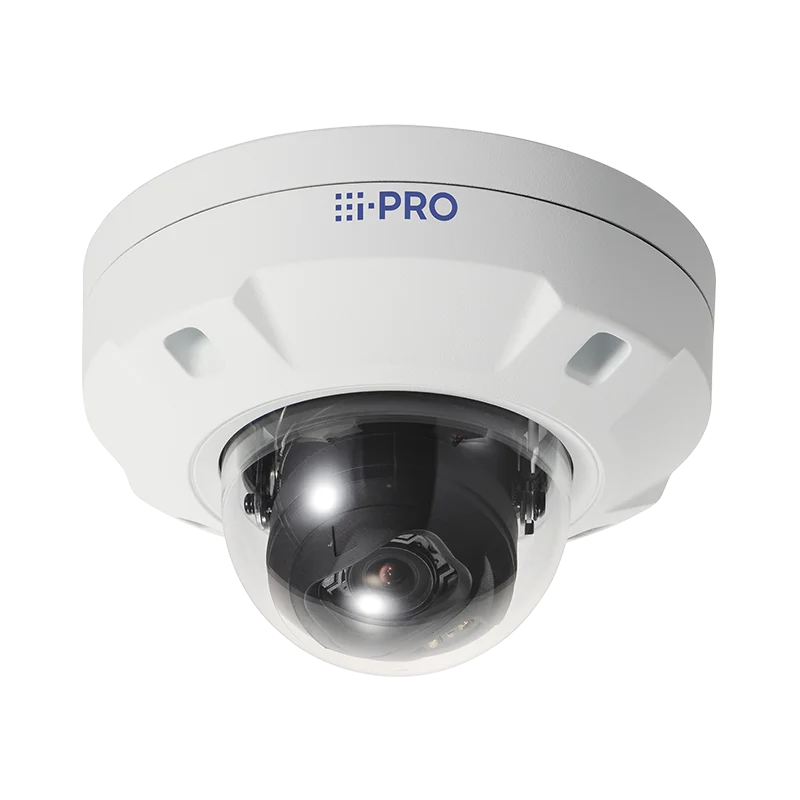

WV-X22600-V2L i-PRO X-series dome camera with AI

WV-X22600-V2L i-PRO X-series dome camera: AI

Visual Performance and I. Advanced Imaging — WV-X22600-V2L

This camera's visual prowess is founded on its Picture Sensor, an approximate 1/1.8 type CMOS imager, which includes a considerable Scanning Region of 7.68 mm (H) × 4.32 mm (V). This generous imager size is instrumental in capturing high-quality pictures as well as excelling in challenging lighting scenarios.

The unit displays notable Minimum Illumination functions. In color mode, it is able to reach clear image-capture at 0.04 lux (30IRE, F1.5, 1/30s, AGC:11) as well as impressively at 0.004 lux alongside an extended shutter speed (16/30s). To address monochrome (BW) function, the imaging device is able of functioning in complete darkness (0 lux) whenever the unit's IR LED is activated, otherwise reaching 0.03 lux, as well as an excellent 0.002 lux with extended exposure. Together, these figures demonstrate the camera's suitability for continuous 24/7 observation in diverse lighting settings, crucial for surveillance in a metropolis like Dubai where situations can vary from bright daylight to very dark nights.

White Equilibrium is accurately managed alongside options such as ATW1, ATW2, and AWC, preserving accurate color reproduction under multiple ambient light sources. The Shutter Speed is highly adaptable, ranging from a fast 1/10000 second to slower fixed speeds such as 1/25 or 1/60 second, depending on the chosen frame rate setting (e.g., 60 fps, 30 fps, 50 fps, 25 fps). This latitude makes possible accurate control over movement blur and exposure in distinct scenarios. The Highest Shutter speed extends to 16/30s or 16/25s, optimizing light acquisition for superior low-light image-capture.

Further enhancing image quality, included with the camera are Intelligent Auto for automated optimization of settings, as well as Super Dynamic, which delivers a highest Dynamic Selection of 132 dB. This wide dynamic selection is crucial for capturing detail in scenes that function both extremely bright as well as very dark areas, preventing issues such as overexposure or underexposure. Adaptive Black Stretch permits fine-tuning of dark regions with a configurable level from 0 to 255. The camera additionally integrates Rear Light Compensation (BLC) as well as High Light Compensation (HLC) to preserve detailed images whenever strong backlighting or intense highlights are present. Fog Compensation, alongside a range of 0 to 8, enhances clarity in adverse conditions conditions. The Maximum Gain (AGC), configurable from 0 to 11, supplies extra sensitivity management in low-light situations.

The camera's capacity to selector between colour and black & white settings is managed by Colour/BW (ICR), offering adaptable options such as Off, On (alongside/without IR Light), and numerous Auto settings (Auto1, Auto2, Auto3 SCC) for smooth transitions. Its integrated IR Illumination offers robust night vision functions, with selectable power levels (Elevated/Middle/Low/Off) and a highest irradiation range of 70 meters (approx. 230 ft) at 30IRE, or 50 meters (approx. 164 ft) at 50IRE, supporting effective security monitoring in complete darkness. Electronic Noise Reduction (configurable from 0 to 255) additional refines picture quality by reducing visual noise.

AI-Powered Analytics and II. Advanced Detection — WV-X22600-V2L

Beyond basic picture capture, this imaging device integrates sophisticated detection and analytical incorporates. Video Movement Detection (VMD) is supported alongside up to 4 configurable areas, enabling the imaging device to trigger alerts based on movement inside specified regions. Scene Change Recognition (SCD), with 1 available area, alerts operators to significant alterations in the camera's focus area of view.

For diverse audio observation, Audio Recognition can be enabled. Complementing this, AI Sound Classification is a capable function that can identify specific sounds such as Gunshot, Yell, Vehicle horn, as well as Glass break, delivering highly contextual alerts as well as enabling proactive responses.

The body truly distinguishes itself alongside its extensive AI Analytics functions, leveraging Artificial Intelligence for a diverse group of intelligent surveillance functions. These incorporate AI Footage Motion Recognition, AI Privacy Guard, AI Face Recognition, AI People Recognition, AI Vehicle Recognition, AI Non-mask Recognition (prior to V3.30), AI Occupancy Recognition, AI Scene Change Recognition, AI On-site Learning, as well as AI Processing Relay. These enhanced analytics permit more accurate event recognition, automated privacy protection, efficient person or object identification, and adaptable learning functions, making it well suited for smart metropolis initiatives in sites like Dubai. The camera's open base additionally accommodates a selection of 3rd party applications, additional expanding the unit's analytical potential.

Privacy is a crucial aspect in modern security monitoring, and the unit provides a broad Privacy Zone function, allowing up to 8 configurable zones to be masked alongside numerous colors (gray, white, blue, green, red, black) or mosaic patterns. VIQS (Variable Picture Quality on Specified Area) is additionally provided alongside up to 8 zones, enabling selective enhancement of picture quality in areas of interest whereas conserving bandwidth elsewhere. For adaptable installation, Image Rotation options incorporate 0° (Off), 90°, 180° (Upside-down), as well as 270°. An Picture Stabilizer, utilizing a built-in gyro imager, maintains steady footage, especially in dynamic settings or where vibrations might occur, provided only in 30 fps setting. Finally, a Imaging device Title (OSD) can be displayed alongside up to 40 characters over 2 lines for detailed capture device identification on the live feed.

Surveillance Coverage and III. Lens Specifications

The camera's Optics system is developed for both adaptability and precision in capturing image data. It contains a 2.0x Motorized Optical Focal adjustment and Motorized Focus, allowing for practical remote adjustment of the focus area of see and sharpness eliminating manual intervention. An Extra Zoom function extends up to a highest of 10.4x, proving particularly useful whenever working at lower definitions like 640x360, where electronic enlargement becomes more effective.

The Focal Length ranges from 4.3 mm to 8.6 mm, which translates to an adaptable Angular Field of View in 16:9 setting: Horizontal: 52° (TELE) - 101° (WIDE) as well as Vertical: 29° (TELE) - 55° (WIDE). This wide selection permits the camera to deliver both a broad overview of a scene as well as detailed close-up observation when needed. The Highest Aperture Ratio of 1:1.5 (WIDE) - 1:2.4 (TELE) indicates strong light-gathering functions across the entire focal adjustment range. The Focus Selection extends from 1.0 meter to infinity, maintaining clear pictures for subjects at numerous distances, as well as the Aperture Selection can be accurately set from F1.5 to short, allowing for small control over separation of field.

The camera's practical security monitoring effectiveness is quantified by the unit's DORI (Detect, Observe, Recognize, Identify) specifications, delivering a detailed measure of its performance at distinct distances:

\n
• Detect (25ppm / 8ppf): A person can be reliably detected up to 54.9m (WIDE) and 136.5m (TELE).
\n
• Observe (62.5ppm / 19ppf): Detailed characteristics can be observed up to 21.9m (WIDE) and 54.6m (TELE).
\n
• Recognize (125ppm / 38ppf): Familiar individuals can be recognized up to 11.0m (WIDE) and 27.3m (TELE).
\n
• Identify (250ppm / 76ppf): Positive identification is possible up to 5.5m (WIDE) and 13.6m (TELE).
\n

User Interface and IV. System Architecture — WV-X22600-V2L

The camera's sturdy results is driven by the Ambarella CV52 Configuration on Chip (SoC), a high-performance processing engine specifically developed for enhanced footage analytics and efficient encoding. The unit provides considerable flexibility in its physical orientation via its Adjusting Angle functions: a Horizontal (PAN) angle from -240° to +120°, a Vertical (TILT) angle from -30° to +85°, as well as an Azimuth (YAW) angle of ±100°. This wide selection maintains accurate aiming as well as coverage in diverse installation scenarios.

Operator interaction as well as configuration are streamlined via a diverse Browser GUI, which accommodates a broad selection of languages comprising English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, as well as Japanese. This intuitive graphical connection is compatible alongside widely employed web browsers such as Microsoft Edge, Firefox, as well as Google Chrome, helping ensure ease of availability and management for administrators.

Security Infrastructure and V. Network Connectivity — WV-X22600-V2L

Network incorporation is facilitated by a standard 10BASE-T/100BASE-TX RJ45 connector, allowing for smooth Ethernet interfacing. The camera provides support for a versatile selection of Definitions based on the chosen shot rate setting. In 16:9 mode, it is capable of reaching resolutions up to 3328x1872 as well as 2560x1440, with extra lower resolutions provided for 30 fps and 25 fps settings, delivering flexibility for bandwidth handling and storage.

To address efficient video transmission, support on the camera extends to both H.265/H.264 Transmission Settings/Types, such as Constant bit rate, VBR, Shot rate, as well as Best effort. Transmission types incorporate Unicast port (AUTO/MANUAL) as well as Multicast. JPEG (MJPEG) Picture Quality can be configured across 10 steps, from "SUPER Small" to "LOW." Smart Coding functions, such as GOP (Group of pictures) management (Off, Low, Mid, Shot rate management) and Smart VIQS (On/Off) as well as Smart P-picture management, intelligently balance bandwidth usage while preserving critical footage quality, a vital function for extensive deployments in Dubai.

Audio communication is sturdy, alongside support for Audio Compression Methods such as G.726 (16 kbps/32 kbps), G.711 (64 kbps), as well as AAC-LC (64 kbps/96 kbps/128 kbps). Numerous Audio Transmission Modes are provided: Off, Mic (Line) source, Audio feed, as well as Interactive (Half duplex/Full duplex).

The capture device provides support for an extensive suite of Supported Protocols for both IPv6 as well as IPv4, preserving broad installation compatibility and secure communication. These incorporate fundamental protocols such as TCP/IP, HTTP, HTTPS, SMTP, DNS, as well as NTP, alongside enhanced surveillance protocols such as SSL/TLS, IEEE 802.1X, SRTP, FTP, SFTP, LLDP, as well as MQTT. The body can accommodate up to 14 simultaneous operators, depending on prevailing installation conditions.

Surveillance is a paramount concern, as well as the camera integrates robust contains: FIPS 140-2 level 3 certification (through NXP® EdgeLock® SE050F), pre-installed GlobalSign® Device Certificates, HTTPS, operator authentication, digest authentication, Host authentication, IEEE802.1X, Platform log, Picture transmission log, brute-force protection, Alteration Recognition, Secure boot, as well as Signed firmware. These measures collectively deliver a highly secure security monitoring solution.

For local storage latitude, an SDXC/SDHC/SD Memory Medium slot is provided, supporting microSDXC cards up to 512 GB. The imaging device is additionally compatible alongside Mobile Terminals such as iPad/iPhone (iOS 8.0 or later) as well as AndroidTM devices. Furthermore, it adheres to ONVIF® Profile G/S/T/M, preserving seamless interoperability with other compliant security monitoring systems.

Input/Output Interfaces and VI. Alarm Management — WV-X22600-V2L

The camera's Alarm configuration is highly versatile as well as responsive, able of being triggered by numerous Alarm Sources such as VMD alarm, SCD alarm, Command alarm, as well as Audio recognition alarm. Upon an alarm event, a selection of Alarm Actions can be initiated, such as SDXC/SDHC/SD memory capture, E-mail notification, HTTP alarm notification, indication on the browser connection, and TCP alarm notification feed.

To address external connectivity, the camera offers essential Input/Output interfaces. It contains a ø3.5 mm stereo mini jack for Audio Source and another for Audio Feed (monaural, with a feed impedance of approx. 600 ? And feed level of –20 dBV). The camera additionally incorporates three versatile Outboard I/O Terminals: ALARM IN1 (functioning as Alarm source 1, Black & white source, or Auto time adjustment source), ALARM IN2 (Alarm source 2 or ALARM OUT), as well as ALARM IN3 (Alarm source 3 or AUX OUT). A practical Monitor Feed (pin jack, NTSC or PAL feed) is provided for on-site adjustment as well as verification during installation.

Environmental Durability and VII. General Specifications — WV-X22600-V2L

The capture device adheres to rigorous international Security and EMC standards, comprising UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1 for security, as well as FCC (Part15 ClassA), ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035 for electromagnetic compatibility, preserving its suitability for varied global deployments.

Power is supplied through DC12 V or PoE+ (IEEE802.3at compliant). The camera's power consumption is efficient, approximately 14.2 W for DC12V as well as 14.0 W (Class 4 device) for PoE+.

Developed to endure challenging environmental situations, the camera operates inside an Ambient Working Temperature selection of -10 °C to +50 °C (14 °F to 122 °F), alongside a power-on selection from 0 °C. It is capable of functioning effectively in Ambient Working Humidity from 10% to 90% (non-condensing). The device offers high Shock Protection alongside an IK10 (IEC 62262) rating, indicating sturdy protection against impacts as well as vandalism.

The hardware Dimensions of the capture device are ø129.5 mm × 102.5 mm (H), alongside a dome radius of 41.5 mm. It incorporates an approximate Mass of 820 g (1.9 lbs). The camera's hardwearing Finish consists of an aluminum die-cast main chassis in i-PRO white and a detailed PC resin dome cover, adding to the unit's longevity and aesthetic integration into several environments.
