SKU: WV-U65302-Z2

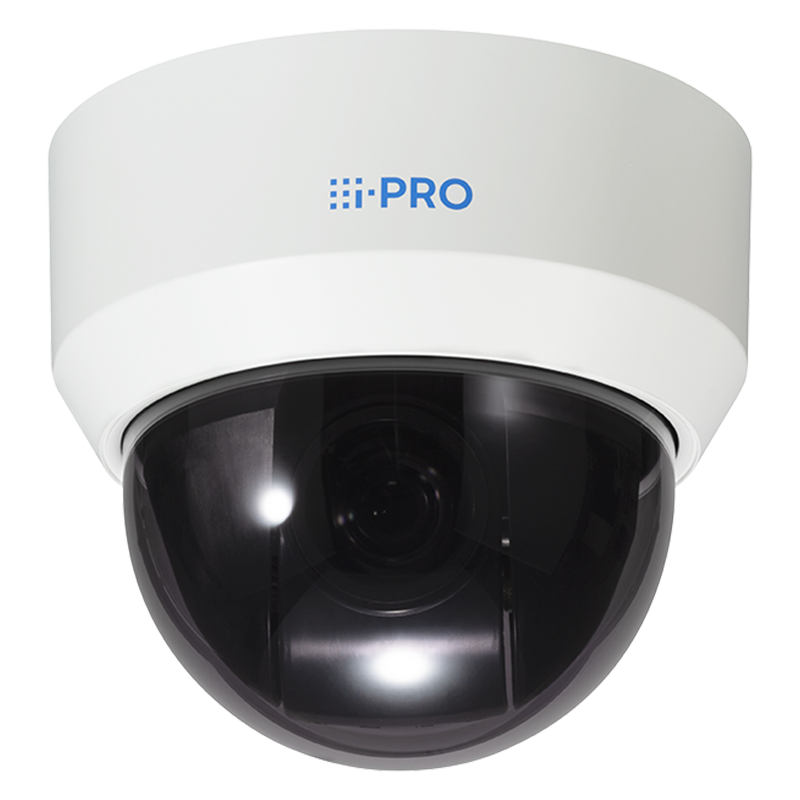

WV-U65302-Z2 U series PTZ camera 2MP Outdoor PTZ Network Camera
WV-U65302-Z2 U series PTZ camera 2MP Outdoor PTZ Network Camera
In stock
View full details
WhatsApp us for inquiries
At the center of the specification, the i-PRO WV-U65302-Z2 U-Series 2MP Outdoor PTZ Installation Camera is a professional outdoor security monitoring solution constructed for organizations that require consistent security, high-quality image-capture, and long-term stability. Delivering Full HD 2MP footage, this outdoor PTZ unit is ideal for observation commercial properties, industrial sites, critical infrastructure, parking facilities, campuses, and transport terminals.
Developed for uninterrupted operation, the WV-U65302-Z2 incorporates a highly hardwearing pan and tilt mechanism developed to endure millions of movement cycles. This lowers maintenance requirements while preserving smooth and accurate body positioning across its service life, making it a strong choice for 24/7 security monitoring applications.
Surveillance is a central functions strength of the U-Series. The body contains FIPS 140-2 Level 3 certified hardware and GlobalSign® electronic certificates to safeguard footage data and installation communications from evolving cybersecurity threats. Adaptable installation options additional simplify deployment, enabling installers to change the camera to an extensive selection of outdoor settings.
For either an existing IP-security upgrade or a new surveillance deployment, the i-PRO WV-U65302-Z2 produces consistent performance, robust cybersecurity, and dependable outdoor observation for businesses, government sites, educational institutions, and industrial actions.
Explore our complete selection of Professional Security monitoring Solutions to build a complete, scalable security monitoring system tailored to your surveillance requirements.
Frequently Asked Questions: Guide
Is the i-PRO WV-U65302-Z2 designed for outdoor surveillance?: Guide
It is purpose-built for outdoor settings and delivers reliable monitoring across public, industrial, and commercial locations.
What video signal resolution does the camera compatibility?
The unit records in Full HD 1920 × 1080 (2MP) definition, providing detailed and detailed surveillance footage.
Can the camera operate continuously?: Guide
The WV-U65302-Z2 is developed for 24/7 operation and integrates a hardwearing pan and tilt drive mechanism developed to deliver extended service intervals and lower upkeep.
Is the WV-U65302-Z2 compatible: existing IP surveillance systems?
As a professional installation PTZ camera, it can be built-in with compatible Footage Management Systems (VMS) and IP-based security monitoring infrastructures.
What security capabilities does the camera include?
The unit builds in FIPS 140-2 Level 3 certified hardware and GlobalSign® electronic certificates to improve cybersecurity and protect security monitoring data.
Where is the i-PRO WV-U65302-Z2 commonly used?: Guide
It is commonly installed in airports, transportation hubs, warehouses, manufacturing sites, commercial properties, education campuses, parking areas, and smart metropolis security monitoring projects.
| COMPONENT | SPECIFICATION |
|---|---|
| Image Sensor | Approx. 1/2.8 type CMOS image sensor |
| Minimum Illumination | Color : 0.015 lx (G: 0.045 lx)(50IRE, F1.6, 1/30s) Color : 0.001 lx (G: 0.003 lx)(50IRE, F1.6, 16/30s)* BW : 0.006 lx (G: 0.017 lx)(50IRE, F1.6, 1/30s) BW : 0.0004 lx (G: 0.0011 lx)(50IRE, F1.6, 16/30s) |
| Intelligent Auto | On / Off |
| Shutter Speed | [60 fps Mode] 1/60 Fix to 1/10000 Fix, [30 fps/15 fps mode] 1/30 Fix to 1/10000 Fix [50 fps Mode] 1/50 Fix to 1/10000 Fix, [25 fps/12.5 fps mode] 1/25 Fix to 1/10000 Fix |
| Super Dynamic | On / Off, the level can be set in the range of 0 to 31. |
| Dynamic Range | Max.144 dB (Super Dynamic : On, Level 31) |
| Image Compensation | BLC (Back light compensation) / HLC (High light compensation) / Off The level can be set in the range of 0 to 31 (only when Super dynamic / Intelligent Auto : Off) |
| Color/BW (ICR) | Off / On / Auto1 / Auto2 / Auto3 (SCC) |
| Video Motion Detection (VMD) | On / Off, 4 areas available |
| Stabilizer | On / Off (available only in the 30 fps mode) |
| Privacy Zone | On / Off, Up to 8 zones available |
| Camera Title (OSD) | On / Off, Up to 40 characters (alphanumeric characters, marks) |
| Zoom Ratio | 21x Optical, 31x with HD Extra Optical Zoom (Resolution 1280×720) |
| Digital (Electronic) Zoom | Max. 31x (21 to 31x : When resolution is 1280 x 720) |
| Focal Length | 4.0 - 84.6 mm {5/32 inches - 3-21/64 inches} |
| Maximum Aperture Ratio | 1 : 1.6 (WIDE) – 1 : 4.5 (TELE) |
| Focus Range | 1.5 m {50-1/16 inches} – ? |
| Angular Field of View | [16 : 9 mode] Horizontal : 3.7° (TELE) - 77° (WIDE), Vertical : 2.2° (TELE) - 44° (WIDE) [ 4 : 3 mode] 'Horizontal : 2.9° (TELE) - 58° (WIDE), Vertical : 2.2° (TELE) - 44° (WIDE) |
| Panning Range | 0° – 350° |
| Panning Speed | Manual: Approx. 0.065°/s – 150°/s Preset: Up to approx. 500°/s |
| Tilting Range | Operational -15 – +195° |
| Tilting Speed | Manual: Approx. 0.065°/s –150°/s Preset: Up to approx. 500°/s (PoE+), Up to approx. 350°/s (DC12 V PoE) |
| Preset Positions | 256 positions |
| Auto Mode | Auto track/ Auto pan/ Preset sequence/ Patrol |
| Self Return | 10 s/ 20 s/ 30 s/ 1 min/ 2 min/ 3 min/ 5 min/ 10 min/ 20 min/ 30 min/ 60 min |
| Audio | Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High Audio Output : On / Off Volume adjustment : Low / Middle / High |
| GUI / Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network IF | 10 Base-T / 100 Base-TX, RJ45 connector |
| Resolution H.265/ H.264 JPEG (MJPEG) | [16 : 9 mode (60 fps mode)] , [16 : 9 mode (30 fps mode)], [16 : 9 mode (50 fps mode)] , [16 : 9 mode (25 fps mode)] 1920x1080, 1280x720, 640x360, 320x180 [4 : 3 mode (30 fps mode)], [4 : 3 mode (25 fps mode)] 1280x960, VGA, QVGA [4 : 3 mode (15 fps mode)], [4 : 3 mode (12.5 fps mode)] 2048x1536* , 1280x960, VGA, QVGA |
| H.265/H.264 | [Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort [Transmission Type] Unicast port (AUTO) / Unicast port (MANUAL) / Multicast |
| JPEG | [Image Quality] 10 steps |
| Smart Coding | GOP (Group of pictures control): Off/ Low (Variable GOP 1s-8s)/ Mid (Variable GOP 4s-16s)/ Advanced(Fixed GOP 60s w/1s key-frame)/ Frame rate control (Variable GOP 4s-16s with frame rate control) *Advanced and Frame rate control are only available with H.265. |
| Audio Compression | G.726 (ADPCM) : 16 kbps / 32 kbps G.711 : 64 kbps AAC-LC* : 64 kbps / 96 kbps / 128 kbps |
| Audio Transmission Mode | Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex) |
| Supported Protocol | IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, MQTT, NTCIP |
| Maximum Concurrent Access Number | Up to 14 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card (Option) | H.265 / H.264 recording : Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure JPEG recording : Manual REC / Alarm REC (Pre/Post) / Backup upon network failure Compatible SDXC/SDHC/SD Memory Card : microSDXC memory card : 64 GB, 128 GB, 256 GB, 512 GB microSDHC memory card : 4 GB, 8 GB, 16 GB, 32 GB microSD memory card : 2 GB |
| Mobile Terminal Compatibility | iPad, iPhone (iOS 8.0 or later), Android™ terminals |
| Alarm Source | 3 terminals input, VMD alarm, Command alarm, Audio detection alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, TCP alarm notification output |
| Audio Input | ø3.5 mm stereo mini jack (stereo input) Recommended applicable microphone : Plug-in power type (Sensitivity of microphone : –51 dB to –38 dB (0 dB=1 V/Pa, 1 kHz)) Input impedance : Approx. 2 k? (unbalanced) Supply voltage : 2.5 V ±0.5 V |
| Audio Output | ø3.5 mm stereo mini jack (stereo output) Output impedance : Approx. 600 ? (unbalanced) Output level : –20 dBV |
| External I/O Terminals | ALARM IN 1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1) ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1), ALARM IN 3 (Alarm input 3/ AUX OUT) (x1) |
| Power Source and Power Consumption | DC12 V, PoE (IEEE802.3af), PoE+ (IEEE802.3at) DC12 V: 1.3 A / Approx.15.6 W PoE DC 48 V: 270 mA / Approx.12.95 W (Class 0 device) PoE+ DC 54 V: 340 mA / Approx18.4 W(Class 4 device) |
| Ambient Operating Temperature | -30 °C to +55 °C (-22 °F to +131 °F) (Power On range : -20 °C to +55 °C {-4 °F to +131 °F}) Maximum temperature according to NEMA TS2(2.2.7) : 74 °C(165 °F) |
| Ambient Operating Humidity | 10 to 100 % (no condensation) |
| Dimensions | ø165 mm x 153 mm (H) {ø6-1/2 inches x 6-1/32 inches (H)} |
| Mass (Approx.) | Approx. 1.7 kg {3.75 lbs.} |
| Finish | Main body : Aluminum die cast, Black polycarbonate resin, i-PRO white Outer fixing screws : Stainless steel (Corrosion-resistant treatment) Dome section : Polycarbonate resin, Clear (G: Smoke) |
Key Features
- 2MP (1080p) 1920x1080
- 21x optical zoom
- Intelligent Auto
- Super Dynamic 144dB
- Color night vision (0.001 to 0.015 lx)
- Durable Pan/Tilt gear mechanism
- IP66, IK10 certified
- FIPS 140-2 level3 certified
