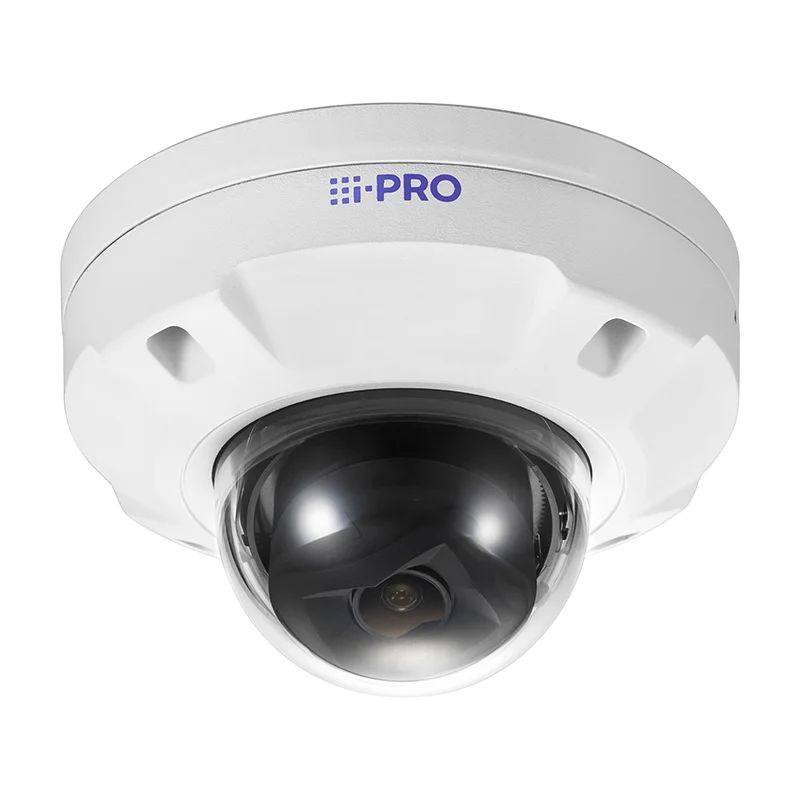

WV-U25551-V3L i-PRO U-series dome camera

WV-U25551-V3L i-PRO U-series dome camera: Guide

For this model, this developed camera platform, featuring an approximately 1/2.8 type CMOS picture sensor alongside a scanning region of 5.12 mm (H) × 3.84 mm (V) {3/16 inches (H) × 5/32 inches (V)}, is developed for superior security monitoring in varied lighting conditions. Its impressive lowest illumination reaches as low as 0.07 lx in colour (30IRE, F1.6, 1/30 s, AGC: 11) as well as achieves 0 lx in BW alongside IR LED on (50IRE, F1.6, 1/30 s, AGC: 11), benefiting from a highest IR LED irradiation range of 28 m {Approx. 92 ft} (30IRE) or 20 m {Approx. 66 ft} (50IRE). The unit makes available adaptable white equilibrium options (ATW1/ ATW2/ AWC) as well as versatile shutter speeds, ranging from 1/30 Fix to 1/10000 Fix for 30/15 fps settings as well as 1/25 Fix to 1/10000 Fix for 25/12.5 fps settings, with highest shutter speeds reaching 16/30 s or 16/25 s respectively.
Fitted with Smart Auto, Super Dynamic (alongside a selection of 0 to 31 for a highest 120 dB dynamic selection), Adaptive Black Stretch (level 0 to 255), Rear Light Compensation (BLC)/Elevated Light Compensation (HLC) (selection 0 to 31), as well as Fog Compensation (selection 0 to 8), this camera meticulously optimizes picture quality. It delivers granular control over Highest Gain (AGC) from 0 to 11 and makes available several Color/BW (ICR) settings such as Off, On (IR Light Off/On), Auto1 (IR Light Off), Auto2 (IR Light On), as well as Auto3 (SCC). Electronic Noise Reduction is configurable from 0 to 255.
To address intelligent observation, the camera incorporates Footage Motion Detection (VMD) with 4 provided areas, Scene Change Recognition (SCD) alongside 1 area, as well as Audio Recognition built around AI Sound Classification for gunshots, yells, vehicle horns, as well as glass breaks. It accommodates one analytics use at a time from i-PRO's extensive suite, alongside details provided on their website, and supports integration of third-party uses via the unit's Edge AI base. Privacy Zone as well as VIQS can every be configured alongside up to 8 zones, and picture rotation is provided in 0°, 90°, 180° (Upside-down), as well as 270° increments. An on-screen Capture device Title can screen up to 40 characters over 2 lines.
The optics boasts a 3.2x motorized optical focal adjustment alongside motorized focus, complemented by a highest 12.8x electronic (electronic) focal adjustment. The unit's focal length spans 3.2 mm – 10.2 mm {1/8 inches – 13/32 inches}. The angular focus area of view for 16:9 setting ranges from 28° (TELE) to 99° (WIDE) horizontally as well as 15° (TELE) to 52° (WIDE) vertically, whereas for 4:3 setting, it's 28° (TELE) to 100° (WIDE) horizontally as well as 21° (TELE) to 72° (WIDE) vertically. The refining angles are a horizontal (PAN) angle of -105° to +255°, a vertical (TILT) angle of -30° to +85°, as well as an Azimuth (YAW) angle of -100° to +100°. The highest aperture ratio is 1:1.6 (WIDE) – 1:3.2 (TELE), alongside a focus selection from 2.0m {78-3/4 inches} to infinity as well as an aperture selection of F1.6 to short. DORI distances are specified as: Detect at 205.4m {673.7ft} (TELE) / 43.7m {143.5ft} (WIDE), Observe at 82.1m {269.5ft} (TELE) / 17.5m {57.4ft} (WIDE), Recognize at 41.1m {134.7ft} (TELE) / 8.7m {28.7ft} (WIDE), as well as Identify at 20.5m {67.4ft} (TELE) / 4.4m {14.3ft} (WIDE).
An Ambarella CV25M Configuration on Chip. Sits at the camera's core Its browser GUI allows English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, as well as Japanese, accessible through Microsoft Edge, Firefox, as well as Google Chrome. Connectivity is provided via a 10BASE-T/100BASE-TX RJ45 installation interface.
The device supplies numerous definitions depending on the aspect ratio as well as frame rate setting, comprising 2560x1440, 1920x1080, 1280x720, 640x360, as well as 320x180 for 16:9 settings (30fps/25fps), as well as 2592x1944, 2560x1920, 1280x960, 640x480, 320x240 for 4:3 settings (30fps/25fps), with extra options for 15fps/12.5fps 4:3 settings. Compatibility includes H.265/H.264 transmission alongside priority options (Constant bit rate, VBR, Shot rate, Best effort) as well as transmission types (Unicast port AUTO/MANUAL, Multicast). The unit supplies 4 streams as well as 10 steps of JPEG (MJPEG) picture quality (0 to 9). Smart Coding contains GOP control (Off, Low, Mid, Enhanced, Frame rate management) and Smart VIQS (On Elevated/Low, Off), along alongside Smart P-picture management (On/Off). Audio compression methods incorporate G.726 (16/32 kbps), G.711 (64 kbps), as well as AAC-LC (64/96/128 kbps), with audio transmission settings such as Off, Mic (Line) source, Audio feed, Interactive (Half/Full duplex).
Extensive protocol support incorporates IPv6 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT) as well as IPv4 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, FTP, SFTP, LLDP, MQTT). The imaging device accommodates up to 14 simultaneous operators and boasts robust security provides, comprising FIPS 140-3 level 3 (NXP® EdgeLock® SE052F), pre-installed GlobalSign® device certificates, HTTPS, operator as well as digest authentication, Host authentication, IEEE802.1X, arrangement and picture transmission logs, brute-force protection, alteration recognition, secure boot, as well as signed firmware. Optional microSDXC/SDHC/SD memory medium support is provided for storage (2GB to 512GB), as well as it is compatible alongside iPad/iPhone (iOS 8.0 or later) as well as Android™ terminals. It is ONVIF® Profile G, M, S, as well as T compliant.
Available alarm sources comprise VMD, SCD, Command, as well as Audio detection alarms; they can trigger SDXC/SDHC/SD memory capture, E-mail notification, HTTP alarm notification, browser indication, as well as TCP alarm notification feed. For source/output, it provides a ø3.5 mm stereo mini jack for audio source (microphone or line source at approx. -10 dBV) as well as a ø3.5 mm stereo mini jack for monaural audio feed (approx. 600 ?, -20 dBV).
The general specifications confirm its compliance alongside UL (UL62368-1 3Ed), c-UL (CAN/CSA C22.2 NO.62368-1-19), IEC62368-1 3Ed. For security as well as FCC Part15 Subpart B ClassA, ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035 for EMC. Power is supplied through PoE (IEEE802.3af Compliant) at DC 48 V, consuming approximately 9.6 W (Class 0 device). It operates in ambient temperatures from -30 °C to +50 °C {-22 °F to +122 °F} (power on selection: -20 °C to +50 °C {-4 °F to +122 °F}) as well as ambient humidity from 10 % to 100 % (no condensation). The capture device is highly hardwearing alongside IP66 (IEC 60529), Type 4X (UL50E), NEMA 4X water as well as dust protection, IK10 (IEC 62262) shock protection, and can endure wind speeds up to 40 m/s {approx. 89 mph}. The unit's space-efficient dimensions are ø154 mm × 105 mm (H) {ø6-1/16 inches × 4-1/8 inches (H)} alongside a dome radius of 42 mm {1-21/32 inches}, as well as it weighs approximately 1.0 kg {2.21 lbs} (excluding attachments). The main chassis is constructed from aluminum die cast in i-PRO white, alongside corrosion-resistant stainless steel outer fixing screws as well as a detailed PC resin dome cover. Simple Kitting is supported, and it incorporates a tamper-resistant enclosure.
