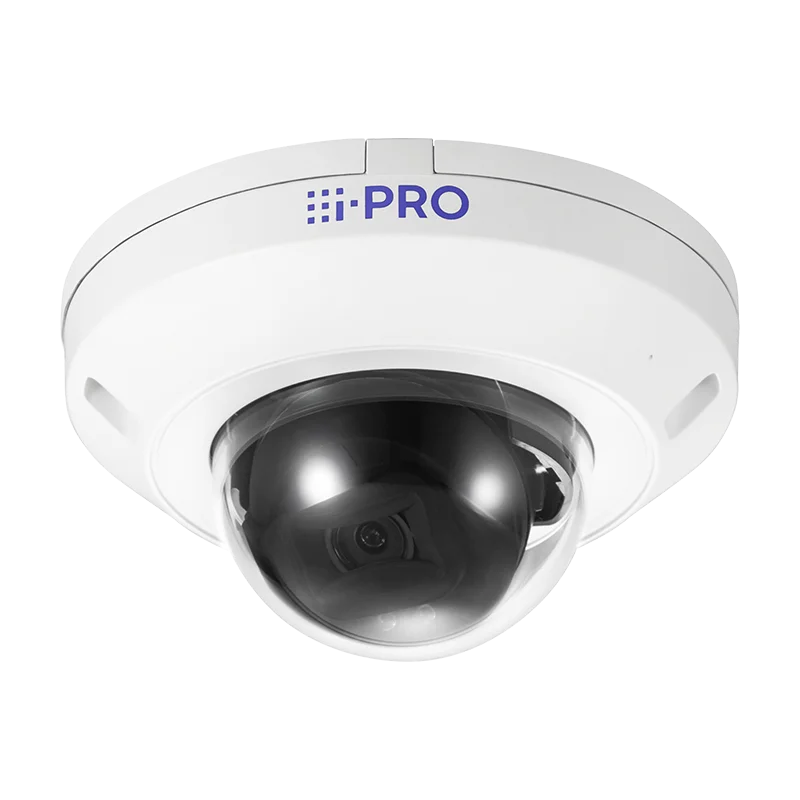

WV-U25550-F3L i-PRO U-series dome camera

In this camera's design, this refined camera, fitted with an approximately 1/2.8 type CMOS picture sensor, includes a scanning region of 5.12 mm (H) × 3.84 mm (V) {3/16 inches (H) × 5/32 inches (V)}. It excels in low-light settings, boasting a lowest illumination of 0.11 lx in colour (30IRE, F2.0, 1/30 s, AGC: 11) as well as achieving 0 lx in black as well as white whenever the IR LED is activated (50IRE, F2.0, 1/30 s, AGC: 11, IR LED: On), thanks to the unit's powerful IR LED with a highest irradiation range of 28 m {Approx. 92 ft} (30IRE) or 20 m {Approx. 66 ft} (50IRE). The body provides support for ATW1, ATW2, as well as AWC white balance settings, and provides flexible highest shutter speeds from 1/10000 s up to 16/30 s for 30/15 fps settings, as well as up to 16/25 s for 25/12.5 fps settings.
For refined picture quality, the camera integrates Smart Auto, Super Dynamic alongside a selection of 0 to 31 for a highest 120 dB dynamic selection, Adaptive Black Stretch alongside a level selection of 0 to 255, as well as Back Light Compensation (BLC)/Elevated Light Compensation (HLC) configurable from 0 to 31 (active only whenever Super Dynamic/Smart Auto are off). Additional functions comprise Fog Compensation (0 to 8, active only whenever Smart Auto/Auto contrast refine are off), and configurable Highest Gain (AGC) from 0 to 11. Colour/BW (ICR) functionality makes available multiple settings: Off, On (IR Light Off/On), Auto1 (IR Light Off), Auto2 (IR Light On), as well as Auto3 (SCC). Digital Noise Reduction allows a setting from 0 to 255.
In addition to image-capture, the camera integrates enhanced analytics comprising Footage Motion Detection (VMD) with 4 provided areas, Scene Change Recognition (SCD) alongside 1 area, as well as Audio Recognition featuring AI Sound Classification for productions such as gunshots, yells, vehicle horns, as well as glass breaks. Compatibility includes a highest of one AI analytics use, with details provided on the i-PRO website for both their own as well as third-party uses. Privacy Zone as well as VIQS can every be configured alongside up to 8 zones, and picture rotation options incorporate 0° (Off), 90°, 180° (Upside-down), as well as 270°. A Body Title (OSD) can be displayed, supporting up to 40 characters over 2 lines.
The fixed focal length optics of 3.2 mm {1/8 inches} delivers a wide angular focus area of see: 96° horizontal and 52° vertical in 16:9 setting, and 97° horizontal and 71° vertical in 4:3 setting. It incorporates a highest 4.0x electronic (electronic) focal adjustment. The camera's adjusting angles enable for a horizontal (PAN) selection of -175° to +175°, a vertical (TILT) selection of -30° to +80°, as well as an Azimuth (YAW) selection of -100° to +100°. The highest aperture ratio is 1:2.0, alongside a focus selection from 1.0m {39-3/8 inches} to infinity as well as a fixed aperture of F2.0. DORI specifications are: Detect at 46.1m {151.2ft}, Observe at 18.4m {60.5ft}, Recognize at 9.2m {30.2ft}, as well as Identify at 4.6m {15.1ft}.
The unit is powered by an Ambarella CV25M Arrangement on Chip. Its browser GUI accommodates English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, as well as Japanese, as well as is accessible through Microsoft Edge, Firefox, as well as Google Chrome. Network interfacing is established via a 10BASE-T/100BASE-TX RJ45 connector.
Regarding resolution, the device is compatible with a range of configurations for 16:9 setting (30fps/25fps) which include 2560x1440, 1920x1080, 1280x720, 640x360, as well as 320x180. For 4:3 setting (30fps/25fps), resolutions incorporate 2592x1944, 2560x1920, 1280x960, 640x480, as well as 320x240, with extra options for 15fps/12.5fps 4:3 settings. It delivers H.265/H.264 transmission alongside selectable priorities (Constant bit rate, VBR, Shot rate, Best effort) as well as types (Unicast port AUTO/MANUAL, Multicast), delivering 4 simultaneous streams. JPEG (MJPEG) picture quality is configurable in 10 steps from 0 (SUPER Small) to 9 (LOW). Smart Coding incorporates GOP control (Off, Low, Mid, Enhanced, Frame rate control, with Enhanced and Shot rate management exclusive to H.265), Smart VIQS (On Elevated/Low, Off), as well as Smart P-picture management (On/Off). Audio compression methods are G.726 (16 kbps/32 kbps), G.711 (64 kbps), as well as AAC-LC (64 kbps/96 kbps/128 kbps), alongside audio transmission settings comprising Off, Mic (Line) source, Audio feed, as well as Interactive (Half duplex/Full duplex).
The body provides support for a broad group of protocols for both IPv6 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT) as well as IPv4 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, FTP, SFTP, LLDP, MQTT). It accommodates up to 14 simultaneous operators and delivers robust security provides, such as FIPS 140-2 level 3 (NXP® EdgeLock® SE050F), pre-installed GlobalSign® device certificates, HTTPS, operator as well as digest authentication, Host authentication, IEEE802.1X, arrangement and picture transmission logs, brute-force protection, alteration recognition, as well as signed firmware. Optional microSDXC/SDHC/SD memory medium support is provided for storage, ranging from 2GB to 512GB. Compatibility extends to iPad/iPhone (iOS 8.0 or later) as well as Android™ terminals, as well as the capture device is ONVIF® Profile G, M, S, as well as T compliant.
Available alarm sources comprise VMD, SCD, Command, as well as Audio detection; they can trigger SDXC/SDHC/SD memory capture, E-mail notification, HTTP alarm notification, browser indication, as well as TCP alarm notification feed. For audio source, a ø3.5 mm stereo mini jack allows microphone source (plug-in power type, rating –51 dB to –38 dB, source impedance approx. 2 k?, supply voltage 2.5 V ±0.5 V) or range source (approx. -10 dBV). A ø3.5 mm stereo mini jack offers monaural audio feed (output impedance approx. 600 ?, feed level -20 dBV).
General specifications incorporate security certifications (UL62368-1 3Ed, CAN/CSA C22.2 NO.62368-1-19, IEC62368-1 3Ed) as well as EMC compliance (FCC Part15 Subpart B ClassA, ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035). Power is supplied through PoE (IEEE802.3af Compliant) at DC 48 V, alongside an approximate consumption of 9.6 W (Class 0 device). The unit operates in ambient temperatures from -30 °C to +50 °C {-22 °F to +122 °F} (power on selection: -20 °C to +50 °C {-4 °F to +122 °F}) as well as ambient humidity from 10 % to 100 % (no condensation). The unit's robust design delivers IP66 (IEC 60529), Type 4X (UL50E), NEMA 4X water as well as dust protection, IK10 (IEC 62262) shock protection, and wind protection up to 40 m/s {approx. 89 mph}. Compactly sized at ø109 mm x 62 mm (H) {ø4-9/32 inches x 2-7/16 inches (H)}, alongside a dome radius of 30.5 mm {1-3/16 inches} as well as 42 mm {1-21/32 inches}, it weighs approximately 270 g {0.60 lbs}. The main chassis is made of aluminum die cast in i-PRO white, built around corrosion-resistant stainless steel outer fixing screws, a detailed PC resin dome cover alongside ClearSight coating, and a detailed PC resin front panel alongside ClearSight surface treatment. Easy Kitting is supported.
