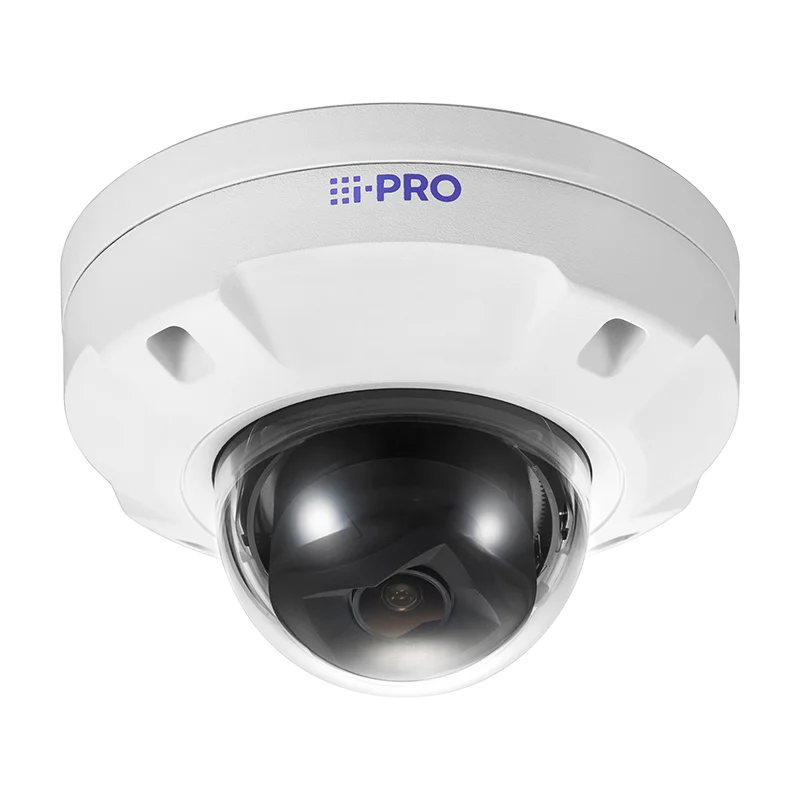

WV-U25351-V3L i-PRO U-series dome camera

WV-U25351-V3L i-PRO U-series dome camera: Guide

Starting with the optical platform, featuring an approximately 1/2.8 type CMOS picture sensor alongside a scanning region of 5.57 mm (H) × 3.13 mm (V) {7/32 inches (H) × 1/8 inches (V)}, this sophisticated camera supports reliable performance even in challenging lighting situations. In color setting, it achieves a lowest illumination of 0.05 lx (30IRE, F1.6, 1/30 s, AGC: 11) as well as in black and white, it operates at 0 lx (50IRE, F1.6, 1/30 s, AGC: 11, IR LED: On), thanks to the unit's powerful IR LED, offering a highest irradiation range of 42 m {Approx. 138 ft} (30IRE) or 30 m {Approx. 98 ft} (50IRE). The unit accommodates ATW1, ATW2, as well as AWC white balance settings, and delivers adaptable shutter speeds ranging from 1/30 Fix to 1/10000 Fix for 30 fps setting as well as 1/25 Fix to 1/10000 Fix for 25 fps setting, with highest shutter speeds reaching 16/30 s or 16/25 s respectively.
To optimize image quality, the device is fitted with Smart Auto, Super Dynamic alongside a selection of 0 to 31 for a highest 120 dB dynamic selection, Adaptive Black Stretch alongside a level selection of 0 to 255, as well as Back Light Compensation (BLC)/Elevated Light Compensation (HLC) configurable from 0 to 31 (active only whenever Super Dynamic/Smart Auto are off). The unit further incorporates Fog Compensation (0 to 8, active only whenever Smart Auto/Auto contrast refine are off), and configurable Highest Gain (AGC) from 0 to 11. Colour/BW (ICR) operation provides multiple settings: Off, On (IR Light Off/On), Auto1 (IR Light Off), Auto2 (IR Light On), as well as Auto3 (SCC). Electronic Noise Reduction can be selected from 0 to 255.
Outside the imaging functions, the camera integrates enhanced analytics including Footage Motion Detection (VMD) with 4 provided areas, Scene Change Recognition (SCD) alongside 1 area, as well as Audio Recognition featuring AI Sound Classification for productions such as gunshots, yells, vehicle horns, as well as glass breaks. The unit provides support for a highest of one AI analytics use, with details provided on the i-PRO website for both their own as well as third-party uses. Privacy Zone as well as VIQS can every be configured alongside up to 8 zones, and picture rotation options incorporate 0° (Off), 90°, 180° (Upside-down), as well as 270°. A Body Title (OSD) can be displayed, supporting up to 40 characters over 2 lines.
The optics integrates a 3.2x motorized optical focal adjustment alongside motorized focus, complemented by a highest 9.6x electronic (electronic) focal adjustment. The unit's focal length spans 3.2 mm – 10.2 mm {1/8 inches – 13/32 inches}. The angular focus area of view for 16:9 setting ranges from 30° (TELE) to 110° (WIDE) horizontally as well as 17° (TELE) to 56° (WIDE) vertically, whereas for 4:3 setting, it's 22° (TELE) to 78° (WIDE) horizontally as well as 17° (TELE) to 56° (WIDE) vertically. The refining angles enable for a horizontal (PAN) selection of -105° to +255°, a vertical (TILT) angle of -30° to +85°, as well as an Azimuth (YAW) angle of -100° to +100°. The highest aperture ratio is 1:1.6 (WIDE) – 1:3.2 (TELE), alongside a focus selection from 2.0m {78-3/4 inches} to infinity as well as an aperture selection of F1.6 to short. DORI specifications are: Detect at 143.3m {470.2ft} (TELE) / 26.9m {88.2ft} (WIDE), Observe at 57.3m {188.1ft} (TELE) / 10.8m {35.3ft} (WIDE), Recognize at 28.7m {94.0ft} (TELE) / 5.4m {17.6ft} (WIDE), as well as Identify at 14.3m {47.0ft} (TELE) / 2.7m {8.8ft} (WIDE).
An Ambarella CV25M Platform on Chip. Sits at the camera's core Its browser GUI accommodates English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, as well as Japanese, as well as is accessible through Microsoft Edge, Firefox, as well as Google Chrome. Network interfacing is established via a 10BASE-T/100BASE-TX RJ45 connector.
Regarding resolution, support on the camera extends to numerous configurations for 16:9 setting (30fps/25fps) such as 1920x1080, 1280x720, 640x360, as well as 320x180. For 4:3 setting (30fps/25fps), resolutions incorporate 1280x960, 640x480, and 320x240. The unit supplies H.265/H.264 transmission alongside selectable priorities (Constant bit rate, VBR, Shot rate, Best effort) as well as types (Unicast port AUTO/MANUAL, Multicast), delivering 4 simultaneous streams. JPEG (MJPEG) picture quality is configurable in 10 steps from 0 (SUPER Small) to 9 (LOW). Smart Coding incorporates GOP control (Off, Low, Mid, Enhanced, Frame rate control, with Enhanced and Shot rate management exclusive to H.265), Smart VIQS (On Elevated/Low, Off), as well as Smart P-picture management (On/Off). Audio compression methods are G.726 (16 kbps/32 kbps), G.711 (64 kbps), as well as AAC-LC (64 kbps/96 kbps/128 kbps), alongside audio transmission settings which include Off, Mic (Line) source, Audio feed, as well as Interactive (Half duplex/Full duplex).
The unit accommodates a wide-ranging location of protocols for both IPv6 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT) as well as IPv4 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, FTP, SFTP, LLDP, MQTT). It accommodates up to 14 simultaneous operators and supplies robust security features, such as FIPS 140-3 level 3 (NXP® EdgeLock® SE052F), pre-installed GlobalSign® device certificates, HTTPS, operator as well as digest authentication, Host authentication, IEEE802.1X, platform and picture transmission logs, brute-force protection, alteration recognition, secure boot, as well as signed firmware. Optional microSDXC/SDHC/SD memory medium support is provided for storage, ranging from 2GB to 512GB. Compatibility extends to iPad/iPhone (iOS 8.0 or later) as well as Android™ terminals, as well as the body is ONVIF® Profile G, M, S, as well as T compliant.
Available alarm sources comprise VMD, SCD, Command, as well as Audio detection; they can trigger SDXC/SDHC/SD memory capture, E-mail notification, HTTP alarm notification, browser indication, as well as TCP alarm notification feed. For audio source, a ø3.5 mm stereo mini jack handles line source at approximately -10 dBV. A ø3.5 mm stereo mini jack supplies monaural audio feed (output impedance approx. 600 ?, feed level -20 dBV).
General specifications incorporate security certifications (UL62368-1 3Ed, CAN/CSA C22.2 NO.62368-1-19, IEC62368-1 3Ed) as well as EMC compliance (FCC Part15 Subpart B ClassA, ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035). Power is supplied through PoE (IEEE802.3af Compliant) at DC 48 V, alongside an approximate consumption of 9.6 W (Class 0 device). The imaging device operates in ambient temperatures from -30 °C to +50 °C {-22 °F to +122 °F} (power on selection: -20 °C to +50 °C {-4 °F to +122 °F}) as well as ambient humidity from 10 % to 100 % (no condensation). The unit's robust design supplies IP66 (IEC 60529), Type 4X (UL50E), NEMA 4X water as well as dust protection, IK10 (IEC 62262) shock protection, and wind protection up to 40 m/s {approx. 89 mph}. Sized at ø154 mm × 105 mm (H) {ø6-1/16 inches × 4-1/8 inches (H)}, alongside a dome radius of 42 mm {1-21/32 inches}, it weighs approximately 1.0 kg {2.21 lbs} (excluding attachments). The main chassis is constructed from aluminum die cast in i-PRO white, built around corrosion-resistant stainless steel outer fixing screws as well as a detailed PC resin dome cover. Simple Kitting is supported, and it incorporates a tamper-resistant enclosure.
