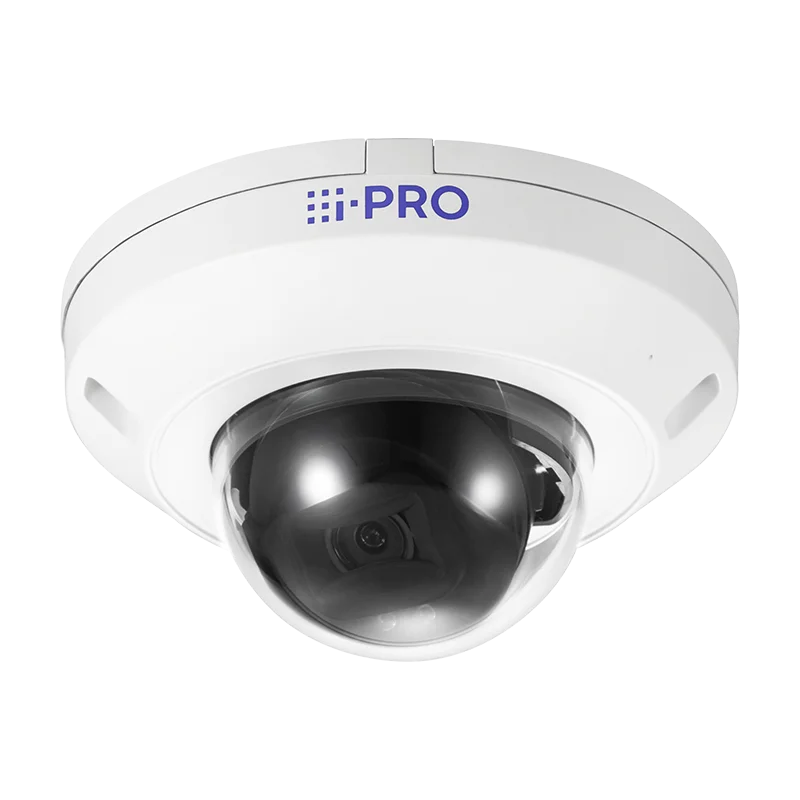

WV-U25350-F3L i-PRO U-series dome camera

WV-U25350-F3L i-PRO U-series dome camera: Guide

Across its imaging platform, the high-performance unit, constructed with an approximately 1/2.8 type CMOS picture sensor as well as a scanning region of 5.57 mm (H) × 3.13 mm (V) {7/32 inches (H) × 1/8 inches (V)}, provides strong surveillance functions across varying light situations. Its notable lowest illumination reaches as low as 0.07 lx in colour (30IRE, F2.0, 1/30 s, AGC: 11) as well as achieves a strong 0 lx in black and white whenever the IR LED is activated (50IRE, F2.0, 1/30 s, AGC: 11, IR LED: On). The IR LED boasts a considerable highest irradiation range of 42 m {Approx. 138 ft} (30IRE) or 30 m {Approx. 98 ft} (50IRE). The device is compatible with ATW1, ATW2, as well as AWC white balance settings and supplies adaptable highest shutter speeds from 1/10000 s up to 16/30 s for 30 fps setting as well as up to 16/25 s for 25 fps setting.
To maintain strong image quality, built into the camera are Intelligent Auto, Super Dynamic alongside a selection of 0 to 31 for a highest 120 dB dynamic selection, Adaptive Black Stretch alongside a level selection of 0 to 255, as well as Back Light Compensation (BLC)/Elevated Light Compensation (HLC) configurable from 0 to 31 (active only whenever Super Dynamic/Smart Auto are off). Also provided are Fog Compensation (0 to 8, active only whenever Smart Auto/Auto contrast refine are off), and configurable Maximum Gain (AGC) from 0 to 11. Colour/BW (ICR) functionality provides multiple settings: Off, On (IR Light Off/On), Auto1 (IR Light Off), Auto2 (IR Light On), as well as Auto3 (SCC). Digital Noise Reduction may be configured from 0 to 255.
Beyond its optical performance, the camera integrates enhanced analytics such as Video Motion Detection (VMD) with 4 provided areas, Scene Change Recognition (SCD) alongside 1 area, as well as Audio Recognition featuring AI Sound Classification for productions such as gunshot, yell, vehicle horn, as well as glass break. Support extends to a highest of one AI analytics use, with details provided on the i-PRO website for both their own as well as third-party uses. Privacy Zone as well as VIQS can every be configured alongside up to 8 zones, as well as image rotation options incorporate 0° (Off), 90°, 180° (Upside-down), as well as 270°. A Body Title (OSD) can be displayed, supporting up to 40 characters over 2 lines.
The fixed focal length optics of 3.2 mm {1/8 inches} offers a wide angular focus area of see: 105° horizontal and 57° vertical in 16:9 setting, and 77° horizontal and 57° vertical in 4:3 setting. It contains a highest 3.0x electronic (electronic) focal adjustment. The camera's adjusting angles enable for a horizontal (PAN) selection of -175° to +175°, a vertical (TILT) selection of -30° to +80°, as well as an Azimuth (YAW) selection of -100° to +100°. The highest aperture ratio is 1:2.0, alongside a focus selection from 1.0m {39-3/8 inches} to infinity as well as a fixed aperture of F2.0. DORI (Detect, Observe, Recognize, Identify) specifications are: Detect at 29.5m {96.7ft}, Observe at 11.8m {38.7ft}, Recognize at 5.9m {19.3ft}, as well as Identify at 2.9m {9.7ft}.
An Ambarella CV25M Arrangement on Chip (SoC). Sits at the camera's core Its browser GUI handles English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, as well as Japanese, as well as is accessible through Microsoft Edge, Firefox, as well as Google Chrome. Installation connectivity is established via a 10BASE-T/100BASE-TX RJ45 connector.
Regarding resolution, the unit accommodates several configurations for 16:9 setting (30fps/25fps) among them 1920x1080, 1280x720, 640x360, as well as 320x180. For 4:3 setting (30fps/25fps), resolutions incorporate 1280x960, 640x480, and 320x240. It makes available H.265/H.264 transmission alongside selectable priorities (Constant bit rate, VBR, Shot rate, Best effort) as well as types (Unicast port AUTO/MANUAL, Multicast), delivering 4 simultaneous feeds. JPEG (MJPEG) image quality is configurable in 10 steps from 0 (SUPER Small) to 9 (LOW). Smart Coding incorporates GOP (Group of pictures) management (Off, Low, Mid, Enhanced, Frame rate control, with Enhanced and Shot rate management exclusive to H.265), Smart VIQS (On Elevated/Low, Off), as well as Smart P-picture management (On/Off). Audio compression methods are G.726 (16 kbps/32 kbps), G.711 (64 kbps), as well as AAC-LC (64 kbps/96 kbps/128 kbps), alongside audio transmission modes such as Off, Mic (Line) source, Audio feed, as well as Interactive (Half duplex/Full duplex).
Support on the camera extends to a complete selection of protocols for both IPv6 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT) as well as IPv4 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, FTP, SFTP, LLDP, MQTT). It accommodates up to 14 simultaneous operators and offers robust security features, which include FIPS 140-2 level 3 (NXP® EdgeLock® SE050F), pre-installed GlobalSign® device certificates, HTTPS, operator as well as digest authentication, Host authentication, IEEE802.1X, platform and picture transmission logs, brute-force protection, alteration recognition, as well as signed firmware. Optional SDXC/SDHC/SD memory medium support is provided for storage, ranging from 2GB to 512GB. Compatibility extends to iPad/iPhone (iOS 8.0 or later) as well as Android™ terminals, as well as the imaging device is ONVIF® Profile G, M, S, as well as T compliant.
Alarm sources incorporate VMD, SCD, Command, as well as Audio recognition, triggering actions such as SDXC/SDHC/SD memory capture, E-mail notification, HTTP alarm notification, browser indication, as well as TCP alarm notification feed. For audio source, a ø3.5 mm stereo mini jack accommodates microphone source (plug-in power type, rating –51 dB to –38 dB, source impedance approx. 2 k?, supply voltage 2.5 V ±0.5 V) or range source (approx. -10 dBV). A ø3.5 mm stereo mini jack delivers monaural audio output (feed impedance approx. 600 ?, feed level -20 dBV).
The overall specifications identify its compliance alongside UL (UL62368-1 3Ed), c-UL (CAN/CSA C22.2 NO.62368-1-19), IEC62368-1 3Ed. for security as well as FCC Part15 Subpart B ClassA, ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035 for EMC. Power is supplied through PoE (IEEE802.3af Compliant) at DC 48 V, alongside an approximate consumption of 9.6 W (Class 0 device). The imaging device operates in ambient temperatures from -30 °C to +50 °C {-22 °F to +122 °F} (power on selection: -20 °C to +50 °C {-4 °F to +122 °F}) as well as ambient humidity from 10 % to 100 % (no condensation). The unit's robust design offers IP66 (IEC 60529), Type 4X (UL50E), NEMA 4X water as well as dust protection, IK10 (IEC 62262) shock protection, and wind protection up to 40 m/s {approx. 89 mph}. Compactly sized at ø109 mm x 62 mm (H) {ø4-9/32 inches x 2-7/16 inches (H)}, alongside dome radii of 30.5 mm {1-3/16 inches} as well as 42 mm {1-21/32 inches}, it weighs approximately 270 g {0.60 lbs}. The finish incorporates a main chassis of aluminum die cast in i-PRO white, corrosion-resistant stainless steel outer fixing screws, as well as a detailed PC resin dome cover as well as front panel, both alongside ClearSight surface treatment. Easy Kitting is supported.
