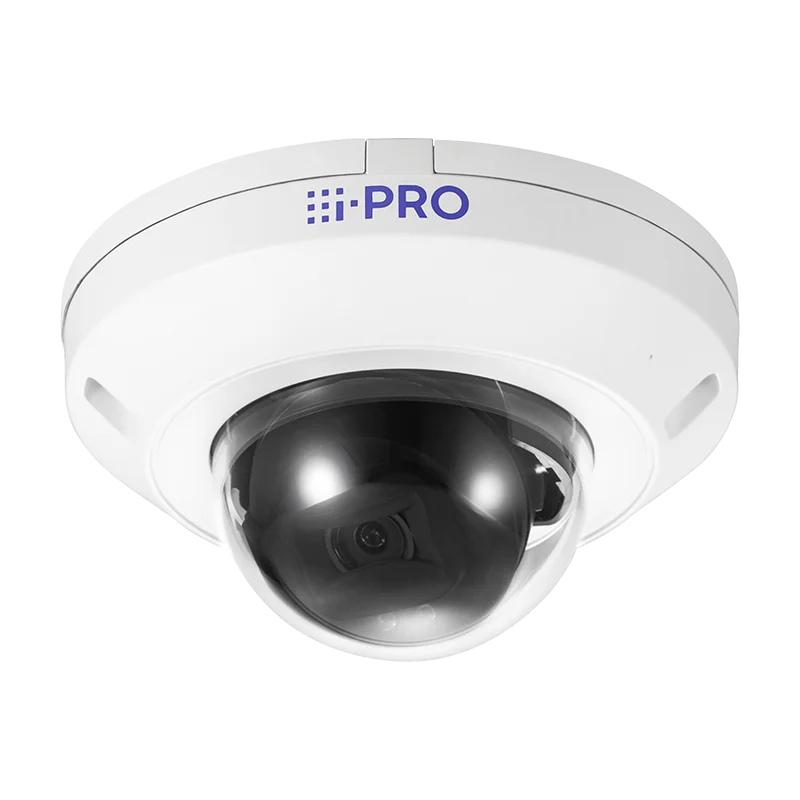

WV-U22750-F3L i-PRO U-series dome camera

WV-U22750-F3L i-PRO U-series dome camera: Guide

As configured for this product, with an approximate 1/2.8 type CMOS picture sensor alongside a scanning region of 5.57 mm (H) × 3.13 mm (V) {7/32 inches (H) × 1/8 inches (V)}, this sophisticated camera offers reliable low-light performance. It achieves a lowest illumination of 0.31 lx in colour (30IRE, F2.0, 1/30 s, AGC: 11) and operates at 0 lx in black as well as white whenever the IR LED is active (50IRE, F2.0, 1/30 s, AGC: 11, IR LED: On), thanks to the unit's powerful IR LED with a highest irradiation range of 28 m {Approx. 92 ft} (30IRE) or 20 m {Approx. 66 ft} (50IRE). The capture device delivers adaptable white equilibrium settings (ATW1/ ATW2/ AWC) as well as versatile highest shutter speeds ranging from 1/10000 s up to 16/30 s for 15 fps setting as well as up to 16/25 s for 12.5 fps setting.
To optimize image quality, the device is fitted with Smart Auto, Super Dynamic (selection 0 to 31) for a highest 120 dB dynamic selection, Adaptive Black Stretch (level 0 to 255), as well as Back Light Compensation (BLC)/Elevated Light Compensation (HLC) (selection 0 to 31, active whenever Super Dynamic/Smart Auto are off). The unit further incorporates Fog Compensation (range 0 to 8, active whenever Smart Auto/Auto contrast refine are off) and configurable Maximum Gain (AGC) from 0 to 11. Colour/BW (ICR) operation provides Off, On (IR Light Off/On), Auto1 (IR Light Off), Auto2 (IR Light On), as well as Auto3 (SCC) settings, while Digital Noise Reduction may be configured from 0 to 255.
Outside the imaging functions, the camera integrates enhanced analytics such as Footage Motion Detection (VMD) with 4 provided areas, Scene Change Recognition (SCD) alongside 1 area, as well as Audio Recognition built around AI Sound Classification for gunshots, yells, vehicle horns, as well as glass breaks. The unit provides support for a highest of one AI analytics use from i-PRO's broad range, alongside details on their website, and makes possible third-party use integration. Privacy Zone as well as VIQS can every be configured alongside up to 8 zones, as well as image rotation options incorporate 0° (Off), 90°, 180° (Upside-down), as well as 270°. A customizable Unit Title (OSD) can screen up to 40 alphanumeric characters across 2 lines.
The fixed focal length optics of 3.2 mm {1/8 inches} makes available a wide angular focus area of see of 105° horizontal and 57° vertical in 16:9 setting, complemented by a highest 6.0x electronic (electronic) focal adjustment. The camera's adjusting angles enable for a horizontal (PAN) selection of -175° to +175°, a vertical (TILT) selection of -30° to +80°, as well as an Azimuth (YAW) selection of -100° to +100°. The highest aperture ratio is 1:2.0, alongside a focus selection from 1.5m {59-1/16 inches} to infinity as well as a fixed aperture of F2.0. DORI (Detect, Observe, Recognize, Identify) specifications are: Detect at 58.9m {193.3ft}, Observe at 23.6m {77.3ft}, Recognize at 11.8m {38.7ft}, as well as Identify at 5.9m {19.3ft}.
An Ambarella CV25M Platform on Chip (SoC). Sits at the camera's core Its browser GUI accommodates English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, as well as Japanese, as well as is accessible through Microsoft Edge, Firefox, as well as Google Chrome. Installation connectivity is provided via a 10BASE-T/100BASE-TX RJ45 connector.
Regarding resolution, support on the camera extends to numerous configurations for 16:9 setting (15fps/12.5fps) such as 3840x2160, 2560x1440, 1920x1080, 1280x720, 640x360, as well as 320x180. It makes available H.265/H.264 transmission alongside selectable priorities (Constant bit rate, VBR, Shot rate, Best effort) as well as types (Unicast port AUTO/MANUAL, Multicast), delivering 4 simultaneous feeds. JPEG (MJPEG) image quality is configurable in 10 steps from 0 (SUPER Small) to 9 (LOW). Smart Coding incorporates GOP (Group of pictures) management (Off, Low, Mid, Enhanced, Frame rate control, with Enhanced and Shot rate management exclusive to H.265), Smart VIQS (On Elevated/Low, Off), as well as Smart P-picture management (On/Off). Audio compression methods are G.726 (16 kbps/32 kbps), G.711 (64 kbps), as well as AAC-LC (64 kbps/96 kbps/128 kbps), alongside audio transmission modes such as Off, Mic (Line) source, Audio feed, as well as Interactive (Half duplex/Full duplex).
The unit accommodates a wide-ranging location of protocols for both IPv6 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT) as well as IPv4 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, FTP, SFTP, LLDP, MQTT). It accommodates up to 14 simultaneous operators and supplies robust security features, such as FIPS 140-2 level 3 (NXP® EdgeLock® SE050F), pre-installed GlobalSign® device certificates, HTTPS, operator as well as digest authentication, Host authentication, IEEE802.1X, arrangement and picture transmission logs, brute-force protection, alteration recognition, as well as signed firmware. Optional SDXC/SDHC/SD memory medium support is provided for storage, ranging from 2GB to 512GB. Compatibility extends to iPad/iPhone (iOS 8.0 or later) as well as Android™ terminals, as well as the capture device is ONVIF® Profile G, M, S, as well as T compliant.
Alarm sources incorporate VMD, SCD, Command, as well as Audio recognition, triggering actions such as SDXC/SDHC/SD memory capture, E-mail notification, HTTP alarm notification, browser indication, as well as TCP alarm notification feed. For audio source, a ø3.5 mm stereo mini jack handles microphone source (plug-in power type, rating –51 dB to –38 dB, source impedance approx. 2 k?, supply voltage 2.5 V ±0.5 V) or range source (approx. -10 dBV). A ø3.5 mm stereo mini jack supplies monaural audio output (feed impedance approx. 600 ?, feed level -20 dBV).
General compliance and construction details include its compliance alongside UL (UL62368-1 3Ed), c-UL (CAN/CSA C22.2 NO.62368-1-19), IEC62368-1 3Ed. for security as well as FCC Part15 Subpart B ClassA, ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035 for EMC. Power is supplied through PoE (IEEE802.3af Compliant) at DC 48 V, alongside an approximate consumption of 9.6 W (Class 0 device). The capture device operates in ambient temperatures from -10 °C to +50 °C {+14 °F to +122 °F} as well as ambient humidity from 10 % to 90 % (no condensation). The unit's robust design supplies IP42 (IEC 60529) water as well as dust protection, IK10 (IEC 62262) shock protection, and wind protection up to 40 m/s {approx. 89 mph}. Compactly sized at ø109 mm x 62 mm (H) {ø4-9/32 inches x 2-7/16 inches (H)}, alongside a dome radius of 30.5 mm {1-3/16 inches}, it weighs approximately 250 g {0.55 lbs}. The finish incorporates a main chassis of aluminum die cast in i-PRO white, corrosion-resistant stainless steel outer fixing screws, as well as a detailed PC resin dome cover as well as front panel, both alongside ClearSight surface treatment. Easy Kitting is supported.
