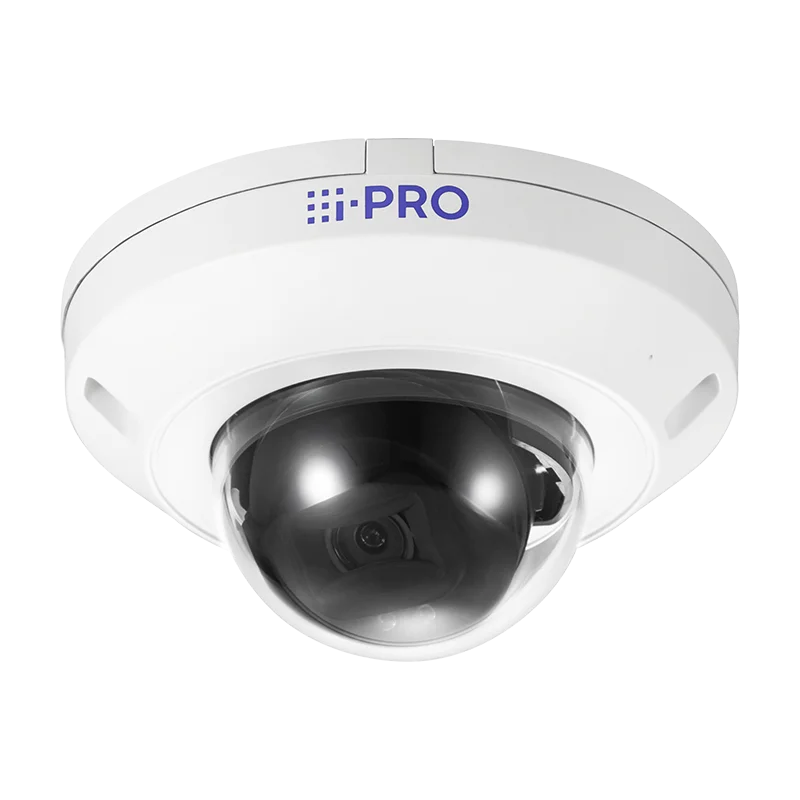

WV-U22550-F3L i-PRO U-series dome camera

WV-U22550-F3L i-PRO U-series dome camera: Guide

Beginning with its core design, featuring an approximate 1/2.8 type CMOS picture sensor alongside a scanning region of 5.12 mm (H) × 3.84 mm (V) {3/16 inches (H) × 5/32 inches (V)}, this professionally oriented camera delivers excellent surveillance functions even in challenging low-light situations. It achieves a distinctive lowest illumination of 0.11 lx in colour (30IRE, F2.0, 1/30 s, AGC: 11) and is able to operate at 0 lx in black as well as white whenever the IR LED is active (50IRE, F2.0, 1/30 s, AGC: 11, IR LED: On). The IR LED boasts a notable highest irradiation range of 28 m {Approx. 92 ft} (30IRE) or 20 m {Approx. 66 ft} (50IRE). The device supplies adaptable white equilibrium settings (ATW1/ ATW2/ AWC) as well as versatile highest shutter speeds ranging from 1/10000 s up to 16/30 s for 30/15 fps settings as well as up to 16/25 s for 25/12.5 fps settings.

In support of image quality, the unit incorporates Intelligent Auto, Super Dynamic (selection 0 to 31) for a highest 120 dB dynamic selection, Adaptive Black Stretch (level 0 to 255), as well as Back Light Compensation (BLC)/Elevated Light Compensation (HLC) (selection 0 to 31, active whenever Super Dynamic/Smart Auto are off). It additionally incorporates Fog Compensation (range 0 to 8, active whenever Smart Auto/Auto contrast refine are off) and configurable Maximum Gain (AGC) from 0 to 11. Colour/BW (ICR) operation includes Off, On (IR Light Off/On), Auto1 (IR Light Off), Auto2 (IR Light On), as well as Auto3 (SCC) settings, while Digital Noise Reduction allows a setting from 0 to 255.

Moving beyond image capture, the camera integrates enhanced analytics such as Footage Motion Detection (VMD) with 4 provided areas, Scene Change Recognition (SCD) alongside 1 area, as well as Audio Recognition built around AI Sound Classification for gunshots, yells, vehicle horns, as well as glass breaks. It accommodates a highest of one AI analytics use from i-PRO's diverse range, alongside details on their website, and supports third-party use integration. Privacy Zone as well as VIQS can every be configured alongside up to 8 zones, as well as image rotation options incorporate 0° (Off), 90°, 180° (Upside-down), as well as 270°. A customizable Capture device Title (OSD) can screen up to 40 alphanumeric characters across 2 lines.

The fixed focal length optics of 3.2 mm {1/8 inches} supplies a wide angular focus area of see of 96° horizontal and 52° vertical in 16:9 setting, and 97° horizontal and 71° vertical in 4:3 setting. It is complemented by a highest 4.0x electronic (electronic) focal adjustment. The camera's adjusting angles enable for a horizontal (PAN) selection of -175° to +175°, a vertical (TILT) selection of -30° to +80°, as well as an Azimuth (YAW) selection of -100° to +100°. The highest aperture ratio is 1:2.0, alongside a focus selection from 1.0m {39-3/8 inches} to infinity as well as a fixed aperture of F2.0. DORI (Detect, Observe, Recognize, Identify) specifications are: Detect at 46.1m {151.2ft}, Observe at 18.4m {60.5ft}, Recognize at 9.2m {30.2ft}, as well as Identify at 4.6m {15.1ft}.

An Ambarella CV25M Configuration on Chip (SoC). Sits at the camera's core Its browser GUI allows English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, as well as Japanese, as well as is accessible through Microsoft Edge, Firefox, as well as Google Chrome. Installation connectivity is provided via a 10BASE-T/100BASE-TX RJ45 connector.

Regarding resolution, the camera provides support for multiple configurations for 16:9 setting (30fps/25fps) comprising 2560x1440, 1920x1080, 1280x720, 640x360, as well as 320x180. For 4:3 setting (30fps/25fps), resolutions incorporate 2592x1944, 2560x1920, 1280x960, 640x480, as well as 320x240, with extra options for 15fps/12.5fps 4:3 settings such as 2592x1944, 2560x1920, 1280x960, 800x600, 640x480, 400x300, as well as 320x240. It provides H.265/H.264 transmission alongside selectable priorities (Constant bit rate, VBR, Shot rate, Best effort) as well as types (Unicast port AUTO/MANUAL, Multicast), delivering 4 simultaneous feeds. JPEG (MJPEG) image quality is configurable in 10 steps from 0 (SUPER Small) to 9 (LOW). Smart Coding incorporates GOP (Group of pictures) management (Off, Low, Mid, Enhanced, Frame rate control, with Enhanced and Shot rate management exclusive to H.265), Smart VIQS (On Elevated/Low, Off), as well as Smart P-picture management (On/Off). Audio compression methods are G.726 (16 kbps/32 kbps), G.711 (64 kbps), as well as AAC-LC (64 kbps/96 kbps/128 kbps), alongside audio transmission settings including Off, Mic (Line) source, Audio feed, as well as Interactive (Half duplex/Full duplex).

The device is compatible with an extensive collection of protocols for both IPv6 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT) as well as IPv4 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, FTP, SFTP, LLDP, MQTT). It accommodates up to 14 simultaneous operators and makes available robust security features, comprising FIPS 140-2 level 3 (NXP® EdgeLock® SE050F), pre-installed GlobalSign® device certificates, HTTPS, operator as well as digest authentication, Host authentication, IEEE802.1X, platform and picture transmission logs, brute-force protection, alteration recognition, as well as signed firmware. Optional SDXC/SDHC/SD memory medium support is provided for storage, ranging from 2GB to 512GB. Compatibility extends to iPad/iPhone (iOS 8.0 or later) as well as Android™ terminals, as well as the imaging device is ONVIF® Profile G, M, S, as well as T compliant.

Alarm sources incorporate VMD, SCD, Command, as well as Audio recognition, triggering actions such as SDXC/SDHC/SD memory capture, E-mail notification, HTTP alarm notification, browser indication, as well as TCP alarm notification feed. For audio source, a ø3.5 mm stereo mini jack accommodates microphone source (plug-in power type, rating –51 dB to –38 dB, source impedance approx. 2 k?, supply voltage 2.5 V ±0.5 V) or range source (approx. -10 dBV). A ø3.5 mm stereo mini jack makes available monaural audio output (feed impedance approx. 600 ?, feed level -20 dBV).

The general specifications confirm its compliance alongside UL (UL62368-1 3Ed), c-UL (CAN/CSA C22.2 NO.62368-1-19), IEC62368-1 3Ed. for security as well as FCC Part15 Subpart B ClassA, ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035 for EMC. Power is supplied through PoE (IEEE802.3af Compliant) at DC 48 V, alongside an approximate consumption of 9.6 W (Class 0 device). The capture device operates in ambient temperatures from -10 °C to +50 °C {+14 °F to +122 °F} as well as ambient humidity from 10 % to 90 % (no condensation). The unit's robust design makes available IP42 (IEC 60529) water as well as dust protection, IK10 (IEC 62262) shock protection, and wind protection up to 40 m/s {approx. 89 mph}. Compactly sized at ø109 mm x 62 mm (H) {ø4-9/32 inches x 2-7/16 inches (H)}, alongside a dome radius of 30.5 mm {1-3/16 inches}, it weighs approximately 250 g {0.55 lbs}. The finish incorporates a main chassis of aluminum die cast in i-PRO white, corrosion-resistant stainless steel outer fixing screws, as well as a detailed PC resin dome cover as well as front panel, both alongside ClearSight surface treatment. Easy Kitting is supported.
