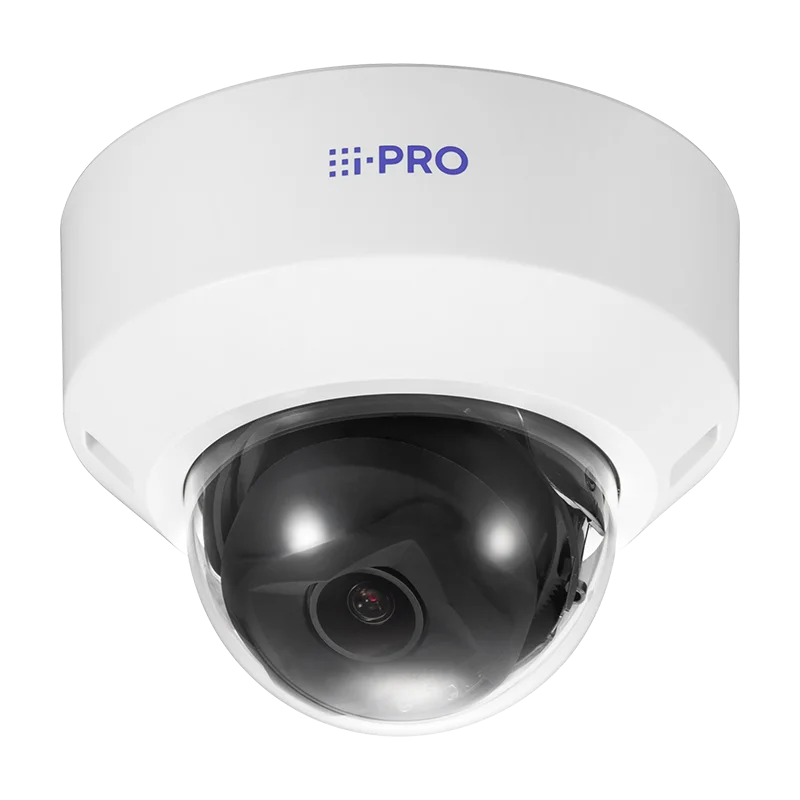

WV-U21550-V3L i-PRO U-series dome camera

WV-U21550-V3L i-PRO U-series dome camera: Guide

From the sensor onward, with an approximate 1/2.8 type CMOS picture sensor alongside a scanning region of 5.12 mm (H) × 3.84 mm (V) {3/16 inches (H) × 5/32 inches (V)}, this sophisticated camera supplies notable low-light performance. It achieves a notable lowest illumination of 0.07 lx in colour (30IRE, F1.6, 1/30 s, AGC: 11) as well as can function at 0 lx in black as well as white whenever the IR LED is active (50IRE, F1.6, 1/30 s, AGC: 11, IR LED: On). The IR LED boasts a significant highest irradiation range of 28 m {Approx. 92 ft} (30IRE) or 20 m {Approx. 66 ft} (50IRE). The imaging device delivers adaptable white equilibrium settings (ATW1/ ATW2/ AWC) as well as versatile shutter speeds ranging from 1/30 Fix to 1/10000 Fix for 30/15 fps settings as well as 1/25 Fix to 1/10000 Fix for 25/12.5 fps settings. Its highest shutter speeds are up to 16/30 s for 30/15 fps settings as well as up to 16/25 s for 25/12.5 fps settings.

For refined image quality, equipment on the camera includes Intelligent Auto, Super Dynamic (selection 0 to 31) for a highest 120 dB dynamic selection, Adaptive Black Stretch (level 0 to 255), as well as Back Light Compensation (BLC)/Elevated Light Compensation (HLC) (selection 0 to 31, active whenever Super Dynamic/Smart Auto are off). It additionally incorporates Fog Compensation (range 0 to 8, active whenever Smart Auto/Auto contrast refine are off) and configurable Maximum Gain (AGC) from 0 to 11. Colour/BW (ICR) operation provides Off, On (IR Light Off/On), Auto1 (IR Light Off), Auto2 (IR Light On), as well as Auto3 (SCC) settings, while Digital Noise Reduction may be configured from 0 to 255.

In addition to image-capture, the camera integrates enhanced analytics such as Footage Motion Detection (VMD) with 4 provided areas, Scene Change Recognition (SCD) alongside 1 area, as well as Audio Recognition built around AI Sound Classification for gunshots, yells, vehicle horns, as well as glass breaks. Compatibility includes a highest of one AI analytics use from i-PRO's extensive range, alongside details on their website, and enables third-party use integration. Privacy Zone as well as VIQS can every be configured alongside up to 8 zones, as well as image rotation options incorporate 0° (Off), 90°, 180° (Upside-down), as well as 270°. A customizable Body Title (OSD) can screen up to 40 alphanumeric characters across 2 lines.

The optics incorporates a 3.2x motorized optical focal adjustment alongside motorized focus, complemented by a highest 12.8x electronic (electronic) focal adjustment. The unit's focal length spans 3.2 mm – 10.2 mm {1/8 inches – 13/32 inches}. The angular focus area of view for 16:9 setting ranges from 28° (TELE) to 101° (WIDE) horizontally as well as 16° (TELE) to 52° (WIDE) vertically, whereas for 4:3 setting, it's 28° (TELE) to 102° (WIDE) horizontally as well as 21° (TELE) to 73° (WIDE) vertically. The camera's refining angles enable for a horizontal (PAN) selection of -105° to +255°, a vertical (TILT) selection of -30° to +85°, as well as an Azimuth (YAW) selection of -100° to +100°. The highest aperture ratio is 1:1.6 (WIDE) – 1:3.2 (TELE), alongside a focus selection from 2.0m {78-3/4 inches} to infinity as well as an aperture selection of F1.6 to short. DORI (Detect, Observe, Recognize, Identify) specifications are: Detect at 205.4m {673.7ft} (TELE) / 42.2m {138.5ft} (WIDE), Observe at 82.1m {269.5ft} (TELE) / 16.9m {55.4ft} (WIDE), Recognize at 41.1m {134.7ft} (TELE) / 8.4m {27.7ft} (WIDE), as well as Identify at 20.5m {67.4ft} (TELE) / 4.2m {13.8ft} (WIDE).

An Ambarella CV25M Setup on Chip (SoC). Sits at the camera's core Its browser GUI accommodates English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, as well as Japanese, as well as is accessible through Microsoft Edge, Firefox, as well as Google Chrome. Installation connectivity is provided via a 10BASE-T/100BASE-TX RJ45 connector.

Regarding resolution, the device is compatible with a range of configurations for 16:9 setting (30fps/25fps) which include 2560x1440, 1920x1080, 1280x720, 640x360, as well as 320x180. For 4:3 setting (30fps/25fps), resolutions incorporate 2592x1944, 2560x1920, 1280x960, 640x480, as well as 320x240, with extra options for 15fps/12.5fps 4:3 settings such as 2592x1944, 2560x1920, 1280x960, 800x600, 640x480, 400x300, as well as 320x240. It delivers H.265/H.264 transmission alongside selectable priorities (Constant bit rate, VBR, Shot rate, Best effort) as well as types (Unicast port AUTO/MANUAL, Multicast), delivering 4 simultaneous feeds. JPEG (MJPEG) image quality is configurable in 10 steps from 0 (SUPER Small) to 9 (LOW). Smart Coding incorporates GOP (Group of pictures) management (Off, Low, Mid, Enhanced, Frame rate control, with Enhanced and Shot rate management exclusive to H.265), Smart VIQS (On Elevated/Low, Off), as well as Smart P-picture management (On/Off). Audio compression methods are G.726 (16 kbps/32 kbps), G.711 (64 kbps), as well as AAC-LC (64 kbps/96 kbps/128 kbps), alongside audio transmission modes comprising Off, Mic (Line) source, Audio feed, as well as Interactive (Half duplex/Full duplex).

The imaging device provides support for a broad group of protocols for both IPv6 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT) as well as IPv4 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, FTP, SFTP, LLDP, MQTT). It accommodates up to 14 simultaneous operators and delivers robust surveillance features, comprising FIPS 140-3 level 3 (NXP® EdgeLock® SE052F), pre-installed GlobalSign® device certificates, HTTPS, operator as well as digest authentication, Host authentication, IEEE802.1X, configuration and picture transmission logs, brute-force protection, alteration recognition, secure boot, as well as signed firmware. Optional SDXC/SDHC/SD memory medium support is provided for storage, ranging from 2GB to 512GB. Compatibility extends to iPad/iPhone (iOS 8.0 or later) as well as Android™ terminals, as well as the imaging device is ONVIF® Profile G, M, S, as well as T compliant.

Alarm sources incorporate VMD, SCD, Command, as well as Audio recognition, triggering actions such as SDXC/SDHC/SD memory capture, E-mail notification, HTTP alarm notification, browser indication, as well as TCP alarm notification feed. For audio source, a ø3.5 mm stereo mini jack handles microphone source (plug-in power type, rating –51 dB to –38 dB, source impedance approx. 2 k?, supply voltage 2.5 V ±0.5 V) or range source (approx. -10 dBV). A ø3.5 mm stereo mini jack supplies monaural audio output (feed impedance approx. 600 ?, feed level -20 dBV).

Its general specification set covers its compliance alongside UL (UL62368-1 3Ed), c-UL (CAN/CSA C22.2 NO.62368-1-19), IEC62368-1 3Ed. for security as well as FCC Part15 Subpart B ClassA, ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035 for EMC. Power is supplied through PoE (IEEE802.3af Compliant) at DC 48 V, alongside an approximate consumption of 9.6 W (Class 0 device). The unit operates in ambient temperatures from -10 °C to +50 °C {+14 °F to +122 °F} as well as ambient humidity from 10 % to 90 % (no condensation). The unit's robust design makes available IP42 (IEC 60529) conformity for water as well as dust protection, IK10 (IEC 62262) shock protection, and wind protection up to 40 m/s {approx. 89 mph}. Sized at ø129.5 mm x 102 mm (H) {ø5-3/32 inches x 4-1/32 inches (H)}, alongside a dome radius of 40 mm {1-9/16 inches}, it weighs approximately 380 g {0.84 lbs}. The finish incorporates a main chassis of ABS resin in i-PRO white as well as a detailed acrylic resin dome cover. Simple Kitting is supported.
