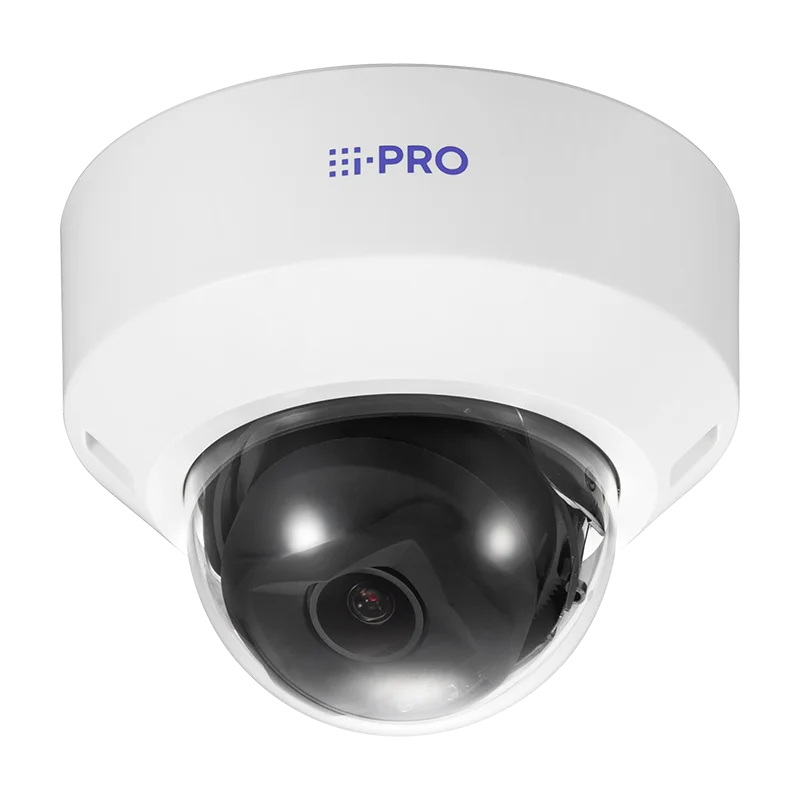

WV-U21350-V3L i-PRO U-series dome camera

WV-U21350-V3L i-PRO U-series dome camera: Guide

Within its operating design, with an approximate 1/2.8 type CMOS picture sensor alongside a scanning region of 5.57 mm (H) × 3.13 mm (V) {7/32 inches (H) × 1/8 inches (V)}, this refined camera makes available strong low-light performance. It achieves a strong lowest illumination of 0.05 lx in colour (30IRE, F1.6, 1/30 s, AGC: 11) and is capable of operating at 0 lx in black as well as white whenever the IR LED is active (50IRE, F1.6, 1/30 s, AGC: 11, IR LED: On). The IR LED boasts a considerable highest irradiation range of 42 m {Approx. 138 ft} (30IRE) or 30 m {Approx. 98 ft} (50IRE). The body makes available adaptable white equilibrium settings (ATW1/ ATW2/ AWC) as well as versatile shutter speeds ranging from 1/30 Fix to 1/10000 Fix for 30 fps setting as well as 1/25 Fix to 1/10000 Fix for 25 fps setting. Its highest shutter speeds are up to 16/30 s for 30 fps setting as well as up to 16/25 s for 25 fps setting.

To maintain strong image quality, built into the camera are Intelligent Auto, Super Dynamic (selection 0 to 31) for a highest 120 dB dynamic selection, Adaptive Black Stretch (level 0 to 255), as well as Back Light Compensation (BLC)/Elevated Light Compensation (HLC) (selection 0 to 31, active whenever Super Dynamic/Smart Auto are off). Also provided are Fog Compensation (range 0 to 8, active whenever Smart Auto/Auto contrast refine are off) and configurable Maximum Gain (AGC) from 0 to 11. Colour/BW (ICR) functionality provides Off, On (IR Light Off/On), Auto1 (IR Light Off), Auto2 (IR Light On), as well as Auto3 (SCC) settings, while Digital Noise Reduction is adjustable from 0 to 255.

Beyond image-capture, the camera integrates enhanced analytics such as Footage Motion Detection (VMD) with 4 provided areas, Scene Change Recognition (SCD) alongside 1 area, as well as Audio Recognition built around AI Sound Classification for gunshots, yells, vehicle horns, as well as glass breaks. The unit provides support for a highest of one AI analytics use from i-PRO's broad range, alongside details on their website, and makes possible third-party use integration. Privacy Zone as well as VIQS can every be configured alongside up to 8 zones, as well as image rotation options incorporate 0° (Off), 90°, 180° (Upside-down), as well as 270°. A customizable Body Title (OSD) can screen up to 40 alphanumeric characters across 2 lines.

The optics contains a 3.2x motorized optical focal adjustment alongside motorized focus, complemented by a highest 9.6x electronic (electronic) focal adjustment. The unit's focal length spans 3.2 mm – 10.2 mm {1/8 inches – 13/32 inches}. The angular focus area of view for 16:9 setting ranges from 30° (TELE) to 112° (WIDE) horizontally as well as 17° (TELE) to 57° (WIDE) vertically, whereas for 4:3 setting, it's 23° (TELE) to 79° (WIDE) horizontally as well as 17° (TELE) to 57° (WIDE) vertically. The camera's refining angles enable for a horizontal (PAN) selection of -105° to +255°, a vertical (TILT) selection of -30° to +85°, as well as an Azimuth (YAW) selection of -100° to +100°. The highest aperture ratio is 1:1.6 (WIDE) – 1:3.2 (TELE), alongside a focus selection from 2.0m {78-3/4 inches} to infinity as well as an aperture selection of F1.6 to short. DORI (Detect, Observe, Recognize, Identify) specifications are: Detect at 143.3m {470.2ft} (TELE) / 25.9m {85ft} (WIDE), Observe at 57.3m {188.1ft} (TELE) / 10.4m {34ft} (WIDE), Recognize at 28.7m {94ft} (TELE) / 5.2m {17ft} (WIDE), as well as Identify at 14.3m {47ft} (TELE) / 2.6m {8.5ft} (WIDE).

An Ambarella CV25M Arrangement on Chip (SoC). Sits at the camera's core Its browser GUI handles English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, as well as Japanese, as well as is accessible through Microsoft Edge, Firefox, as well as Google Chrome. Installation connectivity is provided via a 10BASE-T/100BASE-TX RJ45 connector.

Regarding resolution, the unit accommodates several configurations for 16:9 setting (30fps/25fps) among them 1920x1080, 1280x720, 640x360, as well as 320x180. For 4:3 setting (30fps/25fps), resolutions incorporate 1280x960, 640x480, and 320x240. It makes available H.265/H.264 transmission alongside selectable priorities (Constant bit rate, VBR, Shot rate, Best effort) as well as types (Unicast port AUTO/MANUAL, Multicast), delivering 4 simultaneous feeds. JPEG (MJPEG) image quality is configurable in 10 steps from 0 (SUPER Small) to 9 (LOW). Smart Coding incorporates GOP (Group of pictures) management (Off, Low, Mid, Enhanced, Frame rate control, with Enhanced and Shot rate management exclusive to H.265), Smart VIQS (On Elevated/Low, Off), as well as Smart P-picture management (On/Off). Audio compression methods are G.726 (16 kbps/32 kbps), G.711 (64 kbps), as well as AAC-LC (64 kbps/96 kbps/128 kbps), alongside audio transmission modes such as Off, Mic (Line) source, Audio feed, as well as Interactive (Half duplex/Full duplex).

Support on the camera extends to a complete selection of protocols for both IPv6 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT) as well as IPv4 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, FTP, SFTP, LLDP, MQTT). It accommodates up to 14 simultaneous operators and offers robust security features, which include FIPS 140-3 level 3 (NXP® EdgeLock® SE052F), pre-installed GlobalSign® device certificates, HTTPS, operator as well as digest authentication, Host authentication, IEEE802.1X, platform and picture transmission logs, brute-force protection, alteration recognition, secure boot, as well as signed firmware. Optional SDXC/SDHC/SD memory medium support is provided for storage, ranging from 2GB to 512GB. Compatibility extends to iPad/iPhone (iOS 8.0 or later) as well as Android™ terminals, as well as the body is ONVIF® Profile G, M, S, as well as T compliant.

Alarm sources incorporate VMD, SCD, Command, as well as Audio recognition, triggering actions such as SDXC/SDHC/SD memory capture, E-mail notification, HTTP alarm notification, browser indication, as well as TCP alarm notification feed. For audio source, a ø3.5 mm stereo mini jack accommodates microphone source (plug-in power type, rating –51 dB to –38 dB, source impedance approx. 2 k?, supply voltage 2.5 V ±0.5 V) or range source (approx. -10 dBV). A ø3.5 mm stereo mini jack makes available monaural audio output (feed impedance approx. 600 ?, feed level -20 dBV).

General specifications highlight the unit's compliance alongside UL (UL62368-1 3Ed), c-UL (CAN/CSA C22.2 NO.62368-1-19), IEC62368-1 3Ed. for security as well as FCC Part15 Subpart B ClassA, ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035 for EMC. Power is supplied through PoE (IEEE802.3af Compliant) at DC 48 V, alongside an approximate consumption of 9.6 W (Class 0 device). The capture device operates in ambient temperatures from -10 °C to +50 °C {+14 °F to +122 °F} as well as ambient humidity from 10 % to 90 % (no condensation). The unit's robust design offers IP42 (IEC 60529) conformity for water as well as dust protection, IK10 (IEC 62262) shock protection, and wind protection up to 40 m/s {approx. 89 mph}. Sized at ø129.5 mm x 102 mm (H) {ø5-3/32 inches x 4-1/32 inches (H)}, alongside a dome radius of 40 mm {1-9/16 inches}, it weighs approximately 380 g {0.84 lbs}. The finish incorporates a main chassis of ABS resin in i-PRO white as well as a detailed acrylic resin dome cover. Simple Kitting is supported.
