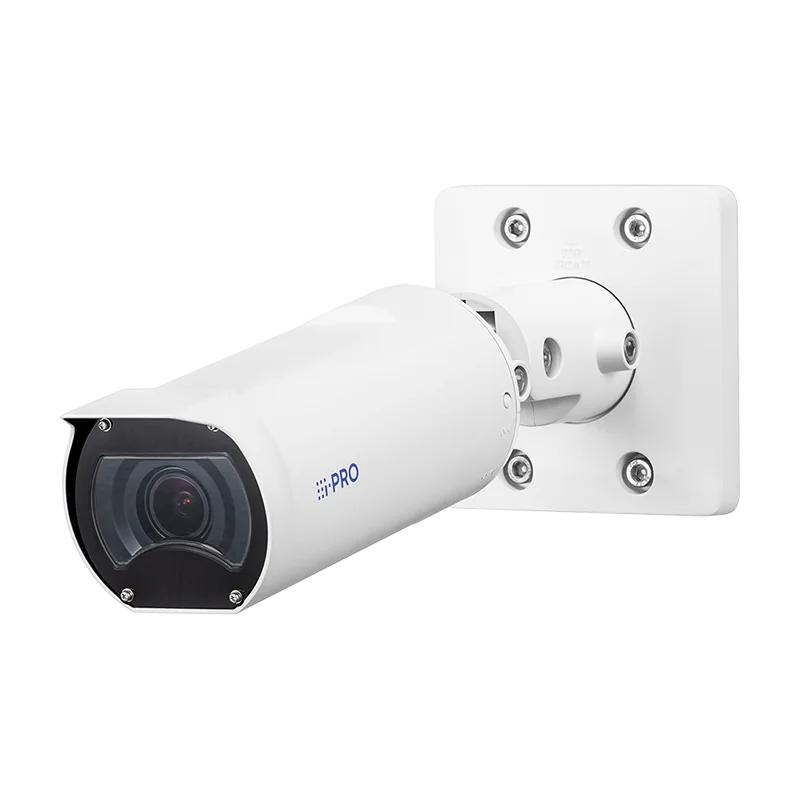

WV-U15750-V3L i-PRO U-series bullet camera with edge AI image analytics

WV-U15750-V3L i-PRO U-series bullet camera: edge AI image analytics

From an imaging perspective, featuring an approximate 1/2.8 type CMOS picture sensor alongside a scanning region of 5.57 mm (H) × 3.13 mm (V) {7/32 inches (H) × 1/8 inches (V)}, this resilient camera supports reliable performance across varied lighting conditions. It boasts a lowest illumination of 0.2 lx in colour (30IRE, F1.6, 1/30 s, AGC: 11) and is able to reach 0 lx in black and white whenever the IR LED is activated (50IRE, F1.6, 1/30 s, AGC: 11, IR LED: On). The capable IR LED Light delivers a highest irradiation range of 28 m {Approx. 92 ft} (30IRE) or 20 m {Approx. 66 ft} (50IRE). Adaptable white balance options incorporate ATW1, ATW2, and AWC.

For detailed capture control, the unit provides shutter speeds ranging from 1/30 Fix to 1/10000 Fix in 15 fps setting, as well as 1/25 Fix to 1/10000 Fix in 12.5 fps setting. Its highest shutter speeds are up to 16/30 s for 15 fps setting as well as up to 16/25 s for 12.5 fps setting. It incorporates Intelligent Auto operation (On/Off) and Super Dynamic functions (On/Off, alongside a range of 0 to 31) delivering a highest dynamic range of 120 dB. Further picture optimization attributes incorporate Adaptive Black Stretch (level 0 to 255), Rear Light Compensation (BLC) / Elevated Light Compensation (HLC) (On/Off, selection 0 to 31, active whenever Super Dynamic/Smart Auto are off), as well as Fog Compensation (On/Off, selection 0 to 8, active whenever Smart Auto/Auto contrast refine are off). The Highest Gain (AGC) allows a setting from 0 to 11. Colour/BW (ICR) functionality provides Off, On (IR Light Off), On (IR Light On), Auto1 (IR Light Off), Auto2 (IR Light On), as well as Auto3 (SCC) settings, while Digital Noise Reduction is configurable from 0 to 255.

Beyond standard security monitoring, the camera integrates enhanced analytics covering Video Motion Detection (VMD) with 4 provided areas, as well as Scene Change Detection (SCD) with 1 provided area. It additionally contains Audio Recognition alongside AI Sound Classification for gunshots, yells, vehicle horns, as well as glass breaks. Support extends to a highest of one AI analytics use from i-PRO's complete range, alongside details on their website, and permits third-party use integration. For privacy and accurate monitoring, it provides Privacy Zone (up to 8 zones) as well as VIQS (up to 8 zones), both alongside On/Off settings. Picture orientation can be configured with Picture Rotation options of 0° (Off), 90°, 180° (Upside-down), as well as 270°. A customizable Capture device Title (OSD) can screen up to 40 alphanumeric characters over 2 lines.

The optics integrates a 3.2x motorized optical focal adjustment alongside motorized focus, complemented by a highest 19.2x electronic (electronic) focal adjustment. The unit's focal length spans 3.2 mm – 10.2 mm {1/8 inches – 13/32 inches}. The angular focus area of view in 16:9 setting ranges from Horizontal: 31° (TELE) – 114° (WIDE) as well as Vertical: 17° (TELE) – 58° (WIDE). The highest aperture ratio varies from 1:1.6 (WIDE) to 1:3.2 (TELE), alongside a focus selection of 2.0m {78-3/4 inches} to infinity as well as an aperture selection of F1.6 to short. The DORI (Detect, Observe, Recognize, Identify) specifications are: Detect at 276.9m {908.6ft} (TELE) / 49.9m {163.6ft} (WIDE), Observe at 110.8m {363.4ft} (TELE) / 19.9m {65.5ft} (WIDE), Recognize at 55.4m {181.7ft} (TELE) / 10m {32.7ft} (WIDE), as well as Identify at 27.7m {90.9ft} (TELE) / 5m {16.4ft} (WIDE). The refining angles enable for Horizontal (PAN) rotation of -180° to +180°, Vertical (TILT) of 0° to +100°, as well as Azimuth (YAW) of -190° to +100°.

The camera's operations are powered by an Ambarella CV25M Configuration on Chip (SoC). The browser GUI accommodates multiple languages which include English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, as well as Japanese, as well as is accessible through Microsoft Edge, Firefox, as well as Google Chrome.

To address network interfacing, the imaging device utilizes a 10BASE-T/100BASE-TX RJ45 connector. Support extends to H.265/H.264 resolution options for 16:9 setting (15fps/12.5fps) which include 3840x2160, 2560x1440, 1920x1080, 1280x720, 640x360, as well as 320x180. Transmission priorities incorporate Constant bit rate, VBR, Shot rate, as well as Best effort, alongside Unicast port (AUTO/MANUAL) as well as Multicast types. Compatibility includes 4 simultaneous feeds. JPEG (MJPEG) image quality is configurable in 10 steps from 0 (SUPER Small) to 9 (LOW). Smart Coding integrates GOP control (Off, Low, Mid, Enhanced, Frame rate control, with Enhanced and Shot rate management exclusive to H.265), Smart VIQS (On Elevated/Low, Off), as well as Smart P-picture management (On/Off). Audio compression methods are G.726 (ADPCM) at 16 kbps/32 kbps, G.711 at 64 kbps, as well as AAC-LC at 64 kbps/96 kbps/128 kbps, alongside audio transmission modes which include Off, Mic (Line) source, Audio feed, Interactive (Half duplex), as well as Interactive (Full duplex).

The unit accommodates a wide-ranging location of protocols for both IPv6 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT) as well as IPv4 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, FTP, SFTP, LLDP, MQTT). It accommodates up to 14 simultaneous operators (depending on network conditions) and supplies robust security features, such as FIPS 140-3 level 3 (NXP® EdgeLock® SE052F), pre-installed GlobalSign® device certificates, HTTPS, operator as well as digest authentication, Host authentication, IEEE802.1X, arrangement and picture transmission logs, brute-force protection, alteration recognition, secure boot, as well as signed firmware. Optional SDXC/SDHC/SD Memory Medium support is provided for storage, ranging from 2GB to 512GB. Compatibility extends to iPad/iPhone (iOS 8.0 or later) as well as Android™ terminals, as well as the unit is ONVIF® Profile G, M, S, as well as T compliant.

Alarm sources incorporate VMD, SCD, Command, as well as Audio recognition, triggering actions such as SDXC/SDHC/SD memory capture, E-mail notification, HTTP alarm notification (alongside browser indication), as well as TCP alarm notification feed. For audio source, a ø3.5 mm stereo mini jack handles plug-in power type mics (sensitivity –51 dB to –38 dB, source impedance approx. 2 k?, supply voltage 2.5 V ±0.5 V) or range source (approx. -10 dBV). A ø3.5 mm stereo mini jack supplies monaural audio output (feed impedance approx. 600 ?, feed level -20 dBV).

Regarding general specifications, the unit adheres to elevated security standards (UL, c-UL, IEC62368-1 3Ed) as well as EMC compliance (FCC Part15 Subpart B ClassA, ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035). It is powered by PoE (IEEE802.3af Compliant), consuming approximately 9.6 W (Class 0 device) at DC 48 V 200 mA. The unit operates in ambient temperatures from -30 °C to +50 °C {-22 °F to +122 °F} (Power On selection: -20 °C to +50 °C {-4 °F to +122 °F}) as well as ambient humidity from 10% to 100% (no condensation). The unit's robust design supplies IP66 (IEC 60529), Type 4X (UL50E), NEMA 4X compliance for water as well as dust protection, IK10 (IEC 62262) shock protection, and wind protection up to 40 m/s {approx. 89 mph}. Sized at 112.5 mm (W) x 112.5 mm (H) x 298.5 mm (D) {4-7/16 inches(W) x 4-7/16 inches(H) x 11-3/4 inches(D)}, it weighs approximately 1.0 kg {2.21 lbs}. The finish incorporates a main chassis of aluminum die cast / PC resin in i-PRO white, corrosion-resistant stainless steel outer fixing screws, as well as a detailed PC resin front panel. Simple Kitting is supported for practical installation.
