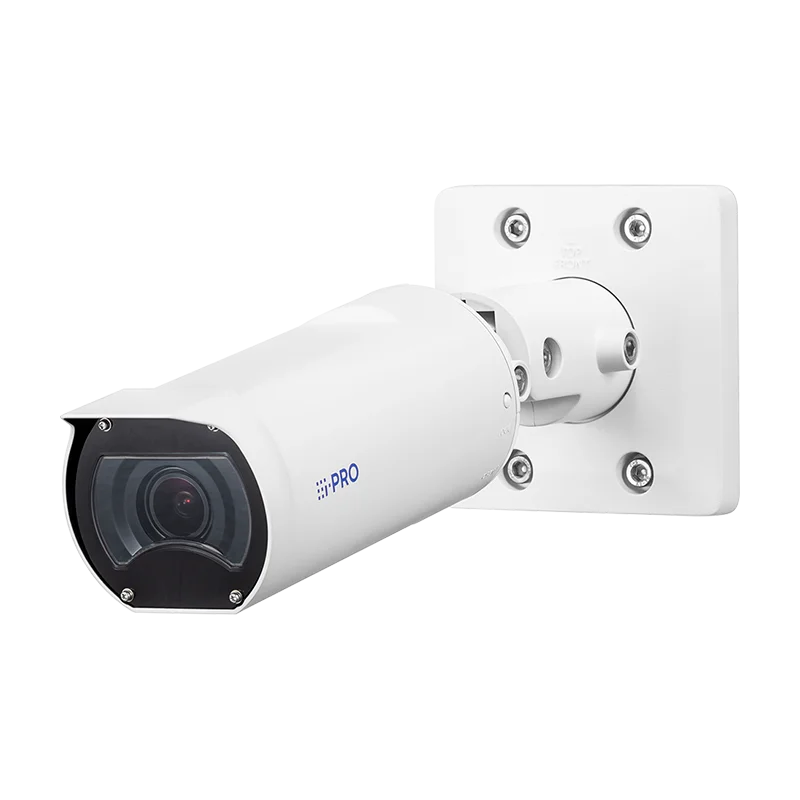

WV-U15550-V3L i-PRO U-series bullet camera with edge AI image analytics

WV-U15550-V3L i-PRO U-series bullet camera: edge AI image analytics

Beginning with its core design, with an approximate 1/2.8 type CMOS picture sensor alongside a scanning region of 5.12 mm (H) × 3.84 mm (V) {3/16 inches (H) × 5/32 inches (V)}, the highly capable unit delivers impressive operation in varied lighting. It provides a lowest illumination of 0.07 lx in colour (30IRE, F1.6, 1/30 s, AGC: 11) and is able to operate at 0 lx in black as well as white whenever the IR LED is active (50IRE, F1.6, 1/30 s, AGC: 11, IR LED: On). The built-in IR LED Light offers a highest irradiation range of 28 m {Approx. 92 ft} (30IRE) or 20 m {Approx. 66 ft} (50IRE). The imaging device accommodates adaptable white balance settings comprising ATW1, ATW2, and AWC.

To capture images precisely, the unit supplies shutter speeds ranging from 1/30 Fix to 1/10000 Fix for 30 fps/15 fps settings, as well as 1/25 Fix to 1/10000 Fix for 25 fps/12.5 fps settings. The highest shutter speeds are up to 16/30 s for 30 fps/15 fps settings as well as up to 16/25 s for 25 fps/12.5 fps settings. The body is fitted with Smart Auto (On/Off) as well as Super Dynamic (On/Off, selection 0 to 31) functions, delivering a highest dynamic range of 120 dB. Extra image enhancement functions incorporate Adaptive Black Stretch (level 0 to 255), Rear Light Compensation (BLC) / Elevated Light Compensation (HLC) (On/Off, selection 0 to 31, active whenever Super Dynamic/Smart Auto are off), as well as Fog Compensation (On/Off, selection 0 to 8, active whenever Smart Auto/Auto contrast refine are off). The Highest Gain (AGC) is adjustable from 0 to 11. Color/BW (ICR) provides Off, On (IR Light Off/On), Auto1 (IR Light Off), Auto2 (IR Light On), as well as Auto3 (SCC) settings, while Digital Noise Reduction is configurable from 0 to 255.

Beyond its image-capture functions, the camera integrates enhanced analytics such as Footage Motion Detection (VMD) with 4 provided areas, Scene Change Recognition (SCD) alongside 1 area, as well as Audio Recognition alongside AI Sound Classification for gunshot, yell, vehicle horn, as well as glass break recognition. Support extends to a highest of one AI analytics use, with detailed information provided on i-PRO's website, as well as is compatible with third-party uses. For privacy, Privacy Zone (up to 8 zones) as well as VIQS (up to 8 zones) are provided. Image Rotation options incorporate 0° (Off), 90°, 180° (Upside-down), as well as 270°. A customizable Camera Title (OSD) supports up to 40 characters across 2 lines.

The camera's optics contains a 3.2x motorized optical focal adjustment with motorized focus, and a highest 19.2x electronic (electronic) focal adjustment. The unit's focal length spans 3.2 mm – 10.2 mm {1/8 inches – 13/32 inches}. The angular focus area of view in 16:9 setting ranges from Horizontal: 31° (TELE) – 114° (WIDE) as well as Vertical: 17° (TELE) – 58° (WIDE). The highest aperture ratio varies from 1:1.6 (WIDE) to 1:3.2 (TELE), alongside a focus selection of 2.0m {78-3/4 inches} to infinity as well as an aperture selection of F1.6 to short. The DORI (Detect, Observe, Recognize, Identify) specifications are: Detect at 276.9m {908.6ft} (TELE) / 49.9m {163.6ft} (WIDE), Observe at 110.8m {363.4ft} (TELE) / 19.9m {65.5ft} (WIDE), Recognize at 55.4m {181.7ft} (TELE) / 10m {32.7ft} (WIDE), as well as Identify at 27.7m {90.9ft} (TELE) / 5m {16.4ft} (WIDE). The refining angles enable for Horizontal (PAN) rotation of -180° to +180°, Vertical (TILT) of 0° to +100°, as well as Azimuth (YAW) of -190° to +100°.

An Ambarella CV25M Configuration on Chip (SoC). Sits at the camera's core Its browser GUI allows English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, as well as Japanese, as well as is accessible through Microsoft Edge, Firefox, as well as Google Chrome.

To address network interfacing, the body utilizes a 10BASE-T/100BASE-TX RJ45 connector. Compatibility includes H.265/H.264 resolution options for 16:9 setting (15fps/12.5fps) among them 3840x2160, 2560x1440, 1920x1080, 1280x720, 640x360, as well as 320x180. Transmission priority settings incorporate Constant bit rate, VBR, Shot rate, as well as Best effort, alongside Unicast port (AUTO/MANUAL) as well as Multicast types. The unit provides support for 4 simultaneous feeds. JPEG (MJPEG) Image Quality is configurable in 10 steps from 0 (SUPER Small) to 9 (LOW). Smart Coding incorporates GOP control (Off, Low, Mid, Enhanced, Frame rate control, with Enhanced and Shot rate management exclusive to H.265), Smart VIQS (On Elevated/Low, Off), as well as Smart P-picture management (On/Off). Audio compression methods incorporate G.726 (ADPCM) at 16 kbps/32 kbps, G.711 at 64 kbps, as well as AAC-LC at 64 kbps/96 kbps/128 kbps, alongside audio transmission modes comprising Off, Mic (Line) source, Audio feed, Interactive (Half duplex), as well as Interactive (Full duplex).

The device is compatible with a complete array of protocols for both IPv6 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT) as well as IPv4 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, FTP, SFTP, LLDP, MQTT). It accommodates up to 14 simultaneous operators (depending on network conditions) and provides robust security features, comprising FIPS 140-3 level 3 (NXP® EdgeLock® SE052F), pre-installed GlobalSign® device certificates, HTTPS, operator as well as digest authentication, Host authentication, IEEE802.1X, setup and picture transmission logs, brute-force protection, alteration recognition, secure boot, as well as signed firmware. Optional SDXC/SDHC/SD Memory Medium support is provided for storage, ranging from 2GB to 512GB. Compatibility extends to iPad/iPhone (iOS 8.0 or later) as well as Android™ terminals, as well as the capture device is ONVIF® Profile G, M, S, as well as T compliant.

Alarm sources incorporate VMD, SCD, Command, as well as Audio recognition, triggering actions such as SDXC/SDHC/SD memory capture, E-mail notification, HTTP alarm notification (alongside browser indication), as well as TCP alarm notification feed. For audio source, a ø3.5 mm stereo mini jack accommodates plug-in power type mics (sensitivity –51 dB to –38 dB, source impedance approx. 2 k?, supply voltage 2.5 V ±0.5 V) or range source (approx. -10 dBV). A ø3.5 mm stereo mini jack makes available monaural audio output (feed impedance approx. 600 ?, feed level -20 dBV).

Regarding general specifications, the capture device adheres to elevated security standards (UL, c-UL, IEC62368-1 3Ed) as well as EMC compliance (FCC Part15 Subpart B ClassA, ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035). It is powered by PoE (IEEE802.3af Compliant), consuming approximately 9.6 W (Class 0 device) at DC 48 V 200 mA. The body operates in ambient temperatures from -30 °C to +50 °C {-22 °F to +122 °F} (Power On selection: -20 °C to +50 °C {-4 °F to +122 °F}) as well as ambient humidity from 10% to 100% (no condensation). The unit's robust design makes available IP66 (IEC 60529), Type 4X (UL50E), NEMA 4X compliance for water as well as dust protection, IK10 (IEC 62262) shock protection, and wind protection up to 40 m/s {approx. 89 mph}. Sized at 112.5 mm (W) x 112.5 mm (H) x 298.5 mm (D) {4-7/16 inches(W) x 4-7/16 inches(H) x 11-3/4 inches(D)}, it weighs approximately 1.0 kg {2.21 lbs}. The finish incorporates a main chassis of aluminum die cast / PC resin in i-PRO white, corrosion-resistant stainless steel outer fixing screws, as well as a detailed PC resin front panel. Simple Kitting is supported for practical installation.
