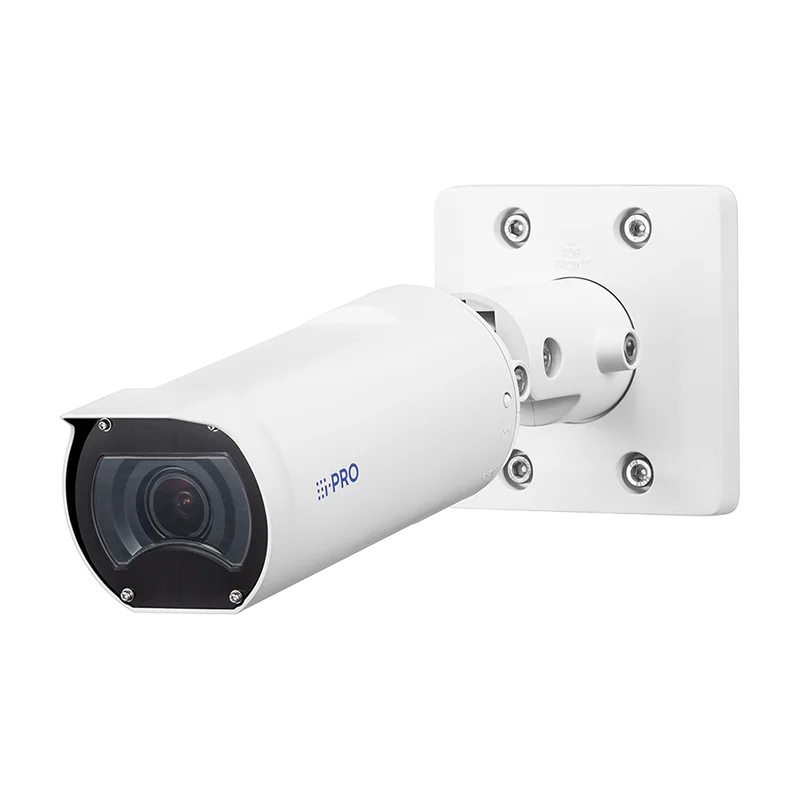

WV-U15350-V3L i-PRO U-series bullet camera with edge AI image analytics

WV-U15350-V3L i-PRO U-series bullet camera: edge AI image analytics

Across its imaging platform, the advanced unit boasts an approximate 1/2.8 type CMOS picture sensor alongside a scanning region of 5.57 mm (H) × 3.13 mm (V) {7/32 inches (H) × 1/8 inches (V)}, producing notable performance even in challenging lighting situations. It produces a lowest illumination of 0.05 lx in colour (30IRE, F1.6, 1/30 s, AGC: 11) and is able to reach 0 lx in black and white whenever the IR LED is active (50IRE, F1.6, 1/30 s, AGC: 11, IR LED: On). The capable IR LED Light makes available a large highest irradiation range of 42 m {Approx. 138 ft} (30IRE) or 30 m {Approx. 98 ft} (50IRE). The imaging device allows adaptable white balance settings such as ATW1, ATW2, and AWC.

To refine image capture, the unit provides shutter speeds ranging from 1/30 Fix to 1/10000 Fix for 30 fps setting, as well as 1/25 Fix to 1/10000 Fix for 25 fps setting. Its highest shutter speeds are up to 16/30 s for 30 fps setting as well as up to 16/25 s for 25 fps setting. Built into it are Intelligent Auto (On/Off) as well as Super Dynamic (On/Off, selection 0 to 31) functions, delivering a highest dynamic range of 120 dB. Further picture optimization attributes incorporate Adaptive Black Stretch (level 0 to 255), Rear Light Compensation (BLC) / Elevated Light Compensation (HLC) (On/Off, selection 0 to 31, active whenever Super Dynamic/Smart Auto are off), as well as Fog Compensation (On/Off, selection 0 to 8, active whenever Smart Auto/Auto contrast refine are off). The Highest Gain (AGC) allows a setting from 0 to 11. Color/BW (ICR) provides Off, On (IR Light Off/On), Auto1 (IR Light Off), Auto2 (IR Light On), as well as Auto3 (SCC) settings, while Digital Noise Reduction is configurable from 0 to 255.

Beyond its image-capture functions, the camera integrates enhanced analytics such as Footage Motion Detection (VMD) with 4 provided areas, Scene Change Recognition (SCD) alongside 1 area, as well as Audio Recognition alongside AI Sound Classification for gunshot, yell, vehicle horn, as well as glass break recognition. The unit provides support for a highest of one AI analytics use, with detailed information provided on i-PRO's website, as well as is compatible with third-party uses. For privacy, Privacy Zone (up to 8 zones) as well as VIQS (up to 8 zones) are provided. Image Rotation options incorporate 0° (Off), 90°, 180° (Upside-down), as well as 270°. A customizable Camera Title (OSD) enables up to 40 characters across 2 lines.

The camera's optics incorporates a 3.2x motorized optical focal adjustment with motorized focus, and a highest 9.6x electronic (electronic) focal adjustment. The unit's focal length spans 3.2 mm – 10.2 mm {1/8 inches – 13/32 inches}. The angular focus area of view in 16:9 setting ranges from Horizontal: 31° (TELE) – 114° (WIDE) as well as Vertical: 17° (TELE) – 58° (WIDE). In 4:3 setting, it covers Horizontal: 23° (TELE) – 80° (WIDE) as well as Vertical: 17° (TELE) – 58° (WIDE). The highest aperture ratio varies from 1:1.6 (WIDE) to 1:3.2 (TELE), alongside a focus selection of 2.0m {78-3/4 inches} to infinity as well as an aperture selection of F1.6 to short. The DORI (Detect, Observe, Recognize, Identify) specifications are: Detect at 138.5m {454.3ft} (TELE) / 24.9m {81.8ft} (WIDE), Observe at 55.4m {181.7ft} (TELE) / 10.0m {32.7ft} (WIDE), Recognize at 27.7m {90.9ft} (TELE) / 5.0m {16.4ft} (WIDE), as well as Identify at 13.8m {45.4ft} (TELE) / 2.5m {8.2ft} (WIDE). The refining angles enable for Horizontal (PAN) rotation of -180° to +180°, Vertical (TILT) of 0° to +100°, as well as Azimuth (YAW) of -190° to +100°.

An Ambarella CV25M Platform on Chip (SoC). Sits at the camera's core Its browser GUI accommodates English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, as well as Japanese, as well as is accessible through Microsoft Edge, Firefox, as well as Google Chrome.

To address network interfacing, the imaging device utilizes a 10BASE-T/100BASE-TX RJ45 connector. Support extends to H.265/H.264 resolution options for 16:9 setting (30fps/25fps) which include 1920x1080, 1280x720, 640x360, as well as 320x180. For 4:3 setting (30fps/25fps), resolutions incorporate 1280x960, 640x480, as well as 320x240. Transmission priority settings incorporate Constant bit rate, VBR, Shot rate, as well as Best effort, alongside Unicast port (AUTO/MANUAL) as well as Multicast types. The unit provides support for 4 simultaneous feeds. JPEG (MJPEG) Image Quality is configurable in 10 steps from 0 (SUPER Small) to 9 (LOW). Smart Coding incorporates GOP control (Off, Low, Mid, Enhanced, Frame rate control, with Enhanced and Shot rate management exclusive to H.265), Smart VIQS (On Elevated/Low, Off), as well as Smart P-picture management (On/Off). Audio compression methods incorporate G.726 (ADPCM) at 16 kbps/32 kbps, G.711 at 64 kbps, as well as AAC-LC at 64 kbps/96 kbps/128 kbps, alongside audio transmission modes comprising Off, Mic (Line) source, Audio feed, Interactive (Half duplex), as well as Interactive (Full duplex).

The unit accommodates an extensive array of protocols for both IPv6 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT) as well as IPv4 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, FTP, SFTP, LLDP, MQTT). It accommodates up to 14 simultaneous operators (depending on network conditions) and supplies robust security features, such as FIPS 140-3 level 3 (NXP® EdgeLock® SE052F), pre-installed GlobalSign® device certificates, HTTPS, operator as well as digest authentication, Host authentication, IEEE802.1X, platform and picture transmission logs, brute-force protection, alteration recognition, secure boot, as well as signed firmware. Optional SDXC/SDHC/SD Memory Medium support is provided for storage, ranging from 2GB to 512GB. Compatibility extends to iPad/iPhone (iOS 8.0 or later) as well as Android™ terminals, as well as the body is ONVIF® Profile G, M, S, as well as T compliant.

Alarm sources incorporate VMD, SCD, Command, as well as Audio recognition, triggering actions such as SDXC/SDHC/SD memory capture, E-mail notification, HTTP alarm notification (alongside browser indication), as well as TCP alarm notification feed. For audio source, a ø3.5 mm stereo mini jack handles plug-in power type mics (sensitivity –51 dB to –38 dB, source impedance approx. 2 k?, supply voltage 2.5 V ±0.5 V) or range source (approx. -10 dBV). A ø3.5 mm stereo mini jack supplies monaural audio output (feed impedance approx. 600 ?, feed level -20 dBV).

Regarding general specifications, the unit adheres to elevated security standards (UL, c-UL, IEC62368-1 3Ed) as well as EMC compliance (FCC Part15 Subpart B ClassA, ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035). It is powered by PoE (IEEE802.3af Compliant), consuming approximately 9.6 W (Class 0 device) at DC 48 V 200 mA. The unit operates in ambient temperatures from -30 °C to +50 °C {-22 °F to +122 °F} (Power On selection: -20 °C to +50 °C {-4 °F to +122 °F}) as well as ambient humidity from 10% to 100% (no condensation). The unit's robust design supplies IP66 (IEC 60529), Type 4X (UL50E), NEMA 4X compliance for water as well as dust protection, IK10 (IEC 62262) shock protection, and wind protection up to 40 m/s {approx. 89 mph}. Sized at 112.5 mm (W) x 112.5 mm (H) x 298.5 mm (D) {4-7/16 inches(W) x 4-7/16 inches(H) x 11-3/4 inches(D)}, it weighs approximately 1.0 kg {2.21 lbs}. The finish incorporates a main chassis of aluminum die cast / PC resin in i-PRO white, corrosion-resistant stainless steel outer fixing screws, as well as a detailed PC resin front panel. Simple Kitting is supported for practical installation.
