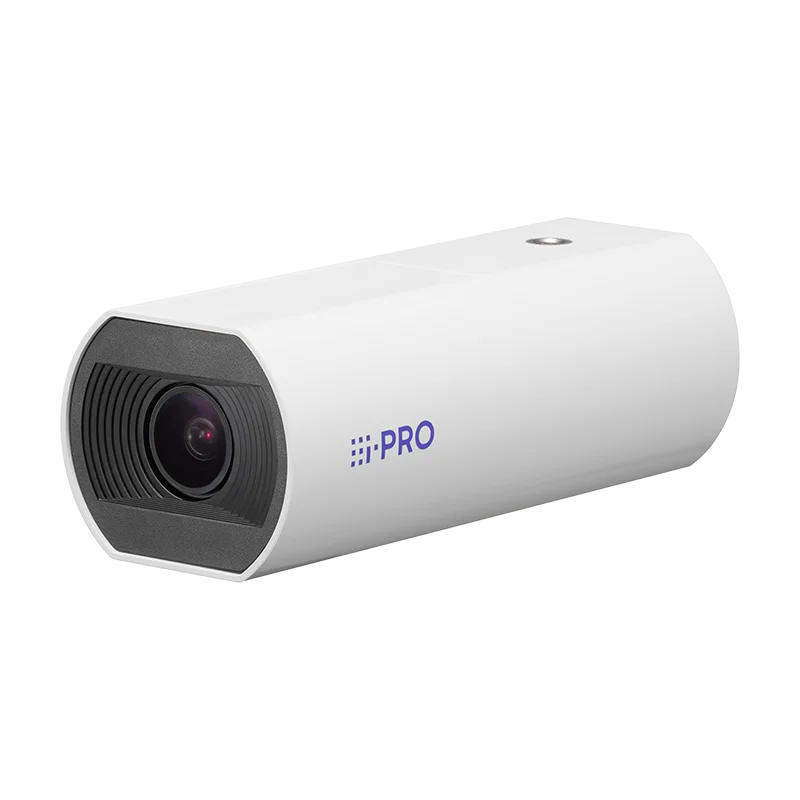

WV-U11550-V3 i-PRO U-series box camera with edge AI image analytics

WV-U11550-V3 i-PRO U-series box camera: edge AI image analytics

In its primary imaging role, with an approximate 1/2.8 type CMOS picture sensor alongside a scanning region of 5.12 mm (H) × 3.84 mm (V) {3/16 inches (H) × 5/32 inches (V)}, the high-performance unit provides strong low-light capabilities. It achieves a lowest illumination of 0.07 lx in colour (30IRE, F1.6, 1/30 s, AGC: 11) as well as a notable 0.04 lx in black as well as white (50IRE, F1.6, 1/30 s, AGC: 11). The camera's IR LED Light function is not applicable. It makes available versatile white balance settings which include ATW1, ATW2, and AWC.

To control image capture precisely, the camera delivers shutter speeds ranging from 1/30 Fix to 1/10000 Fix for both 30 fps as well as 15 fps settings, as well as 1/25 Fix to 1/10000 Fix for both 25 fps as well as 12.5 fps settings. Its highest shutter speeds are up to 16/30 s for 30 fps/15 fps settings as well as up to 16/25 s for 25 fps/12.5 fps settings. The body is fitted with Smart Auto (On/Off) as well as Super Dynamic (On/Off, selection 0 to 31) functions, delivering a highest dynamic range of 120 dB. Additional picture optimization attributes incorporate Adaptive Black Stretch (level 0 to 255), Rear Light Compensation (BLC) / Elevated Light Compensation (HLC) (On/Off, selection 0 to 31, active whenever Super Dynamic/Smart Auto are off), as well as Fog Compensation (On/Off, selection 0 to 8, active whenever Smart Auto/Auto contrast refine are off). The Highest Gain (AGC) is adjustable from 0 to 11. Color/BW (ICR) provides Off, On, Auto1 (Normal), Auto2 (IR Light), as well as Auto3 (SCC) settings, while Digital Noise Reduction is configurable from 0 to 255.

Beyond its image-capture functions, the camera integrates enhanced analytics such as Footage Motion Detection (VMD) with 4 provided areas, Scene Change Recognition (SCD) alongside 1 area, as well as Audio Recognition alongside AI Sound Classification for gunshot, yell, vehicle horn, as well as glass break recognition. The unit provides support for a highest of one AI analytics use, with detailed information provided on i-PRO's website, as well as is compatible with third-party uses. For privacy, Privacy Zone (up to 8 zones) as well as VIQS (up to 8 zones) are provided. Image Rotation options incorporate 0° (Off), 90°, 180° (Upside-down), as well as 270°. A customizable Camera Title (OSD) enables up to 40 characters across 2 lines.

The camera's optics integrates a 3.2x motorized optical focal adjustment with motorized focus, and a highest 12.8x electronic (electronic) focal adjustment. The unit's focal length spans 3.2 mm – 10.2 mm {1/8 inches – 13/32 inches}. The angular focus area of view in 16:9 setting ranges from Horizontal: 28° (TELE) – 102° (WIDE) as well as Vertical: 16° (TELE) – 53° (WIDE). In 4:3 setting, it covers Horizontal: 29° (TELE) – 103° (WIDE) as well as Vertical: 21° (TELE) – 73° (WIDE). The highest aperture ratio varies from 1:1.6 (WIDE) to 1:3.2 (TELE), alongside a focus selection of 2.0m {78-3/4 inches} to infinity as well as an aperture selection of F1.6 to short. The DORI (Detect, Observe, Recognize, Identify) specifications are: Detect at 205.4m {673.7ft} (TELE) / 41.5m {136ft} (WIDE), Observe at 82.1m {269.5ft} (TELE) / 16.6m {54.4ft} (WIDE), Recognize at 41.1m {134.7ft} (TELE) / 8.3m {27.2ft} (WIDE), as well as Identify at 20.5m {67.4ft} (TELE) / 4.1m {13.6ft} (WIDE).

An Ambarella CV25M Arrangement on Chip (SoC). Sits at the camera's core Its browser GUI handles English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, as well as Japanese, as well as is accessible through Microsoft Edge, Firefox, as well as Google Chrome.

To address network interfacing, the unit utilizes a 10BASE-T/100BASE-TX RJ45 connector. The unit provides support for H.265/H.264 resolution options for 16:9 setting (30fps/25fps) such as 2560x1440, 1920x1080, 1280x720, 640x360, as well as 320x180. For 4:3 setting (30fps/25fps), resolutions incorporate 2592x1944, 2560x1920, 1280x960, 640x480, as well as 320x240. For 4:3 setting (15fps/12.5fps), resolutions incorporate 2592x1944, 2560x1920, 1280x960, 800x600, 640x480, 400x300, as well as 320x240. Transmission priority settings incorporate Constant bit rate, VBR, Shot rate, as well as Best effort, alongside Unicast port (AUTO/MANUAL) as well as Multicast types. Compatibility includes 4 simultaneous feeds. JPEG (MJPEG) Image Quality is configurable in 10 steps from 0 (SUPER Small) to 9 (LOW). Smart Coding integrates GOP control (Off, Low, Mid, Enhanced, Frame rate control, with Enhanced and Shot rate management exclusive to H.265), Smart VIQS (On Elevated/Low, Off), as well as Smart P-picture management (On/Off). Audio compression methods incorporate G.726 (ADPCM) at 16 kbps/32 kbps, G.711 at 64 kbps, as well as AAC-LC at 64 kbps/96 kbps/128 kbps, alongside audio transmission modes which include Off, Mic (Line) source, Audio feed, Interactive (Half duplex), as well as Interactive (Full duplex).

Support on the camera extends to a broad array of protocols for both IPv6 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT) as well as IPv4 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, FTP, SFTP, LLDP, MQTT). It accommodates up to 14 simultaneous operators (depending on network conditions) and offers robust security features, which include FIPS 140-3 level 3 (NXP® EdgeLock® SE052F), pre-installed GlobalSign® device certificates, HTTPS, operator as well as digest authentication, Host authentication, IEEE802.1X, platform and picture transmission logs, brute-force protection, alteration recognition, secure boot, as well as signed firmware. Optional SDXC/SDHC/SD Memory Medium support is provided for storage, ranging from 2GB to 512GB. Compatibility extends to iPad/iPhone (iOS 8.0 or later) as well as Android™ terminals, as well as the body is ONVIF® Profile G, M, S, as well as T compliant.

Alarm sources incorporate VMD, SCD, Command, as well as Audio recognition, triggering actions such as SDXC/SDHC/SD memory capture, E-mail notification, HTTP alarm notification (alongside browser indication), as well as TCP alarm notification feed. For audio source, a ø3.5 mm stereo mini jack accommodates plug-in power type mics (sensitivity –51 dB to –38 dB, source impedance approx. 2 k?, supply voltage 2.5 V ±0.5 V) or range source (approx. -10 dBV). A ø3.5 mm stereo mini jack delivers monaural audio output (feed impedance approx. 600 ?, feed level -20 dBV).

Regarding general specifications, the imaging device adheres to elevated security standards (UL, c-UL, IEC62368-1 3Ed) as well as EMC compliance (FCC Part15 Subpart B ClassA, ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035). It is powered by PoE (IEEE802.3af Compliant), consuming approximately 6.7 W (Class 0 device) at DC 48 V 140 mA. The capture device operates in ambient temperatures from -10 °C to +50 °C {+14 °F to +122 °F} as well as ambient humidity from 10% to 90% (no condensation). The unit's space-efficient dimensions are 59 mm (W) x 49 mm (H) x 142mm (D) {2-5/16 inches (W) x 1-15/16 inches (H) x 5-19/32 inches (D)} (excluding side cover), as well as it weighs approximately 290 g {0.64 lbs}. The finish consists of a main chassis made of PC resin in i-PRO white. Simple Kitting is supported for practical installation.
