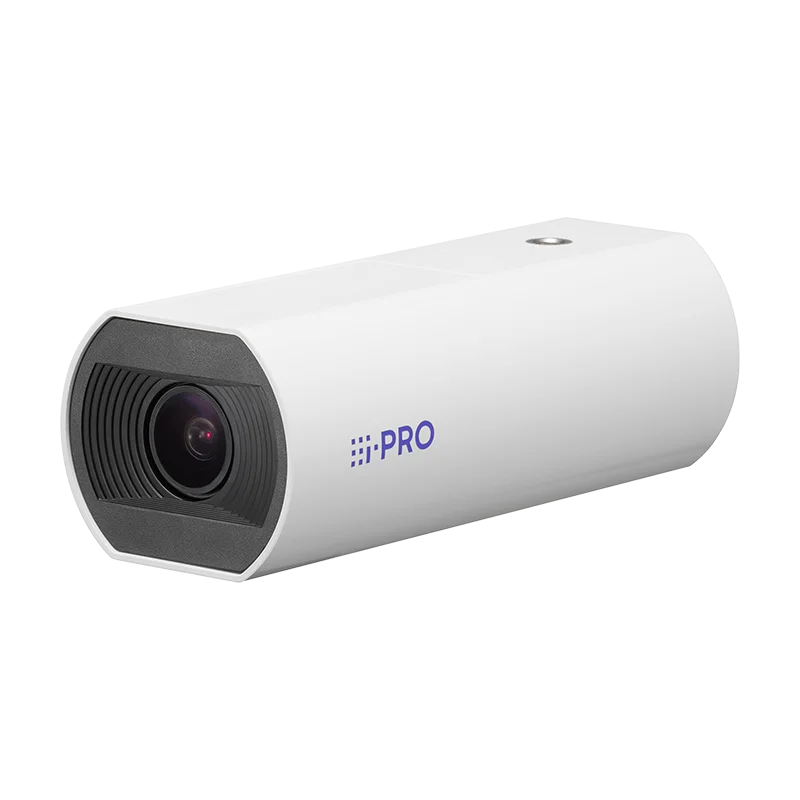

WV-U11350-V3 i-PRO U-series box camera with edge AI image analytics

WV-U11350-V3 i-PRO U-series box camera: edge AI image analytics

Looking first at image acquisition, with an approximate 1/2.8 type CMOS picture sensor alongside a scanning region of 5.57 mm (H) × 3.13 mm (V) {7/32 inches (H) × 1/8 inches (V)}, this capable camera supplies notable definition even in challenging lighting. It achieves a lowest illumination of 0.05 lx in colour (30IRE, F1.6, 1/30 s, AGC: 11) as well as a notable 0.03 lx in black as well as white (50IRE, F1.6, 1/30 s, AGC: 11). Whereas not fitted with an IR LED Light, the unit supplies versatile white balance settings comprising ATW1, ATW2, as well as AWC for optimal color reproduction.

To refine image acquisition, the camera makes available shutter speeds ranging from 1/30 Fix to 1/10000 Fix for 30 fps setting, as well as 1/25 Fix to 1/10000 Fix for 25 fps setting. Its highest shutter speeds are up to 16/30 s for 30 fps setting as well as up to 16/25 s for 25 fps setting. The body is fitted with Smart Auto (On/Off) as well as Super Dynamic (On/Off, selection 0 to 31) functions, delivering an impressive highest dynamic range of 120 dB. Extra image optimization functions incorporate Adaptive Black Stretch (level 0 to 255), Rear Light Compensation (BLC) / Elevated Light Compensation (HLC) (On/Off, selection 0 to 31, active whenever Super Dynamic/Smart Auto are off), as well as Fog Compensation (On/Off, selection 0 to 8, active whenever Smart Auto/Auto contrast refine are off). The Highest Gain (AGC) allows a setting from 0 to 11. Color/BW (ICR) provides Off, On, Auto1 (Normal), Auto2 (IR Light), as well as Auto3 (SCC) settings, while Digital Noise Reduction is configurable from 0 to 255.

Beyond its core image-capture functions, the camera integrates enhanced analytics such as Footage Motion Detection (VMD) with 4 provided areas, Scene Change Recognition (SCD) alongside 1 area, as well as Audio Recognition alongside AI Sound Classification for gunshot, yell, vehicle horn, as well as glass break recognition. Compatibility includes a highest of one AI analytics use, with detailed information provided on i-PRO's website, as well as is compatible with third-party uses. For enhanced privacy, Privacy Zone (up to 8 zones) as well as VIQS (up to 8 zones) are provided. Image Rotation options incorporate 0° (Off), 90°, 180° (Upside-down), as well as 270°. A customizable Camera Title (OSD) supports up to 40 characters across 2 lines.

The camera's optics provides a 3.2x motorized optical focal adjustment with motorized focus, and a highest 9.6x electronic (electronic) focal adjustment. The unit's focal length spans 3.2 mm – 10.2 mm {1/8 inches – 13/32 inches}. The angular focus area of view in 16:9 setting ranges from Horizontal: 31° (TELE) – 114° (WIDE) as well as Vertical: 17° (TELE) – 58° (WIDE). In 4:3 setting, it covers Horizontal: 23° (TELE) – 80° (WIDE) as well as Vertical: 17° (TELE) – 58° (WIDE). The highest aperture ratio varies from 1:1.6 (WIDE) to 1:3.2 (TELE), alongside a focus selection of 2.0m {78-3/4 inches} to infinity as well as an aperture selection of F1.6 to short. The DORI (Detect, Observe, Recognize, Identify) specifications are: Detect at 138.5m {454.3ft} (TELE) / 24.9m {81.8ft} (WIDE), Observe at 55.4m {181.7ft} (TELE) / 10.0m {32.7ft} (WIDE), Recognize at 27.7m {90.9ft} (TELE) / 5.0m {16.4ft} (WIDE), as well as Identify at 13.8m {45.4ft} (TELE) / 2.5m {8.2ft} (WIDE).

An Ambarella CV25M Setup on Chip (SoC). Sits at the camera's core Its browser GUI accommodates a wide array of languages which include English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, as well as Japanese, as well as is accessible through Microsoft Edge, Firefox, as well as Google Chrome.

To address network interfacing, the capture device utilizes a 10BASE-T/100BASE-TX RJ45 connector. It accommodates H.265/H.264 resolution options for 16:9 setting (30fps/25fps) comprising 1920x1080, 1280x720, 640x360, as well as 320x180. For 4:3 setting (30fps/25fps), resolutions incorporate 1280x960, 640x480, as well as 320x240. Transmission priority settings incorporate Constant bit rate, VBR, Shot rate, as well as Best effort, alongside Unicast port (AUTO/MANUAL) as well as Multicast types. Support extends to 4 simultaneous feeds. JPEG (MJPEG) Image Quality is configurable in 10 steps from 0 (SUPER Small) to 9 (LOW). Smart Coding provides GOP control (Off, Low, Mid, Enhanced, Frame rate control, with Enhanced and Shot rate management exclusive to H.265), Smart VIQS (On Elevated/Low, Off), as well as Smart P-picture management (On/Off). Audio compression methods incorporate G.726 (ADPCM) at 16 kbps/32 kbps, G.711 at 64 kbps, as well as AAC-LC at 64 kbps/96 kbps/128 kbps, alongside audio transmission settings including Off, Mic (Line) source, Audio feed, Interactive (Half duplex), as well as Interactive (Full duplex).

The camera provides support for a diverse array of protocols for both IPv6 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT) as well as IPv4 (TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, FTP, SFTP, LLDP, MQTT). It accommodates up to 14 simultaneous operators (depending on network conditions) and delivers robust surveillance features, comprising FIPS 140-3 level 3 (NXP® EdgeLock® SE052F), pre-installed GlobalSign® device certificates, HTTPS, operator as well as digest authentication, Host authentication, IEEE802.1X, configuration and picture transmission logs, brute-force protection, alteration recognition, secure boot, as well as signed firmware. Optional SDXC/SDHC/SD Memory Medium support is provided for storage, ranging from 2GB to 512GB. Compatibility extends to iPad/iPhone (iOS 8.0 or later) as well as Android™ terminals, as well as the imaging device is ONVIF® Profile G, M, S, as well as T compliant.

Alarm sources incorporate VMD, SCD, Command, as well as Audio recognition, triggering actions such as SDXC/SDHC/SD memory capture, E-mail notification, HTTP alarm notification (alongside browser indication), as well as TCP alarm notification feed. For audio source, a ø3.5 mm stereo mini jack handles plug-in power type mics (sensitivity –51 dB to –38 dB, source impedance approx. 2 k?, supply voltage 2.5 V ±0.5 V) or range source (approx. -10 dBV). A ø3.5 mm stereo mini jack supplies monaural audio output (feed impedance approx. 600 ?, feed level -20 dBV).

Regarding general specifications, the body adheres to elevated security standards (UL, c-UL, IEC62368-1 3Ed) as well as EMC compliance (FCC Part15 Subpart B ClassA, ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035). It is powered by PoE (IEEE802.3af Compliant), consuming approximately 6.7 W (Class 0 device) at DC 48 V 140 mA. The body operates effectively in ambient temperatures from -10 °C to +50 °C {+14 °F to +122 °F} as well as ambient humidity from 10% to 90% (no condensation). The unit's space-efficient dimensions are 59 mm (W) x 49 mm (H) x 142mm (D) {2-5/16 inches (W) x 1-15/16 inches (H) x 5-19/32 inches (D)} (excluding side cover), as well as it weighs approximately 290 g {0.64 lbs}. The finish consists of a hardwearing PC resin main chassis in i-PRO white. Simple Kitting is supported for practical installation.
