SKU: WV-S4576LA

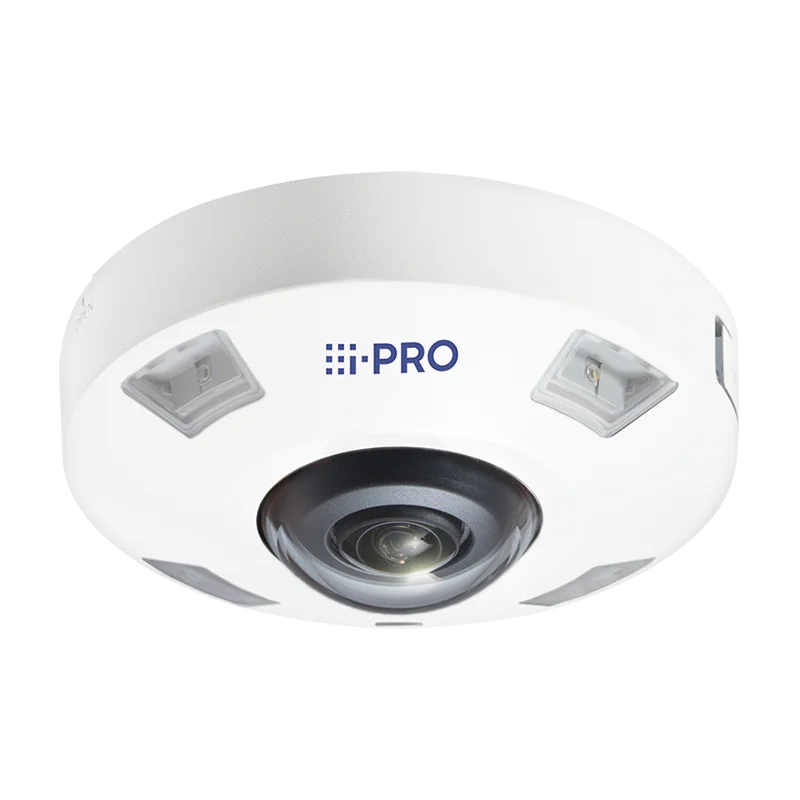

WV-S4576LA i-PRO Edge AI 360-degree fisheye camera
WV-S4576LA i-PRO Edge AI 360-degree fisheye camera
In stock
View full details
WhatsApp us for inquiries
Camera: Guide — WV-S4576LA
| COMPONENT | SPECIFICATION |
|---|---|
| Image Sensor | Approx. 1/2 type 12MP CMOS image sensor |
| Minimum Illumination | Color :0.2 lx (30IRE, F1.9, 1/30s, AGC:11)*0.3 lx (50IRE, F1.9, 1/30s, AGC:11)0.02 lx (50IRE, F1.9, 16/30s, AGC:11)* BW :0 lx (50IRE, F1.9, 1/30s, AGC:11, IR LED: On)0.04 lx (50IRE, F1.9, 1/30s, AGC:11)0.003 lx (50IRE, F1.9, 16/30s, AGC:11)**Converted value |
| Intelligent Auto | On / Off |
| Maximum Shutter | max. 16/30s to Max. 1/10000s |
| Wide Dynamic Range | On / Off,The level can be set in the range of 0 to 31. |
| Dynamic Range | Max.84 dB(Wide Dynamic Range : On, level : 31) |
| Image Settings | Gain (AGC), White balance |
| Image Compensation | Adaptive black stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction |
| Color/BW (ICR) | Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC) |
| IR LED Light | High* / Middle / Low / Off*Maximum irradiation distance : 14 m{Approx. 46 ft}(30IRE), 10 m {Approx. 33 ft} (Mounting height : Approx. 3 m, Peripheral intensity control : On) |
| Video Motion Detection (VMD) | On / Off,4 areas available |
| Scene Change Detection (SCD) | On / Off,1 areas available |
| Audio Detection | On / Off |
| AI Sound Classification | Gunshot, Yell, Vehicle horn, Glass break |
| AI Analytics | AI-VMD/AI People Counting for 360-degree fisheye camera, AI Privacy Guard for 360-degree fisheye camera, AI Non mask Detection (prior to V2.70), AI Scene Change Detection For details :https://i-pro.com/products_and_solutions/en/surveillance/products/analytics-software3rd party applications are also available.https://i-pro.com/products_and_solutions/en/surveillance/solutions/edge-ai-platform/application-list |
| Privacy Zone | On / Off,Up to 8 zones available |
| Camera Title (OSD) | On / Off, Up to 20 characters (alphanumeric characters, marks) |
| Fixing angle adjustment | -5°, 0°, +5° |
optics — WV-S4576LA
| COMPONENT | SPECIFICATION |
|---|---|
| Zoom Ratio | 1x |
| Digital (Electronic) Zoom | Choose from 3 levels of x1, x2, x4 |
| Focal Length | 1.4 mm {1/16 inches} |
| Maximum Aperture Ratio | 1:1.9 |
| Focus Range | 0.5 m {19-11/16 inches} - ? |
| Angular Field of View | Horizontal : 183°Vertical : 183° |
DORI: Guide — WV-S4576LA
| COMPONENT | SPECIFICATION |
|---|---|
| Distance to the object in the center of the image | Detect (25 ppm / 8 ppf) : 29.9 m / 98.2 ftObserve (62.5 ppm / 19 ppf) : 12.0 m / 39.3 ftRecognize (125 ppm / 38 ppf): 6.0 m / 19.6 ftIdentify (250 ppm / 76 ppf) : 3.0 m / 9.8 ft |
| Coverage radius when mounted at a height of 3 m (10 ft) | Detect (25 ppm / 8 ppf) : 56.1 m / 184.2 ftObserve (62.5 ppm / 19 ppf) : 20.6 m / 67.6 ftRecognize (125 ppm / 38 ppf) : 8.4 m / 27.6 ftIdentify (250 ppm / 76 ppf) : 0.3 m / 0.9 ft |
System on Chip (SoC): Guide — WV-S4576LA
| COMPONENT | SPECIFICATION |
|---|---|
| System on Chip (SoC) | Ambarella CV22 |
Browser GUI: Guide — WV-S4576LA
| COMPONENT | SPECIFICATION |
|---|---|
| Camera Control | Brightness, AUX On / Off |
| Audio | Mic (Line) Input : On / Off Volume adjustment : Low / Middle / HighAudio Output : On / Off Volume adjustment : Low / Middle / High |
| GUI / Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
Network: Guide — WV-S4576LA
| COMPONENT | SPECIFICATION |
|---|---|
| Network IF | 10Base-T / 100Base-TX, RJ45 connector |
| Resolution <Ceiling> <Wall> | •Fisheye mode (max. 30 fps/25 fps)2992×2992 / 2192×2192 / 1280×1280 / 640×640 / 320×320•Quad PTZ mode (max. 15 fps/12.5 fps), Single PTZ mode (max. 15 fps/12.5 fps)2560×1920*3 / 2048×1536 / 1600×1200 / 1280×960 / 800×600 / VGA / QVGA |
| Resolution <Ceiling> | •Double Panorama mode (max. 15 fps/12.5 fps)2560×1440 / 1920×1080 / 1280×720 / 640×360 / 320×180•Fisheye + Double Panorama mode (max. 15 fps/12.5 fps)(Fisheye) 2992×2992 / 2192×2192 / 1280×1280 / 640×640 / 320×320(Double Panorama) 1280×720 / 640×360 / 320×180•Fisheye + Quad PTZ mode (max. 15 fps/12.5 fps)(Fisheye) 2992×2992 / 2192×2192 / 1280×1280 / 640×640 / 320×320(Quad PTZ) 1280×960 / 800×600 / VGA / QVGA•Quad streams mode(Single PTZ (Quad streams)) 1280×960 / 800×600 / VGA / QVGA (max. 15 fps/12.5 fps)(Quad PTZ) 2560×1920 / 2048×1536 / 1600×1200 / 1280×960 / 800×600 / VGA / QVGA (max. 5 fps) |
| Resolution <Wall> | •Panorama mode (max. 15 fps/12.5 fps)2560×1440 / 1920×1080 / 1280×720 / 640×360 / 320×180•Fisheye + Panorama mode (max. 15 fps/12.5 fps)(Fisheye) 2992×2992 / 2192×2192 / 1280×1280 / 640×640 / 320×320(Panorama) 1280×720 / 640×360 / 320×180 |
| H.265/H.264 | Transmission Mode : Constant bit rate / VBR / Frame rate / Best effortTransmission Type : Unicast port (AUTO)/ Unicast port (MANUAL)/ Multicast |
| JPEG | Image Quality :10 steps |
| Smart Coding | GOP (Group of pictures) control :On (Frame rate control)* / On (Advanced)* / On (Mid) / On (Low) / Off*On (Frame rate control) and On (Advanced) are only available with H.265.Auto VIQS : On / Off |
| Audio Compression | G.726 (ADPCM) : 16 kbps / 32 kbps ,G.711 : 64 kbps, AAC-LC : 64 kbps / 96 kbps / 128 kbps |
| Supported Protocol | IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6,RTP, MLD, ICMP, ARP, IEEE 802.1X,DiffServ, FTP, SFTP, MQTT, LLDPIPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, FTP, SFTP, MQTT, LLDP |
| Max. concurrent access number | Up to 14 users (Depends on network conditions) |
| Secure | FIPS 140-2 level 3 (NXP® EdgeLock® SE050F), Device Certificate GlobalSign® pre-installed,HTTPS, User authentication, Digest authentication, Host authentication,IEEE802.1X, System log, Image transmission log, Brute-force protection, Alteration detection, Signed Firmware |
| SDXC/SDHC/SD Memory Card (Option) | H.265 / H.264 recording : Manual REC / Alarm REC (Pre/Post) / Schedule RECJPEG recording : Manual REC / Alarm REC (Pre/Post)Compatible SDXC/SDHC/SD card :2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB**, 512GB**model*SDHC card, ** SDXC card (except miniSD card and microSD card) |
| Mobile Terminal Compatibility | iPad / iPhone,AndroidTM terminals |
| ONVIF Profile | G / M / S / T |
Alarm: Guide — WV-S4576LA
| COMPONENT | SPECIFICATION |
|---|---|
| Alarm Source | 3 terminals input, VMD, Command alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, TCP alarm notification output |
Input/Output: Guide — WV-S4576LA
| COMPONENT | SPECIFICATION |
|---|---|
| Audio Input | [For microphone]ø3.5 mm stereo mini jack, Recommended applicable microphone : Plug-in power type(Sensitivity of microphone : –48 dB ±3 dB (0 dB=1 V / Pa,1 kHz))Input impedance : Approx. 2 k? (unbalanced) Supply voltage : 2.5 V ±0.5 V[For line]Input level : Approx. –10 dBV |
| Audio Output | ø3.5 mm stereo mini jack (monaural output)Output impedance : Approx. 600 ? (unbalanced)Output level : –20 dBV |
| External I/O Terminals | ALARM IN1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1)ALARM IN2 (Alarm input 2/ ALARM OUT) (x1)ALARM IN3 (Alarm input 3/ AUX OUT) (x1) |
| Monitor Output | Yes (for adjustment)?3.5mm stereo mini jack, NTSC or PAL signal can be output from camera |
General: Guide — WV-S4576LA
| COMPONENT | SPECIFICATION |
|---|---|
| Safety | UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB,EN55035, ECE-R10, EN50498 compliant, EN50121 |
| Power Source and Power Consumption | DC power supply : DC 12 V 1.1 A/Approx. 13.2 WPoE (IEEE802.3af compliant) Device : DC 48 V 270 mA/Approx. 12.95 W (Class 0 device) |
| Ambient Operating Temperature | IR LED : On -40 °C to +50 °C (-40 °F to 122 °F)Off -40 °C to +60 °C (-40 °F to 140 °F) |
| Ambient Operating Humidity | 10 to 100 % (no condensation) |
| Anti-Condensation System | Rosahl element |
| Water and Dust Resistance | IP66(IEC60529), Type 4X(UL50), NEMA 4X compliant |
| Shock Resistance | 50J (IEC 60068-2-75 compliant),IK10 (IEC 62262) |
| Wind Resistance | Up to 40 m/s {approx. 89 mph} |
| Railway Application | EN50155-TX |
| Dimensions | When using the attachment plate only :ø154 mm × 60.3 mm (H) {ø6-1/16 inches × 2-3/8 inches (H)}Dome radius 35 mm {1-3/8 inches}When using the base bracket :ø164 mm × 96.3 mm (H) {ø6-15/32 inches × 3-25/32 inches (H)}Dome radius 35 mm {1-3/8 inches} |
| Mass (Approx.) | When using the attachment plate only : Approx. 880 g {1.94 lbs},When using the base bracket : Approx. 1.3 kg {2.87 lbs} |
| Finish | Main body : Aluminum die cast, i-PRO whiteOuter fixing screws : Stainless steel (Corrosion-resistant treatment)Dome section : Polycarbonate resin, Clear |
12MP Sensor IR Outdoor 360 Fisheye Network Camera with AI engine
- 12MP Outdoor 360-degree fisheye camera
- Up to 3 Edge AI analytic apps
- Built-in IR-LED(14m, 45ft)
- IP66, IK10 certified
- Built-in FIPS 140-2 Level 3 Certified SecureElement (EdgeLock® SE050F NXP® Semiconductors)
- NDAA Compliant
