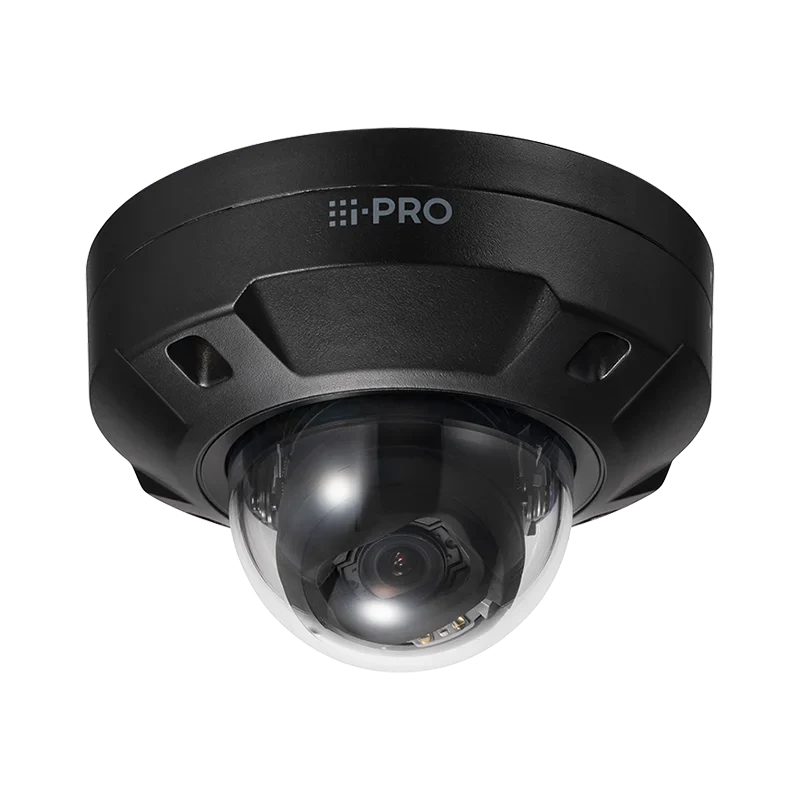

WV-S25500-V3LN1 i-PRO S-series High resolution Network camera with AI engine

WV-S25500-V3LN1 i-PRO S-series High resolution Network camera: AI engine

Visual Performance and I. Core Imaging

From the sensor onward, the core of this security monitoring camera's image capture is the unit's Image Imager, an approximate 1/2.8 type CMOS imager. This imager works in conjunction alongside a Scanning Region of 5.12 mm (H) × 3.84 mm (V), which translates to roughly 3/16 inches (H) by 5/32 inches (V). This configuration is crucial for acquiring high-quality pictures across numerous lighting scenarios.

The device shows impressive Minimum Illumination capabilities, helping ensure detailed footage even in low-light situations. In Color mode, it can attain definition at 0.05 lux (30IRE, F1.3, 1/30s, AGC:11), as well as an even lower 0.004 lux alongside an extended shutter speed of 16/30s. To address Black as well as White (BW) function, the unit is able of functioning in complete darkness (0 lux) whenever its built-in IR LED is activated. Eliminating the IR LED, it can still carry out effectively at 0.04 lux, and a strong 0.003 lux with extended exposure. These measurements illustrate the camera's capacity to maintain vigilant security monitoring around the clock, adapting to varying light situations from bright daylight to the dimmest nights, a critical function for any security option in a metropolis like Dubai.

White Equilibrium is precisely managed via ATW1, ATW2, as well as AWC options, guaranteeing accurate colour representation under varied ambient light sources. The camera makes available adaptable Shutter Speed settings, ranging from a swift 1/10000 second to a fixed 1/30 or 1/25 second, depending on the chosen shot rate setting (30 fps/15 fps or 25 fps/12.5 fps). The Highest Shutter extends to 16/30s or 16/25s, optimizing light acquisition for superior low-light image-capture performance.

Further enhancing picture quality, the imaging device incorporates Intelligent Auto for automated optimization of a range of settings, as well as Super Dynamic technology, which offers a highest Dynamic Range of 132 dB whenever enabled at level 31. This wide dynamic selection is indispensable for capturing small details in scenes alongside significant contrast between bright as well as dark areas, effectively preventing overexposure or underexposure. Adaptive Black Stretch enables fine-tuning of dark regions, with a configurable level ranging from 0 to 255. The imaging device additionally incorporates Back Light Compensation (BLC) as well as Elevated Light Compensation (HLC), vital for maintaining detailed images whenever strong backlighting or intense highlight areas are present. Fog Compensation, which can be turned On or Off, assists enhance picture clarity in adverse conditions conditions such as haze, a common phenomenon in some seasons in the region. The Highest Gain (AGC), settable from 0 to 11, makes available extra sensitivity management in low-light situations.

The camera's function to selector between colour and black and white settings is managed by Colour/BW (ICR), offering multiple settings comprising Off, On (alongside or without IR Light), and smart Auto settings (Auto1, Auto2, Auto3 SCC) for smooth transitions. The unit's integrated IR LED Light delivers robust night vision, alongside selectable power levels (Elevated, Middle, Low, Off) and a highest irradiation range of 55 meters (approx. 180 ft) at 30IRE as well as 40 meters (approx. 131 ft) at 50IRE. Electronic Noise Reduction, configurable from 0 to 255, additional refines picture quality by minimizing visual noise, maintaining cleaner and sharper footage output.

Privacy Features and II. Intelligent Analytics

Moving beyond basic picture capture, this unit integrates a suite of refined detection and analytical contains. Video Movement Detection (VMD) can be arranged with up to 4 different areas, allowing the unit to trigger alerts based on movement inside specified regions. Scene Change Recognition (SCD), with 1 available area, offers alerts for significant alterations in the camera's focus area of see, detecting tampering attempts or environmental changes.

For broad audio observation, Audio Recognition can be enabled. A standout function is AI Sound Classification, which can intelligently identify specific sounds such as Gunshot, Yell, Vehicle horn, as well as Glass break, delivering highly contextual alerts as well as enabling rapid, updated responses to potential incidents.

The imaging device truly distinguishes itself alongside its extensive AI Analytics functions, leveraging Artificial Intelligence for a broad variety of intelligent surveillance functions. These incorporate AI Footage Motion Recognition, AI Privacy Guard, AI Face Recognition, AI People Recognition, AI Vehicle Recognition, AI Non-mask Detection (provided prior to V2.70), AI Occupancy Recognition, and AI Scene Change Recognition. These enhanced analytics permit more accurate event recognition, automated privacy protection, efficient person or object identification, and adaptable learning functions, making it an well suited choice for smart metropolis initiatives. The camera's open platform additionally allows a selection of 3rd party uses, significantly extending the unit's analytical potential.

Privacy is a crucial consideration in modern security monitoring deployments. The camera delivers a sturdy Privacy Zone feature, allowing operators to define up to 8 configurable zones that can be masked to safeguard sensitive areas. VIQS (Variable Picture Quality on Specified Area) is additionally provided alongside up to 8 zones, enabling selective enhancement of picture quality in areas of interest whereas efficiently managing bandwidth elsewhere. For adaptable installation as well as viewing orientation, Image Rotation options incorporate 0°, 90°, 180°, and 270°. A Unit Title (OSD) can be displayed alongside up to 40 alphanumeric characters for detailed on-screen identification. Furthermore, Auto Focus maintains that pictures remain well-defined and detailed without manual intervention, maintaining optimal image fidelity.

Surveillance Coverage and III. Lens Performance

The camera's Optics system is meticulously developed for adaptability and precision in capturing image data. It incorporates a 3.1x Motorized Optical Focal adjustment and Motorized Focus, allowing for practical remote adjustment of the focus area of see and sharpness eliminating manual intervention. An Extra Zoom function extends the magnification from 3.1x to 9.3x whenever the definition is set to 640 x 360, delivering additional digital reach whenever needed.

The Focal Length ranges from 2.9 mm to 9 mm, which translates to an adaptable Angular Focus area of See. In 16:9 setting, the Horizontal focus area ranges from 33° (TELE) to 103° (WIDE), as well as the Vertical focus area ranges from 19° (TELE) to 55° (WIDE). In 4:3 setting, the Horizontal field additionally ranges from 33° (TELE) to 103° (WIDE), whereas the Vertical focus area ranges from 25° (TELE) to 75° (WIDE). This broad selection makes possible the camera to deliver both a wide overview of a scene as well as detailed close-up observation whenever specific areas of interest need closer inspection. The Highest Aperture Ratio is 1:1.3 (WIDE) to 1:2.5 (TELE), indicating strong light-gathering functions across the entire focal adjustment range, crucial for maintaining picture quality in varying light situations. The Focusing Selection extends from a short 0.3 meters (11-13/16 inches) to infinity, maintaining sharp pictures for subjects at numerous distances inside the camera's operational scope.

The camera's workable security monitoring effectiveness is clearly defined by the unit's DORI (Detect, Observe, Recognize, Identify) specifications, which deliver a lifelike measure of its performance at distinct distances:

\n
• Detect (25ppm / 8ppf): A person can be reliably detected up to 48.9 meters (160.3 feet) in Wide angle and 207.4 meters (680.5 feet) in Telephoto.
\n
• Observe (62.5ppm / 19ppf): More detailed characteristics can be observed up to 19.5 meters (64.1 feet) in Wide angle and 83.0 meters (272.2 feet) in Telephoto.
\n
• Recognize (125ppm / 38ppf): Familiar individuals can be recognized up to 9.8 meters (32.1 feet) in Wide angle and 41.5 meters (136.1 feet) in Telephoto.
\n
• Identify (250ppm / 76ppf): Positive identification is possible up to 4.9 meters (16.0 feet) in Wide angle and 20.7 meters (68.1 feet) in Telephoto.
\n

User Interaction and IV. System Architecture

The camera's capable operation is underpinned by the Ambarella CV22 Platform on Chip (SoC), a high-performance processing engine developed for enhanced footage processing, analytics, as well as efficient encoding. This robust SoC permits the camera's smart features and high-resolution capabilities.

The unit provides significant latitude in its physical orientation via its Adjusting Angle capabilities. Operators can location a Horizontal (PAN) angle from -194° to +166°, a Vertical (TILT) angle from -30° to +85°, as well as an Azimuth (YAW) angle of ±100°. This wide selection of motion maintains precise aiming and diverse coverage in diverse installation settings, making it adaptable to multiple architectural designs or observation requirements.

Operator interaction as well as configuration are seamlessly managed via an extensive Browser GUI (Graphical Operator Interface). This intuitive interface makes possible numerous camera controls, such as Brightness as well as AUX On/Off. For audio handling, it makes available Mic (Range) Input On/Off alongside Low/Middle/Elevated volume adjustment, as well as Audio Feed On/Off alongside similar volume management. The GUI/Setup Menu is provided in a broad selection of languages, comprising English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, as well as Japanese, catering to a global operator base. This connection is completely compatible alongside widely chosen web browsers such as Microsoft Edge, Firefox, as well as Google Chrome, helping ensure ease of availability and management for administrators and crews.

Security Infrastructure and V. Network Connectivity — WV-S25500-V3LN1

Network incorporation is facilitated by a standard 10Base-T/100Base-TX RJ45 connector, allowing for dependable Ethernet connectivity. The unit accommodates a versatile selection of Definitions for H.265, H.264, as well as JPEG (MJPEG formats). In 16:9 setting (30 fps/25 fps), it can attain resolutions up to 3072x1728 as well as 2560x1440, with extra lower resolutions provided down to 320x180. In 4:3 setting (30 fps/25 fps), support extends to resolutions up to 3072x2304 as well as 2560x1920, alongside options down to 320x240. This latitude supports optimal bandwidth handling and storage efficiency.

JPEG Picture Quality can be configured across 10 steps, delivering fine management over image fidelity versus file size. Smart Coding elements are implemented to optimize footage streams: GOP (Group of Pictures) management provides options such as Off, Low (Variable GOP 1s-8s), Mid (Variable GOP 4s-16s), Enhanced (Fixed GOP 60s alongside 1s key-frame), as well as Frame rate management (Variable GOP 4s-16s alongside frame rate control), with Enhanced and Frame rate control exclusively provided for H.265. Additionally, Smart VIQS (On/Off - Elevated/Low) as well as Smart P-picture control (On/Off) additional enhance bandwidth efficiency whereas maintaining critical footage quality, a vital function for large-scale deployments in settings requiring extensive unit networks.

Audio communication is sturdy, supporting Audio Compression methods such as G.726 (ADPCM at 16 kbps/32 kbps), G.711 (64 kbps), as well as AAC-LC (64 kbps/96 kbps/128 kbps). A range of Audio Transmission Modes are provided: Off, Mic (Line) source, Audio feed, as well as Interactive (Half duplex/Full duplex), enabling two-way audio communication.

The unit accommodates an extensive suite of Supported Protocols for both IPv6 as well as IPv4, helping ensure broad installation compatibility as well as highly secure communication. These incorporate fundamental protocols such as TCP/IP, HTTP, HTTPS, SMTP, DNS, as well as NTP, alongside enhanced surveillance protocols such as SSL/TLS, IEEE 802.1X, DiffServ, SRTP, as well as LLDP. The imaging device can accommodate up to 14 simultaneous operators, depending on installation conditions, making it appropriate for multi-user observation scenarios.

Surveillance is a paramount concern, as well as the camera integrates robust integrates: FIPS 140-2 level 3 certification (through NXP® EdgeLock® SE050F), pre-installed GlobalSign® Device Certificates, HTTPS for encrypted communication, operator authentication, Digest authentication, Host authentication, IEEE802.1X, Platform log, Picture transmission log, Brute-force protection, Alteration recognition, and Signed Firmware. These extensive measures collectively deliver a highly secure security monitoring option, protecting files integrity as well as access.

For local storage latitude, an SDXC/SDHC/SD Memory Medium slot is provided, supporting H.265/H.264 capture (Manual REC, Alarm REC alongside Pre/Post, Schedule REC, Backup upon installation failure) and JPEG capture (Manual REC, Alarm REC alongside Pre/Post, Backup upon installation failure). It is compatible alongside microSDXC cards up to 512 GB, microSDHC cards up to 32 GB, as well as microSD cards up to 2 GB. The unit is additionally compatible alongside Mobile Terminals such as iPad, iPhone (iOS), as well as Android™ devices, supplying convenient off-site availability. Furthermore, it adheres to ONVIF Profile G/S/T/M, supporting seamless interoperability with other compliant security monitoring systems.

Input/Output Interfaces and VI. Alarm Management — WV-S25500-V3LN1

The camera's Alarm arrangement is highly versatile as well as responsive, able of being triggered by several Alarm Sources including 3 outboard terminals source, VMD alarm, Command alarm, as well as Audio recognition alarm. Upon an alarm event, a selection of automated Alarm Actions can be initiated. These incorporate SDXC/SDHC/SD memory capture to store footage locally at once, email assigned personnel, issue a HTTP alarm notice, show an indication straight on the browser connection for real-time alerts, as well as TCP alarm notification feed for incorporation with other security systems.

To address broad external connectivity, the camera supplies essential Input/Output interfaces. It provides a ø3.5 mm stereo mini jack for Audio Source, enabling link of outboard microphones for enhanced audio capture. Additional functions comprise a ø3.5 mm stereo mini jack for Audio Feed, which makes available a monaural feed alongside an impedance of approximately 600 ? (unbalanced) as well as a feed level of –20 dBV, allowing for two-way communication or audio playback. The imaging device further delivers three versatile Outboard I/O Terminals: ALARM IN 1 (functioning as Alarm source 1, Black & white source, or Auto time adjustment source), ALARM IN 2 (Alarm source 2 or ALARM OUT), as well as ALARM IN 3 (Alarm source 3 or AUX OUT). A practical Monitor Feed (pin jack, supporting NTSC or PAL feed feed) is additionally provided directly from the body for on-site adjustment as well as verification during installation or troubleshooting.

Environmental Durability and VII. General Specifications — WV-S25500-V3LN1

The imaging device adheres to rigorous international Security and EMC (Electromagnetic Compatibility) standards, supporting its stability and compliance in diverse operational settings. These incorporate UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, as well as IEC62368-1 for security, as well as FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, as well as EN55035 for EMC.

Power for the unit can be supplied through a DC12 V DC power source (1.0 A, Approx. 12.0 W) or via PoE (Power over Ethernet) as an IEEE802.3af compliant Class 0 device (DC48 V 240 mA, Approx. 11.5 W), supplying adaptable installation options.

Developed to endure challenging environmental situations, particularly relevant for climates such as Dubai, the camera operates inside a wide Ambient Working Temperature selection of -40 °C to +60 °C (-40 °F to 140 °F), alongside a power-on selection from –30 °C. It continues working effectively in Ambient Working Humidity from 10% to 100% (non-condensing). A built-in Anti-Condensation Platform, featuring a Temish element, heater, as well as moisture absorption gel, actively combats condensation, supporting detailed views in fluctuating humidity. The device offers high Water as well as Dust Protection, certified by IP66 (IEC60529), Type 4X (UL50E), as well as NEMA 4X compliance, delivering sturdy protection against water jets, dust ingress, as well as corrosion. Furthermore, it exhibits strong Shock Protection alongside an IK10 (IEC 62262) rating, signifying heightened protection against impacts as well as vandalism. It can additionally withstand Wind Protection of up to 40 m/s (approx. 89 mph), making it appropriate for exposed outdoor installations.

The hardware Dimensions of the imaging device are ø154 mm x 105 mm (H), translating to approximately ø6-1/16 inches x 4-1/8 inches (H). It incorporates an approximate Mass of 1.1 kg (2.43 lbs.). The camera's hardwearing Finish consists of a main chassis made from aluminum die-cast as well as resin in black, outer fixing screws made of corrosion-resistant stainless steel, as well as a detailed polycarbonate resin dome section alongside ClearSight coating for optimal picture clarity as well as resistance to environmental elements.
