SKU: WV-S22600-V2L

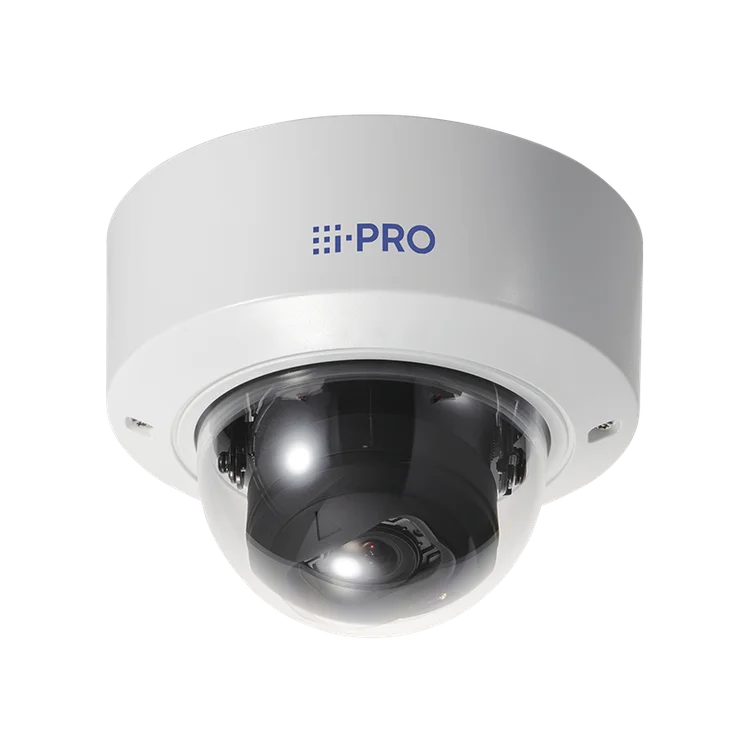

WV-S22600-V2L i-PRO S-series Network camera with AI engine
WV-S22600-V2L i-PRO S-series Network camera with AI engine
In stock
View full details
WhatsApp us for inquiries
Camera: Guide — WV-S22600-V2L
| COMPONENT | SPECIFICATION |
|---|---|
| Image Sensor | Approx. 1/1.8 type CMOS image sensor |
| Scanning Area | 7.68 mm (H)×4.32 mm (V){5/16 inches (H) × 5/32 inches (V)} |
| Minimum Illumination | Color :0.04 lx (30IRE, F1.5, 1/30s, AGC:11)*0.06 lx (50IRE, F1.5, 1/30s, AGC:11)0.004 lx (50IRE, F1.5, 16/30s, AGC:11)* BW :0 lx (50IRE, F1.5, 1/30s, AGC:11, IR LED: On)0.03 lx (50IRE, F1.5, 1/30s, AGC:11)0.002 lx (50IRE, F1.5, 16/30s, AGC:11)**Converted value |
| White Balance | ATW1/ ATW2/ AWC |
| Shutter Speed | [30fps/15fps mode] 1/30 Fix to 1/10000 Fix[25fps/12.5fps mode] 1/25 Fix to 1/10000 Fix |
| Maximum Shutter | [30 fps mode] Max. 1/4000 s to Max. 16/30 s[25 fps mode] Max. 1/4000 s to Max. 16/25 s |
| Intelligent Auto | On / Off |
| Super Dynamic | On / Off, The level can be set in the range of 0 to 31. |
| Dynamic Range | Max.132 dB (Super Dynamic : On, Level 31) |
| Adaptive Black Stretch | The level can be set in the range of 0 to 255. |
| Back Light Compensation/High Light Compensation | BLC (Back light compensation) / HLC (High light compensation) / Off(only when Super dynamic / Intelligent Auto : Off) |
| Fog Compensation | On / Off (only when Intelligent auto / auto contrast adjust : Off) |
| Maximum Gain (AGC) | The level can be set in the range of 0 to 11. |
| Color/BW (ICR) | Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC) |
| IR LED Light | High / Middle / Low / Off,Maximum irradiation distance :50 m {Approx. 164 ft}(30IRE)35 m {Approx. 115 ft}(50IRE) |
| Digital Noise Reduction | The level can be set in the range of 0 to 255. |
| Video Motion Detection (VMD) | On / Off, 4 areas available |
| Scene Change Detection (SCD) | On / Off, 1 areas available |
| Audio Detection | On / Off |
| AI Sound Classification | Gunshot, Yell, Vehicle horn, Glass break |
| AI Analytics | AI Video Motion Detection, AI Privacy Guard, AI Face Detection,AI People Detection, AI Vehicle Detection, AI Non mask Detection (prior to V2.70), AI Occupancy Detection, AI Scene Change Detection For details :https://i-pro.com/products_and_solutions/en/surveillance/products/analytics-software3rd party applications are also available.https://i-pro.com/products_and_solutions/en/surveillance/solutions/edge-ai-platform/application-list |
| Privacy Zone | On / Off, Up to 8 zones available |
| VIQS | On / Off, Up to 8 zones available |
| Image Rotation | 0 ° / 90 ° / 180 ° / 270 ° |
| Camera Title (OSD) | On / Off, Up to 40 characters (alphanumeric characters, marks) |
| Focus Adjustment | Auto focus |
optics — WV-S22600-V2L
| COMPONENT | SPECIFICATION |
|---|---|
| Optical zoom | 2.0x (Motorized zoom / Motorized Focus) |
| Extra zoom | 2.0x -6.0x (when resolution is 1280 x 720) |
| Focal length | 4.3 - 8.6 mm {5/32 inches - 11/32 inches} |
| Angular Field of View | [16 : 9 mode] *[4:3 mode] is not supported.Horizontal : 52° (TELE) – 101° (WIDE)Vertical : 29° (TELE) – 55° (WIDE) |
| Maximum Aperture Ratio | 1 : 1.5 (WIDE) – 1 : 2.4 (TELE) |
| Focus range | 1.0 m {39-3/8 inches} – ? |
DORI: Guide — WV-S22600-V2L
| COMPONENT | SPECIFICATION |
|---|---|
| Detect (25ppm / 8ppf) | Wide: 54.9 m / 180.0 ft, Tele: 136.5 m / 447.7 ft |
| Observe (62.5ppm / 19ppf) | Wide: 21.9 m / 72.0 ft, Tele: 54.6 m / 179.1 ft |
| Recognize (125ppm / 38ppf) | Wide: 11.0 m / 36.0 ft, Tele: 27.3 m / 89.5 ft |
| Identify (250ppm / 76ppf) | Wide: 5.5 m / 18.0 ft, Tele: 13.6 m / 44.8 ft |
System on Chip (SoC): Guide — WV-S22600-V2L
| COMPONENT | SPECIFICATION |
|---|---|
| System on Chip (SoC) | Ambarella CV22 |
Adjusting Angle: Guide — WV-S22600-V2L
| COMPONENT | SPECIFICATION |
|---|---|
| Adjusting Angle | Horizontal : -240 to +120°, Vertical : -30 to +85°, Yaw : ±100° |
Browser GUI: Guide — WV-S22600-V2L
| COMPONENT | SPECIFICATION |
|---|---|
| Camera Control | Brightness, AUX On / Off |
| Audio | Mic (Line) Input : On / Off Volume adjustment : Low / Middle / HighAudio Output : On / Off Volume adjustment : Low / Middle / High |
| GUI / Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian,Chinese, Japanese |
| Browser | Microsoft Edge, Firefox, Google Chrome |
Network: Guide — WV-S22600-V2L
| COMPONENT | SPECIFICATION |
|---|---|
| Network IF | 10Base-T / 100Base-TX, RJ45 connector |
| Resolution H.265/ H.264/ JPEG (MJPEG) | [16:9 mode (30 fps mode)][16:9 mode (25 fps mode)]3328x1872/2560x1440/1920x1080/1280x720/640x360/320x180 |
| H.265/H.264 | [Transmission Mode]Constant bit rate / VBR / Frame rate / Best effort[Transmission Type]Unicast port (AUTO) / Unicast port (MANUAL) / Multicast |
| JPEG | [Image Quality]10 steps |
| Smart Coding | GOP(Group of pictures) control:Off/ Low (Variable GOP 1s-8s)/ Mid (Variable GOP 4s-16s)/Advanced(Fixed GOP 60s w/1s key-frame)/Frame rate control (Variable GOP 4s-16s with frame rate control)*Advanced and Frame rate control are only available with H.265.Smart VIQS: On(High)/On(Low)/Off, Smart P-picture control: On/Off |
| Audio Compression | G.726 (ADPCM) : 16 kbps / 32 kbpsG.711 : 64 kbpsAAC-LC : 64 kbps / 96 kbps / 128 kbps |
| Audio Transmission Mode | Off / Mic (Line) input / Audio output / Interactive (Half duplex) /Interactive (Full duplex) |
| Supported Protocol | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3,DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDPIPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP,SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP,ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, SFTP, MQTT, LLDP |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| Secure | FIPS 140-2 level 3 (NXP® EdgeLock® SE050F), Device Certificate GlobalSign® pre-installed,HTTPS, User authentication, Digest authentication, Host authentication,IEEE802.1X, System log, Image transmission log, Brute-force protection, Alteration detection, Signed Firmware |
| SDXC/SDHC/SD Memory Card | H.265 / H.264 recording :Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failureJPEG recording :Manual REC / Alarm REC (Pre/Post) / Backup upon network failureCompatible SDXC/SDHC/SD Memory Card :microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GBmicroSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GBmicroSD memory card: 2 GB |
| Mobile Terminal Compatibility | iPad, iPhone(iOS 8.0 or later), Android™ terminals |
| ONVIF® Profile | G / M / S / T |
Alarm: Guide — WV-S22600-V2L
| COMPONENT | SPECIFICATION |
|---|---|
| Alarm Source | 3 terminals input, VMD alarm, Command alarm, Audio detection alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification,HTTP alarm notification Indication on browser,TCP alarm notification output |
Input/Output: Guide — WV-S22600-V2L
| COMPONENT | SPECIFICATION |
|---|---|
| Audio input | ø3.5 mm stereo mini jack For microphone input : Recommended applicable microphone : Plug-in power type(Sensitivity of microphone : -51 dB to -38 dB (0 dB=1 V/Pa, 1 kHz))Input impedance : Approx. 2 k? (unbalanced)Supply voltage : 2.5 V ±0.5 V For line input : Input level: Approx. –10 dBV |
| Audio Output | ø3.5 mm stereo mini jack (monaural output)Output impedance : Approx. 600 ? (unbalanced)Output level : –20 dBV |
| External I/O Terminals | ALARM IN 1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1)ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1)ALARM IN 3 (Alarm input 3/ AUX OUT) (x1) |
| Monitor Output | Yes (for adjustment)Pin jack, NTSC or PAL signal can be output from camera |
General: Guide — WV-S22600-V2L
| COMPONENT | SPECIFICATION |
|---|---|
| Safety | UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1 |
| EMC | FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035 |
| Power Source and Power Consumption | DC power supply : DC12 V 1.0 A, Approx. 12.0 WPoE (IEEE802.3af compliant) Device : DC48 V 240 mA, Approx. 11.5 W (Class 0 device) |
| Ambient Operating Temperature | -10 °C to +50 °C (14 °F to 122 °F)(Power On range: 0 °C to 50 °C {32°F to 122 °F}) |
| Shock Resistance | IK10 (IEC 62262) |
| Ambient Operating Humidity | 10 to 90 % (no condensation) |
| Dimensions | ø129.5 mm x 102.5 mm (H) {ø5-3/32 inches x 4-1/32 inches (H)}Dome radius 41.5 mm {1-5/8 inches} |
| Mass (approx.) | 800 g {1.77 lbs.} |
| Finish | Main body : Aluminum die cast, i-PRO whiteDome cover : Polycarbonate resin, Clear |
6MP Vandal Resistant Indoor Dome Network Camera
- 6MP
- Intelligent Auto (with AI Engine)
- Super Dynamic 132dB
- Color night vision (0.04 to 0.06 lx)
- Smart Coding (with AI Engine)
- Built-in IR LED
- Vandal Resistant
- Built-in FIPS 140-2 Level 3 Certified Secure Element (EdgeLock® SE050F NXP® Semiconductors)
- NDAA Compliant
