SKU: V4092-0001

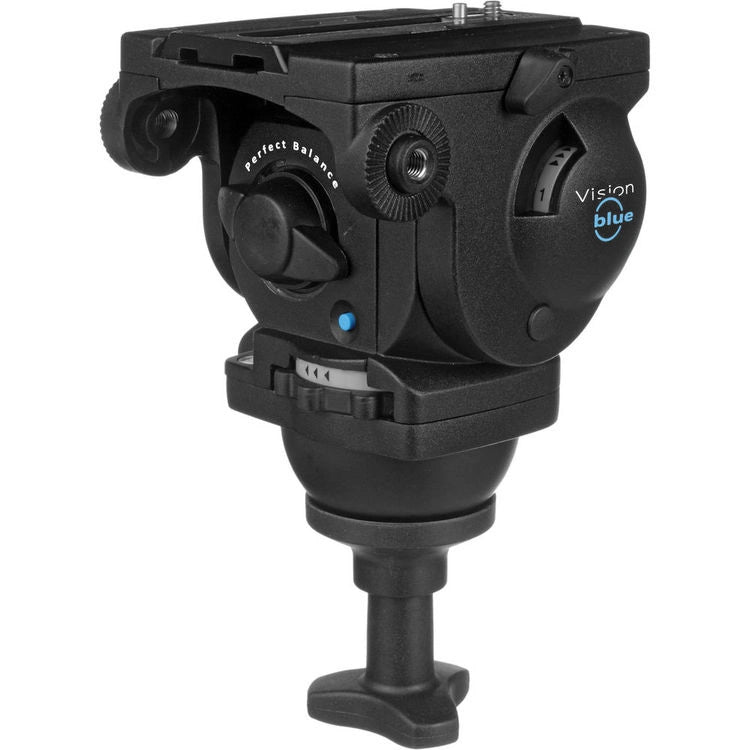

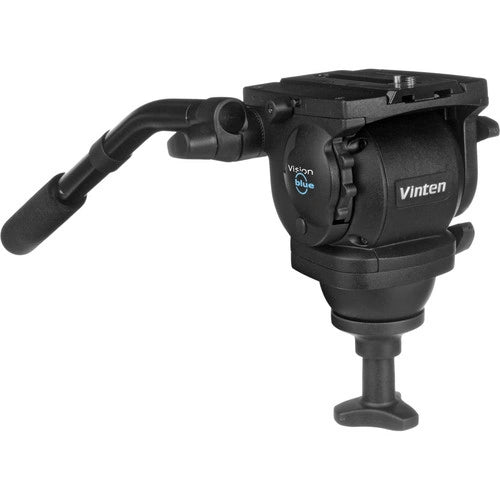

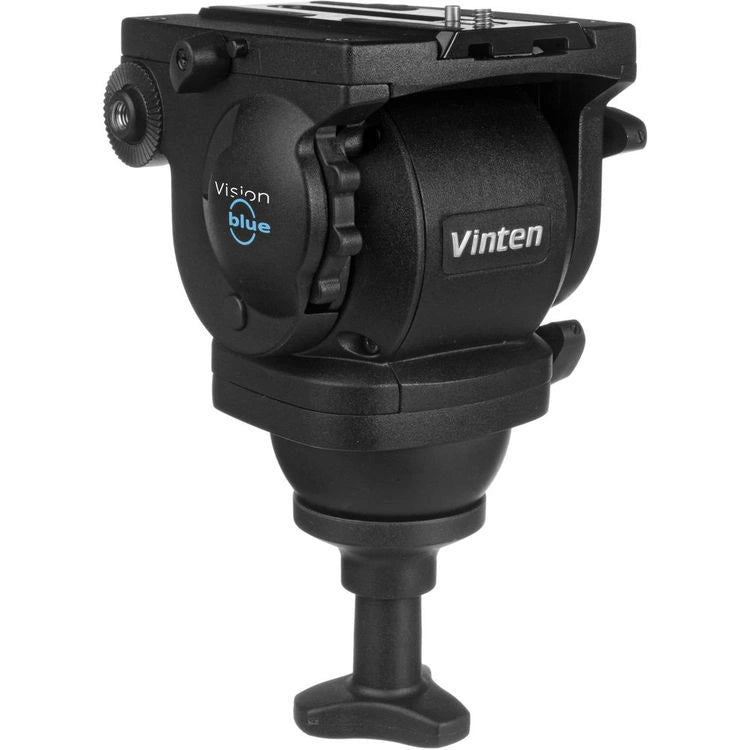

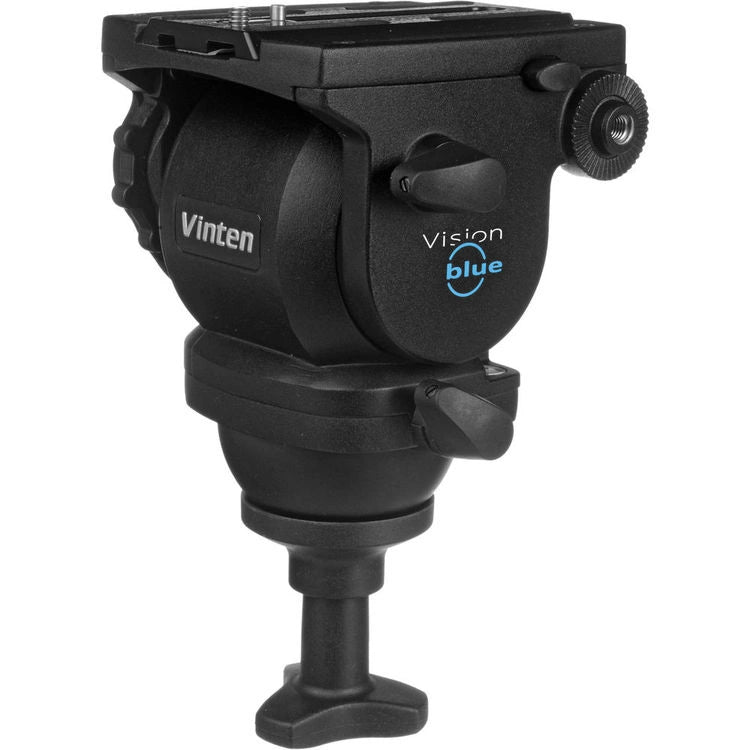

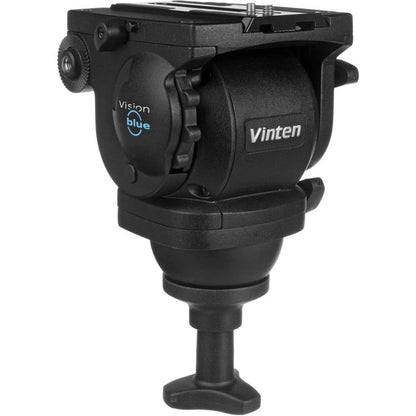

Vinten Vision blue Pan and Tilt Fluid Video Head

Vinten Vision blue Pan and Tilt Fluid Video Head

In stock

View full details

Give your camera stable support and controlled movement with the System Vision blue5 FT GS Head, Tripod, and Ground Spreader Kit from Vinten.

The kit includes a Vision blue5 fluid head rated for payloads up to 26.5 lb, a carbon-fiber flowtech 75 tripod equipped with a ground spreader, and a carry handle. For storage or transportation, the entire support system packs into the supplied carrying case. Details about the individual kit components are provided below.

Vinten Vision blue5 Pan and Tilt Tripod Head

Lightweight and compact, the Vinten Vision blue5 Pan and Tilt Tripod Head pairs continuously adjustable counterbalance with infinitely variable drag. Smooth tilt travel covers a complete +/-90° range, while the counterbalance system supports loads from 12.1 to 26.5 lb at a 100mm center of gravity, making the head well suited to modern portable cameras. A blue illuminated bubble level enables quick, convenient setup, and the mounting base uses a 75mm ball.

Continuously Variable Balance and Drag

  • Counterbalance range of 12.1 to 26.5 lb at 100mm center of gravity
  • Full +/-90° of smooth tilt movement
  • Illuminated leveling bubble
  • 75mm ball base

Vinten flowtech 75 Carbon Fiber Tripod with Ground Spreader

Moving beyond traditional single- and twin-tube carbon-fiber construction, the Vinten flowtech 75 Carbon Fiber Tripod with Ground Spreader features specially contoured legs designed to improve torsional rigidity. The legs weigh slightly more than 6.4 pounds but carry up to 44 pounds. When the removable ground spreader is installed, their height adjusts from 16.1 to 62.2". One upper clamping lever on each leg locks and releases all of its sections.

Each leg adjusts independently of the other two. Once separated from the spreader, an individual leg can pivot without disturbing the remaining legs, which is especially helpful on uneven or rugged ground. The spreader may be removed entirely, after which each leg locks into any of three positions for spreader-free operation. This allows an extremely broad stance for low shots while maintaining resistance to twisting. Dual spikes enhance traction on soft surfaces, and the included rubber feet snap over them to improve grip and protect hard or delicate flooring. An attachment mount and carry handle are also included; both fasten beside the bowl through its 3/8"-16 threaded holes.

Key Features

Two-stage carbon-fiber tripod featuring a 75mm bowl.
The outside of the 75mm bowl incorporates three 3/8"-16 accessory mounting threads.
The legs alone weigh 6.4 pounds and support payloads as heavy as 44 pounds.
Carefully engineered leg geometry provides exceptional torsional stability, resisting twisting as the tripod head is panned.
While using the ground spreader, fit the supplied rubber feet over the spikes to help protect delicate surfaces.
Near the 75mm bowl, every leg has one upper clamping-lever lock that releases all three sections from a single location. This speeds up height adjustments and reduces strain by eliminating the need to bend down and operate a lower leg lock.
The integrated locking mechanism lets the legs pivot freely with a spreader attached or secures them at one of three angles when operating without one.
With the spreader fitted, available height spans 16.1 to 62.2". Removing it and engaging the built-in leg locks provides a working range of 10.2 to 60.2".
The ground spreader can stay attached and fold inside the legs when the tripod is collapsed. Magnetic locks secure the legs together during transport yet permit easy release for deployment.

Vinten Padded Carry Bag for Flowtech 75 or TT Tripod (Black)

Safeguard, store, and carry a Flowtech 75, TT Tripod, or other equipment in this black Padded Carry Bag from Vinten. Constructed from padded nylon, the 36.6"-long bag uses a zippered closure. Transportation options include the connecting dual top strap handles and the haul handles. You can also attach an optional user-supplied shoulder strap to the integrated D-rings.

Key Specs

Camera Mounting
Unspecified Screw (Quick Release w/ Sliding Balance Plate)
Head Type
Fluid Head
Drag Control
Yes
Load Capacity
11 lb / 5 kg
Weight
5.3 lb / 2.4 kg

Head

Camera Mounting
Unspecified Screw (Quick Release w/ Sliding Balance Plate)
Head Type
Fluid Head
Base Mount
75 mm Half Ball
Counter Balance
Continuous

Pan & Tilt

Drag Control
Yes
Vertical Tilt
+90° to -90°

General

Load Capacity
11 lb / 5 kg
Bubble Level
Yes (Illuminated)
Weight
5.3 lb / 2.4 kg

Packaging Info

Package Weight
9 lb
Box Dimensions (LxWxH)
18.1 x 10 x 8.2"

Key Features

  • Payload: 4.6-11 lb
  • 75mm Ball
  • Infinitely Adjustable Perfect Balance
  • Lubricated Friction Drag Technology
  • Tilt Range: ±90°
  • Pan Range: 360°
  • Two-Way Sliding Plate with 1/4" Screw
  • L/R Pan Handle Rosettes
  • LED Illuminated Bubble Level
  • Weight: 5.3 lb
