SKU: VB250-CP2

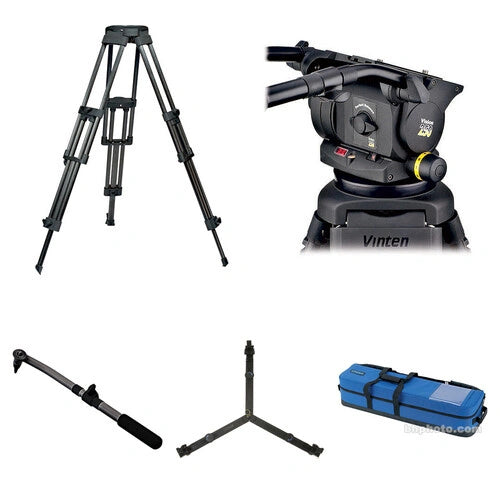

Vinten VISION 250 Carbon Fiber Tripod System with Ground Spreader (Black)

Vinten VISION 250 Carbon Fiber Tripod System with Ground Spreader (Black)

In stock

View full details

The black Vinten VISION 250 Carbon Fiber Tripod System with Ground Spreader combines a Vision 250 fluid head with Vinten's distinctive twin-balancing mechanism, enabling accurate adjustment for payloads weighing as much as 73 lb. Its drag assembly uses non-contacting thin-film technology to maintain uniform resistance and dependable performance throughout a broad temperature range. The package also contains a two-stage Vision EFP carbon-fiber tripod with a 150mm bowl and useful professional features that include precision-engineered Pozi-Loc leg clamps.

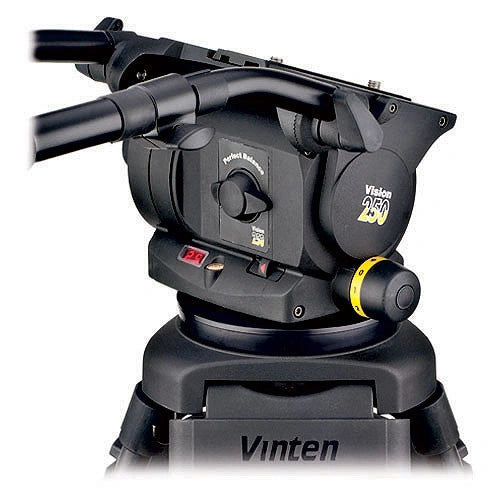

Vinten VISION 250 HD Fluid Head (100/150mm Ball Base, Black)

Built for current portable digital-camera combinations used in field and studio broadcast work, the VISION 250 HD Fluid Head from Vinten uses a proprietary twin-balancing mechanism that quickly counterbalances camera-and-lens configurations weighing up to 72.8 lb. Its drag mechanism relies on non-contacting thin-film technology, producing consistent resistance and stable operation across temperatures from -40 to 140°F. TF drag permits fine control of resistance while allowing whip pans without manually reducing the drag setting.

The Vision 250 also features a digital counterbalance readout, illuminated drag knobs, and a lighted bubble level, enabling fast, straightforward setup even under low-light conditions.

Balanced at Every Angle

The Vision 250 achieves precise counterbalance through a patented, infinitely adjustable spring system. The head remains balanced while tilting across the entire ±90° range, significantly reducing the operator effort required to control vertical movement. Once balanced, the camera can be left hands-free at any angle without locking the tilt brake. Its variable mechanism works with many combinations of batteries, lenses, viewfinders, and camera-mounted lights. A digital readout further accelerates setup and makes balance settings repeatable. Pressing a button activates the display, which stays visible for 15 seconds.

TF Thin-Film Drag System

Vinten's TF Thin Film damping mechanism maintains steady drag and consistent performance in demanding temperatures ranging from -40 to 140°F. It supplies precise camera control during a shot's critical slow start, supports a fluid transition into whip-pan movement, and immediately returns to the original resistance afterward.

The calibrated drag knobs offer continuously variable adjustment through one rotation from fully on to off. Their backlighting changes with ambient conditions through a light sensor incorporated into the digital display.

Secure Interlock Mechanism

A positive-latching interlock overrides the tilt brake so the payload cannot shift from its fixed position, helping protect the brake against premature wear.

Fast Deployment

Specialized design features shorten setup time for mobile operators. The leveling bowl incorporates a double-threaded screw shank that quickly tightens or releases the bowl lock, making frequent leveling corrections easier, particularly when working over uneven terrain.
Unique rubber grip strips on the adjustable mounting plate keep the camera securely fixed.
Maximum supported load is 72.8 lb.

Vinten 3219-91 Telescopic Pan Bar with Clamp (Black)

The black Vinten 3219-91 Telescopic Pan Bar with Clamp is compatible with Vinten Vision 8AS/10AS and Vision 100/250 fluid heads.

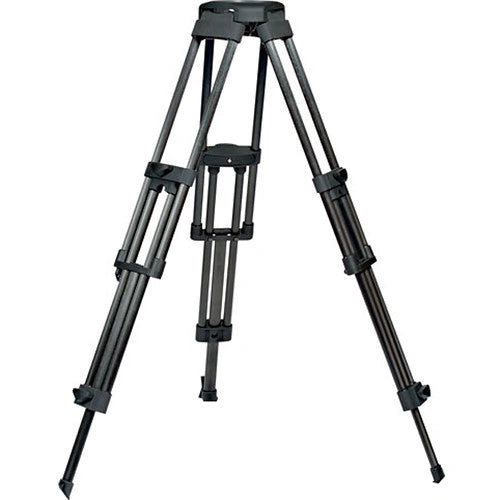

Vinten 3880-3 EFP Carbon Fiber Tripod Legs

Vision EFP tripods are precision-engineered with single- or two-stage legs constructed from aluminum alloy or carbon fiber. Their 150mm bowl connects to an innovative hip joint that eliminates looseness and adds rigidity, creating an exceptionally stable camera platform rated for loads up to 220 lb. A broad height range, Pozi-Loc clamps, compact dimensions, and lightweight construction enable rapid setup and versatile operation.

Strong Carbon-Fiber Construction

Rugged carbon fiber supplies the strength and durability necessary for intensive professional applications.

Smooth, Stable Camera Movement

Structural rigidity is fundamental to smooth camera motion and excellent image quality. Vision tripods combine an optimized triangular geometry with innovative engineering to maintain maximum resistance to torsional movement throughout their height range.

Pozi-Loc Leg Locks

Vinten's innovative Pozi-Loc cam-operated clamps enhance reliability and safety, with positive engagement that clearly shows when each leg is securely locked.
150mm / 6" bowl base
Double-extension leg design
Extends to a maximum height of 63.0 inches
Supports payloads up to 220 lb.
Spring-loaded transport clip keeps the legs secured together in transit

Vinten 3363-3 On-Ground Tripod Spreader (Black)

The Vinten 3363-3 Lightweight Calibrated On-Ground Tripod Spreader increases the stability of Vision tripods. Its flexible design adapts to uneven surfaces, while hinged construction allows it to fold together with the tripod. Quick release straps make installation and removal fast whenever required.

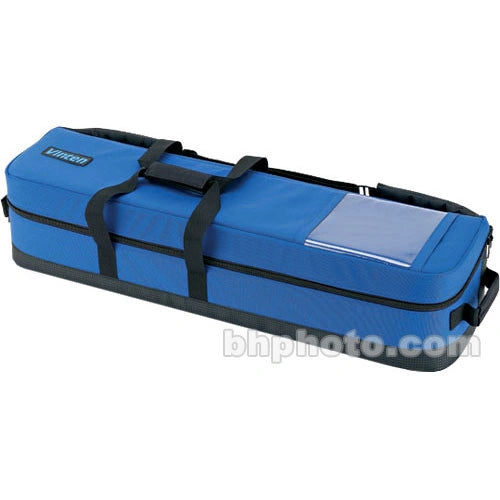

Vinten 3341-3 Soft Tripod Cases (Open Box)

The padded Vinten Soft Tripod Case is designed to accommodate a Vinten Vision 250 + EFP Tripod System. Internal and external compartments hold documents and support accessories, while several handles and a padded adjustable shoulder strap offer flexible transport.

Weather-resistant, durable soft tripod bag with protective padding
A rigid polycarbonate panel and 5mm foam provide structural support with cushioning on every side
Two extra-large zipper pulls and a full-length opening enable easy access

Compartments

  • Large clear exterior pocket stores production documents
  • Internal zippered pockets organize pan bars, camera plates, and other accessories
  • Touch-fastener compartment holds operating guides.
Captive basic instructions for balancing the head

Ways to Carry

  • Positioned pair of handles with a touch-fastening comfort wrap balances the system
  • Lightly padded handles fitted at both ends
  • Adjustable shoulder strap with a nonslip positioning pad

System Compatibility

  • Vinten Vision 250 + EFP Tripod Systems

Key Specs

Camera Mounting
Dual 3/8"-16 Screws & 1/4"-20 Screw with Locating Pin (Quick Release w/ Sliding Balance Plate: Vinten 33364-900SP)
Head Type
Fluid Head
Drag Control
Yes
Load Capacity
72.8 lb / 33 kg
Weight
13.5 lb / 6.1 kg

Head

Camera Mounting
Dual 3/8"-16 Screws & 1/4"-20 Screw with Locating Pin (Quick Release w/ Sliding Balance Plate: Vinten 33364-900SP)
Head Type
Fluid Head
Base Mount
100 or 150 mm Half Ball
Counter Balance
Continuous (22 to 72.8 lb / 9.98 to 33.02 kg)

Pan & Tilt

Drag Control
Yes
Independent Pan Lock
Yes
Independent Tilt Lock
Yes
Vertical Tilt
+90° to -90°

General

Load Capacity
72.8 lb / 33 kg
Bubble Level
Yes (Illuminated)
Weight
13.5 lb / 6.1 kg

Packaging Info

Package Weight
22 lb
Box Dimensions (LxWxH)
15.5 x 13.5 x 11"

Key Features

  • Vision 250 Head, Dual 100mm/150mm Base
  • Carbon Fiber Tripod, 150mm Bowl
  • Weather-Resistant Soft Padded Carry Case
  • Twin Balancing Mechanism / Ideal Balance
  • 73 lb Payload
  • 22 to 73 lb Counterbalance Range
  • Non-Contacting Thin Film Drag
  • 20 to 62" Height Range
  • Ground Spreader
