The Osprey Elite S 2-Stage Steering Pedestal System with Versine 360 Fluid Head from Vinten pairs a heavy-duty pedestal with a removable skid and professional fluid head. The complete system carries loads up to 177 lb and offers a working height range of 33.7 to 64". A sliding quick release plate and multi-standard base give the head broad compatibility with professional support configurations.

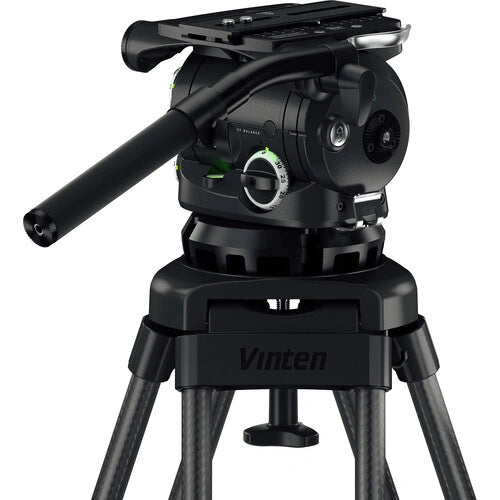

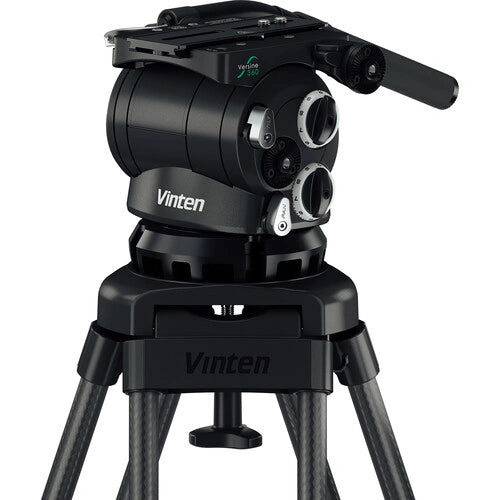

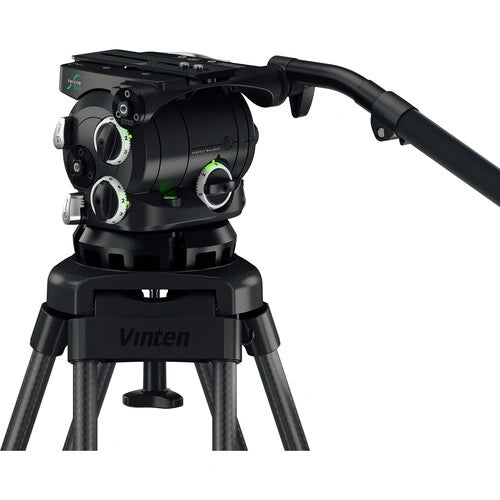

Vinten Versine 360 Fluid Head
Produce controlled pan-and-tilt movement with heavy camera builds using the Vinten Versine 360 Fluid Head, which supports payloads up to 88 lb. Its sliding quick release plate is designed to carry substantial rigs and provides 4.9" of balancing travel. Integrated 3/8"-16 screws secure your camera assembly to the head.
Continuously variable counterbalance helps stabilize a broad range of payloads, while Thin Film drag delivers precise control at every movement speed. Its versatile base supports a 4-bolt flat-base connection, Quickfix, and 100mm or 150mm bowls. Four mounting rosettes allow the supplied telescopic pan handle or an accessory arm to be fitted on either side. An illuminated bubble level helps maintain accurate leveling.

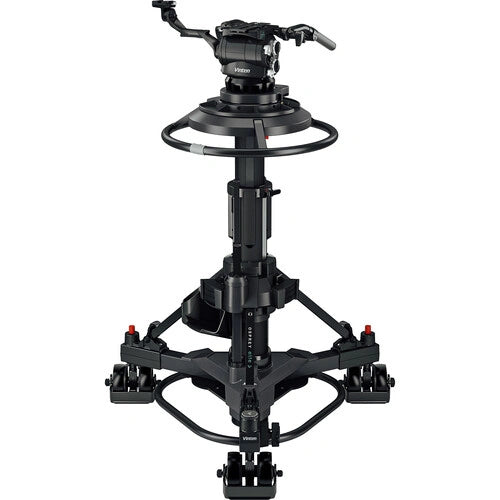

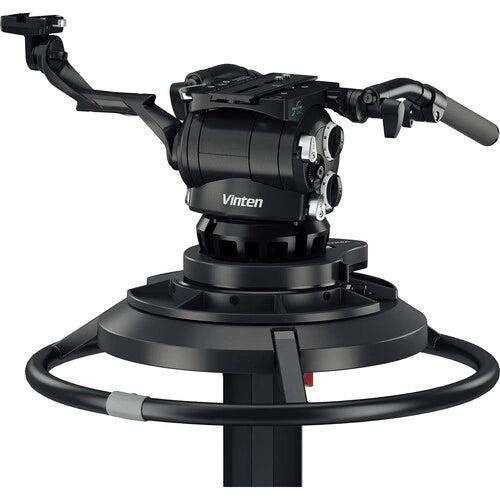

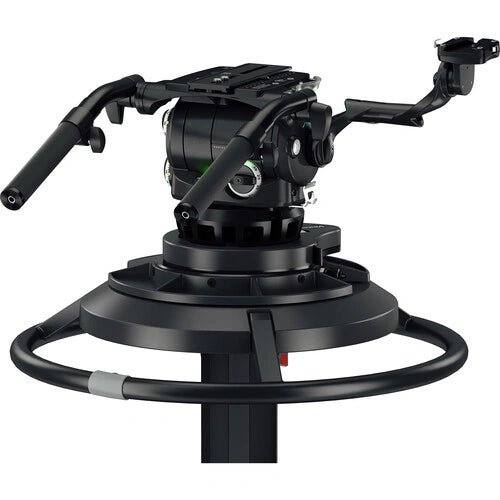

Vinten Osprey Elite S 2-Stage Steering Pedestal
The Osprey Elite S 2-Stage Steering Pedestal from Vinten is a portable studio support built for substantial payloads weighing up to 177 lb. It is well suited to large Vinten Vector heads, broadcast and digital cinema cameras, and full-size professional teleprompters. Its detachable skid lets the pedestal separate easily into two sections for transport and storage.
A manual pump and inlet valve enable fast setup and straightforward balancing. Single-wheel steering and all-wheel crab movement help operators reposition quickly in confined areas and respond smoothly to changes in shot direction. Rugged 5" wheels and adjustable cable guards further optimize the pedestal for studio environments.
Key Features
- Complete two-stage balance range provides fully on-shot elevation, ideal for moving between seated and standing talent during game shows, entertainment programming, dramas, and performances
- Integrated pressure gauge simplifies counterbalance configuration
- Wheel-rim braking prevents tire flat spots for exceptionally smooth tracking shots
- Includes a Quickfix quick release system and operator storage area
- Column can be configured for use on dolly track
Vinten Broadcast Telescopic Pan Bar
The Broadcast Telescopic Pan Bar from Vinten works with most tripod systems, helping operators achieve smooth pan and tilt motion through a fluid head. It mounts by rosette and remains backward compatible with Vision pan-bar rosettes. The adjustable bar extends from 10.8 to 16.3", making it particularly useful for configurations incorporating zoom and focus controls.
Vinten 3761-3 EFP Quickfit Automatic Camera Adapter
The Vinten 3761-3 EFP Quickfit Automatic Camera Adapter supplies quick release mounting for EFP cameras weighing up to 100 lb. It is recommended for Vision 250, Vector 430S, and Vector 430/430i fluid heads.
