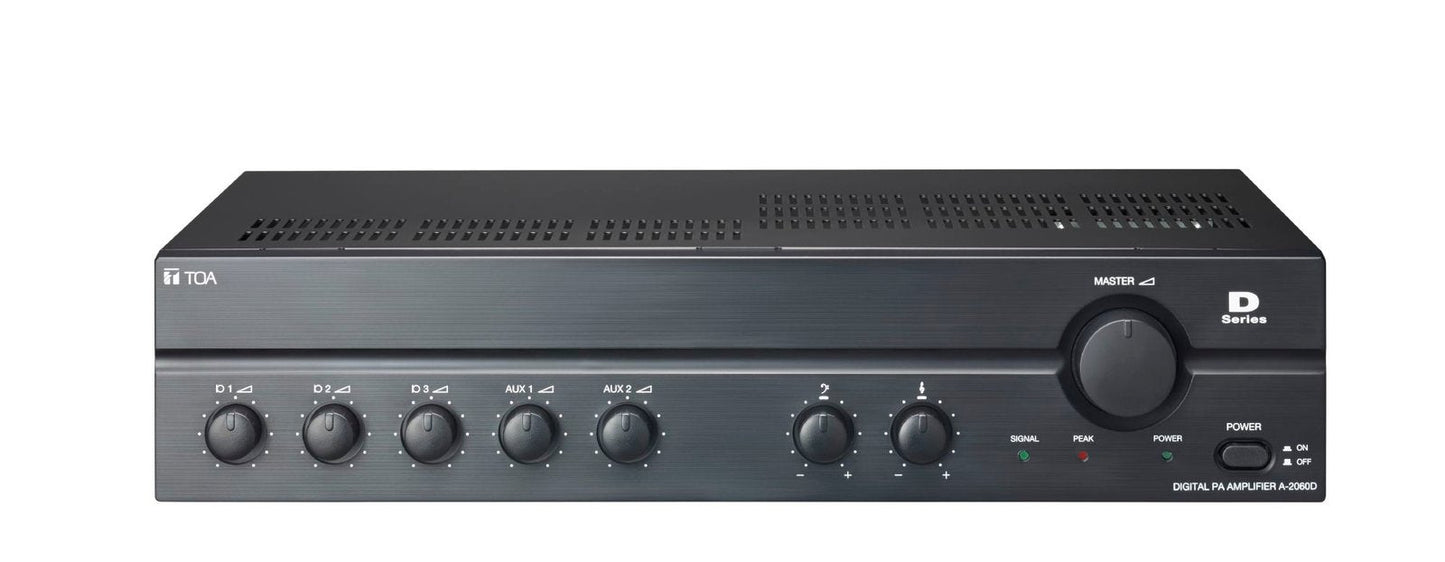

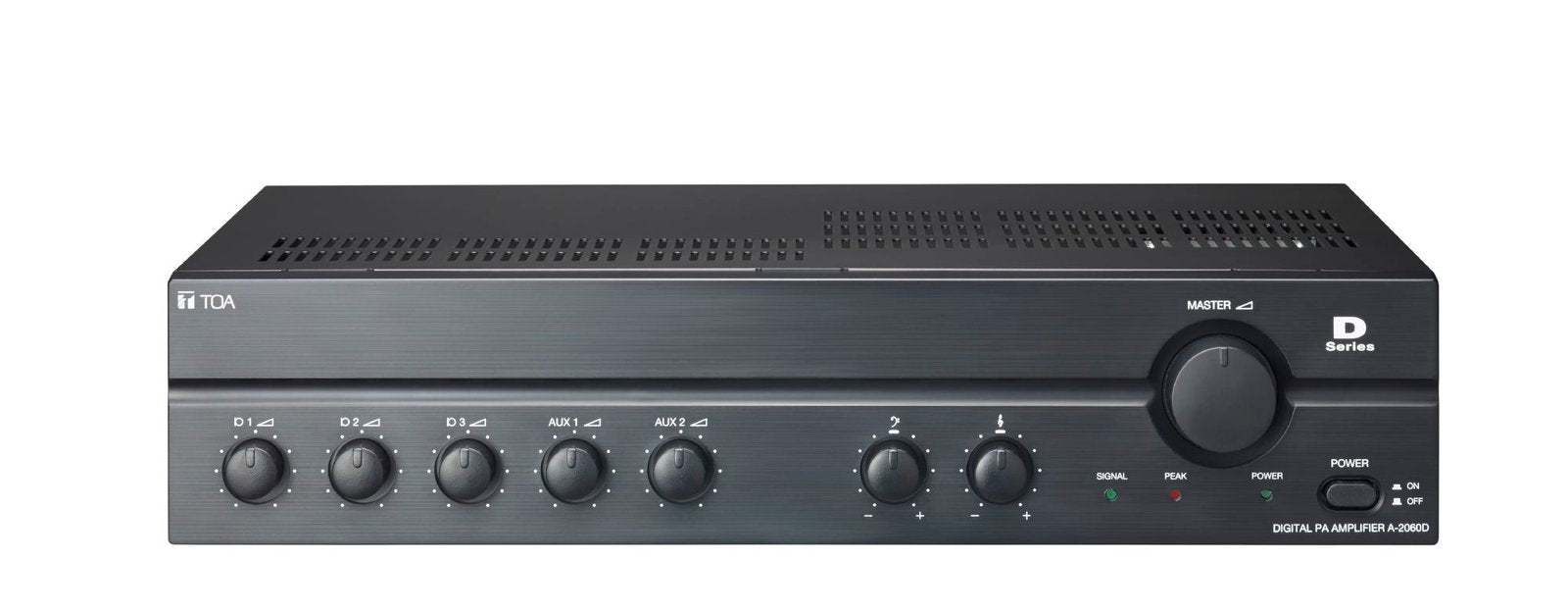

TOA A-2060 CE MIXER AMPLIFIER
TOA A-2060 CE MIXER AMPLIFIER
In stock
View full details
WhatsApp us for inquiries
TOA A-2060: Guide
Mixer Amplifier: Guide — A-2060
Built for 60W public-address systems, the TOA A-2060 combines mixing and amplification for paging or background music across offices, retail spaces, factories, houses of worship, schools, and larger rooms.
Multi-purpose, multi-function mixer/power amplifiers specifically developed for maximum flexibility and cost-effective high-performance are excellent units for any PA requirement in sites such as shops and workplaces and other small to intermediate sized settings. A choice of distinct power feeds are offered plus paging override of BGM.
- 60 W rated output
- User-friendly front panel allows easy operation
- Excellent frequency response
- 3 electronically balanced microphone inputs, 2 AUX inputs and recording output
- Phantom power is provided to MIC 1, for supplying power to a condenser microphone
- Wide tone-control adjustment range of ±10dB for both bass and treble
- 100 V / 70 V line or 4? speaker outputs
- Recording output
- 3 MIC inputs, 2 AUX inputs for tuner, cassette player or other BGM sources
- 2-unit size
purchase A-2060 CE today from
- * 0 dB = 1 V
| Power Source | 220 - 240 V AC |
|---|---|
| Rated Output | 60 W |
| Power Consumption | 72 W (EN60065) |
| Frequency Response | 50 Hz - 20 kHz Hz (±3 dB) |
| Distortion | 1% or less at 1 kHz |
| Input | MIC 1 - 3: -60 dB* AUX 1 Mute: Contact screw terminal (for MIC 1) |
| Output | Speaker out: Balanced (floating) distance between barriers: 8.3 mm (0.33") High impedance: 170 ? (100 V) Low impedance: 4 ? (15.5 V) Rec out: 0 dB* |
| Phantom Power | DC +21 V (MIC 1) |
| S/N Ratio | 60 dB or more |
| Tone Control | Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz |
| Muting | MIC 1 overrides other input signals with 0 - 30 dB attenuation by mute terminal contact. |
| Finish | Panel: ABS resin Case: Steel plate |
| Dimensions | 420 (W) × 100.9 (H) × 280.3 (D) mm (16.54 × 3.97" × 11.04) |
| Weight | 7 kg (15.43 lb) |
Application examples for this product:
- Houses of worship
- Educational facilities
- Auditoriums
- Office buildings
