SKU: A-2030 CE

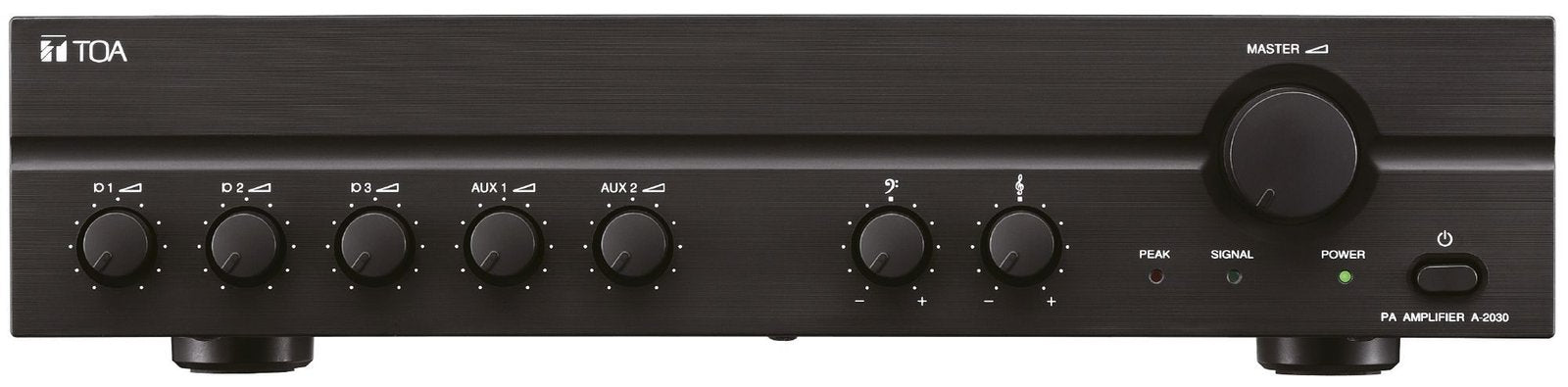

TOA A-2030 CE MIXER AMPLIFIER

Name: TOA A-2030 CE MIXER AMPLIFIER
Brand: TOA
SKU: A-2030 CE
Price: 1115.00 AED
Availability: InStock

In stock

WhatsApp us for inquiries

View full details

TOA A-2030: Guide

Mixer Amplifier: Guide

The TOA A-2030 is a high-value mixer power amplifier appropriate for broadcast work paging or backdrop music in schools, workplaces, shops, industrial plants, mosques, churches and large rooms.
Multi-purpose, multi-function mixer/power amplifiers specifically developed for maximum flexibility and cost-effective high-performance are excellent units for any PA requirement in sites such as shops and workplaces and other small to intermediate sized settings. A choice of distinct power feeds are offered plus paging override of BGM.

30 W rated output
User-friendly front panel allows easy operation
Excellent frequency response
3 electronically balanced microphone inputs, 2 AUX inputs and recording output
Phantom power is provided to MIC 1, for supplying power to a condenser microphone
Wide tone-control adjustment range of ±10dB for both bass and treble
100 V / 70 V line or 4? speaker outputs
Recording output
3 MIC inputs, 2 AUX inputs for tuner, cassette player or other BGM sources
2-unit size

purchase A-2030 CE today from

* 0 dB = 1 V

Power Source	220 - 240 V AC
Rated Output	30 W
Power Consumption	34 W (EN60065)
Frequency Response	50 Hz - 20 kHz (±3 dB)
Distortion	1% or less at 1 kHz
Input	MIC 1 - 3: -60 dB* AUX 1 Mute: Contact screw terminal (for MIC 1)
Output	Speaker out: Balanced (floating) distance between barriers: 8.3 mm (0.33") High impedance: 330 ? (100 V) Low impedance: 4 ? (11 V) Rec out: 0 dB*
Phantom Power	DC +21 V (MIC 1)
S/N Ratio	60 dB or more
Tone Control	Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz
Muting	MIC 1 overrides other input signals with 0 - 30 dB attenuation by mute terminal contact.
Finish	Panel: ABS resin Case: Steel plate
Dimensions	420 (W) × 100.9 (H) × 280.3 (D) mm (16.54 × 3.97" × 11.04)
Weight	5 kg (11.05 lb)
