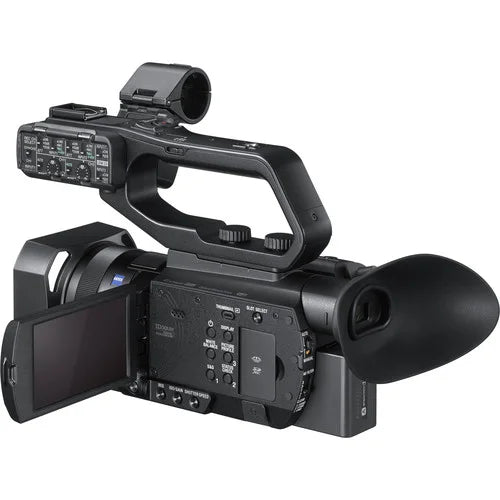

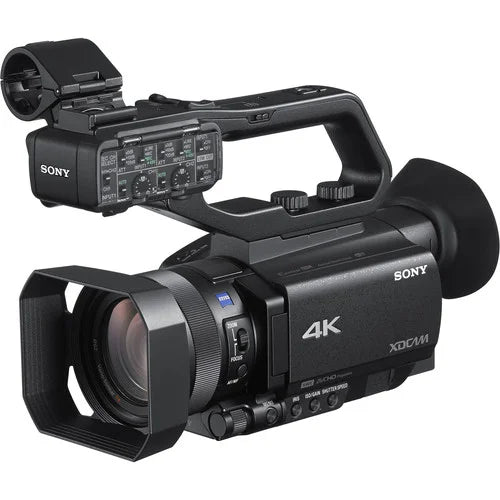

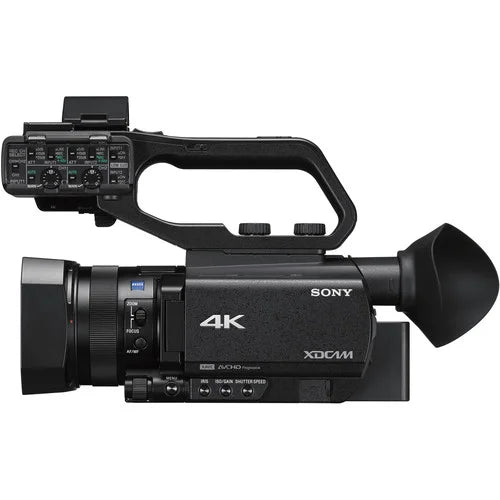

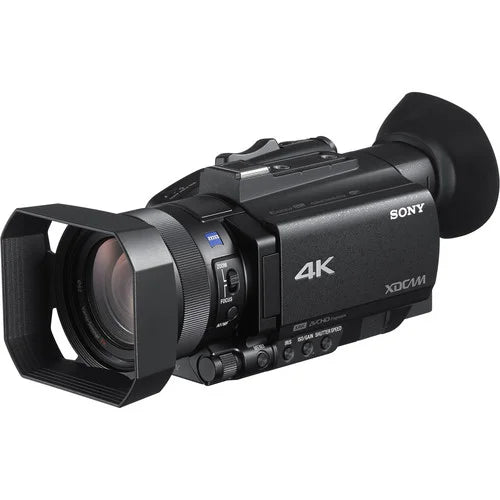

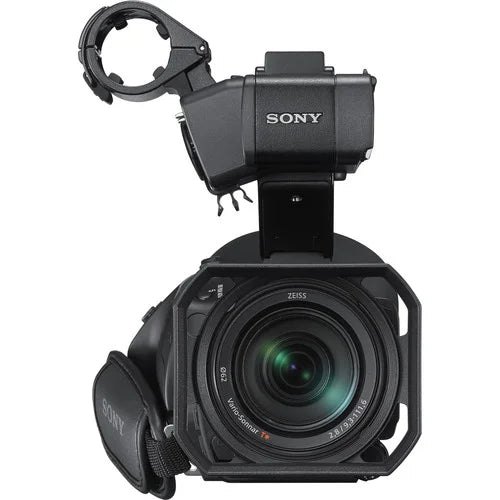

Sony PXW-Z90 4K HDR XDCAM with Fast Hybrid AF
Sony PXW-Z90 4K HDR XDCAM with Fast Hybrid AF
In stock
View full details
WhatsApp us for inquiries
Looking first at image acquisition, the Sony PXW-Z90 4K HDR XDCAM camcorder provides phase-detection autofocus (AF) and HDR functions in a space-efficient, palm-style body. Appropriate for corporate events, broadcast news, and television production, the PXW-Z90 camcorder incorporates a stacked 1" Exmor RS CMOS sensor with UHD 4K (3840 x 2160) definition, a 12x Zeiss optical zoom, an OLED viewfinder, and 3.5" touchscreen LCD monitor. It can capture 4K in XAVC Long at 4:2:0, HD in XAVC Long at 4:2:2 10-bit, as well as MPEG HD at 4:2:2 (requires optional license key). S-Log3/S-Gamut3 functions supply users additional image control. Additional elements incorporate built-in 2.4/5 GHz for several streaming via RTMP/RTMPS protocols and FTP options.
The PXW-Z90 Fast Hybrid AF uses high-density placement of autofocus points and a newly developed AF algorithm to supply highly accurate focusing and tracking—a boon whenever shooting UHD 4K, especially for individual crews. In movie capture setting, use the appearance of phase-detection AF frames to monitor your subject's focus. The PXW-Z90V 3.5" touchscreen is used to quickly switch focus among subjects. AF Drive Speed, Tracking Depth Range, and Subject Switching Sensitivity can each be configured to suit distinct subjects and content styles.
Hybrid Log-Gamma (HLG) permits you to future-proof your feed by smoothly integrating your 4K captures into a HDR process without the need for color grading during post-production. Capture pictures with high-quality contrast and definition through the PXW-Z90V's 12x optical Zeiss zoom, and 18x 4K digital zoom (24x in HD). A built-in ND filter function permits increased exposure and depth-of-field control.
The PXW-Z90V camera allows Sony's Slow and Quick Motion for shooting HD footage at variable frame rates, such as 120 fps. Capture to a variety of formats, frame rates, and codecs, the camcorder accommodates 100 Mb/s XAVC Long capture of 4K UHD footage at up to 29.97p, and 50 Mb/s capture of HD up to 59.94p. Footage is recorded to two SD memory card slots, either simultaneously to both cards or in relay setting to create a backup. The PXW-Z90V's 3G-SDI feed provides integration with professional studio settings.
The PXW-Z90V delivers outboard microphone support via two 3-pin XLR audio sources (line, mic, mic +48V phantom) and a 3.5mm mini source. You can additionally use the PXW-Z90V's built-in microphone to capture audio whenever shooting. For multicamera productions, the PXW-Z90V integrates seamlessly with Sony's MCX-500 live switcher (provided separately).
The PXW-Z90 accommodates RTMP/RTMPS live-streaming protocols. This is included with the camera and as a free upgrade if your camera does not have this operation. You can stream directly from the camera through Wi-Fi or via Ethernet with optional converters such as the Sony VMC-UAM2 or CBK-NA1. No computer is required for streaming.
The PXW-Z90 is compatible with Sony's XDCAM air, so you can upload proxy footage to the cloud, and editors can start working with your footage from a distance. You can even control the camera from your smartphone or tablet through Sony's free Content Browser Mobile app.
PXW-Z90 have 1.0"-type Exmor RS CMOS sensor with approximately 14.2 million effective pixels supplies optimal image quality.
PXW-Z90 provides highly accurate focusing and tracking, especially useful whenever shooting well-defined UHD 4K footage.
The PXW-Z90 fixed 12x optical wide-angle zoom with 18x Detailed Picture Zoom technology in UHD 4K (24x in HD).
Capture up to UHD 4K footage (3840 x 2160p) at 29.97, 25, and 23.98 fps, in XAVC Long in a choice of 100 Mb/s or 60 Mb/s, or HD at frame rates up to 59.94p.
PXW-Z90 Supplies slow-motion capture up to 960 fps.
Uses Sony's Slow & Quick Motion for capture 1080p/i60 HD footage at 1, 2, 4, 8, 15, 30, 60, and 120 fps.
Capture in XAVC Long (UHD 4K), MPEG-4 HD at 4:2:0, XAVC Long (HD) 4:2:2, HD 2.0, or XVAC Proxy at 4:2:0, at a variety of data rates (license key required for some codecs).
The PXW-Z90 incorporates a ND filter function with Detailed, 1/4ND, 1/16ND, and 1/64ND for optimal exposure and depth-of-field control.
The PXW-Z90V provides two media slots: one dedicated to SDHC or SDXC cards, and a second that also accepts Memory Stick PRO Duo Mark 2 and PRO-HG Duo media.
3G-SDI feed integrates with professional studio settings.
Use the PXW-Z90V camcorder's built-in Wi-Fi function to send FTP files directly from the camcorder or live stream over Wi-Fi. NFC compatibility enables you to connect compatible devices with one touch.
Locate us: https://goo.gl/maps/YZQmjfG5vYQS3ZLU7
buy it from
The PXW-Z90 Fast Hybrid AF uses high-density placement of autofocus points and a newly developed AF algorithm to supply highly accurate focusing and tracking—a boon whenever shooting UHD 4K, especially for individual crews. In movie capture setting, use the appearance of phase-detection AF frames to monitor your subject's focus. The PXW-Z90V 3.5" touchscreen is used to quickly switch focus among subjects. AF Drive Speed, Tracking Depth Range, and Subject Switching Sensitivity can each be configured to suit distinct subjects and content styles.
Hybrid Log-Gamma (HLG) permits you to future-proof your feed by smoothly integrating your 4K captures into a HDR process without the need for color grading during post-production. Capture pictures with high-quality contrast and definition through the PXW-Z90V's 12x optical Zeiss zoom, and 18x 4K digital zoom (24x in HD). A built-in ND filter function permits increased exposure and depth-of-field control.
The PXW-Z90V camera allows Sony's Slow and Quick Motion for shooting HD footage at variable frame rates, such as 120 fps. Capture to a variety of formats, frame rates, and codecs, the camcorder accommodates 100 Mb/s XAVC Long capture of 4K UHD footage at up to 29.97p, and 50 Mb/s capture of HD up to 59.94p. Footage is recorded to two SD memory card slots, either simultaneously to both cards or in relay setting to create a backup. The PXW-Z90V's 3G-SDI feed provides integration with professional studio settings.
The PXW-Z90V delivers outboard microphone support via two 3-pin XLR audio sources (line, mic, mic +48V phantom) and a 3.5mm mini source. You can additionally use the PXW-Z90V's built-in microphone to capture audio whenever shooting. For multicamera productions, the PXW-Z90V integrates seamlessly with Sony's MCX-500 live switcher (provided separately).
Live Streaming: Guide
The PXW-Z90 accommodates RTMP/RTMPS live-streaming protocols. This is included with the camera and as a free upgrade if your camera does not have this operation. You can stream directly from the camera through Wi-Fi or via Ethernet with optional converters such as the Sony VMC-UAM2 or CBK-NA1. No computer is required for streaming.
Integration: Guide
The PXW-Z90 is compatible with Sony's XDCAM air, so you can upload proxy footage to the cloud, and editors can start working with your footage from a distance. You can even control the camera from your smartphone or tablet through Sony's free Content Browser Mobile app.
1" Exmor RS CMOS Sensor: Guide
PXW-Z90 have 1.0"-type Exmor RS CMOS sensor with approximately 14.2 million effective pixels supplies optimal image quality.
Fast Hybrid Autofocus: Guide
PXW-Z90 provides highly accurate focusing and tracking, especially useful whenever shooting well-defined UHD 4K footage.
Zeiss T* Lens: 12x Optical Zoom
The PXW-Z90 fixed 12x optical wide-angle zoom with 18x Detailed Picture Zoom technology in UHD 4K (24x in HD).
Frame Rate Flexibility: Guide
Capture up to UHD 4K footage (3840 x 2160p) at 29.97, 25, and 23.98 fps, in XAVC Long in a choice of 100 Mb/s or 60 Mb/s, or HD at frame rates up to 59.94p.
Super Slow Motion: Guide
PXW-Z90 Supplies slow-motion capture up to 960 fps.
Slow Quick recording production flow&
Uses Sony's Slow & Quick Motion for capture 1080p/i60 HD footage at 1, 2, 4, 8, 15, 30, 60, and 120 fps.
Multiple-Codec Choice: Guide
Capture in XAVC Long (UHD 4K), MPEG-4 HD at 4:2:0, XAVC Long (HD) 4:2:2, HD 2.0, or XVAC Proxy at 4:2:0, at a variety of data rates (license key required for some codecs).
Built-In ND Filters: Guide
The PXW-Z90 incorporates a ND filter function with Detailed, 1/4ND, 1/16ND, and 1/64ND for optimal exposure and depth-of-field control.
Media Slots: Guide
The PXW-Z90V provides two media slots: one dedicated to SDHC or SDXC cards, and a second that also accepts Memory Stick PRO Duo Mark 2 and PRO-HG Duo media.
video signal Output
3G-SDI feed integrates with professional studio settings.
Wi-Fi/NFC: Guide
Use the PXW-Z90V camcorder's built-in Wi-Fi function to send FTP files directly from the camcorder or live stream over Wi-Fi. NFC compatibility enables you to connect compatible devices with one touch.
Locate us: https://goo.gl/maps/YZQmjfG5vYQS3ZLU7
buy it from
Key Features
- Single 1" Exmor RS CMOS Sensor
- UHD 4K (3840 x 2160) up to 30p
- 4K HDR with Hybrid Log-Gamma (HLG)
- 3G-SDI Output, 2.4/5 GHz Live Streaming
- Phase-Detection Autofocus (AF)
- Zeiss 12x Optical / 18x Clear Image Zoom
- Records MPEG-2 HD with Optional License
- XAVC HD / QFHD Recording
- S-Log3/S-Gamut3 Imaging Options
- 2 x SD Card Slots, Relay & Simul Modes
