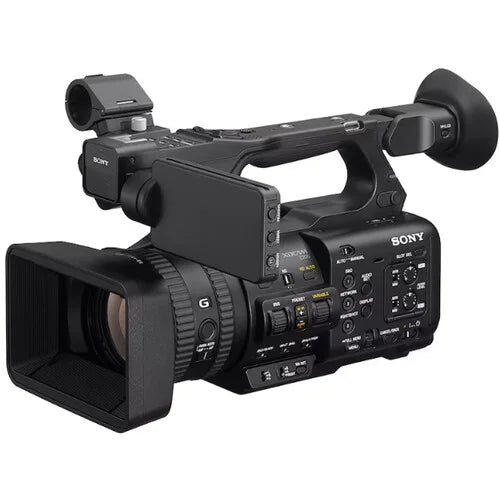

Sony PXW-Z200 4K 1" CMOS Sensor XDCAM Camcorder

Sony PXW-Z200 4K 1" CMOS Sensor XDCAM Camcorder: Guide

Share 12G-SDI 4K HDR and Shoot, Stream,

In this camera's design, On-the-go creators looking for rapid autofocusing, auto-framing, and quick content sharing in a space-efficient form can turn to the Sony PXW-Z200 4K 1" CMOS Sensor XDCAM Camcorder. Geared for high mobility, this successor to the PXWZ190 contains a 1"-type Exmor RS CMOS sensor for up to UHD 4K definition, AI-assisted autofocus and auto-framing, a variable electronic ND filter, BIONZ XR processing, and color matching with Sony Cinema Line cameras. Its connection set comprises a longer 20x optical zoom and has built-in dual-band 2.4/5 GHz Wi-Fi and an Ethernet for direct streaming via RTMP/RTMPS, SRT protocols, and FTP options. Use the Sony Monitor & Control app to view your capture through your smartphone or tablet. Broadcast-friendly MXF wrapping will be provided with a firmware update scheduled for the summer of 2025.

1" Exmor RS CMOS Sensor: Guide

The PXW-Z200's 1.0"-type Exmor RS CMOS sensor uses its stacked configuration to deliver optimal picture quality, faster readout speeds, and excellent low-light performance. It produces extraordinary 4K imagery through 5K oversampling with full-pixel readout.

Longer 20x Optical focal range

Capture views ranging from close-ups to wide angles in tight interiors through the 20x G-series zoom equivalent to a 35mm full-frame 24-480mm. Tap the Detailed Picture Zoom function to expand the zoom range to 30x in 4K and 40x in HD.

BIONZ XR Processing: Guide

The latest BIONZ XR TM picture processor permits higher frame rates, faster autofocus, improved ATW control, and excellent noise reduction. Extracting highest performance from the high-resolution picture sensor lets you capture the most subtle textures and finest detail. 5K oversampling with full-pixel readout condenses ample picture information into stunning UHD 4K60 footage.

enhanced AI-Assisted Autofocus

The PXW-Z200's AI-assisted deep learning offers accurate human-subject recognition.With 81% coverage, its Fast Hybrid autofocus system supplies better support for both Subject Recognition AF and Real-Time Tracking.

Auto Framing: Guide

Reliably keep track of your subjects through the Auto Framing function, which automatically recognizes human forms and adjusts the frame to keep your subject centered. Especially handy for solo shooters, Auto Framing mimics manual capture while letting you engage with your subject.

adaptable Frame Rates

Capture up to UHD 4K60 footage and high frame rates of up to UHD 4K120 and 1080p HD at 240 fps. Slow motion rates incorporate 4x at 4K30 and 5x at 4K24p with high-speed autofocus to keep your subject well-defined.

Film Looks and Pro Broadcast

• Presets for S-Cinetone, ITU709, 709tone, HLG Live, HLG Mild, and HLG Natural can be further tweaked with black, matrix, and other adjustments.
• The PXW-Z200's content can be color-matched with footage from other Sony broadcast and Cinema Line cameras.

12G-SDI connections

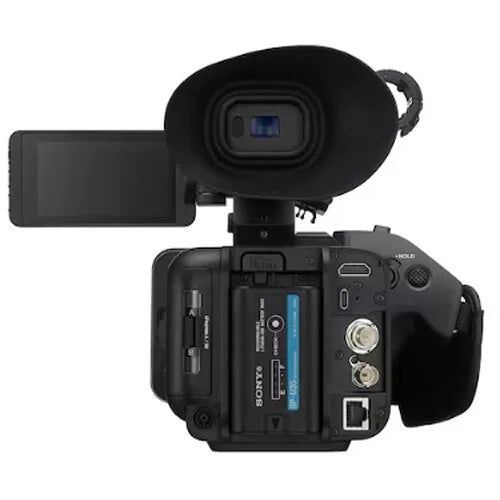

This camcorder's interface incorporates up to 12G-SDI feed, timecode source and feed, genlock, USB-A, USB-C, LAN, REMOTE, and extra connectors.

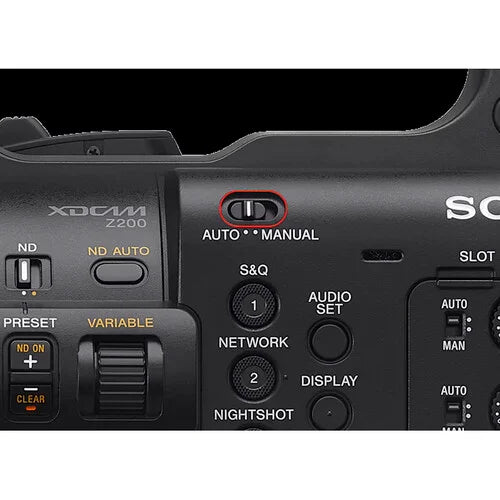

Full Auto Mode: Guide

Whenever the action gets too hectic, you can simply switch to a fully automated setting with a single switch. Auto settings incorporate ND, Iris, Gain, Shutter, and White Balance settings.

Built-In Variable ND Filter: Guide

The PXW-Z200 incorporates a variable ND filter function.
Delivers a wide 1/4 to 1/128 ND range.
Use the variable ND to seamlessly refine your exposure with the twist of a dial.

Easy File Transfers: Guide

The PXW-Z200 lets you upload proxy and original clips straight from a memory card to a cloud or FTP server. Transfer files automatically whenever each capture stops after registering the destination server in the camera. You can even capture proxy clips in segments and transfer them sequentially during capture. The optional, paid Creator's Cloud for Enterprise C3 Portal use makes cloud transfers easy with even quicker availability of footage files for editing and sharing.

Live Streaming: Guide

Stream directly from the camera through Wi-Fi or via a wired Ethernet link.
You can stream to compatible platforms through RTMP/RTMPS and SRT protocols.

enhanced White Balance

The PXW-Z200's ATW (Auto-Tracing Balance) provides improved performance, even in shaded areas.

enhanced visual Stabilization

Built-in picture stabilization minimizes camera shake, giving you the smoothest footage possible. Active Setting stabilization uses both optical and electronic elements to make your handheld shots look like you used a gimbal.

3.5" LCD and OLED Viewfinder

• The PXW-Z200 offers an OLED viewfinder and a 3.5" articulated LCD for monitoring your capture.
• The high-contrast OLED EVF provides a clear 2.36MP view while blocking ambient light.
• The LCD can be positioned for the best view, and it comes with a sun hood.

recording production flow Options

• A choice of recording options means you can select the best solution for each project you capture. Choose XAVC S-I for the highest quality, post-friendly 10-bit 4:2:2 4K (QFHD) recording using Intra-Frame H.264.
• XAVC HS-L (H.265) and XAVC S-L (H.264) provide a choice of 4:2:2 or 4:2:0 with Long GOP recording for extended recording times and file-saving efficiency.
• XAVC HS enables the recording of smaller proxy files (up to 16 Mb/s) for previewing and editing.
• Broadcast-friendly MXF wrapping will be available with a firmware update in the summer of 2025.

Dual Memory Card Slots: Guide

The PXW-Z200 supplies two memory card slots compatible with both CFexpress Type An and SD cards.

Monitoring and Wireless Remote Control

• Use the built-in Wi-Fi connectivity with the Monitor & Control app.
• Check your framing and monitor, and adjust camera controls.
• 4-Channel Audio
• Combine the MI (multi-interface) shoe and XLR connectors to record up to four channels of audio. Audio dials let you quickly adjust levels for two channels without needing to scroll through a menu tree.

Sony Battery powering

Like many other Sony cameras, the PXW-Z200 camcorder uses BP-U35, BP-U70, or BP-U100 packs, enabling you to use your existing supply of batteries.
