RodeCaster Duo - A Streaming Solution for All: Guide

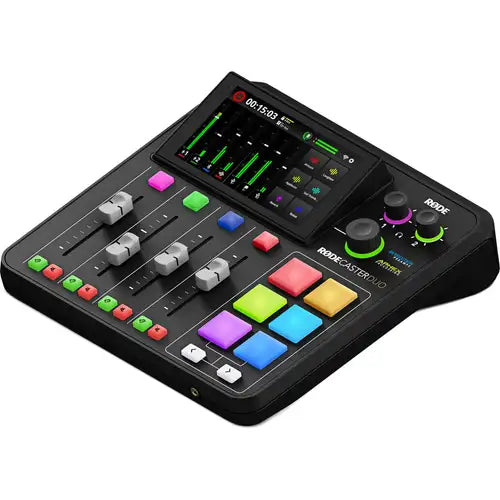

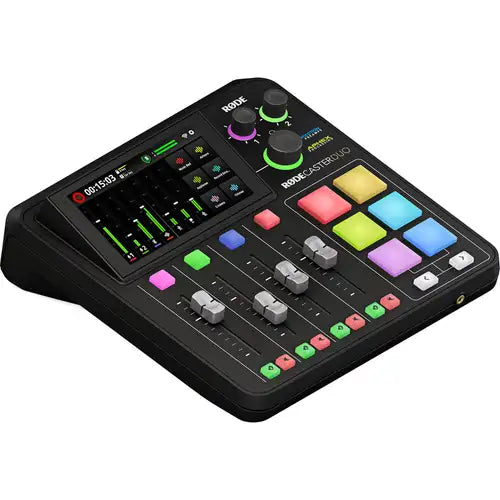

Beginning with its core design, Crafted to enhance your podcast streaming, music creation, and content production endeavors, the sleek black RODECaster Duo by RODE stands as a space-efficient yet potent all-in-one audio production option. It brings forth the revered incorporates and versatility of the RODECaster Pro II but in a smaller, more portable configuration. Ideal for those requiring fewer audio sources and a travel-friendly setup, the RODECaster Duo maintains all the qualities and functionalities of its larger counterpart. It boasts the same robust quad-core audio engine, high-gain, low-noise Revolution preamps, APHEX audio processing, and adaptable customization options.

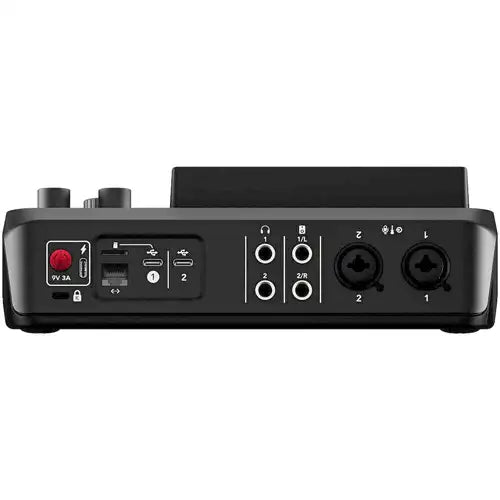

The RODECaster Duo incorporates two XLR-1/4" combo sources catering to mic- or line-level signals, along with a stereo pair line feed for speakers, two headphone feeds, and a microSD card reader for onboard multitrack recording. Additionally, it delivers two USB-C host links and an Ethernet network terminal for seamless hardware or software integrations.

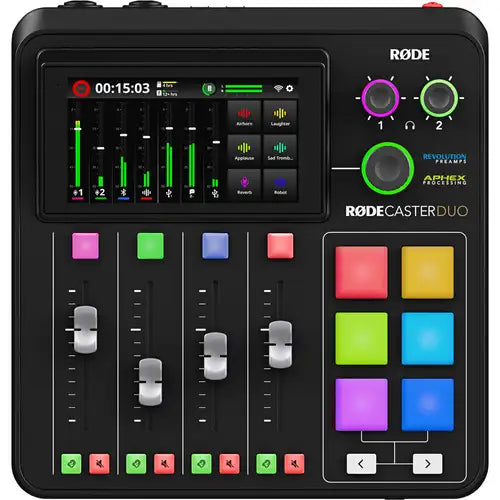

Similar to the RCPII, it provides intuitive hands-on control, including four assignable mixer faders, six colorful customizable SMART pads for audio, FX, and MIDI triggering, a vibrant touchscreen, and ample buttons and knobs for diverse content creation needs. Moreover, the RODECaster Duo incorporates Bluetooth technology and built-in wireless microphone receivers compatible with the RODE Wireless GO II and Wireless ME, preserving adaptability to multiple usage scenarios and processes.

Product Highlights: Guide

• Premium boutique-class preamps featuring high gain, low noise, and versatile mic/line/instrument combo inputs
• Customizable mixer equipped with RGB color coding for enhanced visual organization
• Extensively programmable SMART pads facilitating the launching of sounds, shows, mixer actions, and more
• Two built-in wireless receivers (one on each mic channel) supporting compatibility with Wireless GO II and Wireless ME transmitters
• Dual USB Type-C ports, iOS-ready, enabling connectivity with multiple computers or mobile devices
• Advanced Bluetooth input/output, Wi-Fi, Ethernet, and integrated wireless receivers for Series IV transmitters, ensuring seamless connectivity and compatibility across various platforms.

2 Premium-Quality Preamps installed in RodeCaster Duo: Guide

Crafted to rival expensive boutique microphone preamplifiers, the Revolution preamps produce notable transparency and detail while maintaining ultralow noise levels (as low as -131.5 dBV). With an impressive gain range of up to 76 dB, these preamps maintain optimal capture levels, even for low-output dynamic microphones, eliminating the need for mic boosters, lifters, or normalization.

production-Grade connections of RodeCaster Duo

Equipped with pro-grade Neutrik XLR-1/4" combo jacks, the Revolution preamps supply versatile link options for microphones, line-level sources, or instruments such as electric guitars and basses. Additionally, +48V phantom power is provided for condenser microphones. The analog source channels can be easily linked in pairs to facilitate stereo mic setups, synths, DJ mixers, or outboard gear capture.

Effects and High-Quality Processing

Featuring authentic emulations of renowned APHEX hardware processors, the Revolution preamps supply a range of studio-quality processing and effects. The Aural Exciter enhances clarity and sheen, while the Big Bottom adds warm and deep low-frequency punch. The Compellor supplies compression and leveling, maintaining cohesive audio feed. Additionally, a variety of other widely used processors including reverb, delay, pitch shifter, equalizer, high-pass filter, noise gate, de-esser, and robot effects are provided.

Customization and Effortless Control

The VoxLab editor permits users to conveniently refine parameters across several processors through three intuitive controls. For more intricate editing, an enhanced editor can be accessed via an onscreen interface or computer. Podcast streaming  Operators can save and recall presets, enabling quick access to preferred settings at any time.

6 Programmable SMART Pads on RodeCaster Duo: Guide

Each SMART pad includes versatile operation, allowing operators to trigger audio files, activate special effects, send MIDI commands, or execute mixer functions such as fades and music ducking. Bank switching buttons deliver access to a broad variety of unique actions. Additionally, operators can customize the illumination color of each pad for easy identification of assigned effects.

Customizable Multichannel Mixer: Guide

The 7-channel mixer delivers versatility with four channels featuring full-size broadcast-quality physical faders and three virtual channels. There's an option to expand additional via digital hosting and hardware integrations with forthcoming updates. Assign physical faders and virtual channels freely to analog sources, USB and Bluetooth interfaces, and SMART pads. Each channel incorporates a pan control, mute button, and listen button (pre- or post-fader solo), with channel-specific color coding on the RODECaster Duo for quick source identification.

Stereo or Multitrack recording production flow through RodeCaster Duo

RodeCaster DUO podcast streaming Capture stereo or individual multitrack files onto a microSD card or USB storage like an outboard drive. Opt for uncompressed WAV format for top-notch audio quality or MP3 format to save storage space and prolong capture time. The RODECaster Duo doubles as a high-quality USB audio interface, facilitating streaming/capture to a computer with rapid data transfer. Working at 24-bit / 48 kHz, it adheres to the industry standard for footage production.

Monitoring for All: Guide

RodeCaster DUO podcast streaming has Two high-powered 1/4" headphone feeds deliver detailed personal observation for both the host and a guest. Separate color-coded volume controls permit all participants to easily manage their headphone levels. Connect active speakers to the 1/4" line feeds to amplify content to a live audience, or opt for wireless observation via a Bluetooth speaker to assess the mix on an alternative system. Selectable high or low sensitivity optimizes the gain structure of the headphone feeds, simplifying headphone level adjustments.

Podcast-Friendly Specialties: Guide

Engage producer talkback setting to communicate with guests without impacting the capture. The podcast streaming Equipped with enhanced Bluetooth interfacing, the RODECaster Duo facilitates ultrahigh-quality phone-call integration, crystal-clear audio streaming, wireless observation, and more. Mix-minus on the Bluetooth and USB channels prevents the caller from hearing distracting echoes, making it ideal for remote and local podcast guests.

Efficient production flow of Rode Caster Duo

The RodeCaster DUO podcast streaming Save several Shows containing all RODECaster Duo settings, facilitating instant switching between multiple production types such as podcasts, live streams, and game commentary. Tailored presets for Rode microphones and other popular versions expedite sound setup. The color touchscreen includes haptic feedback, automated brightness adjustment, and optimal viewing angle. Adjacent to the touchscreen, a rotary encoder maintains efficient navigation and control. Dual USB Type-C interfaces permit simultaneous link of two computers or mobile devices, unlocking diverse options from remote podcasting to managing complex streaming setups.

Additional capabilities

• An internal 1.5 GHz quad-core audio engine delivers robust processing capabilities and paves the way for extensive future updates.
• Bidirectional MIDI communication ensures seamless integration with DAWs and streaming software.
• Both Wi-Fi and Ethernet connections provide high-speed communication with computers and other devices, facilitating wireless firmware updates, software and hardware integrations, and more.
• The USB connections are MFi-certified, guaranteeing smooth integration with iOS devices like iPads.
• The RODECaster Duo can be powered via USB Type-C PD (30W), offering convenience and flexibility.
• Designed for global use, the unit supports 10 languages—English, Chinese, Japanese, Korean, French, German, Italian, Spanish, Portuguese, and Hindi.
• The RODECaster Duo is fully updatable, ensuring ongoing evolution with new firmware accessible to all users via Wi-Fi, Ethernet, or USB.
• Internal wireless microphone receivers enable compatibility with any Series IV wireless transmitter, including the Wireless GO II and Wireless ME, expanding versatility and functionality.
