SKU: 710-0450

RED DIGITAL CINEMA V-RAPTOR XE Cine Essentials Pack (Canon RF)

Name: RED DIGITAL CINEMA V-RAPTOR XE Cine Essentials Pack (Canon RF)
Brand: red
SKU: 710-0450
Price: 76499.00 AED
Availability: InStock

In stock

WhatsApp us for inquiries

View full details

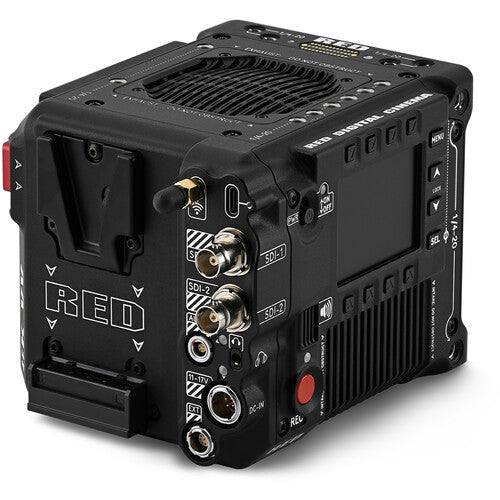

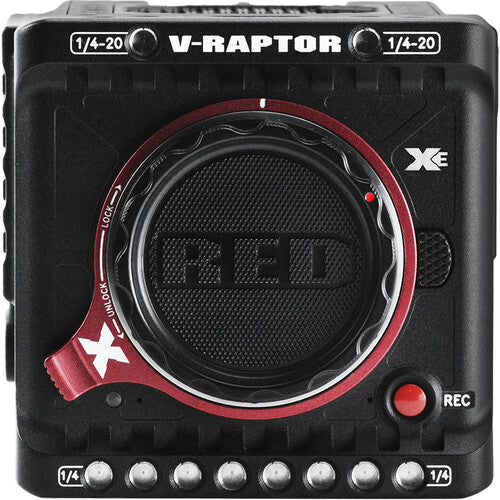

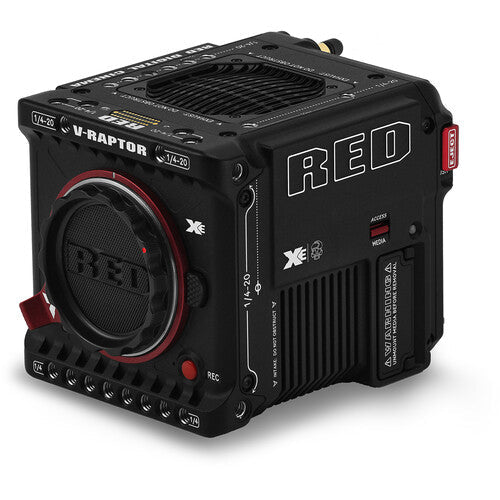

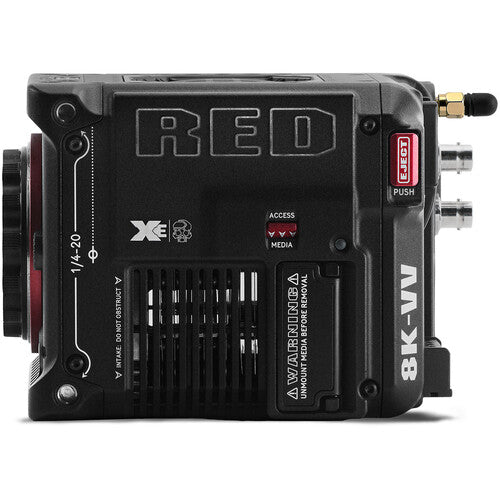

RED DIGITAL CINEMA V-RAPTOR XE 8K VV Camera (Canon RF)

Flagship Picture Quality, Streamlined for Essentials

The V-RAPTOR XE 8K VV Camera from RED DIGITAL CINEMA delivers the 8K global shutter and space-efficient configuration of the V-RAPTOR X, while focusing on the core contains essential to modern filmmaking. Constructed on RED's DSMC3 platform, the XE offers a large-format VV sensor in a lightweight 4 lb body, capturing 8K footage in up to 60 fps with 17+ stops of dynamic range. Balancing high-end performance with class-leading value, the XE omits enhanced Global Vision attributes like Phantom Track and Extended Highlights, but retains the same picture quality, process flexibility, and robust interfacing that define RED's V-RAPTOR line.

Creators benefit from the global shutter, enhanced autofocus with face detection, simultaneous ProRes proxy capture, and dual 12G-SDI feeds for discrete monitoring. Compact, durable, and ready for a variety of rig configurations, the XE is a cost-effective option for productions requiring RED's flagship sensor technology.

8K VV Sensor with Global Shutter

The 35.4MP large-format VV sensor incorporates a global shutter, eliminating the artifacts produced by rolling shutters in scenes with rapid motion or flashing lights. The XE maintains distortion-free motion capture while maintaining full detail, contrast, and dynamic range across every frame. Delivering a multitude of definition and frame-rate options, the camera captures 17:9 footage up to 8192 x 4320 whenever utilizing its entire VV sensor.

8K up to 60 fps
6K up to 80 fps
5K up to 96 fps
4K up to 120 fps
2K up to 240 fps

Intelligent Autofocus

Powered by in-camera processing, on-sensor phase detection, and enhanced face detection, the V-RAPTOR XE offers all levels of creators with accurate, automated focus control in a broad variety of settings.

Dynamic Range

The V-RAPTOR XE produces 17+ stops of dynamic range, with REDCODE Raw preserving fine detail in both extreme highlights and deep shadows. With class-leading performance in low light, the XE maintains saturation in shadows while reducing fixed pattern noise.

Flexible Footage Recording

Sporting a single CFexpress Type B card slot, the XE records internally to a compatible media card with data rates topping out at 800 MB/s. With support for REDCODE Raw HQ capture, the XE maintains post-production flexibility for color grading, cropping, and visual effects. Simultaneous proxy capture and alternative format options maintain smooth integration with existing processes.

R3D format ensures maximum latitude and post-production flexibility
Simultaneous ProRes proxy recording for a streamlined editorial process
Dedicated ProRes 4444 XQ recording up to 4K120

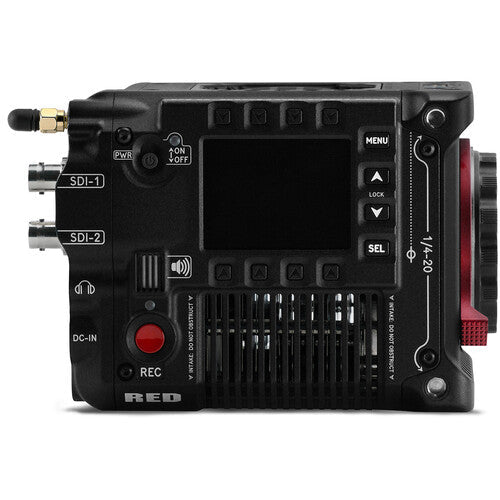

Built-In Controls and Monitoring

With several monitoring outputs and complete on-body controls, the XE maintains efficient operation on set and in the field. Constructed into the right side of the camera, the control interface provides a 2.4" LCD screen with easily navigable menus, delivering an AC or camera operator with diverse control over in-camera format selection and other important functions. Dual 12G-SDI ports produce unique observation views, while a USB-C port feeds data at up to 250 MB/s.

Advanced Connectivity

Supporting both wired and wireless IP interfacing, the XE enables cloud-based collaboration and app-based remote camera control. Whenever used with RED's RF to PL Adapter with electronic ND filters, the XE enables ND strength to be continuously adjusted over Wi-Fi in fine increments of 1/100 of a stop.

Direct integration with Frame.io and AWS (Amazon Web Services)
Compatible with RED Control and RED Control Pro Apps for wireless monitoring and operation
Adjust camera settings from remote locations via Wi-Fi connection

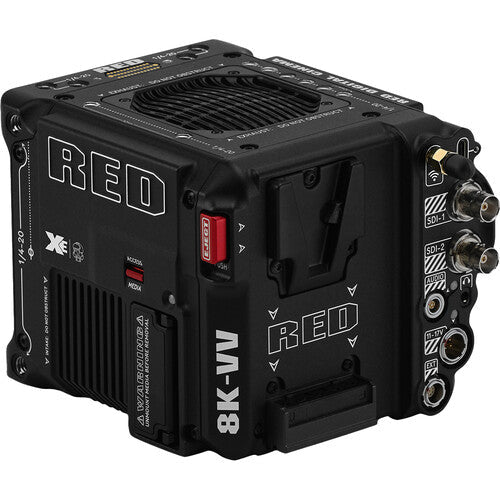

Rugged DSMC3 Design

Sharing the same form factor as the V-RAPTOR X, the XE's lightweight 4 lb aluminum alloy body maintains durability without sacrificing mobility. Its enhanced thermal management system maintains the camera's optimal onboard temperature, preventing both overheating and overcooling.

UPC: 810016945925

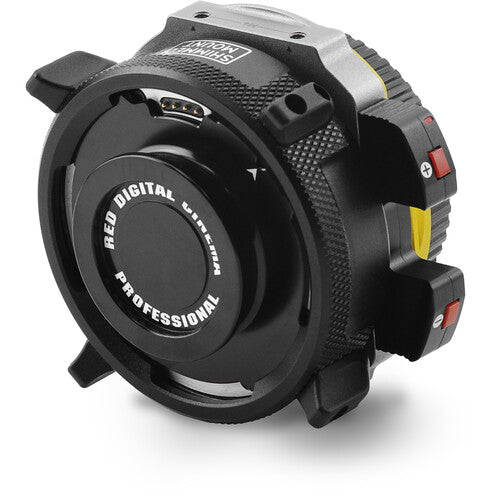

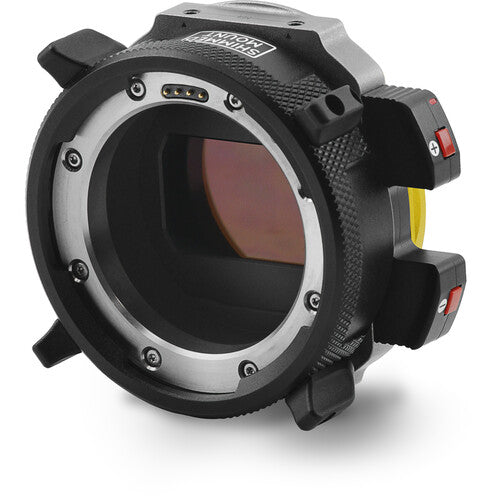

RED DIGITAL CINEMA V-RAPTOR RF to PL Adapter with Electronic ND Filter Pack

The V-RAPTOR RF to PL Adapter with Electronic ND Filter Pack from RED DIGITAL CINEMA integrates the same accurate electronic ND (neutral density) control used in the V-RAPTOR XL into a robust PL-mount option for the RED V-RAPTOR.

Easy Exposure Control

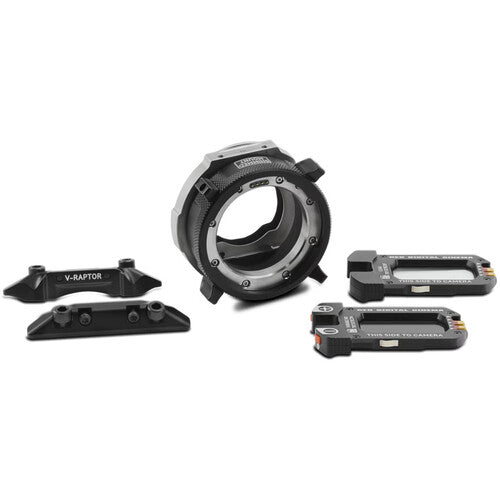

This pack incorporates a RF to PL lens mount adapter, an electronic ND filter with a 2- to 7-stop range, and a detailed filter to use with the mount adapter whenever a ND is not required. Control the ND filter via built-in buttons, DSMC3 RED Touch 7.0 LCD, RED Control, RED Control Pro, web interface, or any RCP2 compatible remote for easy exposure access in any configuration. The adapter also allows Cooke /i lens communications and ZEISS XD data pass-through.

Operators who already own the RED V-RAPTOR RF to PL Adapter Pack and have the Adapter Support Brackets should contact RED directly to purchase the RF to PL Adapter with Electronic ND only.

Shown with Optional Equipment (Not Included)

Compatibility

RED V-RAPTOR camera

Electronic ND Filter

Includes an electronic ND filter with a 2- to 7-stop range and a clear filter for when no ND is needed.
The filter features precise control in 1/4, 1/3, or full-stop increments.
Enables you to choose the exact exposure without compromising your preferred aperture.

UPC: 810016943839

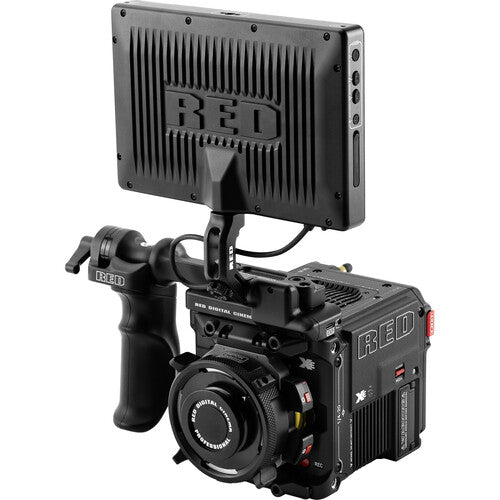

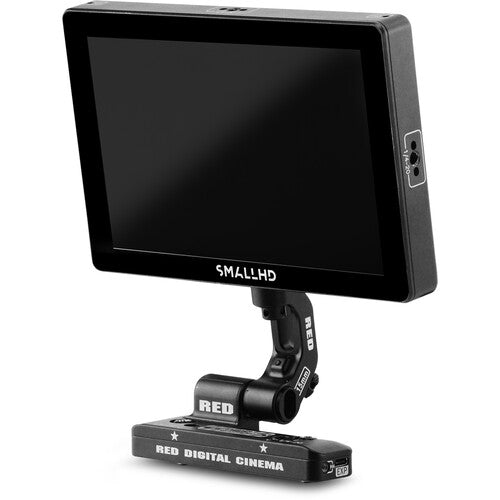

RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD with Rigid Hinge

Add a direct-mount onboard monitor to your DSMC3 camera rig with the DSMC3 RED Touch 7.0" LCD Monitor with Rigid Hinge from RED DIGITAL CINEMA. The RED Touch contains daylight viewing, a wide 100% DCI-P3 color gamut, and touchscreen control for DSMC3 cameras, such as the V-RAPTOR 8K VV. The rigid hinge and arm permit you to apply more pressure for positioning the Touch for optimal viewing. The Touch monitor incorporates 1920 x 1200 definition, a 1250:1 contrast ratio, and 1300 cd/m² brightness for high-quality image-capture.

This monitor attaches directly to your DSMC3 BRAIN through its Pogo mount, which makes available footage, data, and power to the monitor from the camera. If you need to use the Pogo mount for another accessory, the monitor additionally provides a locking USB-C connector that alternately enables you to pass footage, data, and power to the camera. Note that the DSMC3 Touch monitor is not compatible with DSMC, DSMC2, RED RANGER, or KOMODO camera systems.

Daylight Viewable

Designed for daylight viewing with 322 ppi, 1920 x 1200 definition, and 1800 cd/m² brightness.

Rigid Hinge

A rigid hinge system permits you to apply increased pressure whenever positioning the Touch for dependable viewing.

DCI-P3 Color Gamut

A 1920 x 1200 definition and wide 100% DCI-P3 color gamut for optimal image-capture.

SmallHD Page OS

Runs SmallHD PageOS software that offers full camera control. Features incorporate waveform, vectorscope, histogram, false color, color picker, pixel zoom, and extra functions.

Pogo Mount

Mounts directly onto the BRAIN through the Pogo mount.

USB-C Connector

USB-C connector is used for footage, data, and power.

UPC: 810016944751

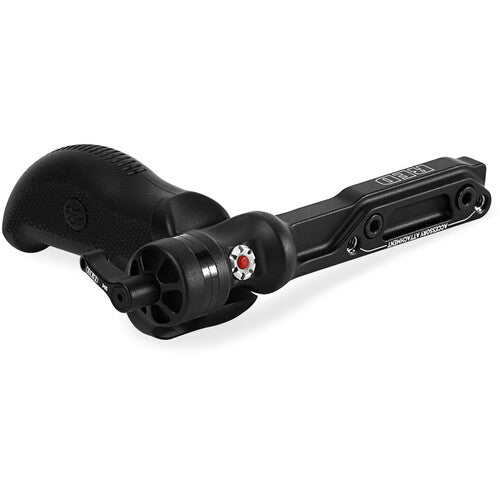

RED DIGITAL CINEMA KOMODO Outrigger Handle

The KOMODO Outrigger Handle from RED DIGITAL CINEMA provides adaptable handling whenever working your KOMODO digital cine camera. This low-profile handle is especially suited for keeping one hand on the built-in capture/stop button and the other positioned for focus pulls or zooming. The KOMODO Outrigger handle contains a durable build, 360° of swivel rotation for optimal positioning, and two 1/4"-20 accessory threads. Attach it to your camera via its pogo connector or its two captive 1/4"-20 screws.

Key Specs
Lens Mount	Canon RF
Image Sensor	VistaVision
Effective Sensor Resolution	35.4 Megapixel (8192 x 4320)
Image Stabilization	No
Battery	Micro V-Mount
Imaging
Lens Communication	Yes
Sensor Size	40.96 x 21.6 mm (VistaVision) CMOS
Built-in ND Filter	No
Built-in CC Filter	No
Capture Type	Stills & Video
Exposure Control
Shutter Type	Electronic Global Shutter
Dynamic Range	17 Stops
Focus
Focus Modes	AF / MF / Continuous AF / Single AF
Video Capture
Max Recording	8K up to 60fps (REDCODE RAW / HQ), 4K up to 120fps (ProRes)
Video Output	DCI 4K up to 60fps
Interface
Card Slot	CFexpress Type B
Audio I/O	3.5mm headphone, 5-pin LEMO input
Video I/O	2x 12G-SDI BNC
General
Dimensions	155.5 x 115.5 x 108 mm
Weight	1.8 kg (Body Only)
Packaging Info
Package Weight	8.295 lb
Box Dimensions	12.6 x 9.3 x 6.1 in
