Flagship Picture Quality, Streamlined for Essentials

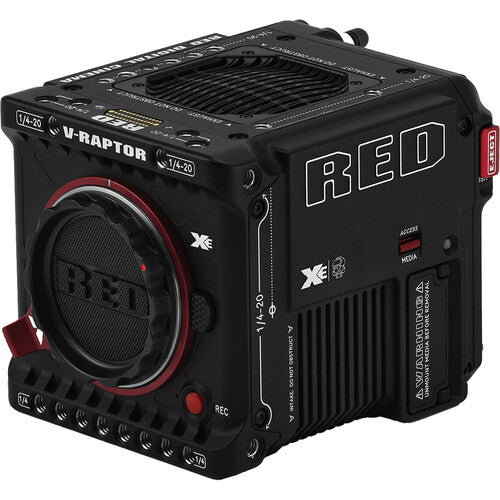

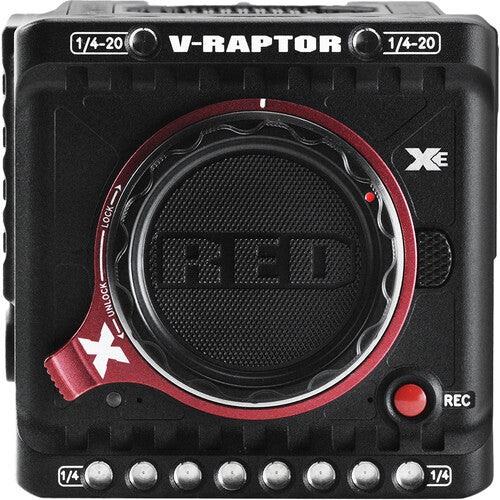

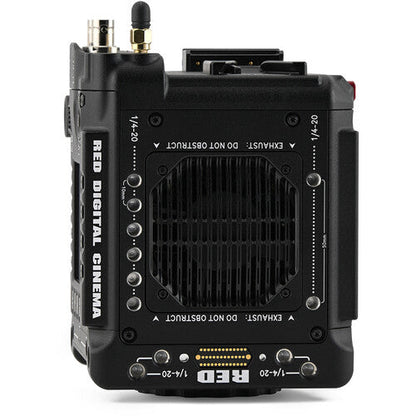

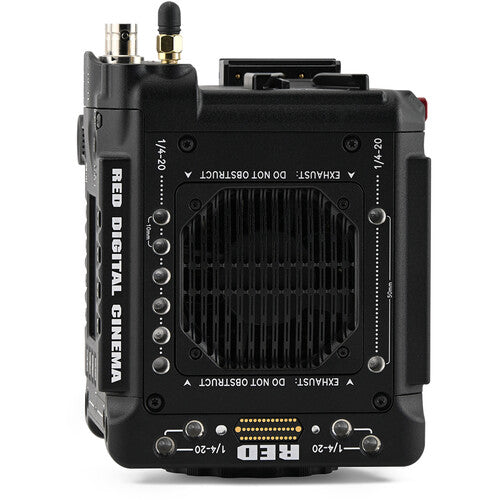

The V-RAPTOR XE 8K VV Camera from RED DIGITAL CINEMA delivers the 8K global shutter and space-efficient configuration of the V-RAPTOR X, while focusing on the core contains essential to modern filmmaking. Constructed on RED's DSMC3 platform, the XE offers a large-format VV sensor in a lightweight 4 lb body, capturing 8K footage in up to 60 fps with 17+ stops of dynamic range. Balancing high-end performance with class-leading value, the XE omits enhanced Global Vision attributes like Phantom Track and Extended Highlights, but retains the same picture quality, process flexibility, and robust interfacing that define RED's V-RAPTOR line.
Creators benefit from the global shutter, enhanced autofocus with face detection, simultaneous ProRes proxy capture, and dual 12G-SDI feeds for discrete monitoring. Compact, durable, and ready for a variety of rig configurations, the XE is a cost-effective option for productions requiring RED's flagship sensor technology.
8K VV Sensor with Global Shutter
The 35.4MP large-format VV sensor incorporates a global shutter, eliminating the artifacts produced by rolling shutters in scenes with rapid motion or flashing lights. The XE maintains distortion-free motion capture while maintaining full detail, contrast, and dynamic range across every frame. Delivering a multitude of definition and frame-rate options, the camera captures 17:9 footage up to 8192 x 4320 whenever utilizing its entire VV sensor.
- 8K up to 60 fps
- 6K up to 80 fps
- 5K up to 96 fps
- 4K up to 120 fps
- 2K up to 240 fps
Intelligent Autofocus
Powered by in-camera processing, on-sensor phase detection, and enhanced face detection, the V-RAPTOR XE offers all levels of creators with accurate, automated focus control in a broad variety of settings.
Dynamic Range
The V-RAPTOR XE produces 17+ stops of dynamic range, with REDCODE Raw preserving fine detail in both extreme highlights and deep shadows. With class-leading performance in low light, the XE maintains saturation in shadows while reducing fixed pattern noise.
Flexible Footage Recording

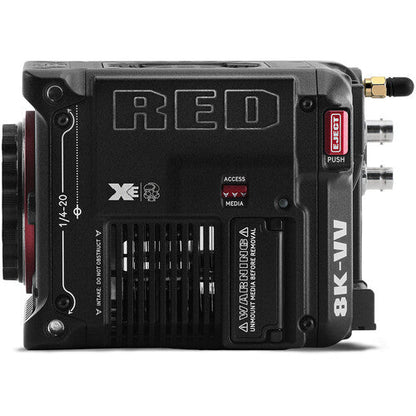

Sporting a single CFexpress Type B card slot, the XE records internally to a compatible media card with data rates topping out at 800 MB/s. With support for REDCODE Raw HQ capture, the XE maintains post-production flexibility for color grading, cropping, and visual effects. Simultaneous proxy capture and alternative format options maintain smooth integration with existing processes.
- R3D format ensures maximum latitude and post-production flexibility
- Simultaneous ProRes proxy recording for a streamlined editorial process
- Dedicated ProRes 4444 XQ recording up to 4K120
Built-In Controls and Monitoring

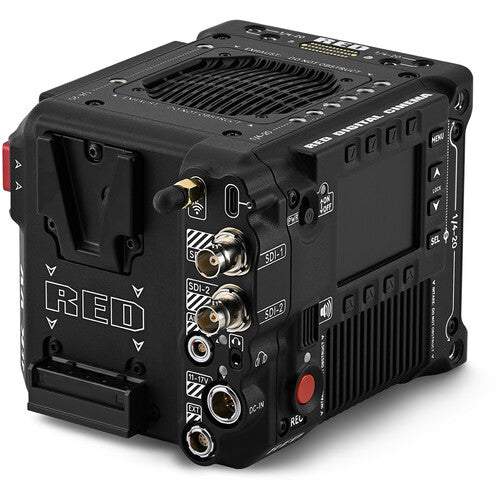

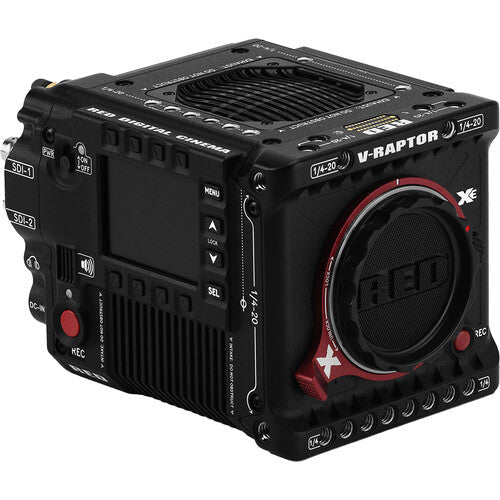

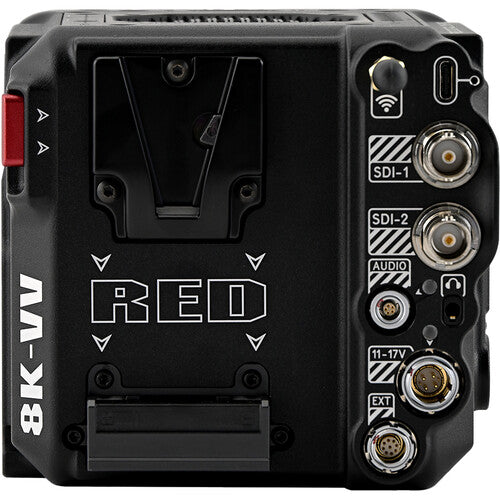

With several monitoring outputs and complete on-body controls, the XE maintains efficient operation on set and in the field. Constructed into the right side of the camera, the control interface provides a 2.4" LCD screen with easily navigable menus, delivering an AC or camera operator with diverse control over in-camera format selection and other important functions. Dual 12G-SDI ports produce unique observation views, while a USB-C port feeds data at up to 250 MB/s.
Advanced Connectivity
Supporting both wired and wireless IP interfacing, the XE enables cloud-based collaboration and app-based remote camera control. Whenever used with RED's RF to PL Adapter with electronic ND filters, the XE enables ND strength to be continuously adjusted over Wi-Fi in fine increments of 1/100 of a stop.
- Direct integration with Frame.io and AWS (Amazon Web Services)
- Compatible with RED Control and RED Control Pro Apps for wireless monitoring and operation
- Adjust camera settings from remote locations via Wi-Fi connection

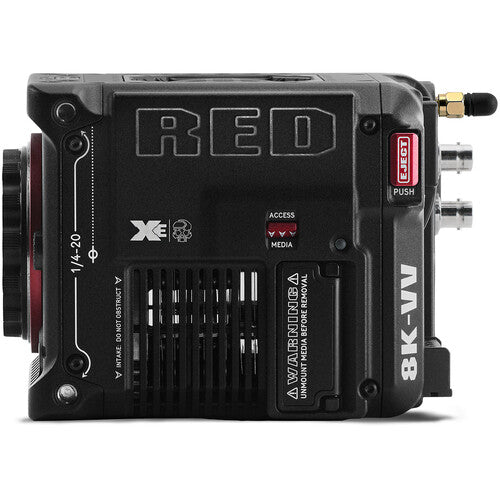

Rugged DSMC3 Design

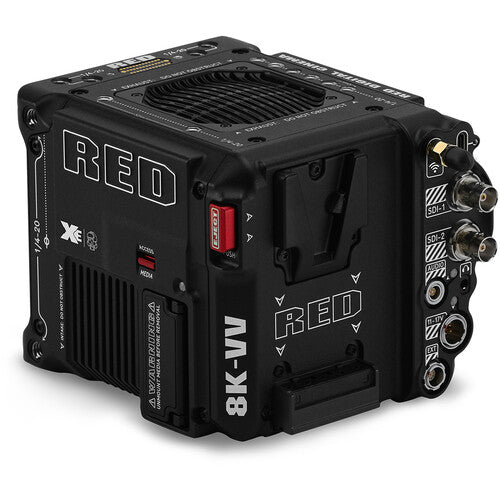

Sharing the same form factor as the V-RAPTOR X, the XE's lightweight 4 lb aluminum alloy body maintains durability without sacrificing mobility. Its enhanced thermal management system maintains the camera's optimal onboard temperature, preventing both overheating and overcooling.
