SKU: 710-0364
RED DIGITAL CINEMA V-RAPTOR Starter Pack with 2 x MICRO-V Batteries
RED DIGITAL CINEMA V-RAPTOR Starter Pack with 2 x MICRO-V Batteries
In stock
View full details
WhatsApp us for inquiries

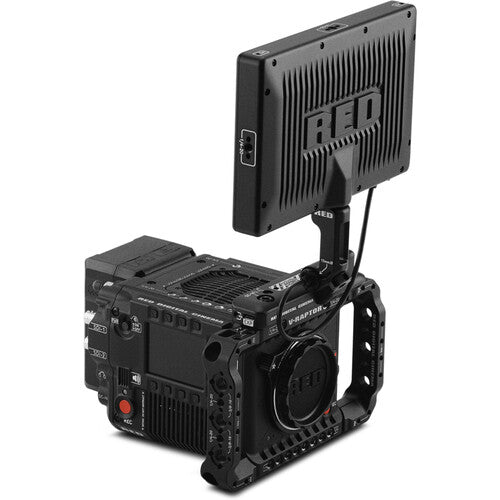

RED DIGITAL CINEMA V-RAPTOR 8K VV DSMC3 Camera (Canon RF, Black)
Compact, fast, and full-frame—the black V-RAPTOR 8K VV Camera is an impressive introduction to RED DIGITAL CINEMA's new DSMC3 platform.
From Manufacturer
RED TECH | V-RAPTOR | OVERVIEW | 4K
REDTECH | V-RAPTOR | MULTI-FORMAT SENSOR | 4K
RED KOMODO-X 6K S35: Redesigned sensor and more!
Versatile Production Options
Dual 12G-SDI feeds, resolutions including 16-bit REDCODE Raw at significantly higher frame rates, wired USB-C 1080p preview footage, 17+ stops of dynamic range, and phase-detection autofocus (PDAF).
Full-Frame Multi-Format Sensor
- 35.4MP full-frame sensor
- 17+ stops dynamic range
- 8K VV + 6K35 capture options
- Fast rolling shutter readout
- Phase-detection autofocus (PDAF)
Assistant Interface
- Right-side user interface for ACs
- Physical buttons for controls
- Customizable user pages
High-Speed and REDCODE Options
- 8K at 120 fps
- 6K S35 at 198 fps
- 4K at 240 fps
- 2K up to 600 fps
CFexpress Card Capture
Capture to CFexpress 2.0 Type B cards with RED-approved media.
Input and Outputs
- Dual 12G-SDI ports
- USB-C 1080p preview output
RED Connect
Stream full-resolution live R3D footage over IP network.
DSMC3 Accessories
Upcoming accessories incorporate monitors, top handles, baseplates, side grips, and audio adapters.
UPC: 810016942054

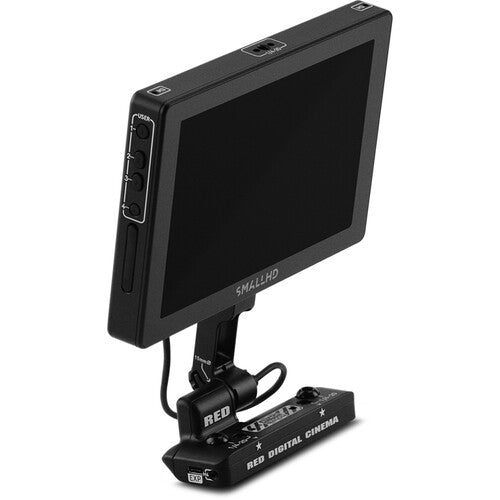

RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD Monitor (Direct Mount)
Add a direct-mount onboard monitor to your DSMC3 camera rig with this DSMC3 RED Touch 7.0" LCD Monitor.
- 1920 x 1200 resolution
- 100% DCI-P3 color gamut
- 1300 cd/m² brightness
- USB Type-C connectivity
- 180° tilt rotation
UPC: 810016942177

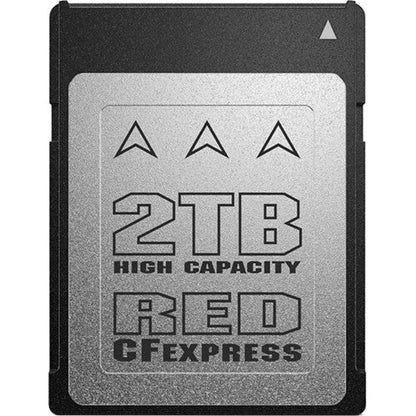

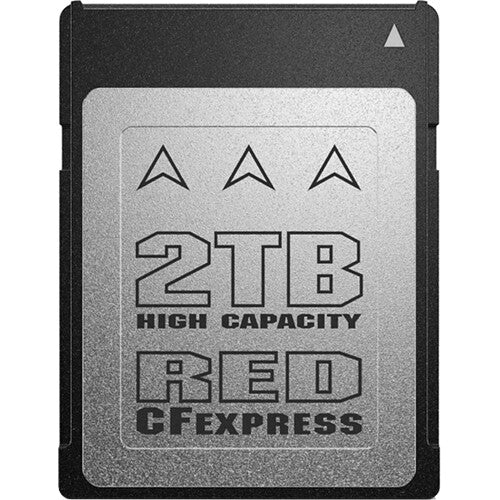

RED DIGITAL CINEMA 2TB PRO CFexpress 2.0 Type B Memory Card
Certified for RED V-RAPTOR and KOMODO-X systems with max read/write speeds of 1785 MB/s.
General Provides
- 2TB capacity
- 1785 MB/s speed
- CFexpress 2.0 Type B
- Stable Stream technology
Compatibility
- RED V-RAPTOR 8K VV
- RED KOMODO-X
- RED CFexpress reader

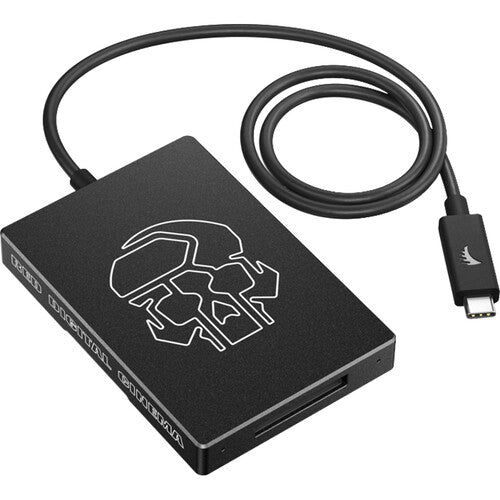

RED DIGITAL CINEMA CFexpress Card Reader
USB-C CFexpress card reader supporting 20 Gb/s USB 3.2 Gen 2x2 speeds.
UPC: 812937024666

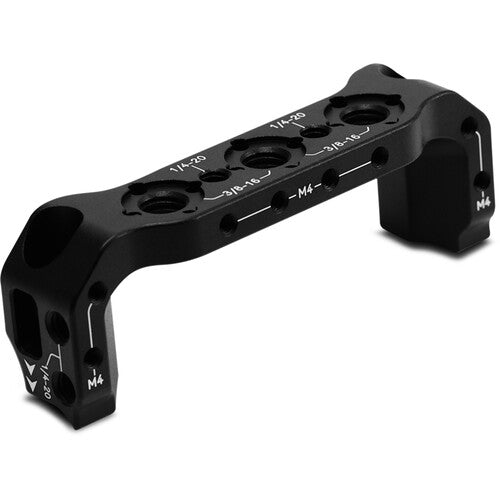

RED DIGITAL CINEMA V-RAPTOR Wing Grip
Low-profile ergonomic handle with several accessory mounting threads.
- 1/4"-20 threads
- 3/8"-16 anti-twist threads
- Compatible with RED V-RAPTOR only
UPC: 810016942030

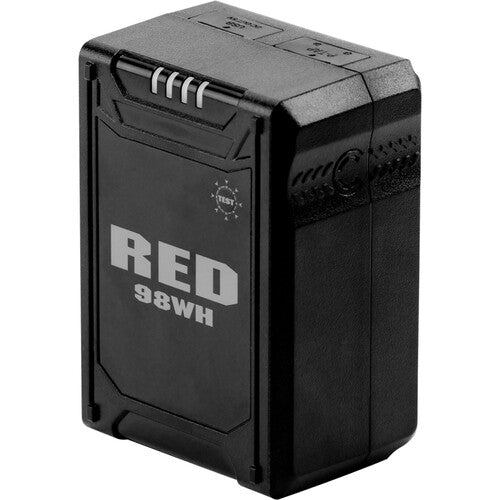

RED DIGITAL CINEMA REDVOLT MICRO-V Battery (98Wh, V-Mount)
- 98Wh compact battery
- Up to 12A draw
- Lightweight handheld design
- In-camera status display
UPC: 810016941989

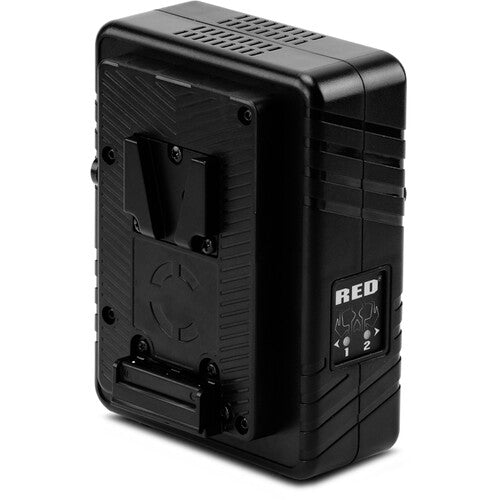

RED DIGITAL CINEMA Compact Dual Battery Charger (V-Mount)
Space-efficient dual V-mount charger developed for REDVOLT MICRO-V and XL-V batteries.
Compatible with most V-mount batteries.
| Key Specs | |
|---|---|
| Lens Mount | Canon RF |
| Image Sensor | Full-Frame |
| Effective Sensor Resolution | 35.4 Megapixel (8192 x 4320) |
| Image Stabilization | No |
| Max Recording Modes |
REDCODE RAW Up to DCI 8K up to 120 fps REDCODE HQ / REDCODE LQ / REDCODE MQ Up to DCI 8K up to 59.94 fps |
| Max Video Output | Up to DCI 4K up to 60.00 fps |
| Media/Memory Card Slot | Single Slot: CFexpress Type B (CFast 2.0) |
| Mobile App Compatible | No |
| Battery | Micro V-Mount |
| Imaging | |
| Lens Communication | Yes |
| Image Sensor | 40.96 x 21.6 mm (Full-Frame) CMOS |
| Internal Filter Holder | No |
| Capture Type | Stills & Video |
| Exposure Control | |
| Shutter Type | Electronic Rolling Shutter |
| Advertised Dynamic Range | 17 Stops |
| Focus | |
| Focus Mode | Automatic, Continuous-Servo AF, Manual Focus, Single-Servo AF |
| Video Capture | |
| Internal Recording |
REDCODE RAW 8192 x 4320 up to 120 fps 7168 x 3780 up to 140 fps* 8192 x 3456 up to 150 fps 6144 x 3240 up to 160 fps* 7168 x 3024 up to 175 fps* 5120 x 2700 up to 192 fps* 6144 x 2592 up to 200 fps* 5120 x 2160 up to 240 fps* 4096 x 2160 up to 240 fps* 4096 x 1728 up to 300 fps* 3072 x 1620 up to 320 fps* 3072 x 1296 up to 400 fps* 2048 x 1080 up to 480 fps* 2048 x 864 up to 600 fps* *Sensor Crops During Recording REDCODE HQ / REDCODE LQ / REDCODE MQ 8192 x 4320 up to 59.94 fps 6144 x 3240 up to 96 fps* 4096 x 2160 up to 240 fps* 2048 x 1080 up to 480 fps* |
| Video Output |
4096 x 2160 up to 60.00 fps 2048 x 1080 up to 60.00 fps |
| Fast-/Slow-Motion Support | Yes |
| Gamma Curve | RED IPP2 |
| Built-In Microphone | Mono |
| Audio Recording | 2-Channel, 24-Bit at 48 kHz |
| Interface | |
| Internal Storage | No |
| Video I/O | 2x BNC (12G-SDI) Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Headphone Output 1x 5-Pin LEMO Mic/Line Input (+48 V Phantom Power) |
| Power I/O | 1x LEMO 6-Pin (11 to 17VDC) Input |
| Other I/O |
1x USB-C Control/Data/Video 1x 9-Pin Control/Data Input/Output |
| Wireless | Wi-Fi |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Monitor | |
| Display Type | Primary Monitor: Fixed 2.4" Non-Touchscreen LCD |
| Viewfinder | |
| Type | Support via Video Out Only |
| Environmental | |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Storage Conditions | -4 to 122°F / -20 to 50°C up to 85% Humidity |
| General | |
| Tripod Mount |
1/4"-20 Female (Bottom) 3/8"-16 Female (Bottom) |
| Accessory Mounting Thread | 28x 1/4"-20 |
| Netflix Approved | Yes |
| Materials | Aluminum |
| Dimensions (W x H x D) | 6.1 x 4.3 x 4.3" / 155.5 x 108 x 108 mm |
| Weight | 4 lb / 1.8 kg (Body Only) |
| Packaging Info | |
| Package Weight | 8.58 lb |
| Box Dimensions (L x W x H) | 12.6 x 9.1 x 6" |

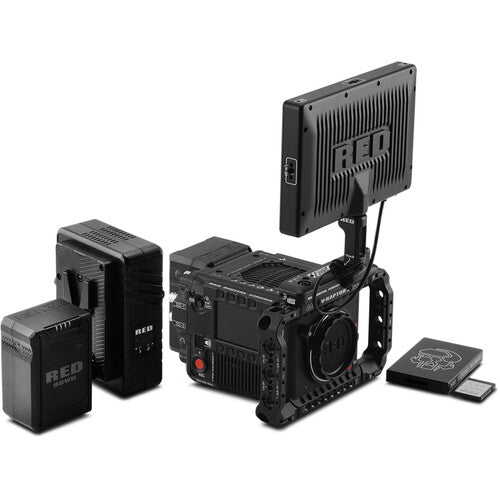

Key Features
- V-RAPTOR 8K VV + 6K S35 DSMC3 Camera
- DSMC3 RED Touch 7" LCD Monitor
- 1 x High-Capacity 2TB PRO CFexpress Card
- 2 x REDVOLT MICRO-V Batteries
- 1 x V-RAPTOR Wing Grip
- CFexpress Card Reader
- Dual V-Mount Charger
