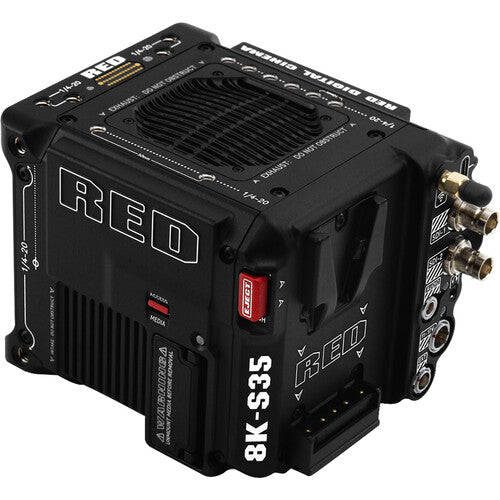

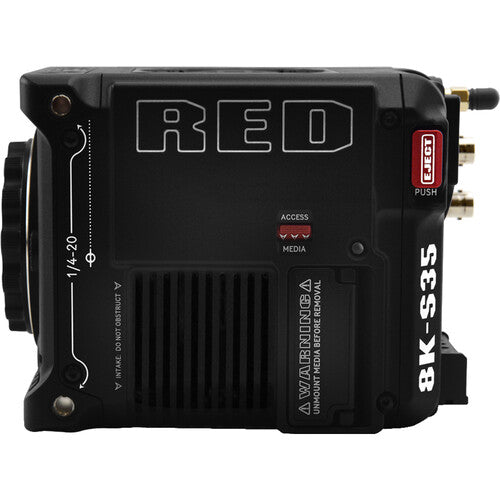

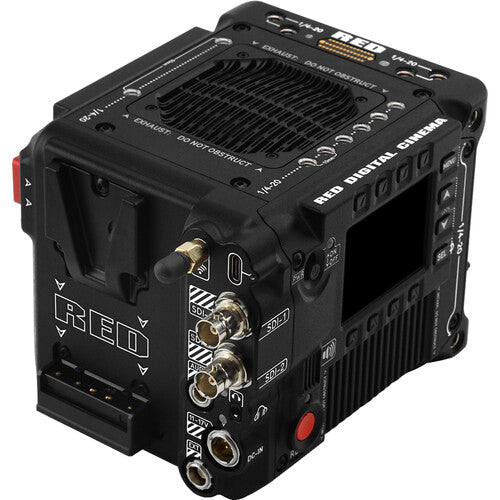

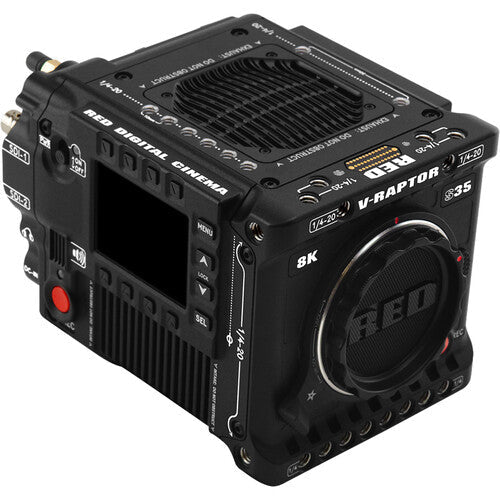

RED DIGITAL CINEMA V-RAPTOR 8K S35 Production Pack (RF, V-Mount)

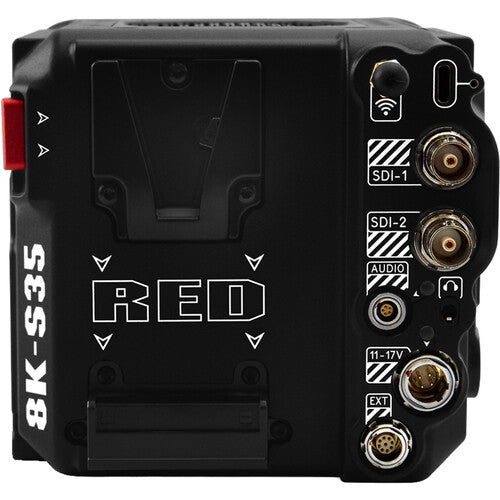

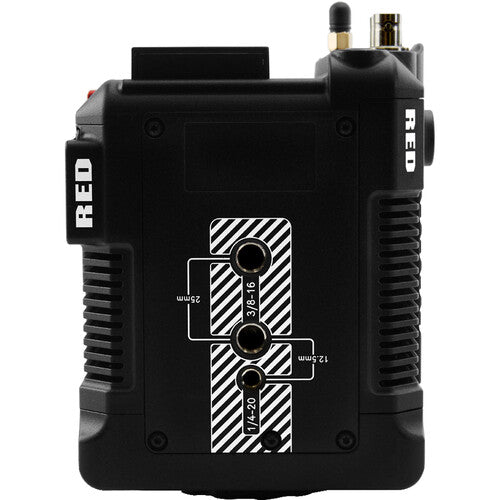

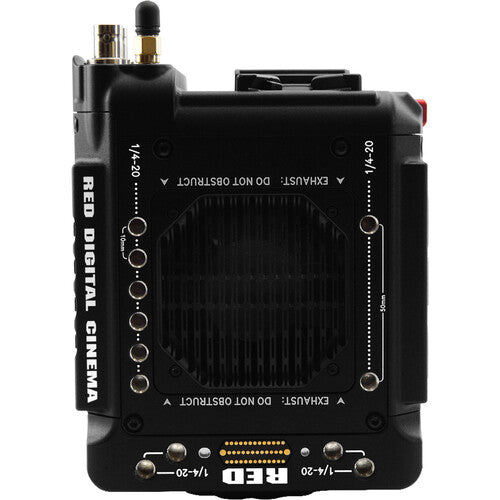

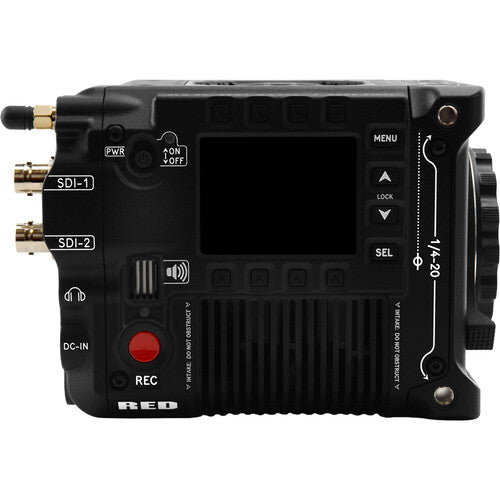

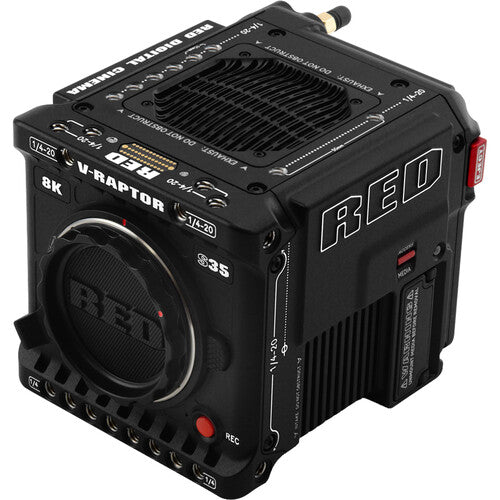

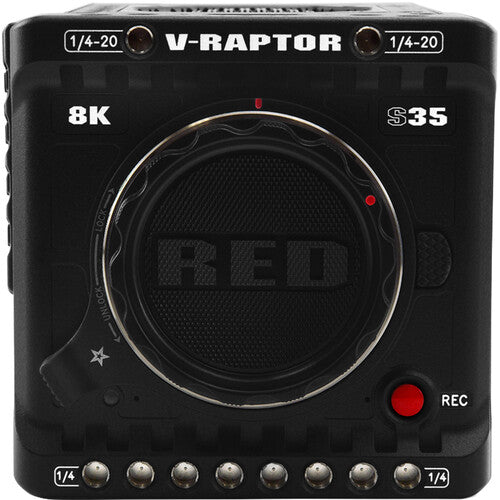

Choose 8K Super35 capture for your productions with the black V-RAPTOR 8K S35 Camera, RED DIGITAL CINEMA's newest DSMC3 version that incorporates an 8K, 35.4MP S35 CMOS sensor. With 16.5+ stops of dynamic range, speedy cine-level scan time, and optimal low-light performance, the V-RAPTOR 8K S35 is ready to bring RED quality image-capture to your Super35-format image-capture. Its multi-format capture options incorporate 8/7/6/5/4/3/2K, with REDCODE Raw, Apple ProRes, anamorphic, and proxy selections.

The V-RAPTOR 8K S35's active RF lens mount permits you to adapt your capture for each project through a wide array of pro cine or still photo lenses and can be used with an EF lens adapter. Phase-detect and contrast autofocus is provided whenever used with compatible lenses. This combination of Super35 capture, lens versatility, autofocus (for choose lenses), and the space-efficient DSMC3 form permits the V-RAPTOR 8K S35 to fit seamlessly into your wildlife and broadcast projects or other shoots involving lots of handheld work and company moves to several locations.

The CFexpress Card Reader from RED allows for the fast ingestion of the RED PRO 660GB CFexpress media card on systems that support 20 Gb/s USB 3.2 Gen 2x2. Constructed with a USB Type-C interface, power is received via the USB bus, meaning that no outboard power sources are required. The reader incorporates a write-protect switch on the back to protect your data.

Power your KOMODO V-RAPTOR camera with the MICRO-V Battery from RED DIGITAL CINEMA. This 98Wh battery provides a space-efficient, lightweight form, up to 12A draw, and data transmission of the remaining time and choose accessory information. Developed in conjunction with battery-maker Core SWX, the space-efficient REDVOLT BP is compatible with choose other cameras whenever used with a full-size V-mount adapter.

Charge two V-mount batteries for use with a DSMC3 cinema camera such as the V-RAPTOR 8K VV while on location with the RED Compact Dual V-Mount Battery Charger. Taking advantage of the same technology constructed into the larger fleet chargers, this space-efficient charger can charge two V-mount REDVOLT MICRO-V or REDVOLT XL-V batteries at a 3A rate. Developed and manufactured in partnership with Core SWX, the charger can charge two REDVOLT MICRO-V 98Wh batteries in less than five hours.

Add a direct-mount onboard monitor to your DSMC3 camera rig with this DSMC3 RED Touch 7.0" LCD Monitor from RED DIGITAL CINEMA. The RED Touch incorporates daylight viewing, a wide 100% DCI-P3 color gamut, and touchscreen control for DSMC3 cameras, such as the V-RAPTOR 8K VV. The monitor incorporates a high 322 ppi pixel density, 1920 x 1200 definition, 1250:1 contrast ratio, and 1300 cd/m² brightness that bring together to supply high-quality image-capture.

This monitor attaches directly to your DSMC3 BRAIN through the Pogo mount, and it delivers footage, data, and power to the monitor from the camera. If you need to use the Pogo mount for another accessory, the monitor additionally contains a locking USB Type-C connector that alternately enables you to pass footage, data, and power to the camera. The monitor contains a tilt mount that permits it to tilt 180°.

Use the V-RAPTOR Tactical Top Plate with Battery Adapter from RED DIGITAL CINEMA to securely mount a V-mount battery on your V-RAPTOR BRAIN. Comprised of a top plate, a front cheese plate, and a battery adapter, this snazzy red and black system delivers one D-Tap and two 2-pin LEMO ports plus several 1/4"-20, 3/8"-16, and M4 accessory mounting threads.

The RED DIGITAL CINEMA V-RAPTOR Top Handle with Extensions provides a complete modular top handle option for the V-RAPTOR, allowing for lightweight or extended wraparound style configurations. It incorporates a dedicated start/stop button, ergonomic bocote wood inlays, and several 3/8"-16 and 1/4"-20 mounting points. Additionally, this incorporates the 1", 3", and 5" top handle extension pieces, an elbow piece and a 15mm Monitor Mount.

Mount the RED V-RAPTOR Expander Blade to your V-Raptor camera to gain footage, power, and communication ports, enabling a wide choice in how you configure your camera for professional uses. The Expander Blade attaches to your camera via the camera's 9-pin EXT port and is supported by the included ARCA plate.

Once attached, the Expander plate supplies a BNC connector (Genlock footage), 5-pin connector for timecode, 4-pin connector for RED CTRL, and 3-pin Fischer for Run/Stop. Please note that the 3-pin Run/Stop is only for trigger, and it does not supply power.

Developed for V-RAPTOR camera operators, the RED V-RAPTOR Quick Release Platform Pack is a sturdy yet space-efficient QR plate release system for mounting and balancing your V-Raptor on a tripod. The platform, or baseplate, contains 15mm LWS rod clamps and incorporates two 15mm rods, allowing you to use standard lens handles and accessories such as matte boxes, follow focus units, lens motors, and more with your V-RAPTOR. The platform slides onto the included dovetail plate and has a lever lock to clamp it in place once you have found the balance point you want.

The platform has a lever lock for clamping the included Arca plate in place, as well as a spring-loaded safety catch to help prevent the Arca plate from accidentally sliding off the platform. The dovetail plate has several 1/4"-20 and 3/8"-16 threaded mounting holes along its length for attaching to a tripod, and the combination of the sliding platform, Arca plate, and dovetail with its several mounting holes permits you to balance a variety of shooting configurations. In addition to supporting your camera, the QR Platform Pack additionally accommodates optional battery adapter plates, the RED V-RAPTOR Expander Blade, and RED Side Ribs for added versatility.

Add two XLR sources to your V-RAPTOR camera with the RED DSMC3 5-Pin to Dual XLR 3-Pin Adapter. Connect the included 5-pin ODU cable to your camera's ODU port, and the other end of the cable to the adapter's port. The adapter can deliver 48V phantom power and handles both mic and line-level sources. It mounts to the V-Raptor through a 3/8"-26 screw, and has anti-twist pins to prevent it from spinning on your camera. The unit additionally incorporates 6 x M2.5 screw holes for future accessories.
