SKU: PT-RQ50K

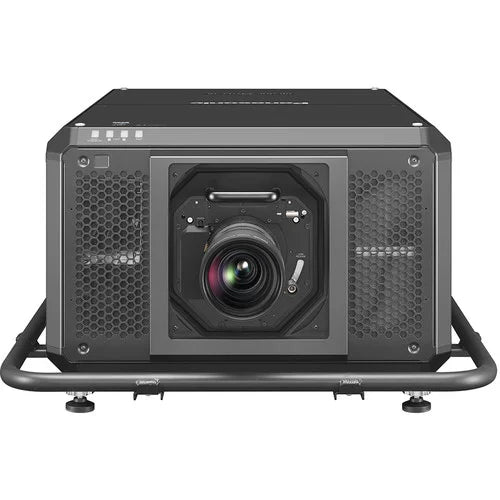

Panasonic PT-RQ50K 50,000-Lumen DCI 4K Laser 3DLP Projector
Panasonic PT-RQ50K 50,000-Lumen DCI 4K Laser 3DLP Projector
In stock
View full details
WhatsApp us for inquiries
At the point of image capture, Project bright, vibrant pictures in nearly any setting with the Panasonic PT-RQ50K 50,000-Lumen DCI 4K Laser 3DLP Projector. It feeds up to 50,000 lumens at 240V (up to 10,000 lumens at 120V) through a multi-laser array and provides a HDBaseT port and two expansion slots for adding your sources of choice, and a 12G-SDI expansion card is included.
The PT-RQ50K requires a lens, and options ranging from 1.11 to 1.7:1 to 4.97 to 7.76:1 throw ratios are provided to produce pictures up to 1500" diagonal. The projector can be controlled over LAN or with the onboard RS-232, 1/8", and BNC control ports or via the Smart Projector Control app.
Bright, DCI 4K Images in PT-RQ50K: Guide
The PT-RQ50K produces DCI 4K (4096 x 2160) pictures with a laser engine that consists of one red laser and two blue lasers working at distinct wavelengths to deliver rich color for use at sporting events, arena concerts, outdoor mapping attractions, or museum exhibitions.
Expanded Color Gamut: Guide
The PT-RQ50K three-laser array is developed to produce lush, vibrant hues to pull audiences into the artist's world. The two blue lasers feed light at distinct wavelengths to enhance color accuracy, and the red laser helps deliver more vivid reds. Digital frame-by-frame control technology manages light feed according to the scene's contrast and brightness requirements for additional picture augmentation.
All-in-One Body: Built-In Cooling in PT-RQ50K
The PT-RQ50K airflow path and finless radiator help boost the efficiency of the liquid cooling system, while separate cooling for the red laser is regulated by Dynamic Digital Control for enhanced picture consistency and reliability. This space-saving configuration helps bring the logistic efficiencies of all-in-one projection to large-venue staging.
distance-based Preview Helps Save Time
Remote Preview lets you check the content being received by the projector via your Wi-Fi or LAN-connected laptop. It works with the projector in Standby Setting, with the shutter on, or whenever direct sunlight makes inspecting on-screen pictures difficult, giving you a chance to fix errors between the source and the projector before setup is complete.
Built-In, Pre-Activated Upgrade Kits for Geo Pro Software: Guide
Upgrade incorporates for Geometry Manager Pro are constructed into the software and do not require paid activation. Just download and install Geo Pro to a Windows computer to simplify multi-screen geometric adjustments. Built-in functions incorporate uniformity correction and Auto Screen Adjustment for automated and simultaneous calibration of several screens (comprising curved-screen correction) through a compatible camera. These integrates help expedite edge blending and color matching in mapping uses with automated calibration for black level, brightness uniformity, and stacking.
Geometric Adjustment: Free Grid Correction via Remote Control
Free Grid is a function in Geometric Adjustment that permits convenient grid-based picture adjustment through the included remote control. Grid resolutions of 2x2, 3x3, 5x5, 9x9, or 17x17 can be projected and areas of the picture reshaped or geometrically altered to compensate for screen distortions by adjusting control points located at grid-line intersections. Move freely between grid resolutions to achieve the desired level of granularity without losing work progress. The arrangement permits technicians to smoothly create a distortion-free projection in a variety of situations.
Remote App: NFC in PT-RQ50K
The PT-RQ50K Smart Projector Control app for Android and iOS incorporates the NFC (Near Field Communication) function to pair your compatible smartphone to the projector with just a touch. Once linked the app accesses an information settings menu for easy adjustment without turning on the projector. In addition to showing data and allowing certain settings to be changed, the app provides an auto-focus function that uses the phone's camera and app UI to achieve quick, accurate image focus. App operation is limited on iOS devices.
Information Monitor: Guide
To additional simplify setup and operation of the projector, an Information Monitor is located on the side panel adjacent to the terminals and physical controls, delivering menu-based navigation for simplified setup of Projector ID and basic network configuration. It additionally shows the projector's status, comprising temperature, runtime, active signal data, and error codes if a problem is detected.
Dual powering Supplies for Quick Setup in PT-RQ50K
The PT-RQ50K projector accommodates 200 to 240V for full-brightness projection as well as 100 to 120V at a lower brightness for setup and calibration. This helps save time at events where installation deadlines are tight, such as trade shows, as the projector can be setup and adjusted on regular power before high-current power is rolled out, helping to prevent unforeseen holdups. Brightness is restricted to 20% of highest at 100 to 120V.
Versatile optics Options
PT-RQ50K Compatible lenses deliver virtually gapless throw ratio coverage from 1.11 to 1.7:1 to 4.97 to 7.76:1, adapting projections to suit the installation site. All the compatible lenses support powered zoom, lens shift, lens memory, lens ID for easier on-site adjustments. The Active Focus Optimizer (AFO) feature optimizes focus based on content APL, keeping your pictures in focus.
Red Laser for Enhanced Color in PT-RQ50K: Guide
Red lasers help heighten color expression, but are susceptible to temperature fluctuations. The onboard red laser is developed to digitally control light feed inside specific parameters frame-by-frame through Dynamic Digital Control and an independent cooling system.
Shielded Laser Drive: Finless Radiator
The PT-RQ50K hermetically sealed DMD block, shielded laser drive, and filter-less cooling system integrates a finless radiator developed to boost cooling efficiency by as much as 30% while protecting critical components from dust intrusion. The projector is engineered to exceed common international dustproofing guidelines and to deliver up to 20,000 hours of dependable, maintenance-free projection at full brightness.
Solid-State Laser Modules: Failover Circuitry
The SOLID SHINE Laser drive groups laser diodes into discrete modules, so if a single diode in a module goes out, failover circuitry permits the diodes in the affected series to be bypassed, allowing the functional diodes to continue to operate with minimal, if any, loss in brightness.
Backup Input for Continuous Projection in PT-RQ50K: Guide
If the primary signal is disrupted, the projector switches to a backup source in as little as 0.3 seconds, maintaining picture display whenever you need it.
Extra Incorporates
- 100 to 1500" images produced, depending on lens used
- Keystone correction and vertical & horizontal lens shift ranges depend on lens used
- PJLink & Art-Net compatible Ethernet port
- SLOT NX compatible expansion slot
- Cabinet made from fabricated metal and molded plastic
Locate us: https://goo.gl/maps/YZQmjfG5vYQS3ZLU7
buy it from
Key Features
- Maximum Brightness of 50,000 Lumens
- DCI 4K (4096 x 2160) Native Resolution
- Uses Interchangeable Lenses
- HDBaseT Input, 2x Expansion Slots
- 12G-SDI Expansion Card Included
- Smart Projector Control App
- PJLink & Art-Net Compatible
- Triple-Laser Light Engine
