SKU: PM-VD5ULFR-W

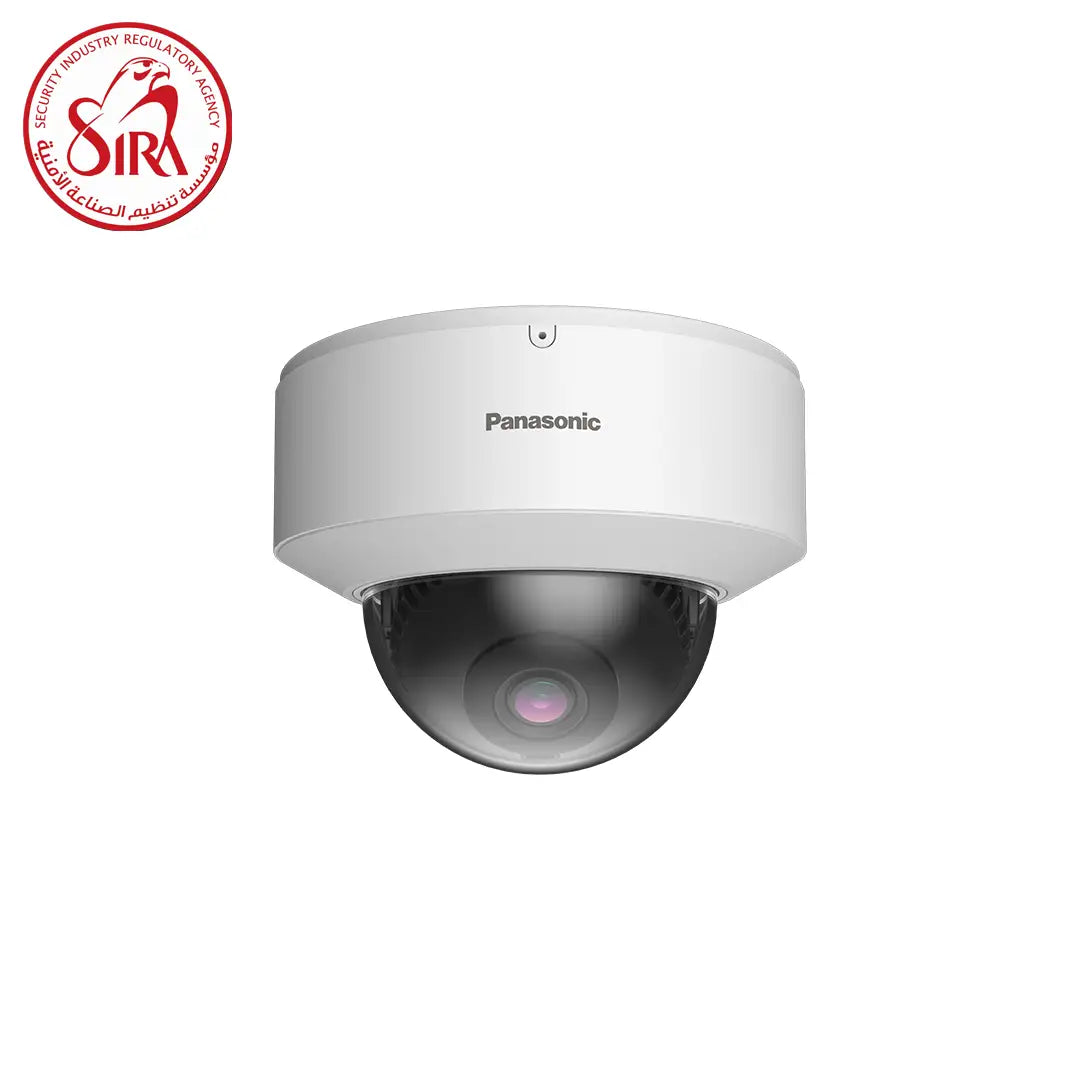

Panasonic PM-VD5ULFR-W 5MP Dome CCTV Camera
Panasonic PM-VD5ULFR-W 5MP Dome CCTV Camera
In stock
View full details
WhatsApp us for inquiries
5MP Fixed Dome Network Camera - Model PM-VD5ULFR-W: Guide
guide: — PM-VD5ULFR-W
Across its imaging platform, the PM-VD5ULFR-W is a high-performance 5MP fixed dome network camera, developed for professional security and security monitoring purposes. Equipped with enhanced picture processing technologies and smart detection provides, this camera maintains reliable performance in multiple settings. Its robust build, vandal resistance, and weatherproofing make it ideal for both indoor and outdoor use.
Key capabilities: — PM-VD5ULFR-W
-
Image & Video Quality:
- 5 Megapixels (2880×1856) resolution
- 1/2.5" CMOS image sensor
- Fixed 2.8mm lens, F1.6
- True Day/Night with ICR (Infrared Cut Filter Removal)
- Wide Dynamic Range (WDR) of 120dB
- Minimum illumination: 0.005 lux @ F1.6 (color), 0 lux with IR
- 3D Digital Noise Reduction (DNR), Back Light Compensation (BLC), High Light Compensation (HLC), Defog, Smart IR
- Field of View: Horizontal - 104°, Vertical - 54.5°, Diagonal - 130°
-
Infrared Night Vision:
- 20 to 30 meters of IR distance for clear night vision
- Smart IR ensures optimal infrared performance to avoid overexposure in dark areas
-
Footage Compression:
- Supports H.265+/H.265/H.264+/H.264/MJPEG
- Triple stream support
- Variable Bit Rate (VBR) and Constant Bit Rate (CBR)
- Video resolution options: 5MP, 4MP, 1080P, 720P, D1, VGA, CIF
-
Smart Incorporates:
- Intelligent analytics: Line crossing detection, region intrusion/entrance/exit detection, loitering detection, abandoned/missing object detection, illegal parking detection
- Human and vehicle classification for smart event recognition
- Target counting and heat map for statistical analysis
- Face detection and capture
- Scene change, video blur, and abnormal color detection
- Smart alarms for motion detection, scene anomalies, and more
-
Audio & Network:
- Built-in microphone, with 1 audio input and 1 audio output
- RJ45 10M/100M Ethernet port
- MicroSD card slot supports up to 256GB for local storage
- ONVIF compliant for integration with multiple systems
-
DORI Distance (2.8mm lens):
- Detect: 71m (232ft)
- Observe: 28m (93ft)
- Recognize: 14m (46ft)
- Identify: 7m (23ft)
-
Power & Setting:
- Power supply: DC12V/PoE (IEEE802.3af)
- Power consumption: Less than 7.5W
- IP67-rated weatherproof and IK10 vandal-resistant protection
- Operating temperature: -30°C to 60°C (-22°F to 140°F)
-
Security:
- Multi-layer encryption including video encryption, firmware encryption, and HTTPS encryption
- IP address filtering, illegal login lock, 802.1x authentication
Physical deployment Details: — PM-VD5ULFR-W&
- Dimensions: Ø119 × 87.8 mm
- Weight: Approx. 0.65 kg
-
Mounting Options:
- Supports ceiling, wall, pole, and corner mount installation
- Optional junction boxes and brackets available
Certifications:: Guide — PM-VD5ULFR-W
- Environmental Protection: Complies with EU RoHS, WEEE, REACH directives
- EMC: CE/EN 55032:2015+A11:2020, EN 55035:2017+A11:2020
- Safety: IEC 62368-1:2020+A11:2020
- Sira: This Camera is Sira approved
The PM-VD5ULFR-W makes available an efficient and secure security monitoring solution with its enhanced footage analytics, versatile installation options, and weather-resistant configuration?.
Locate us: https://goo.gl/maps/YZQmjfG5vYQS3ZLU7
Key Features
• H.265+/H.265/H.264+/H.264/MJPEG coding • Max. resolution: 2880×1856 • ICR auto switch, true day/night vision • 20~30m IR night view distance • 3D DNR, true WDR, HLC, BLC, Defog, Smart IR and ROI coding • Support image distortion correction • Built-in micro SD card slot, up to 256GB • DC12V/PoE power supply • Weather protection up to IP67 • Support three streams • Support P2P function • Support Smart Motion Detections • Advanced Intelligence • Redundant system backup • Sira ApprovedShop by Categories
