SKU: PM-VB5ULVR-W

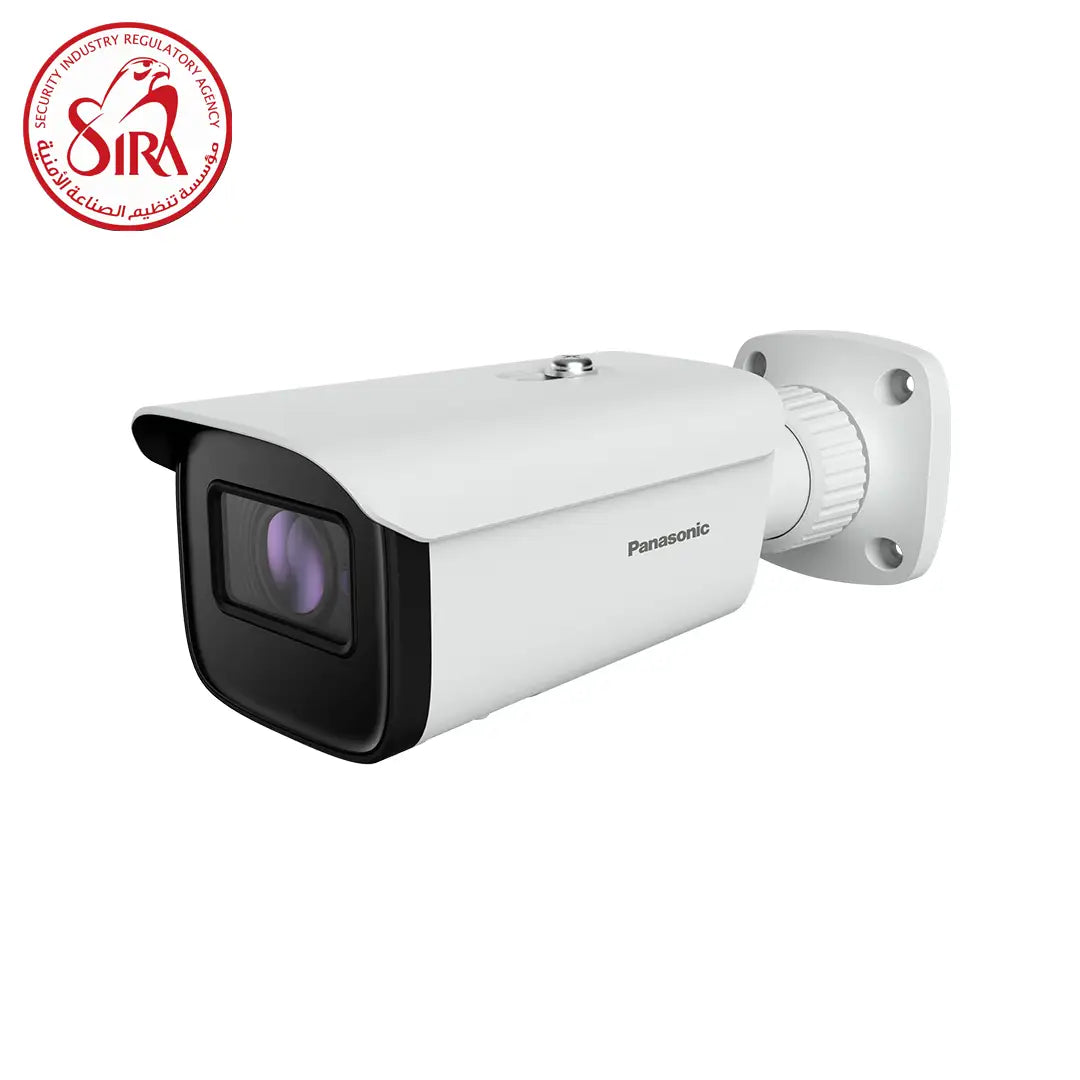

Panasonic PM-VB5ULVR-W 5MP Bullet CCTV Camera

Name: Panasonic PM-VB5ULVR-W 5MP Bullet CCTV Camera
Brand: Panasonic
SKU: PM-VB5ULVR-W
Price: 663.00 AED
Availability: InStock

In stock

WhatsApp us for inquiries

View full details

5MP Varifocal Bullet Network Camera - Model PM-VB5ULVR-W: Guide

guide: — PM-VB5ULVR-W

From an imaging perspective, the PM-VB5ULVR-W is a high-performance 5MP Varifocal Bullet Network Camera developed for versatile outdoor security monitoring applications. The device is fitted with enhanced video analytics, several smart detection capabilities, and handles both day and night observation with a robust night vision range. The camera is constructed for harsh weather, with IP67 protection suited to an extensive selection of outdoor security scenarios.

Key capabilities: — PM-VB5ULVR-W

Image Quality:&

5 Megapixels (2880×1624) resolution
1/2.5" CMOS image sensor
Day/Night capability with ICR auto switch
Starlight technology for enhanced low-light performance
Minimum illumination: 0.005 lux @ F1.6, 0 lux with IR
Wide Dynamic Range (WDR) of 120dB
3D Digital Noise Reduction (DNR), Back Light Compensation (BLC), High Light Compensation (HLC), Defog, Smart IR

optics:

Varifocal 2.8~12mm motorized lens
Horizontal Field of View (H.FoV): 108°~36°
Vertical Field of View (V.FoV): 57°~20°
Diagonal Field of View (D.FoV): 129°~42°
Motorized focus and zoom control

Infrared Night Vision:: Guide

IR night vision range of 30 to 50 meters
Smart IR technology ensures consistent illumination in low light conditions

video signal Compression:

Multiple compression formats: H.265+/H.265/H.264+/H.264/MJPEG
Triple streams supported
ROI (Region of Interest) coding for optimized bandwidth usage

Smart capabilities:

Advanced video analytics: line crossing detection, region intrusion/entrance/exit, loitering detection, illegal parking, abandoned/missing object detection
People/vehicle classification for motion detection
Target counting, heat map for statistics
Face detection and capture
Scene change, video blur, abnormal color detection

sound Network:&

Built-in microphone, 1 audio input and 1 audio output
RJ45 10M/100M Ethernet port
Supports microSD card (up to 256GB)
Alarm input/output for integration with external devices
ONVIF compliant for seamless integration with third-party systems

DORI Distance:: Guide

Detect: Up to 204m
Observe: Up to 82m
Recognize: Up to 41m
Identify: Up to 20m

powering Environment:&

Power supply: DC12V/PoE (IEEE802.3af)
Power consumption: Less than 10.5W
IP67-rated weatherproof protection
Operating temperature: -30°C to 60°C (-22°F to 140°F)
Vandal-resistant IK10-rated housing for added durability

Security:: Guide

Accommodates footage, firmware, and HTTPS encryption
IP address filtering, illegal login lock, 802.1x authentication
Physical & Installation Details:
Dimensions: 218.1 × 70.4 × 80.3 mm
Weight: Approx. 0.73 kg

Mounting Options:: Guide

Wall, pole, and corner mount brackets provided
Optional junction box for secure installation

Certifications:: Guide — PM-VB5ULVR-W

Complies with EU RoHS, WEEE, and REACH directives
EMC: CE/EN 55032:2015+A11:2020, EN 55035:2017+A11:2020
Safety: IEC 62368-1:2020+A11:2020

Optional Accessories:: Guide — PM-VB5ULVR-W

Mount Brackets:
Pole Mount Bracket (PM-YZJ0601-W)
Corner Mount Bracket (PM-YZJ0810-W)
Ceiling Mount Bracket (PM-YZJ0501-W)

This camera is developed for demanding outdoor settings where high-resolution image-capture and dependable smart detection elements are essential. With its motorized varifocal lens and superior picture quality, it is an ideal option for observation large areas, entrances, and critical infrastructure?
