SKU: PM-ED2NLFR-W

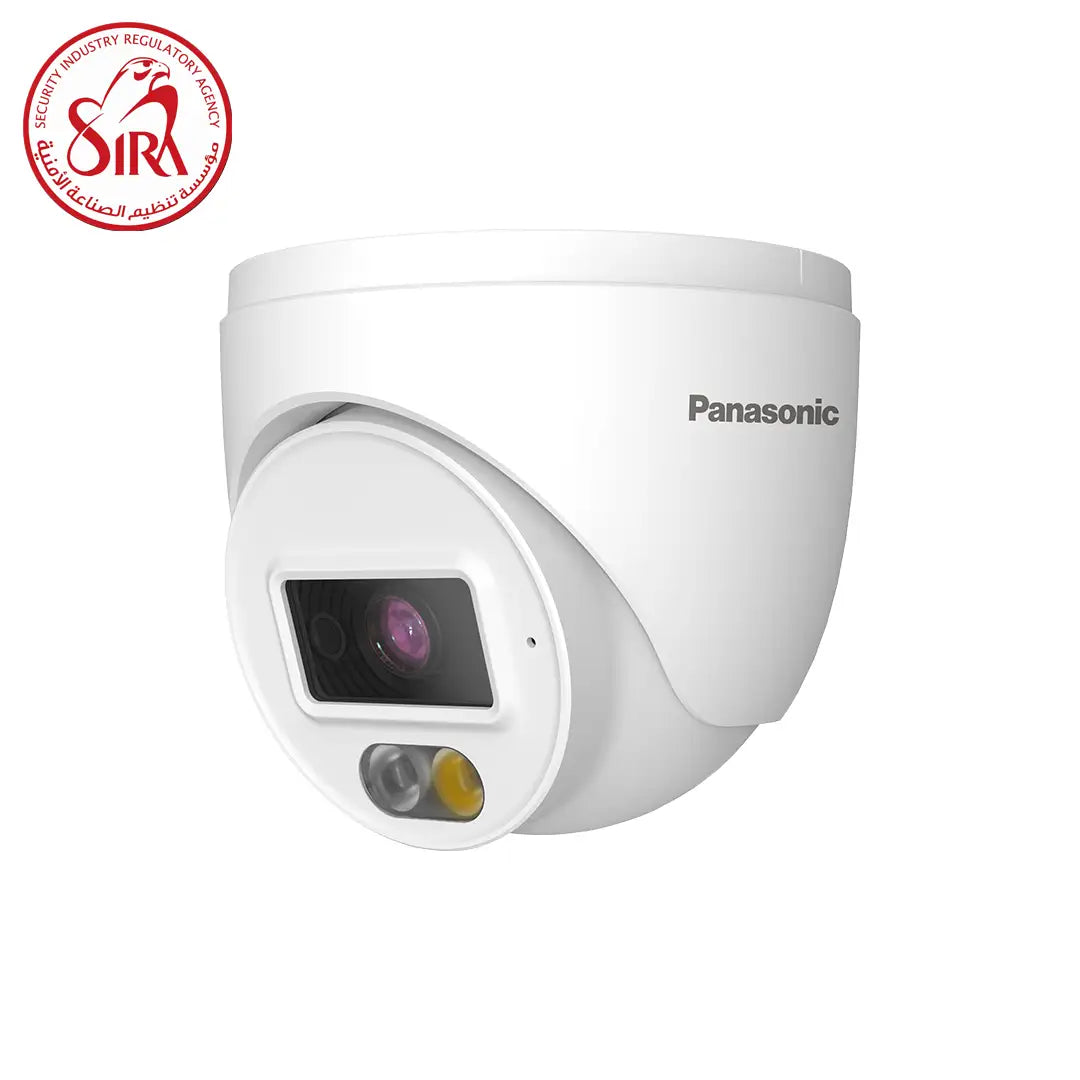

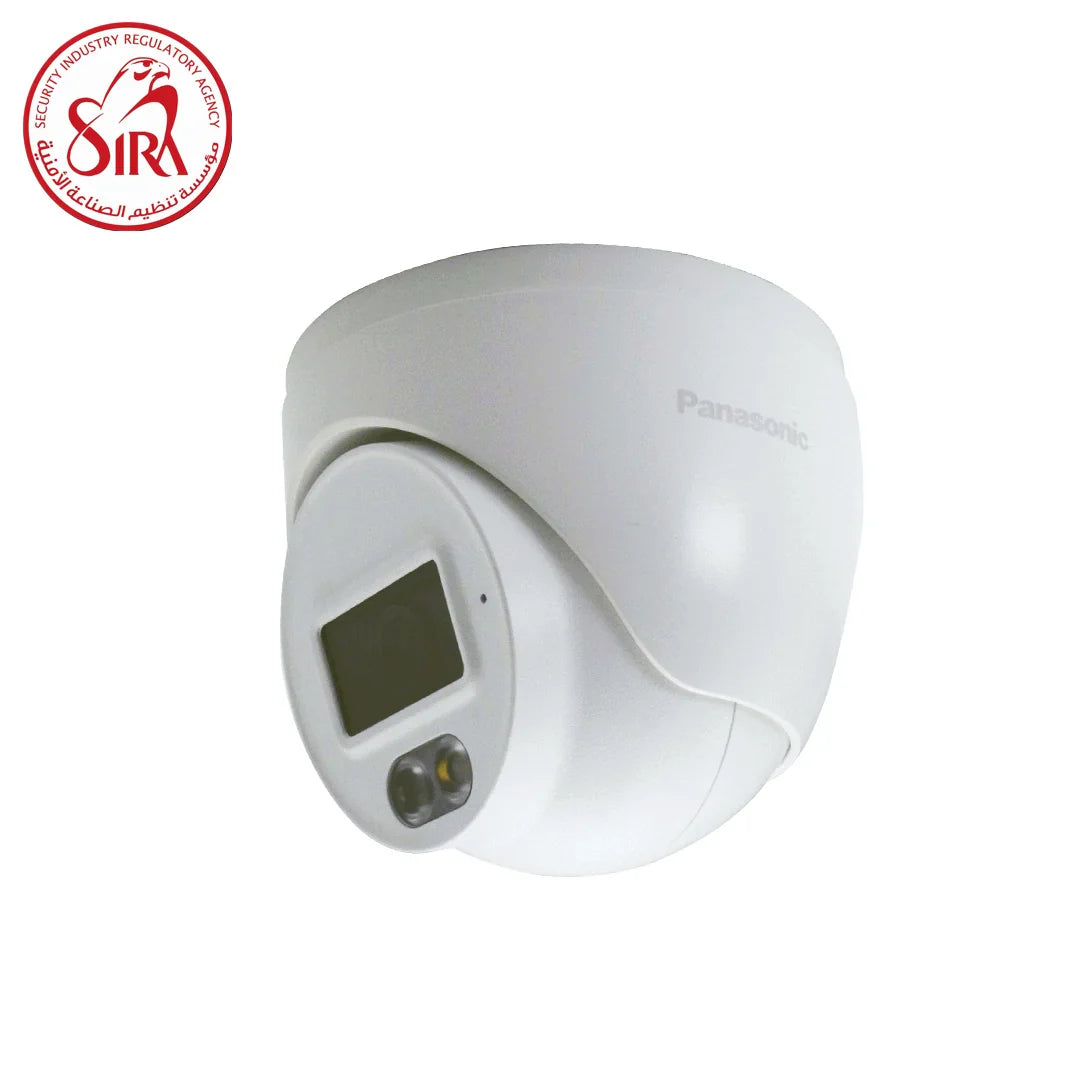

Panasonic PM-ED2NLFR-W 2MP Dome CCTV Camera
Panasonic PM-ED2NLFR-W 2MP Dome CCTV Camera
In stock
View full details
WhatsApp us for inquiries
Panasonic PM-ED2NLFR-W 2MP Dome CCTV Camera guide:
Within its operating design, the Panasonic PM-ED2NLFR-W 2MP Dome CCTV Camera is a high-performance security monitoring solution developed to maintain security and privacy in several settings, including homes, offices, and retail spaces. This camera is equipped with enhanced attributes including intelligent event, intrusion-zone, and line-crossing detection, which suits broad security monitoring.
Key capabilities:
-
High-Resolution Imaging:
- 2 Megapixels (1920×1080) resolution
- 1/3" CMOS image sensor
- Fixed 2.8mm lens with F2.2 aperture
- Wide Field of View (FoV): Horizontal 93°, Vertical 52°, Diagonal 106°
-
Enhanced Footage Processing:
- H.265+/H.265/H.264+/H.264 compression
- Support for dual streams (Main stream: 1080P/720P; Sub stream: D1/VGA/640×360)
- ROI (Region of Interest) coding for enhanced image quality in specific areas
- Image enhancements: 3D DNR (Digital Noise Reduction), WDR (Wide Dynamic Range), HLC (High Light Compensation), BLC (Back Light Compensation)
-
Night Vision:
- IR night view distance: 10~20 meters
- White light view distance: 10~20 meters
- Auto day/night switch with ICR (Infrared Cut Remover)
-
Smart Integrates:
- Motion detection
- Region intrusion and line crossing detection
- Video exception alerts (scene change, video blur, abnormal color detection)
- Audio monitoring with built-in MIC
-
Security & Privacy:
- Video encryption, firmware encryption, configuration encryption
- Illegal login lock, IP address filtering, 802.1x authentication
- Secure HTTP with basic and digest authentication
-
Network & Interfacing:
- RJ45 10M/100M Ethernet port
- Supports PoE (Power over Ethernet) IEEE802.3af
- ONVIF compliant for integration with third-party systems
-
Environmental & Physical Specifications:
- Weather Protection: IP67 rated, dust-tight and waterproof
- Operating temperature range: -20 °C to 55 °C (-4°F to 131°F)
- Storage temperature range: -20 °C to 60 °C (-4°F to 140°F)
- Humidity: less than 95% (non-condensing)
- Dimensions: Ø94.8×82.8 mm
- Weight: Approx. 0.27 kg
- Mounting options: Ceiling and wall mounting
-
Compliance & Certification:
- Environmental Protection: Complies with EU RoHS, WEEE, and REACH directives
- EMC: CE/EN 55032:2015+A11:2020, EN 55035:2017+A11:2020
- Safety: IEC 62368-1:2020+A11:2020
- SIRA
-
High-Resolution Imaging:
- This camera is SIRA approved
Optional Accessories:: Guide
- Junction Box: PM-YH0103-W, PM-YH0104-W, PM-YH0301-W
- Ceiling Mount Bracket: PM-YZJ0501-W
- Pole Mount Bracket: PM-YZJ0601-W
- Corner Mount Bracket: PM-YZJ0810-W
This camera is ideal for operators who need dependable, high-quality footage security monitoring with enhanced smart incorporates to maintain security and privacy in a range of settings.
Visit our showroom to buy Panasonic CCTV: https://goo.gl/maps/YZQmjfG5vYQS3ZLU7
Key Features:
- H.265+/H.265/H.264+/H.264 coding
- Max.resolution:2MP(1920×1080)
- Auto day/night switch
- 3D DNR, WDR, HLC, BLC, etc.
- ROI coding
- 10~20m IR night view distance; 10~20m white light view distance
- PoE power supply
- Weather protection up to IP67
- Support dual streams
- This camera is SIRA approved
