SKU: HC-X2000

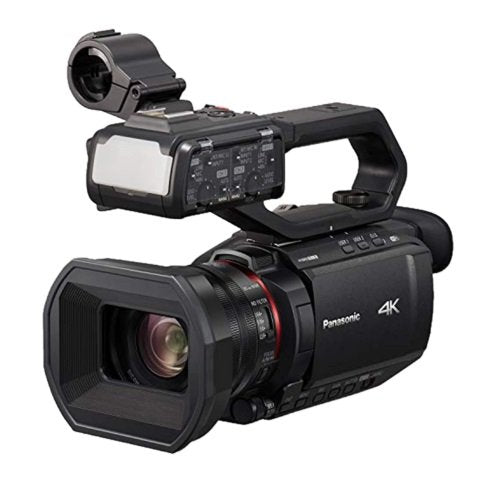

Panasonic HC-X2000 UHD 4K 3G-SDI/HDMI Pro Camcorder with 24x
Panasonic HC-X2000 UHD 4K 3G-SDI/HDMI Pro Camcorder with 24x
In stock
View full details
WhatsApp us for inquiries
At the center of the specification, Panasonic HC-X2000 UHD 4K Pro Camcordercan help equilibrium your needs or enable you to jump straight to 4K. Space-efficient and low-weight for a director or on-set BTS, the X2000 sessions and records UHD 4K at broadcast-compatible shot rates, so it fits fluidly into your existing broadcast process.
The X2000 provides a 1/2.5" 8.29M MOS imager that is always shooting at 4K definition, the Venus computation engine to scale the 4K picture for Full HD delivery, and both 3G-SDI and HDMI feeds.
Audio is captured in up to 24-bit PCM through the built-in microphone.
The built-in Leica Dicomar lens contains a 24x zoom with its widest angle at 25millimetres, and it uses the electronic iZoom function to zoom up to 48x.
The Face Recognition AF feature permits you to track faces and without manual intervention adjusts focus on your subject.
It additionally contains manual control rings, a control dial, and a 5-axis optical picture stabilization to maintain your pictures steady.
The 3.5" fold-out LCD provides a high-resolution touchscreen. The body records in.mp4,.mov, and AVCHD codecs and provides HEVC encoding.
The camera incorporates two SD medium slots, enabling you to use relay and simultaneous capture. The camera also handles live broadcasting over 2.4 GHz Wi-Fi through RTP/RTSP/RTMP/RTMPS feeds.
visit our Store
Follow our Main Website
| SENSOR SECTION | Image Sensor | 1/2.5-type (inch) MOS Sensor | |
|---|---|---|---|
| Effective Pixles | 8.29 megapixels | ||
| LENS SECTION | F Value | F1.8 ? 4.0 | |
| Optical Zoom | 24x | ||
| Focal Length | 4.12 ? 98.9mm | ||
| 35 mm Film Camera Equivalent | 25.0 ? 600.0 mm | ||
| Filter Diameter | 62 mm | ||
| Lens Brand | Leica Dicomar Lens | ||
| CAMERA SECTION | Minimum Illumination | 1.5 lx (F1.8, Super Gain +, 1/30) | |
| Focus | Auto / Manual | ||
| Zoom | Intelligent Zoom OFF | 24x | |
| Intelligent Zoom ON | Max. 48x (UHD 32x) | ||
| Digital Zoom | 2x / 5x / 10x | ||
| Shutter Speed | 59.94 Hz mode | 59.94i/59.94p: 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec 29.97p: 1/30, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec 23.98p: 1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec | |
| 50.00 Hz mode | 50i/50p: 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec 25p: 1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec | ||
| Slow Shutter Speed | 59.94 Hz mode | 59.94i/59.94p: 1/8, 1/15, 1/30 sec 29.97p: 1/8, 1/15 sec 23.98p: 1/6, 1/12 sec | |
| 50.00 Hz mode | 50i/50p: 1/6, 1/12, 1/25 sec 25p: 1/6, 1/12 sec | ||
| Super Slow Recording Frame Rate | 59.94 Hz mode | FHD 120 fps (1/2 speed at 60p, 1/4 speed at 30p, 1/5 speed at 24p) | |
| 50.00 Hz mode | FHD 100 fps (1/2 speed at 50p, 1/4 speed at 25p) | ||
| ND Filter | 1/4, 1/16, 1/64, OFF | ||
| IR Filter | Incorporates the ON/OFF control function | ||
| White Balance | Auto / ATW LOCK / 3200K / 5600K / VAR (2000K—15000K) / Ach Fixed / Bch Fixed | ||
| Iris | Auto / Manual | ||
| Image Stabilizer | Ball O.I.S., 5-Axis HYBRID O.I.S. (UHD/FHD) | ||
| RECORDING SECTION | Recording Media | SDHC/SDXC Memory Card | |
| Recording Format | MOV, MP4, AVCHD | ||
| Video Compression Method | MOV/MP4: H.264/MPEG-4 AVC High Profile, H.265/MPEG-H HEVC Main10 Profile AVCHD: H.264/MPEG-4 AVC High Profile | ||
| Audio Compression Method | MOV: LPCM (24bit 2ch) MP4: AAC (16bit 2ch) AVCHD: Dolby Audio (16bit 2ch) | ||
| System Frequency | 59.94Hz / 50.00Hz | ||
| Recording / Playback Mode | MOV (HEVC) | [4:2:0 10bit] UHD 3840x2160 59.94p/50.00p HEVC 200M: Average 200Mbps (VBR) UHD 3840x2160 29.97p/25.00p/23.98p HEVC 150M: Average 150Mbps (VBR) | |
| MOV | [4:2:0 8bit] UHD 3840x2160 59.94p/50.00p 150M: Average 150Mbps (VBR) UHD 3840x2160 29.97p/25.00p/23.98p 100M: Average 100Mbps (VBR) [4:2:2 10bit] UHD 3840x2160 29.97p/25.00p/23.98p 150M: Average 150Mbps (VBR) FHD 1920x1080 59.94p/50.00p 200M (ALL-Intra): Average 200Mbps (VBR) FHD 1920x1080 29.97p/25.00p/23.98p 100M (ALL-Intra): Average 100Mbps (VBR) FHD 1920x1080 59.94i/50i 100M (ALL-Intra): Average 100Mbps (VBR) FHD 1920x1080 59.94p/50.00p 100M: Average 100Mbps (VBR) FHD 1920x1080 29.97p/25.00p/23.98p/59.94i/50.00i 50M: Average 50Mbps (VBR) | ||
| MP4 (HEVC) | [4:2:0 10bit] UHD 3840x2160 59.94p/50.00p HEVC 100M: Average 100Mbps (VBR) UHD 3840x2160 29.97p/25.00p/23.98p HEVC 72M: Average 72Mbps (VBR) | ||
| MP4 | [4:2:0 8bit] UHD 3840x2160 29.97p/25.00p/23.98p 72M: Average 72Mbps (VBR) FHD 1920x1080 59.94p/50.00p/23.98p 50M: Average 50Mbps (VBR) | ||
| AVCHD | [4:2:0 8bit] PS 1920x1080 59.94p/50.00p: Average 25Mbps (VBR) PH 1920x1080 59.94i/50.00i/23.98p: Average 21Mbps (VBR) HA 1920x1080 59.94i/50.00i: Average 17Mbps (VBR) PM 1280x720 59.94p/50.00p: Average 8Mbps (VBR) | ||
| P2 | — | ||
| LIVE STREAMING | Video Compression Format | H.264/MPEG-4 AVC Main Profile, High Profile | |
| Video Resolution | 1920 x 1080 (FHD), 1280 x 720 (HD), 640 x 360, 320 x 180 | ||
| Streaming Method | Unicast, Multicast | ||
| Frame Rate | System frequency = 59.94 Hz: 30 fps, 60 fps System frequency = 50.00 Hz: 25 fps, 50 fps | ||
| Bit Rate | 24 Mbps, 20 Mbps, 16 Mbps, 14 Mbps, 8 Mbps, 6 Mbps, 4 Mbps, 3 Mbps, 2 Mbps, 1.5 Mbps, 1 Mbps, 0.7 Mbps, 0.5 Mbps | ||
| Audio Compression Format | AAC-LC, 48 kHz/16 bit, 2ch | ||
| Network Protocol | RTSP/RTP/RTMP/RTMPS | ||
| STILL IMAGE SECTION | Recording Format | JPEG (DCF/Exif2.2) | |
| Recording Image Size* | Video Playback Mode: 3840 x 2160 (16:9), 1920 x 1080 (16:9), 1280 x 720 (16:9) | ||
| GENERAL SECTION | Power Supply | 7.28V (Battery) / 12V (AC Adaptor) | |
| Power Consumption | 15.5W (LCD Monitor) | ||
| Dimensions (W x H x D) | Approx. 129 x 159 x 257 mm (5.08 x 6.26 x 10.1 inch) | ||
| Weight | Body: approx. 0.9kg (1.98 lb) (body only, excluding handle, lens hood, battery, and accessories) Shooting: approx. 1.5kg (3.31 lb) (including handle, lens hood, battery, and eyecup) | ||
| LCD Monitor | 8.88 cm (3.5-inch) Wide LCD monitor (About 2,760,000 dots) (For Europe) 3.5-inch Wide LCD monitor (About 2,760,000 dots) (For North America / Asia) | ||
| Viewfinder | 0.61 cm (0.24-inch) Wide EVF (About 1,560,000 dots) (For Europe) 0.24-inch Wide EVF (About 1,560,000 dots) (For North America / Asia) | ||
| Manual Ring | Focus / Zoom or Iris | ||
| Accessory Shoe | Yes | ||
| LED Video Light | Average Illumination | Approx. 70 lx (1.0m) | |
| Irradiation Angle | Approx. 30° | ||
| Color Temperature | Approx. 4600K | ||
| INTERFACE SECTION | Video | SDI OUT | BNC x 1, 0.8V[p-p], 75?, 3G/1.5G HD-SDI supported Output format: 1080/59.94p LEVEL-A/50.00p LEVEL-A, 1080/29.97PsF/25.00PsF/23.98PsF, 1080/59.94i/50.00i, 720/59.94p/50.00p |
| HDMI | Type A x 1 (VIERA Link not supported) Output format: 2160/59.94p/50.00p/29.97p/25.00p/23.98p, 1080/59.94p/50.00p/29.97p/25.00p/23.98p/59.94i/50.00i, 720/59.94p/50.00p, 480/59.94p, 576/50.00p | ||
| Audio Input | Built-in Microphone | Stereo microphone | |
| Microphone Input | 3.5mm stereo mini jack x 1 | ||
| XLR Input | XLR (3 pins) x 2 Input high impedance, LINE/MIC/MIC+48 V (switchable SW) LINE?+4dBu/0dBu (switchable menu) MIC: –40dBu/–50dBu/–60dBu (switchable menu) | ||
| Audio Output | SDI | 2 ch (LPCM) Gain: 0dB/-6dB/-8dB | |
| HDMI | 2 ch (LPCM 24bit) | ||
| Headphone | 3.5 mm diameter stereo mini jack x 1 | ||
| Speaker | 15 mm diameter, round x 1 | ||
Key Features
- Up to UHD 4K60 Video, 3G-SDI & HDMI Out
- 1/2.5" 8.29M MOS Sensor, Venus Engine
- 24x Optical Zoom, 48x Digital iZoom
- 120 fps Slow Motion, Live RTP Streaming
- Handle with 2 XLR Inputs, LED Light
- Manual Lens Rings & Dial, ND Filter
- 5-Axis O.I.S., 3.5" LCD Touchscreen
- Records MP4, MOV, AVCHD to Dual SD Cards
- Wide 25mm Lens, 32x Intelligent 4K Zoom
- Face Detection AF Feature
