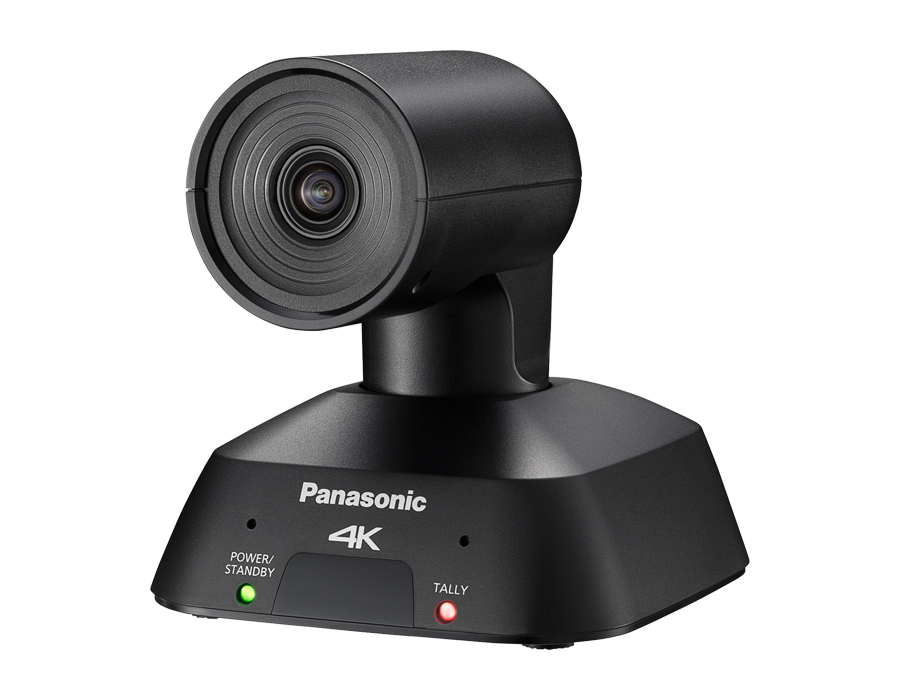

Panasonic AW-UE4KG (Black)
Panasonic AW-UE4KG (Black)
In stock
View full details
WhatsApp us for inquiries
For professional deployment, in black, the AW-UE4KG Space-efficient 4K PTZ Unit from Panasonic can be employed on a desktop or mounted to capture and stream up to UHD 4K30 footage and two-channel audio in an ultrawide 111° FOV. It has a built-in two-channel mic and mute and ACL controls, and handles LPCM (USB) / AAC-LC (IP) 48 kHz, 16-bit audio acquisition.
You can connect to a PoE switch or to a PC over USB for power and files transfer in a simple, single-cable option. Whether you're linked to a switch or not, up to 328' Cat 5e or above cables are supported for streaming. an HDMI feed is also provided.
The Space-efficient 4K PTZ capture device can be employed for large-auditorium lecture capture, footage conferencing, e-Sports live broadcasting, and many other uses.
Up to 4x magnification is allowed through digital zoom, and electronic pan/tilt can be applied after you're magnified in to help you locate the optimal shot.
The camera provides support for the Panasonic AW-RP60GJ and AW-RM50G controllers (however, eliminating slow shutter, LDC, priority setting, mirroring, and language parameters control).
RTMP/RTMPS protocols are supported for immediate broadcasting to services such as YouTube Live or Facebook Live.
contact us
Follow us
| Image Sensor | 1-Chip 1/2.5" MOS Sensor |
| Gain | 0 to 42 dB |
| Minimum Illumination | 4 Lux at 1/60 Shutter Speed |
| White Balance | 3200 to 5600K |
| Shutter Speed | 1/1 to 1/160,000 sec |
| Max Digital Zoom | 4x |
| Built-In Microphone Type | Stereo |
| Flip / Mirror Support | Mirror (Vertical) |
| Focal Length | 2.2mm (35mm Equivalent Focal Length: 13.4mm) |
| Field of View | Horizontal: 111° Vertical: 75° |
| Maximum Aperture | f/2.4 |
| Minimum Focus Distance | Wide: 27.6" / 70.0 cm |
| Output Formats | HDMI, RJ45, USB: 3840 x 2160 at 25, 29.97, 30 fps 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps 1280 x 720p at 50, 59.94, 60 fps |
| IP Streaming | H.264, H.265, MJPEG: 2160p at 25p, 29.97p, 30p |
| Movement Range | Pan: 220° Tilt: 50° |
| Tally Light | Yes |
Interfaces
| Video Output Connectors | 1 x HDMI Type A 1 x RJ45 1 x USB 3.0 Type-C |
| PoE Support | PoE 802.3af |
| Power Consumption | Power Supply: 1 A PoE: 0.2 A |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 122°F / -20 to 50°C |
| Operating Humidity | 20 to 90% |
| Tripod Mounting Thread | 1 x 1/4"-20 Female |
| Dimensions | 54.7 x 51.6 x 48.4" / 139 x 131 x 123 cm |
| Weight | 1.1 lb / 0.5 kg |
Key Features
- Single-Cable USB/LAN (PoE) Connectivity
- UHD 4K30 and RTMP/RTMPS Direct Streaming
- 111° FOV for Large Spaces, eSports
- Stereo Mic with Mute and ACL Functions
- LPCM/AAC-LC 48 kHz, 16-Bit Audio Capture
- ePTZ (4x Zoom)
- HDMI Video Output
- AW-RP60GJ & AW-RM50G Controller Support
