SKU: AW-UE40WEJ

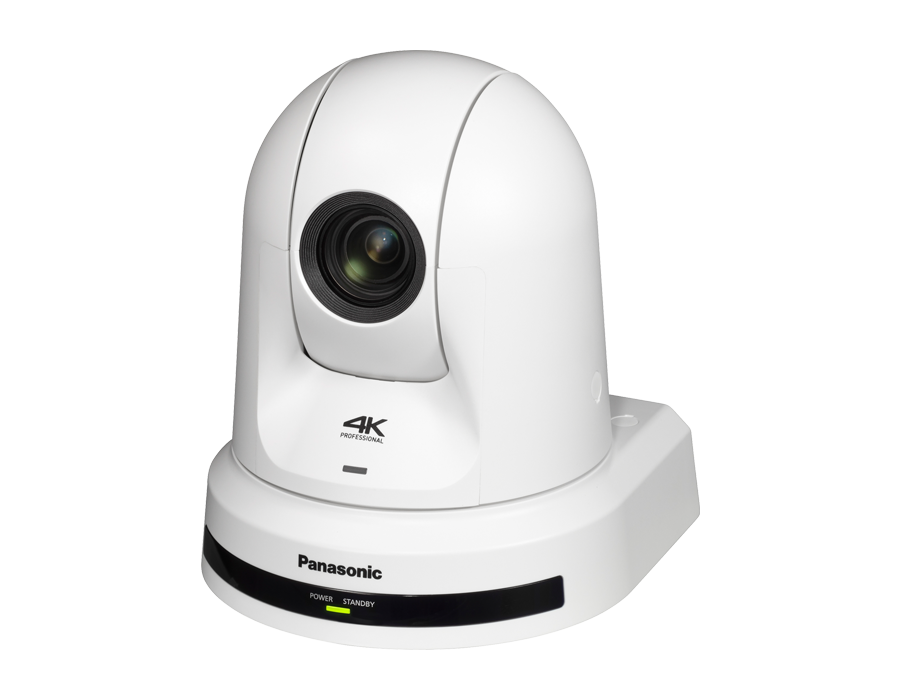

Panasonic AW-UE40W (White)
Panasonic AW-UE40W (White)
In stock
View full details
WhatsApp us for inquiries
For cleanly integrated production rooms, the white 4K30 HDMI PTZ Body from Panasonic.
This pro PTZ camera feeds up to UHD 4K30 over HDMI 1.4, and the unit provides support for IP live broadcasting up to 1080p to integrate into any setting such as a meeting room or classroom.
The unit can additionally be employed as a webcam with the built-in USB Type-C port. It incorporates a large 1/2.5" MOS imager, a 24x optical zoom with a wide 74.1° angle-of-view, and PoE+ compatibility for single-cable operation.
The unit provides support for embedded audio and audio source via a two-channel mini-jack for embedding into your feed stream.
its redesigned web connection is compatible with Windows and macOS computers as well as Android and iOS smartphones.
Extra functions incorporate a red/green tally illumination, extended 28x UHD 4K electronic zoom, extended 36x Full HD electronic zoom, and live broadcasting via H.264/H.265 codecs.
The unit can be from a distance controlled through IP, RS-422, or through its USB Type-C port through UVC 1.0/UAC 1.0. The unit is upgradable to NDI/HX compatibility or person or object tracking with separately provided licenses.
Practical Notes: Offline and Stable Environment for Online — AW-UE40W
4K definition with wide-angle and high-magnification zoom for capturing all aspects of your space.
Secure and consistent broadcasting protocol for reduced risk of communication trouble.
Level playback of high-quality videos.
Optional auto-racking applications is provided for dependable following and capturing of the speaker.
Quiet Operation and space-saving Size — AW-UE40W
The space-efficient dome-shape configuration blends in with the surroundings. its low-weight and small size give added latitude in camera installation.
Quiet working sound enables the use of the unit in any situations.
Built-in optical image stabilization maintains stable footage shooting.
Flexibility for Smooth Operation: Guide — AW-UE40W
Simple installation and operation, even for inexperienced staff or small staff.
One computer through USB or optional IP or serial control unit can manage and control several cameras.
The body can be employed as a USB webcam.
The camera can stream footage directly to a live broadcasting service.
| Image Sensor | 1-Chip 1/2.5" MOS Sensor |
| Horizontal Resolution (TV Lines) | 1500 TV Lines |
| Gain | 0 to 36 dB (Native) |
| White Balance | 2000 to 15,000K |
| Shutter Speed | 1/60 to 1/10,000 sec (In 50p/50i/60p/60i Mode) 1/30 to 1/10,000 sec (In 30p Mode) 1/25 to 1/10,000 sec (In 25p Mode) |
| Max Digital Zoom | 36x ( in 1080p) |
| Built-In ND Filter | None |
| Optical Zoom Ratio | 24x |
| Focal Length | 4.1 to 98.9mm (35mm Equivalent Focal Length: 25 to 600mm) |
| Field of View | Horizontal: 74.1 to 3.3° Vertical: 46 to 1.9° Vertical: 81.8 to 3.8° |
| Maximum Aperture | f/1.8 to 4 |
| Minimum Focus Distance | Wide: 3.9" / 10.0 cm Telephoto: 47.2" / 120.0 cm |
| Image Stabilization | Optical |
| Focus Control | Autofocus Manual Focus |
| Broadcast System Compatibility | NTSC, PAL |
| Output Formats | HDMI: 3840 x 2160p at 23.98, 24, 25, 29.97 fps 1920 x 1080p at 23.98, 24, 25, 29.97, 50, 59.94 fps 1920 x 1080i at 50, 59.94 fps 1280 x 720p at 50, 59.94 fps RJ45, USB: 1920 x 1080p at 25, 30, 50, 60 fps 1280 x 720p at 25, 30, 50, 60 fps 640 x 360p at 25, 30, 60 fps 320 x 180p at 25, 30, 50, 60 fps |
| Embedded Audio | HDMI |
| IP Streaming | H.264, H.265, MJPEG: 1080p, 720p at 25p, 30p, 50p, 60p (0.51 to 24.00 Mb/s) |
| Move Speed | Pan: 0.08 to 180°/sec Tilt: 0.08 to 180°/sec |
| Movement Range | Pan: 350° (-175 to 175°) Tilt: 120° (-30 to 90°) |
| Tally Light | Yes |
| Supported Control Protocols | RS-422 |
| Video Output Connectors | 1 x HDMI Type A (HDMI 1.4) Female 1 x USB 3.0 Type-C Female |
| Audio I/O | 1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input |
| Control Interface | 1 x RJ45 (IP Control, LAN) Input 1 x RJ45 (RS-422) Input |
| PoE Support | PoE+ 802.3at |
| Power Connectors | 1 x JEITA (10.8 to 13.2 VDC) |
| Power Consumption | Power Supply: 10.8 to 13.2 VDC at 1.8 A PoE: 42 to 57 VDC at 0.6 A |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 122°F / -20 to 50°C |
| Operating Humidity | 20 to 90% |
General
| Dimensions | 7.6 x 6.5 x 6.3" / 192 x 166 x 160 mm (Excluding Protrusions) |
| Weight | 4 lb / 1.8 kg |
Key Features
- 1/2.5" 4K MOS Sensor
- Up to UHD 4K30 & HD Simultaneous Out
- HDMI 1.4, USB & IP Video Output
- 24x Optical, 28x UHD & 36x HD iZoom
- Wide 74.1° Horizontal Angle of View
- PoE+ Support, IP, USB & RS-422 Control
- Stream 1080p to Platforms via H.264/265
- Stereo Mini-Jack Audio Mic/Line Input
