SKU: AW-UE150KEJ

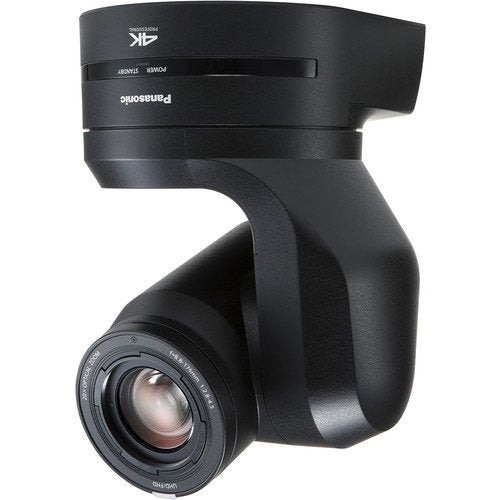

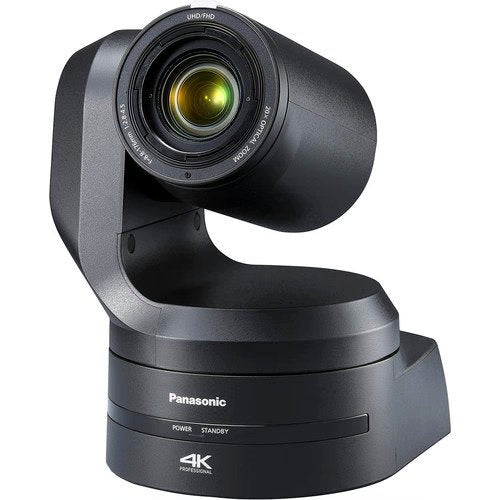

Panasonic AW-UE150K UHD 4K 20x PTZ Camera (Black)
Panasonic AW-UE150K UHD 4K 20x PTZ Camera (Black)
In stock
View full details
WhatsApp us for inquiries
This pro PTZ body feeds up to UHD 4K 60p over a selection of 4K links comprising 12G-SDI, HDMI, optical fiber, and IP broadcasting. It integrates a large 1" type MOS imager, a 20x optical focus covering a 75.1° field of view while supporting PoE++.
Firmware v2.28 allows the AW-UE150W to supplies V-Log feed, UHD cropping at 720p, preset iris switching, plus additional.
Camera functions include a HDR setting with BT.2020 colour gamut compatibility, optical picture stabilization (OIS), a fast 180° pan/tilt responsiveness in high-speed setting, and an infrared Night Setting to acquisition wildlife or other low-light situations in monochrome HD footage.
A cropping function permits you to produce a multicamera-style result by taking three cropped viewpoints from one 4K picture.
The AW-UE150W camera accommodates embedded audio and audio source via a two-channel mini-jack. its redesigned web connection works with desktop computers, tablets, and smartphones running Android or iOS.
Extra capabilities include a configurable tally illumination, 1/4, 1/16, and 1/64 ND filter accessories, and live broadcasting through RTMP. A separately purchased license can add NDI/HX support to the AW-UE150W provided license.
PoE++ CompatiblePower the camera through a separately provided PoE++ (IEEE802.3bt) switch to reduce installation costsFirmware Upgrade v2.28Firmware version 2.28 adds V-Log output, 720/59.94p and 720/50p UHD cropping, preset iris switching, and other improvements
Panasonic AW-UE150 Black: Guide
Panasonic AW-UE150 Black Resolution: Guide
This pro PTZ camera feeds up to UHD 4K 60p over a selection of 4K links among them 12G-SDI, HDMI, optical fiber, and IP broadcasting.
It contains a large 1" type MOS imager, a 20x optical focus with a 75.1° field of view plus PoE++ support. Firmware v2.28 enables the AW-UE150W to provides V-Log feed, UHD cropping at 720p, preset iris switching, plus additional.
get it today from
see the full specs of AW-UE150
| Weight | 7 kg |
|---|---|
| Dimensions | 49 × 39 × 37 cm |
| Signal to Noise Ratio | 60 db |
| Sensitivity | f/9 at 2000 lux |
| White Balance | 2000 to 15,000K |
| Shutter Speed | 1/24 to 1/10,000 sec |
| Digital Zoom | Max 32x (in 1080p) |
| IR Cut Filter | Yes (Night Mode) |
| Optical Zoom Ratio | 20x |
| Focal Length | 8.8 to 176mm(35mm Equivalent Focal Length: 24.5 to 490mm) |
| Field of View | Horizontal: 75.1 to 4° Vertical: 46.7 to 2.3° Diagonal Angle of view: 82.8 to 4.6° |
| Aperture | f/2.8 to 4.5 |
| Minimum Focus Distance | Wide: 9.9 cm Telephoto: 100.6 cm |
| Image Stabilization | Optical |
| Output Formats | SDI, HDMI, RJ45, Optical Fiber: 3840 x 2160p at 24, 25, 29.97, 50, 59.94 fps 1920 x 1080p at 25, 29.97, 50, 59.94 fps 1920 x 1080PsF at 23.98, 25, 29.97 fps 1920 x 1080i at 50, 59.94 fps 1280 x 720p at 50, 59.94 fps |
| Embedded Adio | HDMI SDI |
| IP Streaming | H.264, H.265, MJPEG: 1080p, 720p at 25p, 30p, 50p, 60p (0.51 to 76.8 Mb/s) |
| Move Speed | Pan: 0.08 to 180°/sec Tilt: 0.08 to 180°/sec |
| Movement Range | Pan: 350° (-175 to 175°) Tilt: 120° (-30 to 210°) |
| Tally Light | Yes |
| Supported Control Protocols | RS-232 RS-422 |
| Video Output Connectors | 1 x HDMI Type A (HDMI 2.0) Male 1 x BNC Male (Loop Output) 1 x BNC (3G-SDI) Male |
| Audio Interface | 1 x RJ45 (IP Control, RS-422) |
| Other I/O | 1 x BNC (Genlock) Input |
| Expansion Slots | 1 x SFP+ Slot |
| POE Support | PoE++ 802.3bt |
| Power Connectors | 1 x Proprietary (10.8 to 13.2 V DC) |
| Power Consumption | Power Supply: 10.8 to 13.2 V DC at 4 A PoE: 42 to 57 V DC at 1.2 A |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 50°C |
| Operating Humidity | 20 to 90% |
Key Features
- 1"-Type MOS Sensor
- Up to UHD 4K 60p & HD Simultaneous Out
- 12G-SDI, HDMI, Fiber & IP Transmission
- V-Log Out & UHD Crop with v2.28 Update
- 20x Optical, 24x UHD & 32x HD iZoom
- HDR Mode with BT.2020 Support
- Wide 75.1° Horizontal Viewing Angle
- Up to 180°/Sec Pan/Tilt Speed
- Live Stream to Platforms via RTMP
- Stereo Mini-Jack Audio Mic/Line Input
