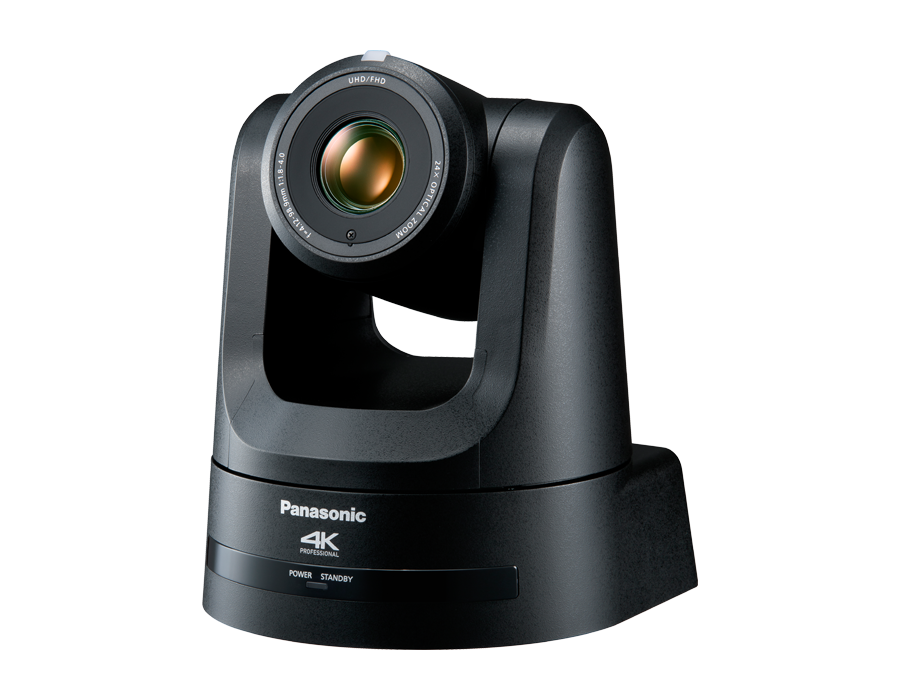

For this model, the black Panasonic AW-UE100 4K NDI Pro 12G-SDI/HDMI PTZ camera with 24x Optical zoom from Panasonic contains a 1/2.5" 4K MOS sensor and feeds over HDMI, or you can use the NDI or NDI|HX protocols to stream footage and audio, control (IP), tally, and power over a one Ethernet cable through PoE++ (Power-over-Ethernet). The unit accommodates uncompressed footage link over NDI and MJPEG, H.265, H.264, and NDI|HX encoding formats. when linked to the Internet, this IP unit enables you to control PTZ actions and display the security monitoring area from an off-site location through a Web browser. This offers you with several benefits like reduced incorporation costs, simple remote workflow and engineering, and lower cost for several location systems. You can additionally control the device via its RS-422 serial source with a separately provided serial PTZ control unit. Equipped with a 24x optical zoom, up to 36x iZoom in 1080p setting, and 28x iZoom in UHD 4K, this PTZ capture device permits you to zoom in on activity in the observation region for a closer look. the lens additionally has a wide 74.1° focus area of see for capturing large conference rooms. It contains HDMI and 12G-SDI feeds as well as its RJ45 Ethernet feed that can transmit 4K footage up to 250 Mb/s. The RTMP/RTMPS broadcasting protocols are supported so you can broadcast live straight to internet broadcasting sites. The camera additionally allows 3.5mm audio source, allowing you to acquisition and embed audio inside the video signal. Other provides of the AK-UE100 are the compatibility for VR/AR systems with the FreeD command feed, a immediate drive configuration for quiet operation, optical and electronic picture stabilization (OIS/EIS), and SRT for secure, dependable transport.
get it from
Feature Highlights
Capture up to UHD 4K60 video
NDI and NDI|HX protocol support
RTMP/RTMPS IP streaming
HDMI, RJ45 Ethernet, and 12G-SDI outputs
Power via AC adapter or PoE++ (Power-over-Ethernet)
Electronic Image Stabilization
Direct Drive for quiet PTZ operation
FreeD VR/AR support
3.5mm audio Input and embedded audio support
Uncompressed NDI and MJPEG, H.265, H.264, and NDI|HX compression format support
24x optical zoom, up to 36x zoom in 1080p
74.1° horizontal field of view
LAN IP and RS-422 serial control options
350° pan range and 240° tilt range
Panasonic AW-UE100 and NDI and NDI|HX: Guide
NDI (Installation Device Connection) goes beyond simply sending footage over IP, and instead of only encoding footage to journeys along Ethernet cable, NDI additionally encodes control, tally, and PoE+. In asset to having to run fewer leads without needing to route power, footage, and control to every camera on-location, now you can connect your body to your installation and deliver full control. NDI|HX brings automated discovery, ultralow-latency footage link, PTZ control and tally, all with a one Ethernet cable.
Audio Capabilities — AW-UE100K
The PTZ camera allows source audio either embedded in the HDMI, SDI, or NDI feed, or through a 3.5millimetres two-channel mini jack
get it from
Image Sensor
1-Chip 1/2.5" MOS Sensor
Horizontal Resolution (TV Lines)
1400 TV Lines
Precise Scan Rate Control
Yes
Max Digital Zoom
36x ( in 1080p)
Optical Zoom Ratio
24x
Focal Length
4.1 to 98.9mm (35mm Equivalent Focal Length: 25 to 600mm)
Field of View
Horizontal: 3.3 to 74.1°
Vertical: 1.9 to 46°
Diagonal: 3.8 to 81.8°
Maximum Aperture
f/1.8 to 4
Image Stabilization
Optical
Digital
Focus Control
Autofocus
Manual Focus
Broadcast System Compatibility
NTSC, PAL
Output Formats
HDMI: 3840 x 2160p at 25, 29.97, 50, 59.94 fps
1920 x 1080p at 23.98, 24, 25, 29.97, 50, 59.94 fps
1920 x 1080PsF at 23.98, 25, 29.97 fps
1920 x 1080i at 50, 59.94 fps
1280 x 720p at 50, 59.94 fps
SDI: 3840 x 2160 at 23.98, 24, 25, 29.97, 50, 59.94 fps
1920 x 1080p at 25, 29.97, 50, 59.94 fps
1920 x 1080PsF at 23.98, 25, 29.97 fps
1920 x 1080i at 50, 59.94 fps
1280 x 720p at 50, 59.94 fps
SKU: AW-UE100KEJ
