SKU: AW-UE100WEJ

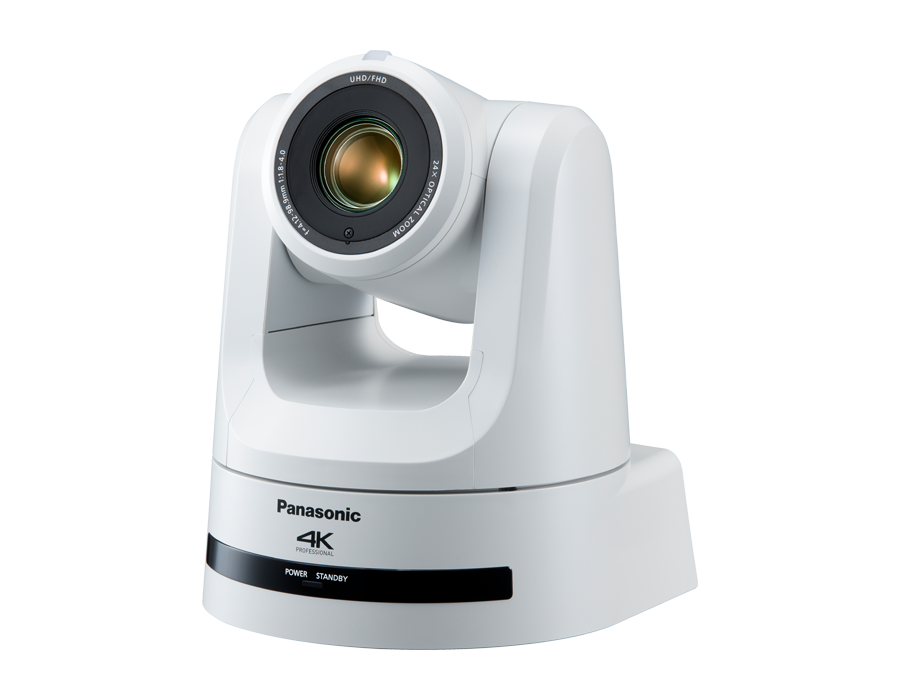

Panasonic AW-UE100 (White)
Panasonic AW-UE100 (White)
In stock
View full details
WhatsApp us for inquiries
Looking first at image acquisition, Panasonic AW-UE100 has white version of the AW-UE100 is the Panasonic PTZ AW-UE100W 4K NDI Pro 12G-SDI/HDMI PTZ Body with 24x Optical zoom from Panasonic provides a 1/2.5" 4K MOS sensor and feeds over HDMI, or you can use the NDI or NDI|HX protocols to stream footage and audio, control (IP), tally, and power over a one Ethernet cable through PoE++ (Power-over-Ethernet).The unit accommodates uncompressed footage link over NDI and MJPEG, H.265, H.264, and NDI|HX encoding formats.
when linked to the Internet, this IP body enables you to control PTZ actions and display the security monitoring area from an off-site location through a Web browser.
This offers you with several benefits like reduced incorporation costs, simple remote workflow and engineering, and lower cost for several location systems.
You can additionally control the device via its RS-422 serial source with a separately provided serial PTZ control unit.
AW-UE100 Fitted with a 24x optical zoom, up to 36x iZoom in 1080p setting, and 28x iZoom in UHD 4K, this PTZ imaging device permits you to zoom in on activity in the observation region for a closer look.
AW-UE100 lens additionally has a wide 74.1° focus area of see for capturing large conference rooms.
It provides HDMI and 12G-SDI feeds as well as its RJ45 Ethernet feed that can transmit 4K footage up to 250 Mb/s.
The RTMP/RTMPS broadcasting protocols are supported so you can broadcast live straight to internet broadcasting sites.
The camera also handles 3.5mm audio source, allowing you to acquisition and embed audio inside the video signal.
Other contains of the AK-UE100 are the compatibility for VR/AR systems with the FreeD command feed, a immediate drive arrangement for quiet operation, optical and electronic picture stabilization (OIS/EIS), and SRT for secure, dependable transport.
<
div class="function_UbV5SNP5Eo">
<
div class="function_UbV5SNP5Eo">
<
div>
when linked to the Internet, this IP body enables you to control PTZ actions and display the security monitoring area from an off-site location through a Web browser.
This offers you with several benefits like reduced incorporation costs, simple remote workflow and engineering, and lower cost for several location systems.
You can additionally control the device via its RS-422 serial source with a separately provided serial PTZ control unit.
AW-UE100 Fitted with a 24x optical zoom, up to 36x iZoom in 1080p setting, and 28x iZoom in UHD 4K, this PTZ imaging device permits you to zoom in on activity in the observation region for a closer look.
AW-UE100 lens additionally has a wide 74.1° focus area of see for capturing large conference rooms.
It provides HDMI and 12G-SDI feeds as well as its RJ45 Ethernet feed that can transmit 4K footage up to 250 Mb/s.
The RTMP/RTMPS broadcasting protocols are supported so you can broadcast live straight to internet broadcasting sites.
The camera also handles 3.5mm audio source, allowing you to acquisition and embed audio inside the video signal.
Other contains of the AK-UE100 are the compatibility for VR/AR systems with the FreeD command feed, a immediate drive arrangement for quiet operation, optical and electronic picture stabilization (OIS/EIS), and SRT for secure, dependable transport.
<
div class="function_UbV5SNP5Eo">
<
div class="function_UbV5SNP5Eo">
AW-UE100 Principal Provides
- Capture up to UHD 4K60 video
- NDI and NDI|HX protocol support
- RTMP/RTMPS IP streaming
- HDMI, RJ45 Ethernet, and 12G-SDI outputs
- Power via AC adapter or PoE++ (Power-over-Ethernet)
- Electronic Image Stabilization
- Direct Drive for quiet PTZ operation
- FreeD VR/AR support
- 3.5mm audio Input and embedded audio support
- Uncompressed NDI and MJPEG, H.265, H.264, and NDI|HX compression format support
- 24x optical zoom, up to 36x zoom in 1080p
- 74.1° horizontal field of view
- LAN IP and RS-422 serial control options
- 350° pan range and 240° tilt range
Practical Notes: NDI|HX and Panasonic AW-UE100W with NDI
NDI (Installation Device Connection) goes beyond simply sending footage over IP, and instead of only encoding footage to journeys along Ethernet cable, NDI additionally encodes control, tally, and PoE+.
In asset to having to run fewer leads without needing to route power, footage, and control to every camera on-location, now you can connect your capture device to your installation and deliver full control. NDI|HX brings automated discovery, ultralow-latency footage link, PTZ control and tally, all with a one Ethernet lead.
<
div>
Audio Capabilities
The PTZ body accommodates source audio either embedded in the HDMI, SDI, or NDI feed, or through a 3.5millimetres two-channel mini jack
| Image Sensor | 1-Chip 1/2.5" MOS Sensor |
| Horizontal Resolution (TV Lines) | 1400 TV Lines |
| Precise Scan Rate Control | Yes |
| Max Digital Zoom | 36x ( in 1080p) |
| Optical Zoom Ratio | 24x |
| Focal Length | 4.1 to 98.9mm (35mm Equivalent Focal Length: 25 to 600mm) |
| Field of View | Horizontal: 3.3 to 74.1° Vertical: 1.9 to 46° Diagonal: 3.8 to 81.8° |
| Maximum Aperture | f/1.8 to 4 |
| Image Stabilization | Optical Digital |
| Focus Control | Autofocus Manual Focus |
| Broadcast System Compatibility | NTSC, PAL |
| Output Formats | HDMI: 3840 x 2160p at 25, 29.97, 50, 59.94 fps 1920 x 1080p at 23.98, 24, 25, 29.97, 50, 59.94 fps 1920 x 1080PsF at 23.98, 25, 29.97 fps 1920 x 1080i at 50, 59.94 fps 1280 x 720p at 50, 59.94 fps SDI: 3840 x 2160 at 23.98, 24, 25, 29.97, 50, 59.94 fps 1920 x 1080p at 25, 29.97, 50, 59.94 fps 1920 x 1080PsF at 23.98, 25, 29.97 fps 1920 x 1080i at 50, 59.94 fps 1280 x 720p at 50, 59.94 fps |
| Embedded Audio | HDMI/SDI: 2-Channel |
| IP Streaming | H.264, H.265, MJPEG: 1080i, 1080p, 720p, 480p, 360p |
| Audio Recording | None |
| Movement Range | Pan: 350° (-175 to 175°) Tilt: 240° (-30 to 210°) |
| Supported Control Protocols | IP RS-422 |
| Video Output Connectors | 1 x BNC (12G-SDI / 3G-SDI) Female 1 x HDMI Type A (HDMI 2.0) Female 1 x RJ45 (NDI) Female |
| Audio I/O | 1 x 1/8" / 3.5 mm Stereo Line Level Input |
| Control Interface | 1 x RJ45 (RS-422) Input |
| Other I/O | 1 x BNC (Genlock) Input |
| PoE Support | PoE++ 802.3bt |
| Power Connectors | 1 x Barrel / Coaxial (10.8 to 13.2 VDC) |
| Power Consumption | Device: 3 A Power Supply: 3 A PoE: 42 to 57 VDC at 1.2 A |
| Dimensions | 8.06 x 6.72 x 6.66" / 204.6 x 170.6 x 169.2 mm |
| Weight | 5.07 lb / 2.3 kg |
Key Features
- 1/2.5" 4K MOS Sensor.
- HDMI, 12G-SDI, NDI & NDI|HX Output.
- 24x Optical Zoom, Capture up to UHD 4K.
- 3.3-74.1° Horizontal Field of View.
- ±175° Pan Range.
- -30 to 210° Tilt Range.
- Optical & Electronic Image Stabilization.
- Embedded Audio & 3.5mm Stereo Analog In.
- MJPEG/H.264/H.265/NDI/NDI|HX Streaming.
