SKU: AW-RP150GJ

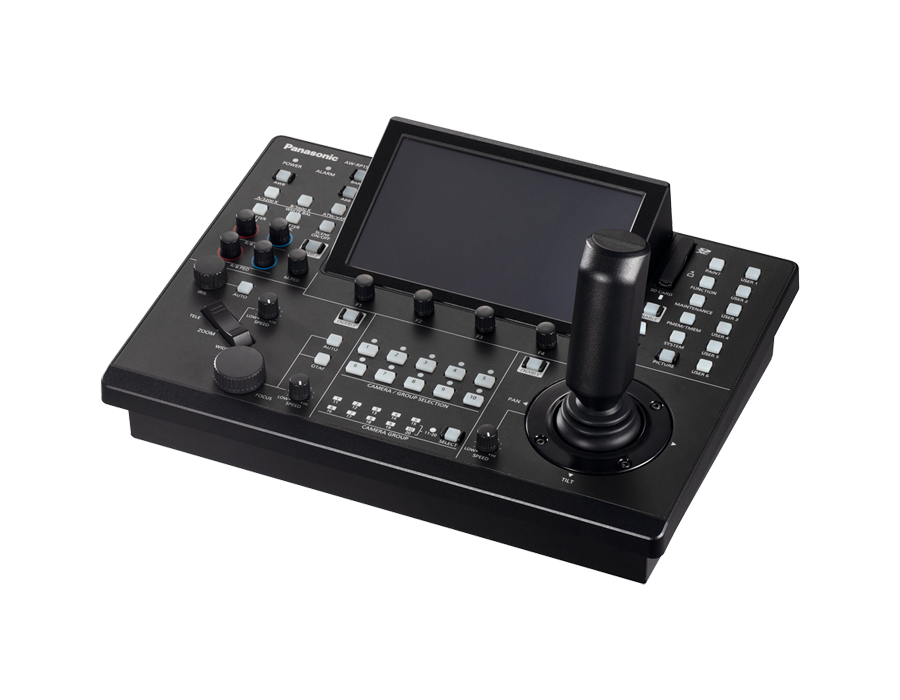

Panasonic AW-RP150GJ

Name: Panasonic AW-RP150GJ
Brand: Panasonic
SKU: AW-RP150GJ
Price: 19100.00 AED
Availability: InStock

In stock

WhatsApp us for inquiries

View full details

At the center of the specification, Panasonic's Touchscreen Off-site Camera Controller enables you to control up to 200 compatible Panasonic PTZ bodies over IP through a routing switch. Or you can control five bodies via direct RS-422 link. Please see the catalogue of supported cameras in the Provides section below. The controller integrates a zoom/focus rocker on the control stick for pan and tilt actions, many onboard buttons, and extra controls inside the 7" touchscreen LCD. It additionally has a SD card slot, which enables saving scene files, arrangement settings files, and other body settings as well as copying parameters over to other bodies. The control unit can be energized over Power-over-Ethernet or a 12V, 4-pin XLR power adapter, sold separately.

Single-Operator Camera operation

A zoom/focus rocker mounted on the control stick manages pan and tilt actions for zoom and focus control and straightforward single-handed operation. The built-in 7" touchscreen display enables easy and fast operation of all important camera functions.

Multiple-Camera Connection: Guide

IP link via a routing hub can be employed to control up to 200 off-site cameras. Up to 5 off-site cameras can be managed in a serial link.

Supported Cameras: Guide

AW-UE150W/K
AW-HR140
AW-HE130W/K
AW-HN130W/K
AW-UE70W/K
AW-UN70W/K
AW-HE40 Series
AW-HN40HW/HK
AW-HE38HW/HK
AW-HN38HW/HK

Touch Panel GUI: Guide

The touch panel GUI monitor allows camera picture display during shooting as well as a selection of actions. The interface is fitted only with keys that are frequently employed, with menu and unit switching actions, indicators, and other controls consolidated in the touchscreen panel GUI.

Touch Focus: Guide

The concentrate is quickly aligned to the region touched by tapping the display. In asset, the "focus in Red" screen assists with aligning focus by composition the part that is in concentrate in red.

Settings Copied to Multiple Cameras: Guide

Scene files, setup settings files, and other unit settings can be saved to a SD medium. These parameters can then be copied to several cameras through the SD card. This massively lowers location setup time whenever shooting at productions with large numbers of cameras.

Smooth Cropped Images: Guide

Whenever the control unit is employed with the AW-UE150W/K body, the cropping function of the body can be controlled from a distance. Images feed from the body to the display can be cropped in three distinct locations shown with colour-coded frames (yellow/green/magenta), and adjusted with the control stick as you watch. Required pictures can be cropped accurately and simply.

Preset Memory for Simple Camera operation

Registration of the unit angle and other off-site camera settings enables the parameters to be readily recalled from the touchscreen panel GUI monitor. Supported presets incorporate pan and tilt position, concentrate position, white equilibrium settings, crop position coordinates, zoom position, optics aperture (manual iris only), and gain.

Tracing Memory: Guide

The tracing memory function records a range of actions performed for the off-site camera. Up to 5 minutes for 10 actions can be memorized for a one camera and that trajectory can then be rendered. Supported presets incorporate pan and tilt position, concentrate position, white equilibrium settings, zoom position, optics aperture (manual iris only), and gain.

Tally/GPIO 1/GPIO 2: Guide

Source/feed switched via menu settings.

Number of Supported Cameras	200 Channels via IP 5 Channels via RS-422
Control Interface	1 x RJ45 (LAN)
Other I/O	2 x 25-Pin D-Sub (GPI, Tally) 5 x RJ45 (RS-422, Tally)
Video Connectors	1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) (Loop Output)
Controls	10 x Camera Selection Buttons
Memory Card Slot	1 x SDXC
