SKU: AW-HE20KEJ

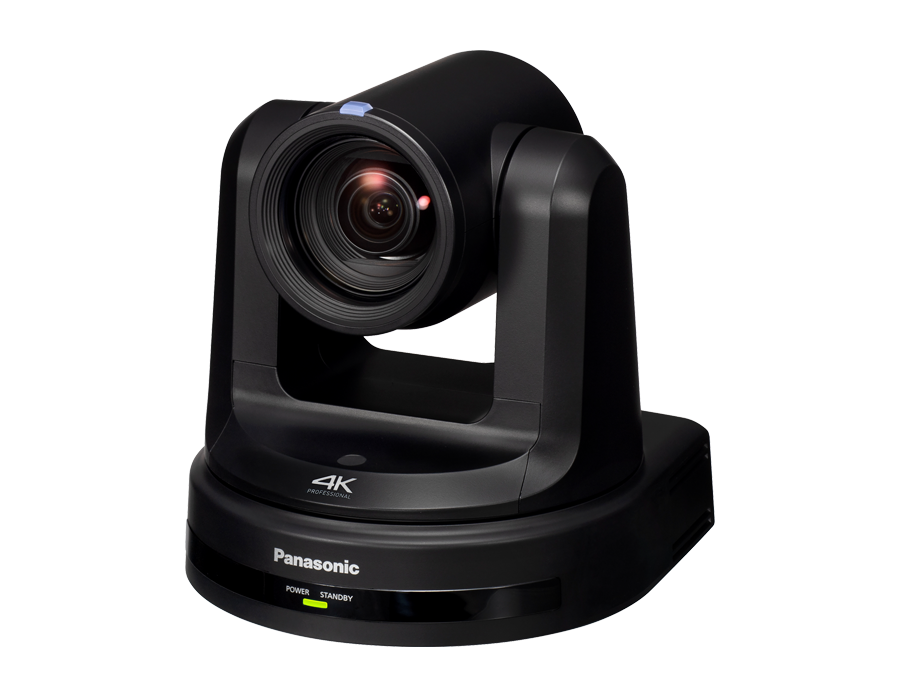

Panasonic AW-HE20K (Black)
Panasonic AW-HE20K (Black)
In stock
View full details
WhatsApp us for inquiries
At the point of image capture, the black AW-HE20 3G-SDI/HDMI/IP/USB PTZ camera with 12x Optical zoom from Panasonic supplies a selection of choices for your meeting space, house of worship, or education sites that require high-quality 1080p footage output and recording. The camera contains a 1/2.8" MOS imager, HDMI and 3G-SDI feeds, RJ45 LAN broadcasting support, USB webcam feed, mic/line audio source, and serial control. when linked to the Internet, this IP imaging device enables you to control PTZ actions and display the security monitoring area from an off-site location through a Web browser.
Fitted with a 3.9 to 46.8millimetres zoom optics and 12x optical zoom, this PTZ camera permits you to zoom in on activity in the observation region for a closer look. Other attributes incorporate auto white equilibrium, RS-232/RS-422 serial control, LAN control, UVC communication through USB, 170° panning selection, -30 to 90° tilt selection, H.265/H.264/MJPEG footage compression, and RTSP/RTMP broadcasting. The camera additionally handles mic and line audio source, allowing you to acquisition and embed audio inside the video signal. It is additionally PoE+ compatible, enabling you to power the unit through only the one LAN cable rather than adding extra power interface cables.
contact us
| Image Sensor | 1-Chip 1/2.8" MOS Sensor |
| Built-In ND Filter | None |
| Flip / Mirror Support | Image Flip |
| Optical Zoom Ratio | 12x |
| Focal Length | 3.9 to 46.8mm |
| Field of View | Horizontal: 6 to 71° Vertical: 3 to 43° Diagonal: 7 to 79° |
| Maximum Aperture | f/1.6 to 2.8 |
| Focus Control | Autofocus Manual Focus |
| Broadcast System Compatibility | NTSC, PAL |
| Output Formats | HDMI: 1920 x 1080p at 25, 29.97, 50, 59.94, 60 fps 1920 x 1080i at 50, 59.94, 60 fps 1280 x 720p at 50, 59.94, 60 fps SDI: 1920 x 1080p at 25, 29.97, 50, 59.94, 60 fps 1920 x 1080i at 50, 59.94, 60 fps 1280 x 720p at 50, 59.94, 60 fps |
| Embedded Audio | HDMI/SDI: 2-Channel |
| IP Streaming | H.264, H.265, MJPEG, RTP, RTSP, TCP, UDP: 1080p, 720p, 360p |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IP RS-232 RS-422 |
| Video Output Connectors | 1 x BNC (3G-SDI) Female 1 x HDMI Type A Female 1 x USB 2.0 Type-B (USB Video) Female 1 x RJ45 (HX / NDI) Female |
| Audio I/O | 1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input |
| Control Interface | 1 x RJ45 (LAN) Input 1 x 8-Pin Mini-DIN (RS-232) Input 1 x 8-Pin Mini-DIN (RS-232) Output 1 x RJ45 (RS-422) Output |
| PoE Support | PoE+ 802.3at |
| Power Connectors | 1 x Barrel / Coaxial (10.8 to 13.2 VDC) |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 122°F / -20 to 50°C |
| Operating Humidity | 20 to 90% |
Key Features
- 1/2.8" Full HD MOS Sensor
- Up to 1080p 3G-SDI/HDMI/IP/USB Output
- 12x Optical Zoom
- ±170° Pan, -30 to 90° Tilt
- LAN, UVC, and Serial Control
- Mic/Line Stereo Audio Input
- PoE+ Compatible
