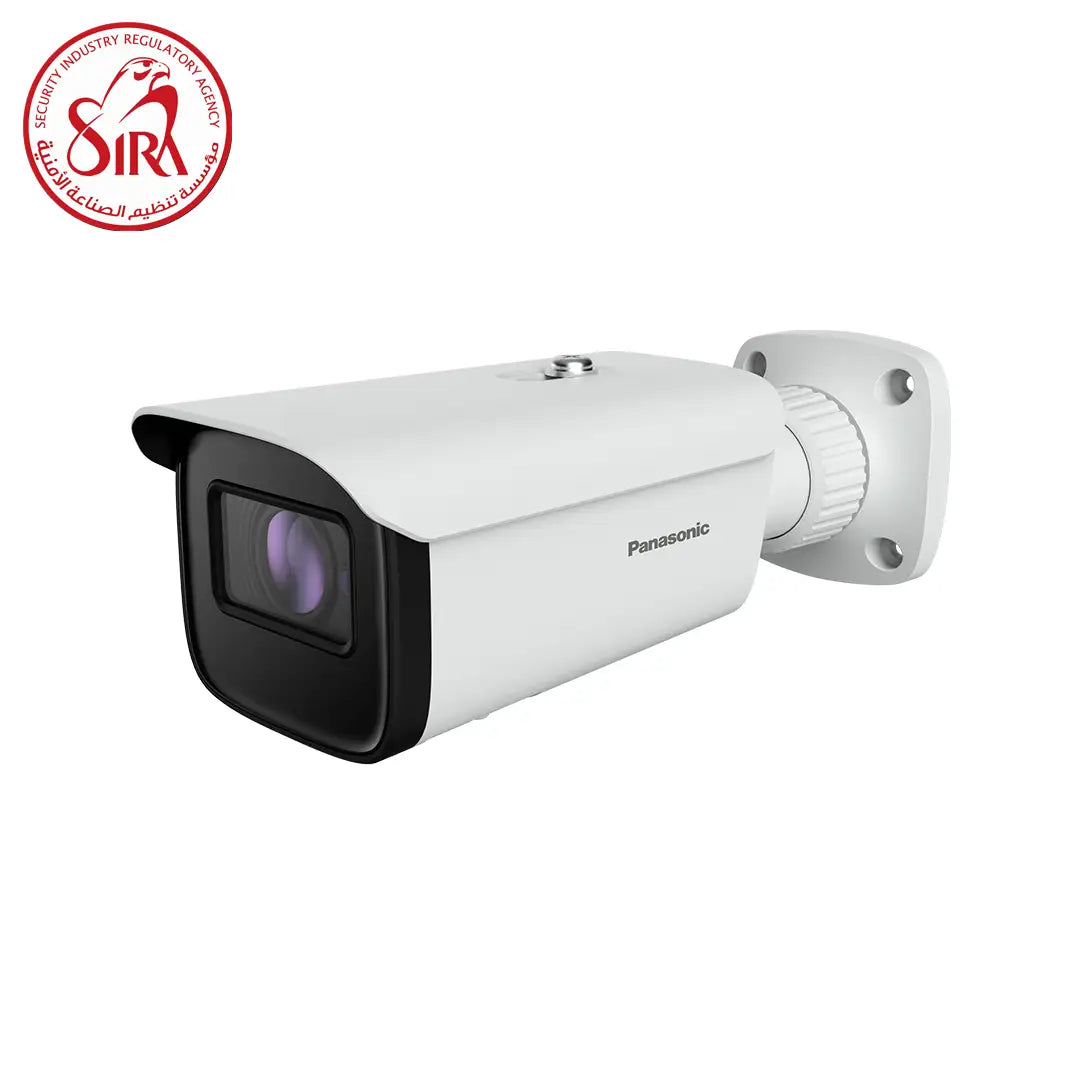

Panansonic PM-VB5ULFR-W 5MP Bullet CCTV Camera

5MP Fixed Bullet Network Camera - Model PM-VB5ULFR-W: Guide

guide:

Key capabilities: — PM-VB5ULFR-W

• Image & Video Quality:
  • 5 Megapixels (2880×1624) resolution
  • 1/2.5" CMOS image sensor
  • Fixed 3.6mm lens, F1.6
  • Day/Night functionality with ICR (Infrared Cut Removal) auto switch
  • True Wide Dynamic Range (WDR) of 120dB
  • Starlight technology for enhanced low-light performance
  • Minimum illumination: 0.005 lux @ F1.6, 0 lux with IR
  • Image enhancement features: 3D Digital Noise Reduction (DNR), Back Light Compensation (BLC), High Light Compensation (HLC), Defog, Smart IR
  • Field of View: Horizontal - 79°, Vertical - 39°, Diagonal - 96°
• Infrared Night Vision:
  • 30 to 50 meters IR distance for night monitoring
  • Smart IR ensures optimal illumination
• Footage Compression:
  • Supports H.265+/H.265/H.264+/H.264/MJPEG
  • Triple stream support
  • Variable (VBR) or Constant Bit Rate (CBR) options
  • Video resolution options: 5MP, 4MP, 1080P, 720P, D1, VGA, CIF
• Smart Integrates:
  • Intelligent video analytics including line crossing, region intrusion, abandoned/missing object detection, loitering detection, illegal parking detection
  • Target counting and heat map for statistical purposes
  • People/vehicle classification
  • Scene change, video blur, and abnormal color detection
  • Face detection and capture capabilities
  • Exception detection for audio anomalies
• Audio & Network:
  • Built-in microphone, with 1 audio input and 1 audio output
  • RJ45 10M/100M Ethernet port
  • Supports microSD card (up to 256GB)
  • 1 alarm input and 1 alarm output for external integration
  • ONVIF compliant for system integration
• DORI Distance:
  • Detect: 102m (334ft)
  • Observe: 41m (133ft)
  • Recognize: 20m (67ft)
  • Identify: 10m (33ft)
• Power & Setting:
  • Power supply: DC12V/PoE (IEEE802.3af)
  • Power consumption: Less than 10.5W
  • IP67-rated weatherproof and dustproof protection
  • Operating temperature: -30°C to 60°C (-22°F to 140°F)
  • Vandal-resistant IK10-rated housing for added durability
• Security:
  • Multi-layer encryption: Video, firmware, and HTTPS encryption
  • IP address filtering, illegal login lock, 802.1x authentication

Physical deployment Details:&

• Dimensions: 218.1 × 70.4 × 80.3 mm
• Weight: Approx. 0.73 kg
• Mounting Options:
  • Wall, pole, and ceiling mount brackets available
  • Optional junction box for secure installation

Certifications:: Guide — PM-VB5ULFR-W

• Environmental Protection: Complies with EU RoHS, WEEE, and REACH directives
• EMC: CE/EN 55032:2015+A11:2020, EN 55035:2017+A11:2020
• Safety: IEC 62368-1:2020+A11:2020
• Sira: This camera is Sira Approved

Optional Accessories:: Guide — PM-VB5ULFR-W

• Mounting Brackets:
  • Pole Mount Bracket (PM-YZJ0601-W)
  • Corner Mount Bracket (PM-YZJ0810-W)
  • Ceiling Mount Bracket (PM-YZJ0501-W)
