SKU: PM-EN8CH

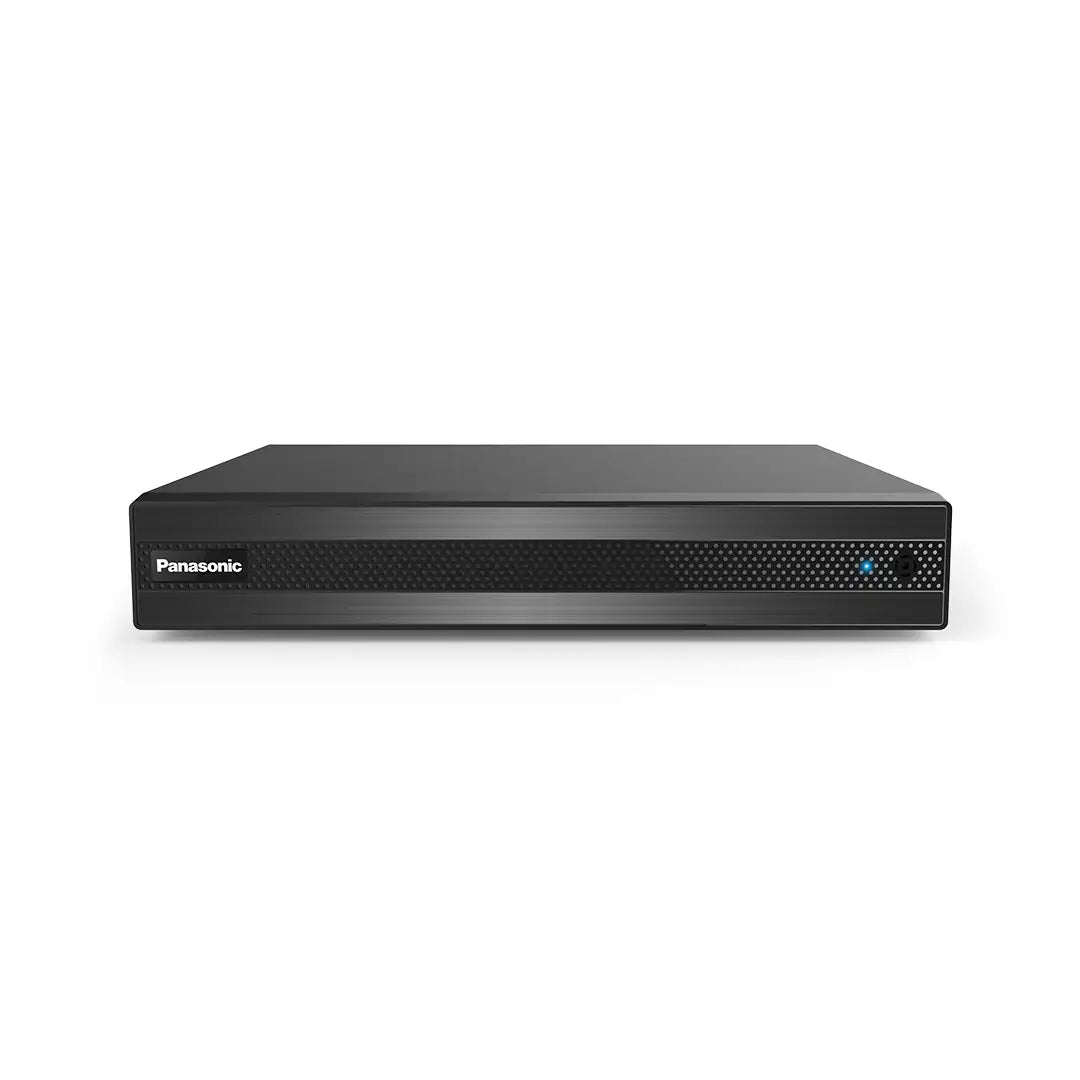

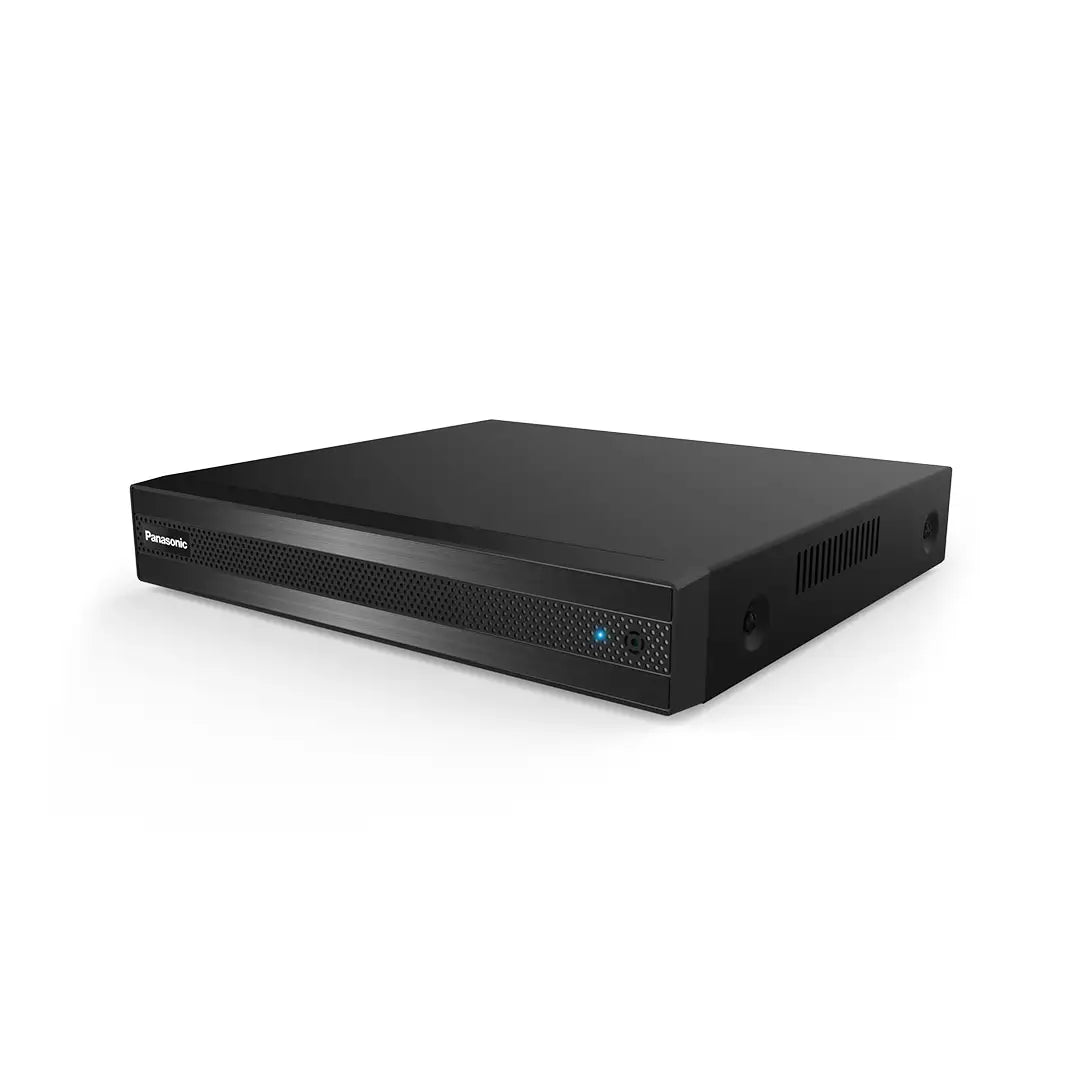

Panansonic PM-EN8CH 8 Channels Network Video Recorder
Panansonic PM-EN8CH 8 Channels Network Video Recorder
In stock
View full details
WhatsApp us for inquiries
Panasonic PM-EN8CH 8-Channel Network video signal Recorder
On the capture side, the PM-EN8CH is an enhanced 8-Channel Network Video Recorder (NVR), developed for high-definition capture and streamlined administration of network cameras. With support for 8 PoE ports, The recorder streamlines deployment for security monitoring systems because attached cameras receive power straight via Ethernet cables. Designed for compact and mid-sized surveillance deployments, it provides extensive features covering review, archive export, and off-site operation.
Key capabilities: — PM-EN8CH
- 8 IP Camera Channels: Supports 8 channels of IP camera input with resolutions ranging from 6MP down to CIF, providing flexibility for various camera types.
- H.265/H.265+/H.264 Compression: Efficient video compression standards minimize storage needs while maintaining high-quality video streams.
- Simultaneous Playback: Offers 8-channel simultaneous playback for easy review of recorded footage.
- High-Resolution Display: Outputs 1080P high-definition video via HDMI and VGA outputs.
- Multi-Mode Recording: Supports manual, timed, motion detection, sensor-based, and AI recording for flexible security setup.
- Smart Search: Search through footage using time slice, event, tag, and smart search for quick access to important moments.
- Video Content Analytics (VCA): Supports advanced analytics like region intrusion detection, tripwire, and other smart events.
- Remote Monitoring: Access live footage and playback remotely through mobile apps for iOS and Android or via Web Client.
- PTZ Control: Supports PTZ presets (up to 255) and auto cruise (up to 8 cruises), offering control over pan, tilt, and zoom cameras.
Specifications:: Guide — PM-EN8CH
- Operating System: Embedded Linux
- Video Inputs: 8-channel IP input
- Video Compression: H.265S, H.265+, H.265, H.264
- Audio Input/Output: 8-channel IPC audio input, G.711 (U/A) compression
- Recording Resolution: Supports 6MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, D1, CIF resolutions
- Playback: 1-channel 6MP or 4-channel 1080P live view and playback
- Network Bandwidth: 64Mbps incoming and outgoing bandwidth
- PoE Ports: 8 PoE ports (100Mbps), providing up to 72W total power output
- Storage: 1 SATA port, supporting up to 10TB HDD
- USB Ports: 2 USB 2.0 ports for backup and other functions
- Power Supply: DC48V/1.8A (power adapter included)
- Power Consumption:?50W (excluding HDD and PoE)
- Dimensions: 255mm x 222mm x 42mm (W x D x H)
Additional capabilities:
- Protocols Supported: TCP/IP, HTTP, HTTPS, DHCP, DDNS, RTP, RTSP, IPv4/IPv6, FTP, SNMP, ONVIF, and more.
- Client Connection: Supports up to 64 users accessing the system simultaneously.
- PTZ Support: Preset up to 255 positions and 8 cruise paths for PTZ cameras.
- Alarm Inputs/Outputs: Configurable alarm inputs and outputs for triggering actions like recording or snapshots.
- Mobile App Support: Remote access and control via mobile applications for iOS and Android.
Certifications:: Guide — PM-EN8CH
- EMC: CE, EN55032:2015+A11:2020, EN IEC 61000-3-2:2019+A1:2021
- Safety: IEC 62368-1:2020+A11:2020
- RoHS Compliance: 2011/65/EU
Applications:: Guide — PM-EN8CH
The PM-EN8CH suits homes and retail locations, workplaces and similarly compact sites where dependable, high-quality capture and remote access are essential. PoE capability combines with intelligent analytics, allowing this NVR to supply a complete security option for modern security monitoring needs.
Locate us: https://goo.gl/maps/YZQmjfG5vYQS3ZLU7
Key Features:
- Support 8CH 6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF IP inputs
- H.265S/H.265+/H.265/H.264 coding
- Playback: 8 CH simultaneous playback
- Supports HDD SATA x1, Max 10TB
- 1080P output, true high resolution display
- Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration.
- DHCP, DDNS, PPPoE network protocol, etc
